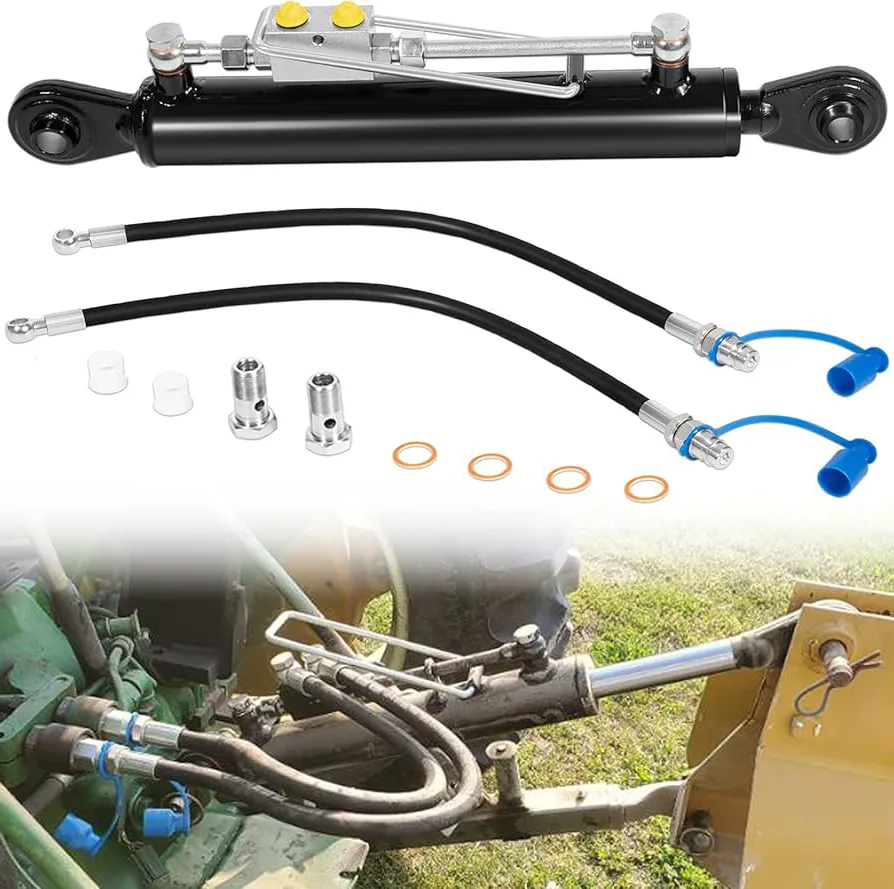

Category Cat 1 Hydraulic Top Link 520-740mm 20.5"-29.1" Toplink 19mm Ball ends

Cat 1 Hydraulic Top Link 520-740mm 20.5"-29.1" Toplink 19mm Ball ends

The Category 1 Hydraulic Top Link with a range of 520-740mm (20.5"-29.1") and 19mm ball ends is an essential component for agricultural machinery, specifically designed to enhance the functionality and efficiency of tractors. This hydraulic top link serves as a critical connector in the three-point hitch system of a tractor, allowing for precise control and adjustment of mounted implements.The hydraulic feature enables the operator to easily modify the length of the top link from the comfort of the tractor seat, facilitating rapid adjustments to suit various terrains or tasks. This adjustability ensures optimal implement positioning, improving performance and reducing wear on the machinery.Constructed from durable materials, this top link is built to withstand the demanding conditions of agricultural work. The 19mm ball ends provide a robust connection point, ensuring stability and security during operation. This component is particularly useful for tasks such as plowing, tilling, or mowing, where varying the angle and height of implements can significantly affect efficiency and results.

Specifications of Cat 1 Hydraulic Top Link 520-740mm 20.5"-29.1"

Eye to eye closed:	520mm (20.5")
Eye to eye open:	740mm (29.1")
Category:	1 (19mm hole)
Inside diameter:	50mm
Ouside diameter:	60mm
Shaft diameter:	30mm
Pull capacity:	2300Kg
Push capacity:	3600kg
Length of pipes:	740 mm

Features of Category 1 Hydraulic Top Link for Tractor

The Category 1 Hydraulic Top Link with a length range of 520-740mm (20.5"-29.1") and 19mm ball ends boasts a variety of features that make it a valuable component for agricultural machinery:

• Adjustable Length: The hydraulic top link offers an adjustable length from 520mm to 740mm (20.5" to 29.1"), providing flexibility for various agricultural tasks. This adjustability allows operators to easily modify the top link length to accommodate different implement requirements, enhancing the versatility and adaptability of the tractor's three-point hitch system.
• Hydraulic Operation: This top link features hydraulic operation, enabling smooth and effortless adjustments directly from the tractor seat. The hydraulic mechanism allows precise control over the implement's angle and height, significantly improving efficiency during field operations. This ease of use reduces downtime and increases productivity for farmers and operators.
• Durable Construction: Built from high-quality, robust materials, the hydraulic top link is designed to withstand the rigorous demands of agricultural work. Its durability ensures a long service life, even under challenging conditions, providing reliable performance for various tasks. This construction reduces maintenance needs and enhances overall cost-effectiveness.
• 19mm Ball Ends: Equipped with 19mm ball ends, this top link ensures a secure and stable connection between the tractor and implements. The ball ends facilitate smooth pivoting and adjusting, minimizing stress on the equipment. This feature is crucial for maintaining the integrity of both the tractor and the attached implements during operation.
• Enhanced Implement Control: By allowing precise adjustments, the hydraulic top link improves implement control, ensuring optimal positioning for different tasks. Whether plowing, tilling, or mowing, operators can easily adjust the implement angle to achieve the best results. This control enhances efficiency and effectiveness, leading to better quality outcomes in agricultural work.
• Versatility Across Tasks: This hydraulic top link enhances the tractor's versatility, enabling it to handle a wide range of implements and tasks. From heavy-duty plowing to delicate landscaping, the adjustable link provides the necessary flexibility to meet diverse agricultural needs. This adaptability makes it a crucial component for farmers seeking multifunctional equipment.

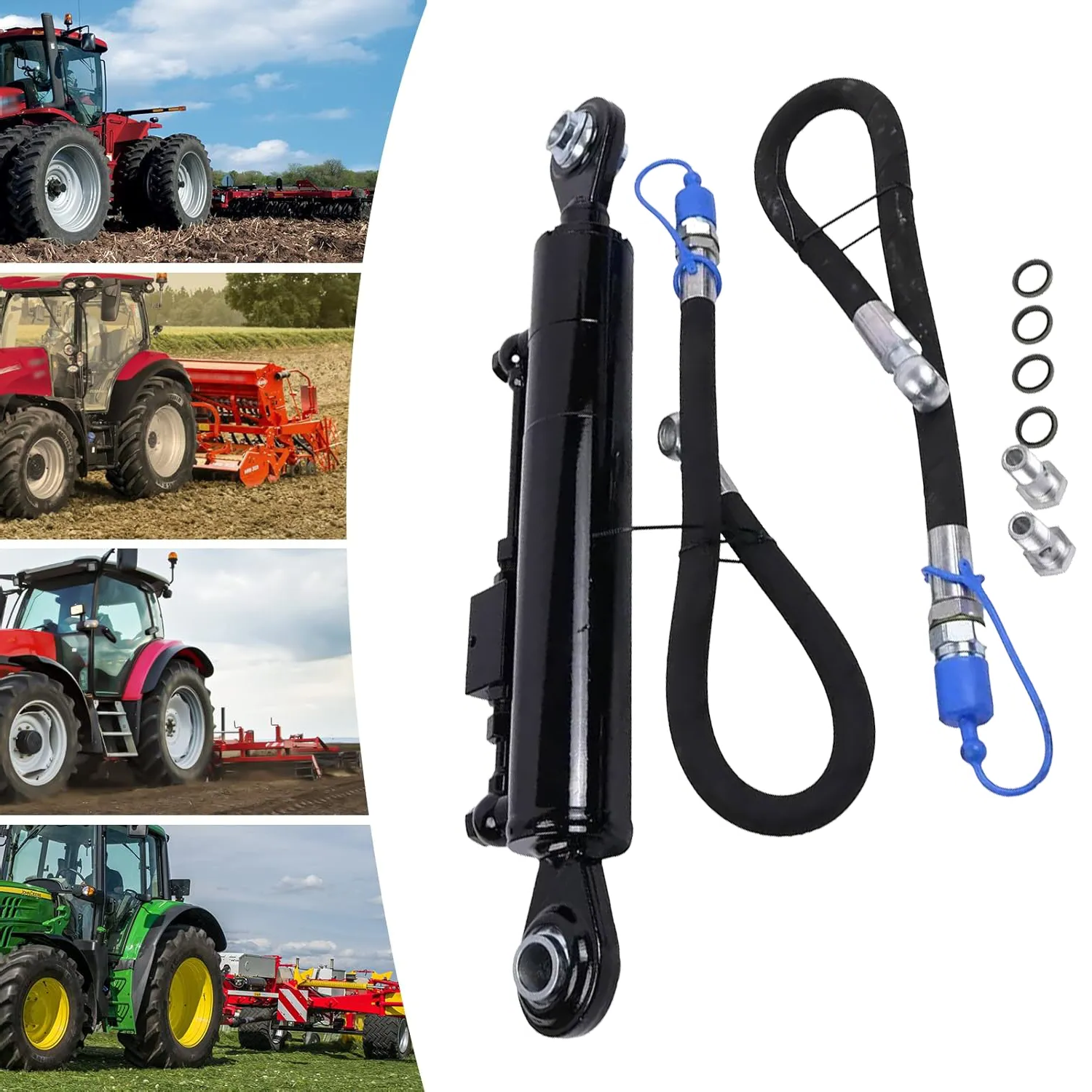

Applications of Hydraulic Toplink Cat 1 for Tractor

The hydraulic top link Category 1 for tractors is a versatile component that finds numerous applications in agricultural operations. Here are some common applications of a hydraulic top link Category 1 for tractors:

1. Plowing: The hydraulic toplink allows for precise control of the plow's angle and depth, optimizing soil turnover and penetration. This precision ensures efficient plowing by adapting to different soil conditions, improving the quality of the work and reducing fuel consumption. It also helps in minimizing soil compaction and enhancing crop yields.
2. Tilling: When tilling, the hydraulic toplink enables quick adjustments to the tiller's position, ensuring consistent soil preparation. This flexibility allows operators to adapt to varying field conditions, ensuring uniform seedbeds. The ability to modify the angle and depth enhances the effectiveness of seedbed preparation, promoting better germination and growth.
3. Mowing: For mowing applications, the hydraulic toplink helps maintain an even cut by adjusting the mower's height and angle. This ensures a cleaner, more consistent cut across uneven terrain. Efficient mowing reduces the strain on the tractor and mower, extending their lifespan and improving the aesthetic appearance of fields.
4. Grading: In grading tasks, the toplink facilitates precise control over blades and scrapers, allowing for smooth leveling of surfaces. Its adjustability ensures accurate contouring and removal of high spots, which is crucial for road maintenance and landscape projects. This precision helps avoid excessive material movement, saving time and resources.
5. Landscaping: For landscaping, the hydraulic toplink assists in accurately positioning equipment like box blades and rakes. This precision is essential for creating smooth, aesthetically pleasing landscapes. The ability to adjust implement angles quickly allows for efficient shaping and grading, improving the quality and appearance of landscaped areas.
6. Snow Removal: During snow removal, the hydraulic toplink helps adjust snow blades or blowers for optimal clearing. This adjustability ensures efficient removal by maintaining the correct angle and pressure, preventing damage to both the equipment and surfaces. Efficient snow management enhances safety and accessibility during winter conditions, reducing operational challenges.

Cat 1 Hydraulic Top Link vs. Cat 2 Hydraulic Top Link

The primary difference between a Cat 1 Hydraulic Top Link and a Cat 2 Hydraulic Top Link lies in their size, strength, and intended use. Cat 1 top links are designed for smaller, compact tractors typically used in light agricultural tasks, such as gardening or small-scale farming. They usually have a pin diameter of 19mm and are suitable for implements that do not require heavy-duty support.In contrast, Cat 2 top links are built for larger, more powerful tractors used in extensive farming operations. They have a larger pin diameter, typically 25mm, providing greater strength and stability for heavier implements. The increased robustness of Cat 2 top links makes them ideal for demanding tasks like plowing large fields or working with substantial equipment. Additionally, Cat 2 top links generally have a higher adjustment range to accommodate the greater versatility required for larger implements. This distinction ensures that each category is optimized for the specific demands of different farming scales and equipment sizes.

Feature	Cat 1 Hydraulic Top Link	Cat 2 Hydraulic Top Link
Pin Diameter	19mm	25mm
Tractor Size	Smaller, compact tractors	Larger, more powerful tractors
Weight Capacity	Lower weight capacity	Higher weight capacity
Use Case	Light agricultural tasks	Extensive farming operations
Implements	Smaller implements	Larger, heavier implements
Adjustability	Shorter adjustment range	Longer adjustment range
Durability	Suitable for light-duty work	Designed for heavy-duty work
Typical Tasks	Gardening, small-scale farming	Plowing large fields, heavy equipment tasks
Cost	Generally less expensive	Generally more expensive
Stability	Less stable with heavy loads	More stable with heavy loads
Material Strength	Lower material strength	Higher material strength
Compatibility	Compatible with Cat 1 implements	Compatible with Cat 2 implements
Hydraulic Pressure	Lower hydraulic pressure capacity	Higher hydraulic pressure capacity
Mounting Ease	Easier to mount on smaller tractors	Requires more effort to mount on larger tractors
Flexibility	Less flexibility in heavy-duty applications	Greater flexibility in various applications
Typical Applications	Light landscaping, small gardens	Large-scale farming, forestry, construction

Cat 1 Hydraulic Top Link	Cat 2 Hydraulic Top Link

Why Choose Raydafon's Hydraulic Top Links?

Raydafon is a leading manufacturer and supplier specializing in the production and sales of hydraulic top links. With a robust infrastructure and advanced technology, we operate on a large scale, ensuring high-quality manufacturing processes and innovative solutions. Our team of skilled engineers and technicians is dedicated to continuous improvement and excellence, positioning us as a formidable force in the agricultural machinery industry.Our hydraulic top links are designed with precision and durability, offering features such as adjustable lengths and robust construction to handle various agricultural tasks. These products provide unmatched advantages in flexibility, ease of use, and efficiency, making them ideal for applications with rotary mowers, land levelers, disc ploughs, forage harvesters, snow blowers, and post hole diggers. Our products not only enhance the performance of your implements but also ensure operational safety and productivity across different terrains and conditions.At Raydafon, our expertise and influence in the hydraulic top link sector are unparalleled. We pride ourselves on our professionalism, international certifications, and ability to deliver customized solutions tailored to our clients' needs. Our state-of-the-art production facilities and comprehensive after-sales service reinforce our commitment to customer satisfaction. We offer a wide range of products, including Cat 2 hook hydraulic top links, Cat 3 hook hydraulic top links, Cat 3 hydraulic top links, Cat 2 hydraulic top links, and Cat 1 hydraulic top links, catering to diverse requirements and ensuring optimum performance for every task.

FAQs:

Q: What is a Cat 1 Hydraulic Toplink?A: A Cat 1 Hydraulic Toplink is an adjustable hydraulic cylinder used in agricultural machinery to connect and control the angle of implements to tractors. It replaces the traditional manual top link, allowing for more precise adjustments from the tractor's seat, enhancing operational efficiency.Q: How does the hydraulic toplink improve efficiency?A: By enabling on-the-go adjustments, the hydraulic toplink allows operators to quickly modify implement angles without leaving the tractor. This feature significantly reduces downtime and increases productivity, especially during tasks that require frequent changes, such as plowing or tilling.Q: What types of equipment can use a Cat 1 Hydraulic Toplink?A: This hydraulic toplink is compatible with Category 1 three-point hitch systems, commonly found on smaller tractors. It is suitable for various implements, including plows, harrows, and mowers, providing flexibility and enhanced control for diverse farming operations.Q: What are the installation requirements for a Cat 1 Hydraulic Toplink?A: Installation requires a tractor equipped with a hydraulic system capable of connecting to the toplink's hoses. Users should ensure that their tractors have the necessary hydraulic ports and sufficient pressure capacity to operate the toplink effectively and safely.Q: How do you maintain a hydraulic toplink?A: Regular maintenance involves checking for hydraulic fluid leaks, ensuring fittings and hoses are secure, and lubricating moving parts. Keeping the cylinder clean and inspecting for any signs of wear or damage are crucial for prolonging the toplink's lifespan and maintaining optimal performance.Q: What safety precautions should be taken when using a hydraulic toplink?A: Operators must follow safety protocols such as depressurizing the hydraulic system before maintenance, wearing protective gear, and ensuring all connections are secure. Understanding the tractor's hydraulic system and the toplink's operation manual can prevent accidents and ensure safe usage.Q: Can a Cat 1 Hydraulic Toplink be used with any tractor?A: While designed for Category 1 three-point hitches, compatibility depends on the tractor's hydraulic system and specifications. It's essential to verify that the toplink matches the tractor's capabilities, including hydraulic pressure and connection points, for safe and efficient use.Q: What are the benefits of using a hydraulic toplink over a manual one?A: A hydraulic toplink offers easier, more precise adjustments, reducing manual labor and physical strain. It enhances the tractor's versatility and allows operators to make quick modifications to implement angles, improving the effectiveness of various agricultural tasks.Q: How do you troubleshoot common issues with a hydraulic toplink?A: Common issues include leaks, loss of pressure, and sluggish movement. Troubleshooting involves checking hydraulic connections, inspecting hoses for damage, and ensuring the hydraulic fluid is at the correct level. Consulting the manufacturer's manual and seeking professional assistance when needed can resolve most issues effectively.
