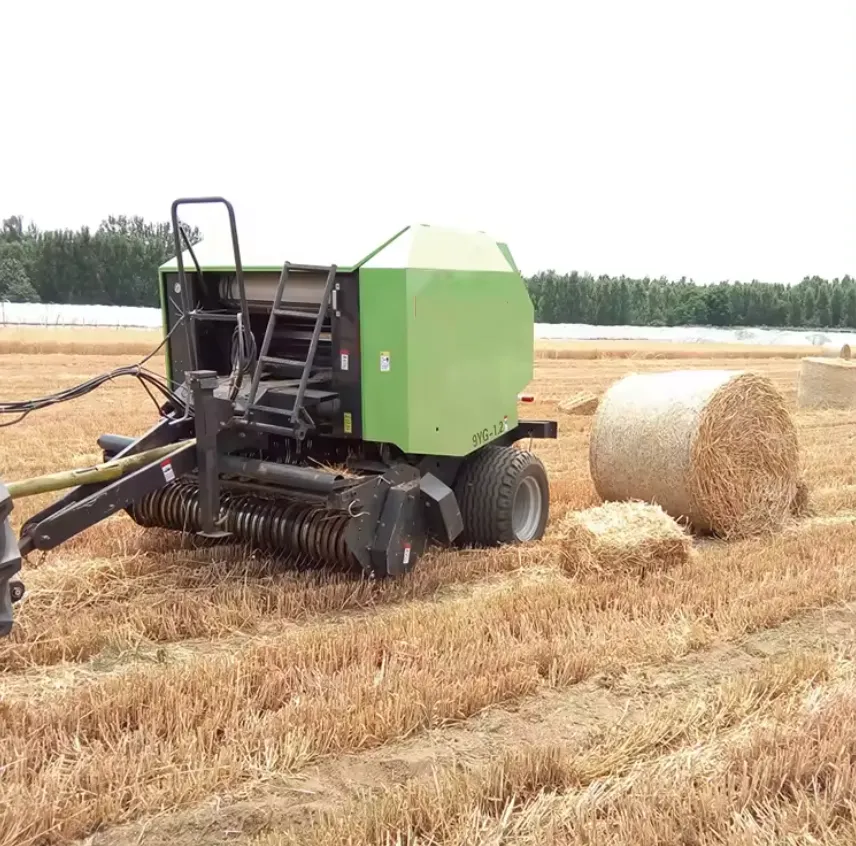

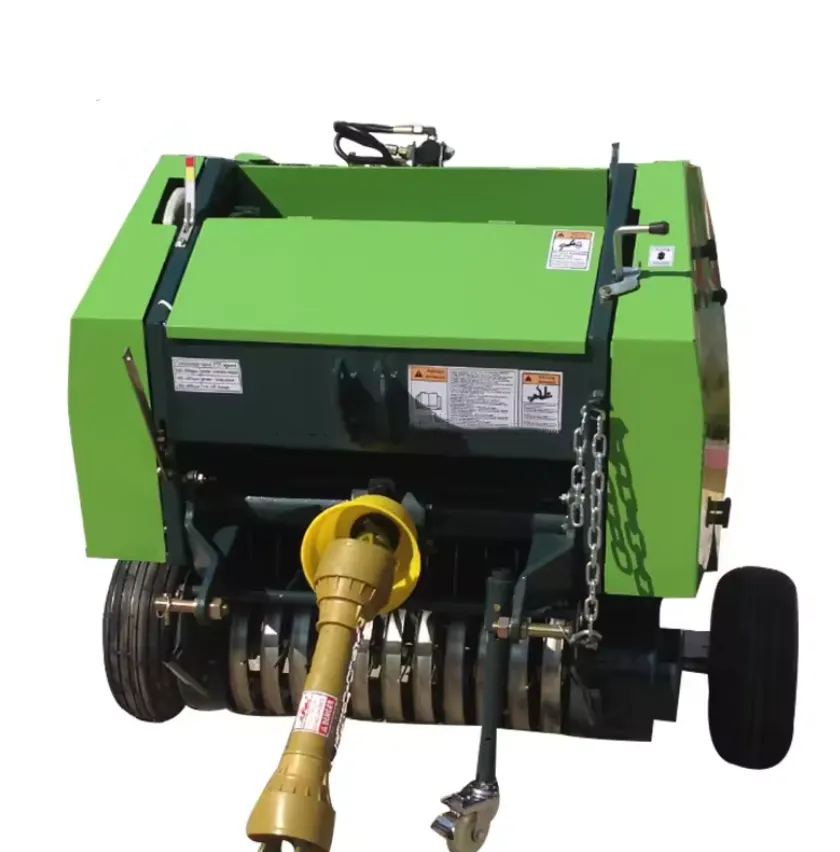

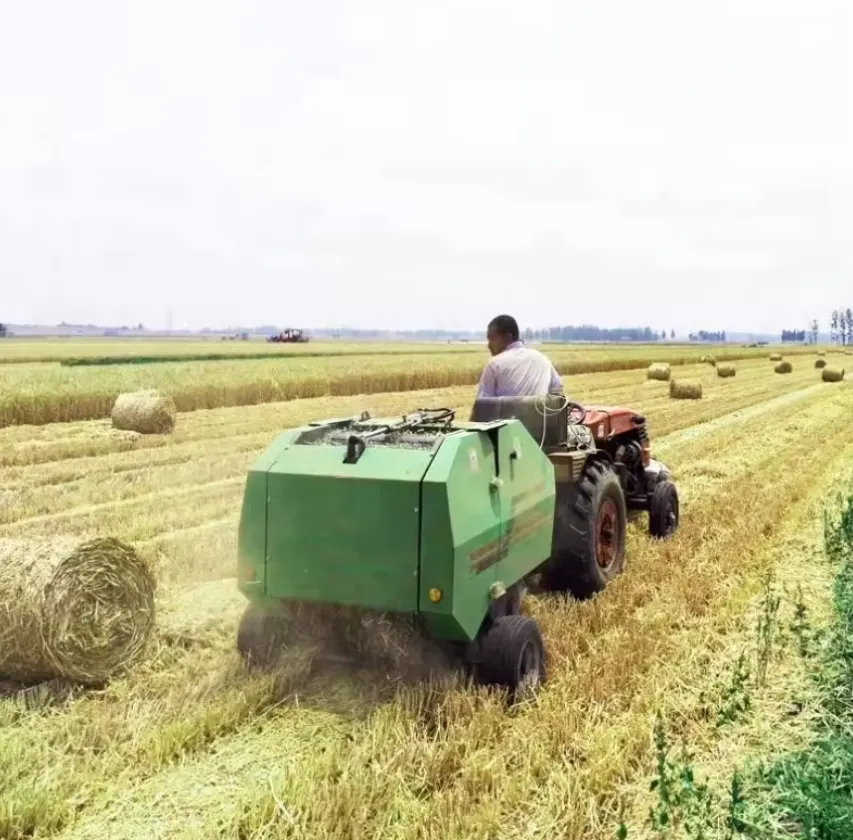

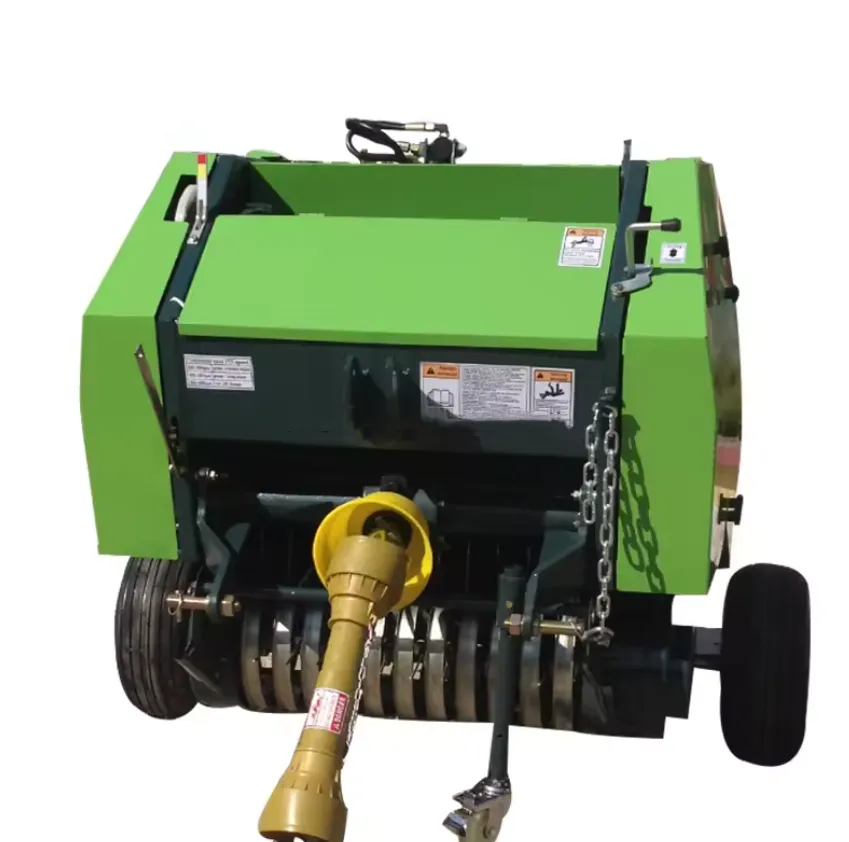

CE Approved Mini Hay And Grass Baler For Europe Market

Introducing our CE Approved Mini Hay and Grass Baler, optimized for the European market. This machinery is a round baler type with an operating speed of 2-5 km/h. It's brand new, with model numbers RXYK0850 and RXYK0870. Its application covers a wide range of agricultural materials including hay, cornstalk, wheat, and rice straw. Dimensionally, it measures 1300x1300x1350mm and weighs 390kg. It comes with a one-year warranty and after-sales service that includes engineers available to service machinery overseas. The pickup width is 800mm, and its working efficiency ranges from 80-120 bales/hour. The baler requires a tractor power of 18-50HP and operates at a PTO of 540 rpm. Its bale size is either 500x700mm or 610x700mm. Additionally, it comes with a tire size of 16x6.5-8-4pr and is CE ISO certified.

Advantages of Our Mini Hay and Grass Baler

Our Mini Hay and Grass Baler boasts of several key advantages that set it apart from the competition:

1. High Quality: CE and ISO certified, guaranteeing its quality and compliance to international standards.
2. Efficient: Operates at a speed of 2-5 km/h, producing 80-120 bales per hour.
3. Adaptable: Can process a variety of agricultural materials such as hay, cornstalk, wheat, and rice straw.
4. User-friendly: Easy to operate with minimal horsepower required and no hydraulic connections from the tractor needed.
5. Reliable After-sales Service: Comes with a one-year warranty and engineers available to service machinery overseas.
6. Versatile: Can be used with tractors of varying power, from 18 to 50 HP.

Applications of Our Mini Hay and Grass Baler

The Mini Hay and Grass Baler is widely used in the agricultural industry. Here are some of its key applications:

1. Hay Baling: Perfect for baling hay in small to medium-sized farms.
2. Cornstalk Baling: Can efficiently bundle cornstalks after harvest.
3. Wheat and Rice Straw Baling: Ideal for bundling wheat and rice straw, reducing waste and facilitating easy disposal or recycling.
4. Green Grass Baling: Can be used to bundle green grass for easy transportation and storage.
5. Dry Grass Baling: Effectively bundles dry grass, preventing loss and making storage and transportation easier.
6. Animal Feed Preparation: The bales produced can be used as animal feed, making it a valuable tool for livestock farmers.

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler operates by attaching the baler to the tractor, providing the power and mobility necessary for efficient operation. Here's how it works:

1. Preparing the tractor: Ensure the tractor has the necessary PTO shaft and hydraulic connections to operate the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or another compatible attachment mechanism.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler where it is compressed and formed into a round bale.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground.

How to Install the Mini Hay Round Baler to a Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. Here's how to do it:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler.

4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor, ensuring it locks into place.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs.
6. Test the Connections: Before operating the baler, check all the connections to ensure they are secure and properly fitted.

Maintenance of The Mini Hay Round Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular Cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals.
3. Roller Inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear.
4. Twine or Net Wrap System: Inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage.
5. PTO Maintenance: Inspect the PTO shaft regularly for any signs of wear, damage, or loose connections.
6. Check Hydraulic System: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

When it comes to agricultural machinery, Raydafon Agricultural Machinery Co., Ltd. stands out in numerous ways:

• Professionalism: Our company boasts of over 100 employees, including 20 technical staff and five senior R&D personnel.
• International Certifications: All our products are CE and ISO certified, guaranteeing high-quality and compliance with international standards.
• Customized Services: We offer customized solutions tailored to suit your specific needs.
• Production Facilities: We have advanced production lines for casting, forging, machining, heat treatment, and lacquering.
• After-Sales Services: We offer reliable after-sales services, including training on how to install and use the machine and engineers available to service machinery overseas.

Our company has more than ten years of production experience, mainly producing farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. Our main products include PTO shafts, agricultural gearboxes, flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers. Our products are sold all over the world and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round.
