CE Approved Small Round Hay Baler for Sale

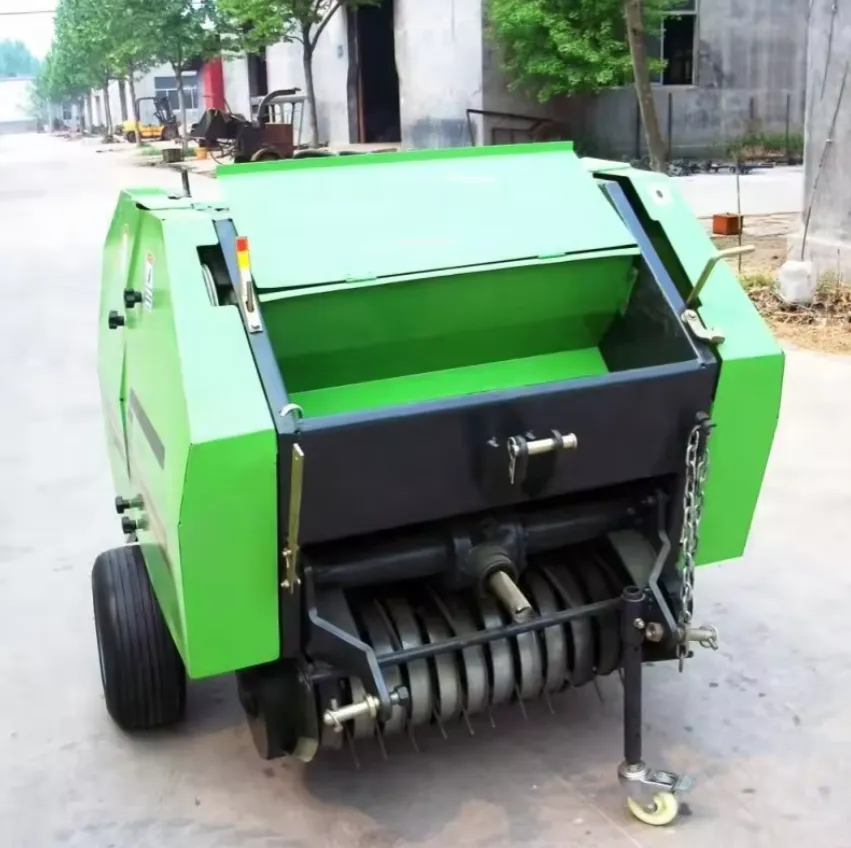

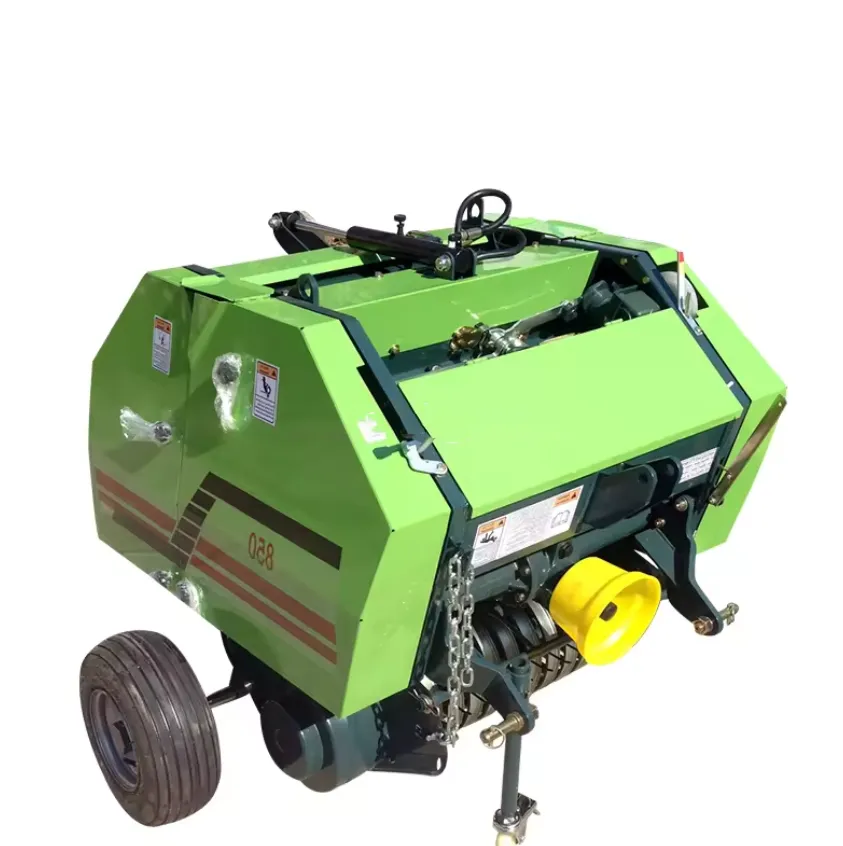

The CE approved small round hay baler is a top-of-the-line equipment designed for convenience and efficiency in agricultural practices. With models RXYK0850 and RXYK0870, this round baler is suitable for baling hay, cornstalk, wheat, and rice straw. Its dimensions stand at 1300x1300x1350mm and it weighs 390 kg, making it compact and easy to handle. The equipment operates at a speed of 2-5km/h and has a working efficiency of 80-120 bales/hour. It can be powered by a tractor with power ranging from 18-50HP and it comes with a 1-year warranty. After-sales services are provided with engineers available to service machinery overseas. The baler is CE and ISO certified, ensuring its quality and safety.

Benefits of the CE Approved Small Round Hay Baler

The CE approved small round hay baler comes with numerous advantages that make it a must-have for small farms and large agricultural practices alike. These include:

1. Efficient Operation: With a working efficiency of 80-120 bales/hour, this baler is designed for fast and efficient operation, saving you time and increasing productivity.
2. Wide Application: The baler can be used with a variety of materials, including hay, cornstalk, wheat, and rice straw, making it versatile and suitable for various farming needs.
3. Compact Design: Its compact design makes it easy to handle and maneuver, while its weight allows for stable operation.
4. Quality Assurance: The baler's CE and ISO certification assures you of its quality, safety, and compliance with international standards.

5. Reliable After-sales Service: The provision of after-sales service with engineers available to service machinery overseas ensures that you always have help at hand in case of any operational challenges.
6. 1-Year Warranty: The equipment comes with a 1-year warranty, providing you with a safety net in case of any unforeseen malfunctions or defects.

Applications of the CE Approved Small Round Hay Baler

The CE approved small round hay baler is designed with versatility in mind. Its wide range of applications makes it a valuable addition to any farming operation. These include:

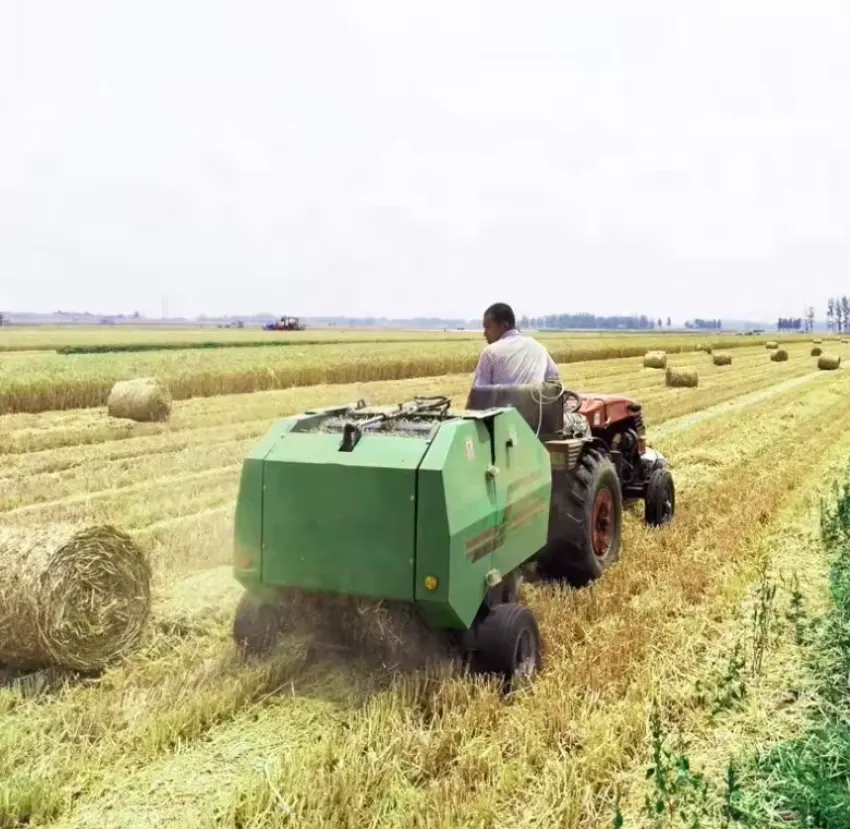

1. Haying: The baler is perfect for baling hay, making it ideal for livestock farmers who need to store hay for feeding during dry seasons.
2. Cornstalk Baling: The equipment can also be used to bale cornstalks, allowing for easy collection, storage, and transportation.
3. Wheat Straw Baling: Wheat farmers can use the baler to collect and store wheat straw after harvest, reducing waste and providing additional feed for livestock.
4. Rice Straw Baling: The baler is also perfect for rice straw baling, facilitating easy collection and storage.
5. Landscaping: Beyond farming, the baler can be used in landscaping to gather and bale grass clippings and leaves for easy disposal or composting.
6. Biodegradable Packaging: For environmentally conscious businesses, the bales produced by the baler can be used as biodegradable packaging material.

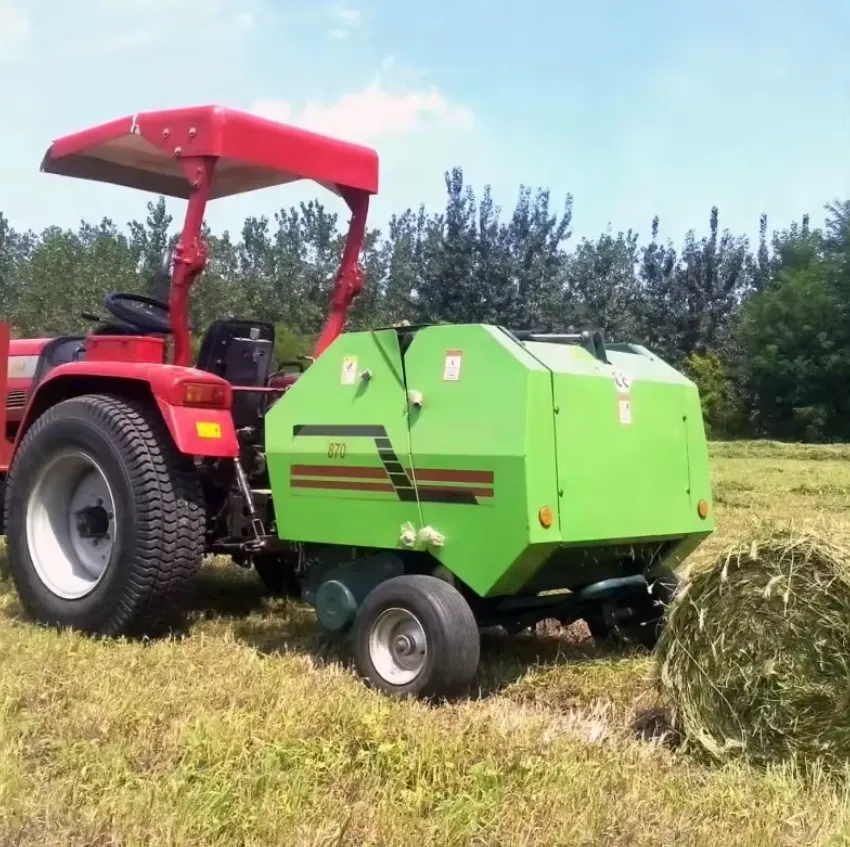

How Does the Tractor Mounted Mini Hay Round Baler Work?

The tractor-mounted mini hay round baler works by attaching the baler to the back of a tractor using a three-point hitch or another attachment mechanism. The tractor provides the power and mobility needed to operate the baler effectively. Here is a step-by-step overview of how the tractor-mounted mini hay round baler typically works:

1. Preparing the tractor: Ensure that the tractor is properly equipped with the necessary power take-off (PTO) shaft and hydraulic connections to operate the baler. The PTO transfers power from the tractor to the baler, while the hydraulic connections control various functions of the baler.
2. Hitching the baler: Attach the baler to the tractor's three-point hitch or other compatible attachment mechanism. Secure the baler to the tractor, ensuring a firm and stable connection.
3. Adjusting settings: Set the appropriate baling parameters based on the desired bale size, density, and other factors. These settings may include bale diameter, bale weight, twine tension, and bale density.
4. Operating the pickup attachment: Lower the pickup attachment of the baler onto the ground using the tractor's hydraulic controls. The pickup attachment consists of rotating tines or belts that gather the loose hay or straw from the ground and feed it into the baling chamber.
5. Bale formation: As the pickup attachment collects the material, it is conveyed into the baling chamber of the baler. Inside the chamber, the material is compressed and formed into a round bale by a combination of belts and rollers. The belts rotate and wrap around the bale, ensuring it remains intact.
6. Bale ejection: Once the bale reaches the desired size and density, it is ejected from the baling chamber and released onto the ground. Some mini hay round balers may have an automatic bale ejection mechanism, while others require manual assistance to remove the bale from the chamber.

How to Install the Mini Hay Round Baler to Tractor?

Installing a mini hay round baler to a tractor involves several steps to ensure a secure and effective connection for baling operations. The process typically requires basic mechanical skills and an understanding of your tractor and baler's specific requirements. Here's a general guide on how to install a mini hay round baler to a tractor:

1. Read the Manuals: Start by reading the operator's manuals for both the tractor and the mini hay round baler. These manuals will provide specific instructions for attaching and operating the equipment, as well as any safety precautions you need to follow. Before attachment, inspect both the tractor and baler for any damage or wear that might affect operation. Ensure all moving parts are in good condition and that the baler is ready for use.
2. Position the Tractor and Baler: Position the tractor close to the baler so that the PTO shaft on the tractor aligns with the PTO input shaft on the baler. Make sure the ground is level to avoid any unnecessary stress on the equipment during the connection process.
3. Attach the Baler to the Tractor: If your baler attaches via a three-point hitch, raise the hitch on the tractor and align the hitch arms with the mounting points on the baler. Secure the pins through the arms into the baler's mounting points and attach the top link. Adjust the top link and lift arms to ensure the baler is level. For balers that connect via a drawbar, line up the drawbar of the tractor with the tow bar of the baler and insert the pin through both holes to secure them together.
4. Connect the PTO Shaft: Slide the PTO shaft from the baler onto the PTO stub on the tractor. Ensure it locks into place; you should hear a click or be able to see that the locking mechanism is engaged. Check that the PTO shaft is the correct length. The shaft should have enough overlap to accommodate the movement when the tractor and baler are in operation but not so much that it could bind or buckle.
5. Connect Hydraulics (If Applicable): If the baler requires hydraulic connections to operate, connect the hydraulic hoses from the baler to the tractor's hydraulic outputs. Ensure the connections are secure and the hoses are not kinked or under strain.
6. Test the connections: Before operating the baler, check all the connections, including the hitching mechanism, hydraulic hoses, and PTO shaft, to ensure they are secure and properly fitted. Look for any signs of looseness or misalignment that may affect the baler's operation or safety.

Maintenance of the CE Approved Small Round Hay Baler

Proper maintenance of a mini hay round baler is essential to ensure its optimal performance, longevity, and safety. Here are some key maintenance tasks to consider:

1. Regular cleaning: After each use, clean the baler thoroughly to remove any accumulated debris, hay, or straw. Pay attention to the pickup attachment, baling chamber, belts, and rollers. Use compressed air, brushes, or water (if applicable) to remove stubborn residue. Keeping the baler clean helps prevent clogs and reduces the risk of corrosion.
2. Lubrication: Check the baler's lubrication points and follow the manufacturer's recommendations for lubrication intervals. Apply the appropriate lubricants to the specified areas such as bearings, chains, sprockets, and pivot points. Proper lubrication reduces friction, prevents wear and tear, and ensures smooth operation.
3. Roller inspection: Inspect the rollers for any signs of damage, misalignment, or excessive wear. Check for loose or missing bolts and ensure that the rollers are clean and free from debris. Adjust or replace rollers as necessary to maintain proper compression during bale formation.
4. Twine or net wrap system: If your baler uses twine or net wrap for bale tying, inspect the twine or net wrap system regularly. Check for proper tension, functioning of the twine arms or net wrap mechanism, and any signs of wear or damage. Replace or adjust components as needed to ensure consistent and secure bale tying.
5. PTO maintenance: If the baler is powered by the tractor's power take-off (PTO), inspect the PTO shaft regularly for any signs of wear, damage, or loose connections. Keep the PTO shaft properly lubricated and replace any worn or damaged components. Ensure that the PTO guards are in place and in good condition for operator safety.
6. Check hydraulic system: If your baler has a hydraulic system, inspect the hoses, fittings, and cylinders for leaks, damage, or signs of wear. Ensure that all connections are tight and secure. Replace any damaged hoses or fittings and address any hydraulic fluid leaks promptly.

Why Choose Raydafon's Mini Hay Round Baler for Agricultural?

When it comes to agricultural machinery, Raydafon Agricultural Machinery Co., Ltd. stands out for its commitment to quality, innovation, and customer satisfaction. The company has years of experience in the research and development of agricultural machinery, including PTO shafts, agricultural gearboxes, agricultural chains, agricultural pulleys, and agricultural sprockets. Raydafon boasts of a team of highly skilled technical staff and senior R&D personnel dedicated to delivering the best in agricultural machinery.

With more than 100 employees and advanced production lines, Raydafon utilizes the CAD computer-aided design system in its production process to ensure precision and quality. The company's production technology is robust, and the equipment is advanced, featuring lathing, milling, planing, stamping, cutting plate, and electric welding capabilities.

Beyond the product's quality, Raydafon is known for its exceptional customer service. The company offers comprehensive after-sales services, including training on how to install and use the machinery, as well as engineer support for machinery servicing overseas. Moreover, Raydafon keeps a sufficient stock of spare parts in its warehouse to ensure a quick response and fast action in distinguishing and sending spare parts by DHL.

Furthermore, Raydafon is a trusted supplier for main tractor manufacturers in China, providing a wide range of farming machinery, planting machinery, harvesting machinery and its accessories, and matching machines. The company's product portfolio is diverse, featuring flail mowers, lawn mowers, sickle bar mowers, rotary mowers, rotary tillers, land levelers, fertilizer spreaders, furrow ploughs, hay rakes, disc harrows, disc blades, disc ridgers, disc ploughs, potato planters, potato harvester, corn seeder, wheat seeder, vegetable seeder, post hole diggers, boom sprayers, agricultural subsoiler, agricultural trailers and more. All these products are complete in specifications, excellent in performance, and reliable in quality.

Raydafon's commitment to quality and customer satisfaction is reflected in its international certifications. The company's products are sold all over the country and are exported to many countries and regions in Europe, America, Africa, the Middle East, and Southeast Asia all year round. Whether you are a small-scale farmer or run a large-scale agricultural operation, Raydafon's wide range of reliable and efficient agricultural machinery is designed to meet your every need.
