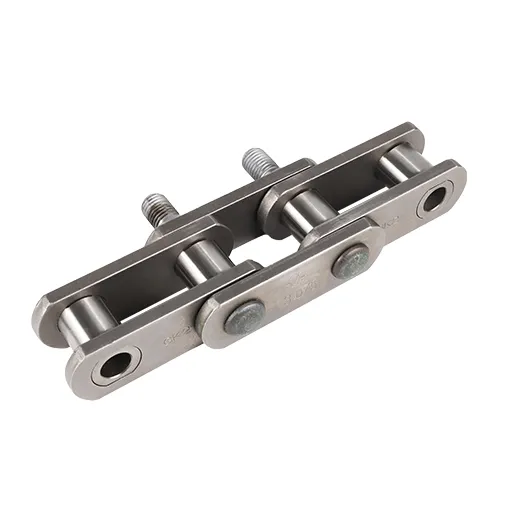

Conveyor Chains for Coal Washer *P78F2

When it comes to the efficient functioning of coal washer systems, a critical component that cannot be overlooked is the conveyor chain. With its unique design and robust construction, conveyor chains play a pivotal role in the smooth operation of coal washer systems, ensuring that coal is transported safely and efficiently from one point to another.● The chain of coal washer is mostly used for cleaning and screening of coarse materials in mines and coal yards, which requires high wear resistance.● Through structural optimization design and special surface hardening technology, the service life of the chain is significantly prolonged.

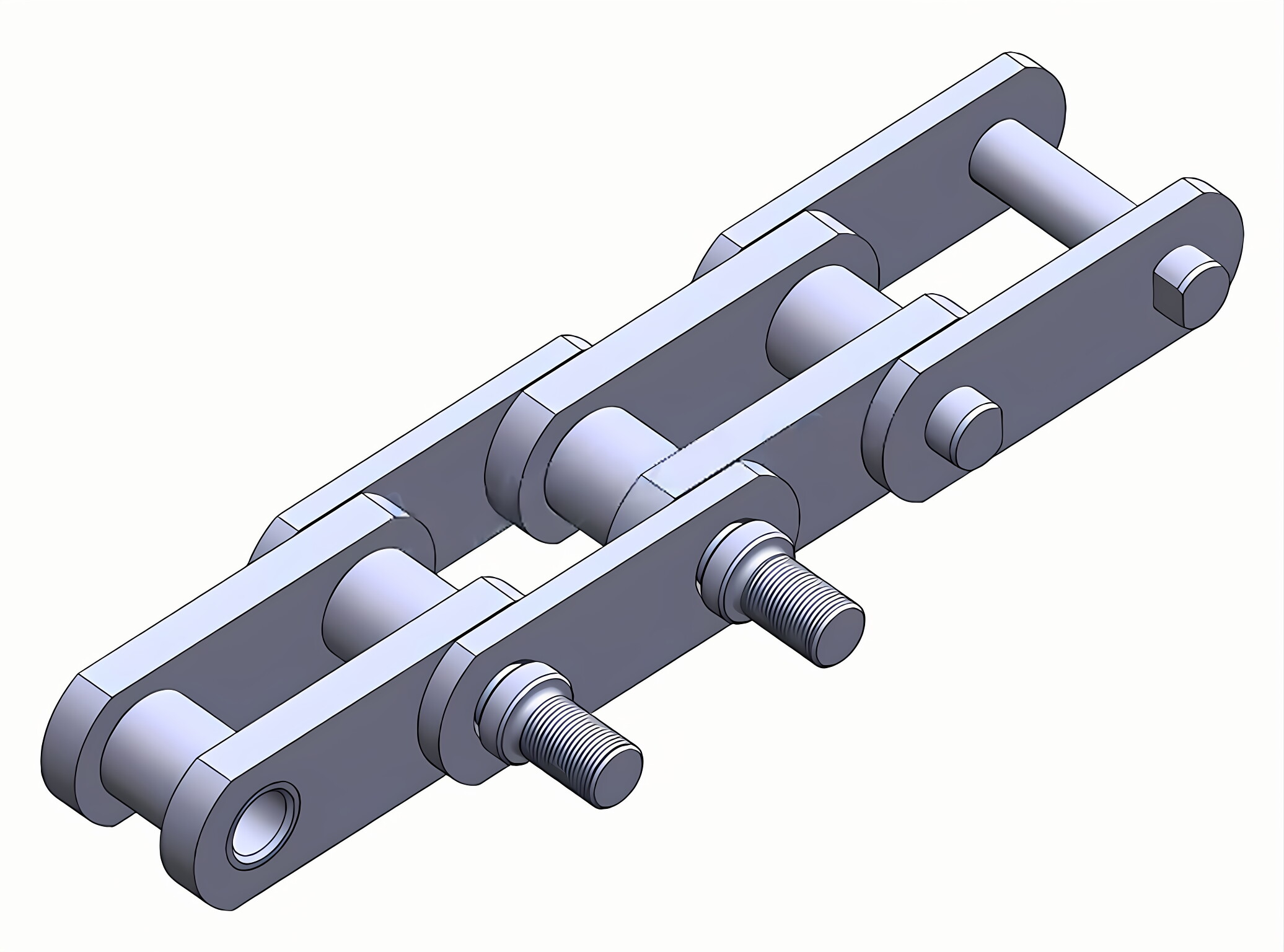

Typical product structure:

dimension

Chain No.	Pitch	Bushdiameter	Widthbetw eennnerpltes	Pindiam eter	Pinlength		Platedepth	Platethickness	Tensilestrength	Averagetensilstrength	xWeightpermeter
	P	d1m ax	b1mn	d2m ax	L1m ax	L2m ax	h2m ax	t/Tm ax	Qmn	Q0mn	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/bf	kN	kg/m
*P78F2	78.1	31.75	31.75	19.05	129.0	90.5	44.5	12.7/8.0	140.0/31818	166.88	14.59

Understanding Conveyor Chains

A conveyor chain is a type of chain used in conveyor systems to move materials from one area to another. These chains are designed to be strong and durable, capable of handling heavy loads and harsh operating conditions. Conveyor chains for coal washers are typically built to withstand the high-impact, grueling environment of a coal processing facility, and are therefore made from high-strength, wear-resistant materials.

Types of Conveyor Chains

There are several types of conveyor chains available, each with its unique features and benefits. These include the standard conveyor chain, hollow pin conveyor chain, deep link conveyor chain, and the drop forged chain. The choice of conveyor chain depends on the specific requirements of the coal washer system.

Standard Conveyor Chains

The standard conveyor chain is a versatile type of chain that can be used in a variety of applications. This chain is designed with a series of links connected by pins, which allows it to flex in two dimensions, making it suitable for a wide range of tasks.

Hollow Pin Conveyor Chains

Hollow pin conveyor chains, on the other hand, feature hollowed-out pins that allow for the insertion of various attachments. This design provides flexibility in the type of materials that can be transported, making them ideal for complex coal washing processes.

Deep Link Conveyor Chains

Deep link conveyor chains are designed with extra depth for increased strength and durability. These chains are ideal for heavy-duty applications where high loads and harsh conditions are prevalent, such as in coal washer systems.

Drop Forged Chains

The drop forged chain, distinguished by its forged links, offers exceptional strength and durability, making it ideal for high-impact applications such as coal washing. This type of chain also provides excellent resistance to wear and tear, extending its lifespan even in the harshest of environments.

The Importance of Conveyor Chains in Coal Washer Systems

Conveyor chains play an essential role in coal washer systems. They are responsible for the efficient transportation of coal from one point to another, ensuring that the coal is moved safely and seamlessly through the various stages of the washing process. Without these chains, the efficiency and productivity of the entire coal washer system would be compromised.

Maintaining Conveyor Chains for Optimal Performance

Maintaining the conveyor chain's optimal operating condition is crucial. Regular inspection and maintenance can help identify any potential issues early on and prevent costly downtime. Lubrication is also a key aspect of conveyor chain maintenance, as it reduces friction between the links and extends the chain's lifespan.

Choosing the Right Conveyor Chain

Choosing the right conveyor chain for your coal washer system can significantly impact its performance and longevity. Factors to consider include the chain's strength, durability, resistance to wear and tear, and the specific requirements of the coal washer system.Ultimately, the right conveyor chain for your coal washer system will depend on your specific needs and requirements. The "P78F2" is a popular choice among many coal washer operators due to its high strength and durability, making it an excellent option for high-impact, high-load applications.Understanding the importance of conveyor chains for coal washer systems and how they contribute to the overall efficiency and performance of the system is crucial. Whether it's a standard conveyor chain or a more specialized type like the "P78F2", choosing the right chain can make a significant difference in your coal washer system's performance and operational lifespan.

Application of Scraper Conveyor Chain

Metallurgical Industry

Through continuous innovation, research, and development, various chains suitable for the metallurgical industry are manufactured, including chains for plate conveyors for conveying ore and waste, chains for producing metal cooling conveyors such as steel pipes and bars, chains for drawing steel products, and various special chains.

Features: Metallurgical chain has high reliability and is suitable for high temperatures, heavy load, continuous impact load, dust, iron filings and scales, corrosion high humidity, etc. Personalized system solutions are provided according to user requirements.Main products: Steel coil conveying chain, steel pipe production line chain and other steel mill conveying chains; Cathode copper conveyor chain, etc.

Bulk Material Industry

Raydafon bulk material conveying chain has been widely used in core conveying equipment in cement, mining, coal, and other fields, such as cement equipment, mining conveying equipment, coal conveying equipment, stacking equipment, etc.Features:● With excellent material selection and precision manufacturing, it is especially suitable for special environments such as large impact loads, high temperatures, and dust. It provides system solutions for various bulk material use occasions.● The chain with a special sealing structure has the characteristics of long service life and low maintenance. It has been used in stacker and reclaimer equipment in dusty environments such as cement plants, steel plants, thermal power plants, etc.Main products: Stacker and reclaimer chain, hoist chain, scale?conveyor chain, zipper machine chain,?sprocket?and various accessories.
