Conveyor Chains with Large Rollers 08BS-27-P16/C16 12BS 12BS-40-P28/C28

Conveyor Chains with Large Rollers08BS-27-P16/C16 12BS 12BS-40-P28/C28 12BS-43-P26/C26 12BS-43-P28/C28 12BS-48-P24/C24 12BS-48-P26/C26 12BS-48-P28/C28 12BS-58-P28/C28 16BS-65-P38/C38 100SF1-85-C45 212BS-43-P48

Large rollers can make the job a lot easier for a conveyor chain. There are two types of large rollers, the R-roller and the S-roller. The S-roller is best suited for shorter conveyors, while the R-roller is ideal for long conveyors. There are also special attachments that can help you achieve the maximum performance from your conveyor chain.A double-pitch roller chain is the most common type of conveyor chain. This type is designed to meet the specifications of ANSI B29.1. Double-pitch roller chains are highly versatile and can be retrofitted into most applications. This style also offers a high strength-to-weight ratio for long-term use. It is also available in a wide range of attachments. The Double-Pitch roller chain comes in a standard size and an oversized-roller chain.These chains are designed for heavy-duty applications. They are a great choice for production facilities that need to move large quantities of goods quickly. They are rugged, impact-resistant, and can handle totes, bins, racks, and crates. They are especially effective in food production, citrus processing, and other industries that require high-speed movement of goods.

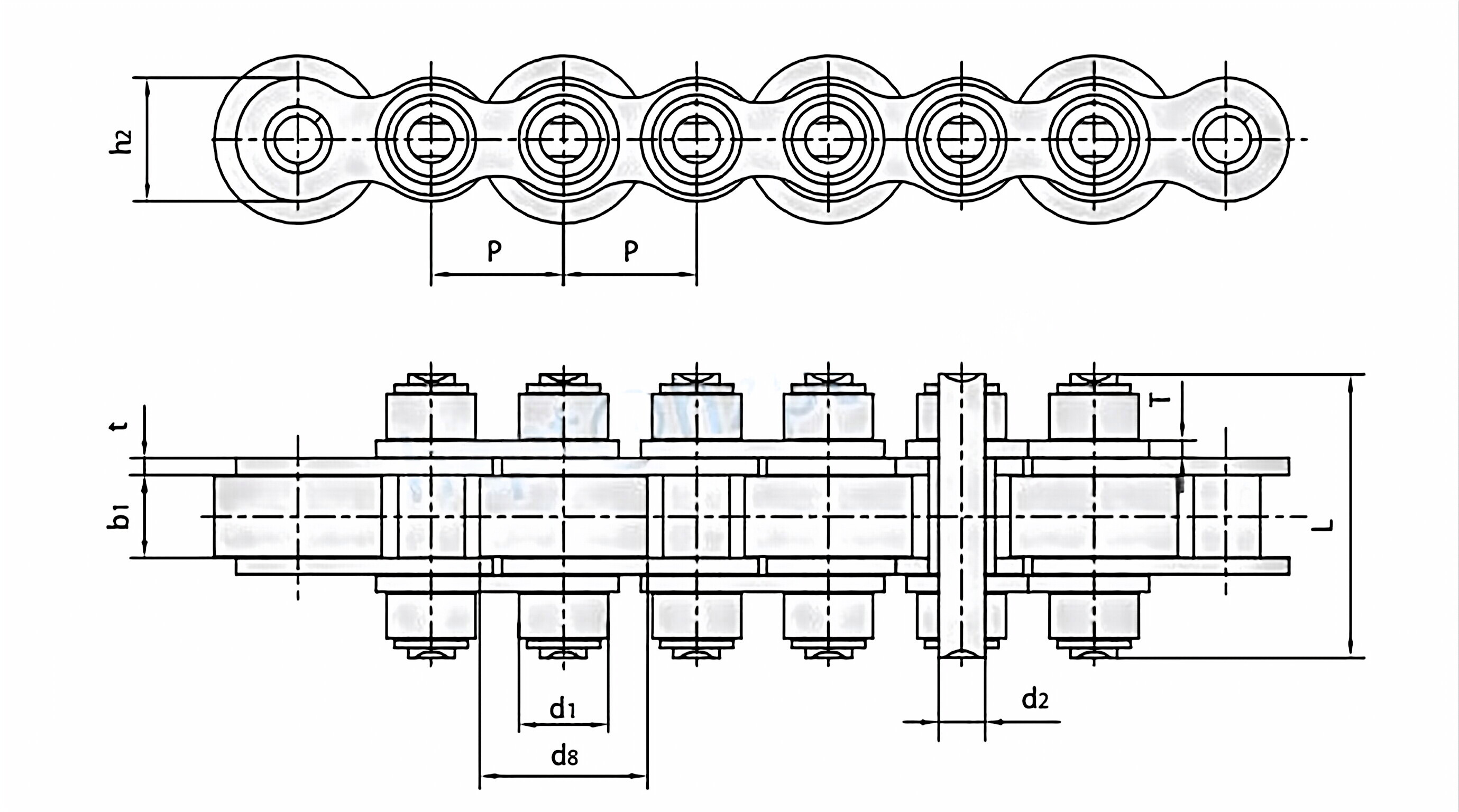

Dimensions of Conveyor Chains with Large Rollers

Chain No.	Pitch	Roller diameter		Width between inner plates	Pin diameter	Pin length	Plate dimension		Ultimate tensile strength	Average tensile strength
	P	d1 max	d8 max	b1min	d2max	Lmax	h2 max	t/Tmax	Qmin	Q0
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN
08BS-27-P16/C16	12.70	8.51	16.0	7.75	4.45	27.0	11.8	1.60/1.50	18.0/4091	19.8
12BS	19.05	12.07	28.0	11.68	5.72	45.0	16.0	1.85	28.9/6568	31.7
12BS-40-P28/C28	19.05	12.07	28.0	11.68	5.72	40.0	16.0	1.85	29.0/6591	31.7
12BS-43-P26/C26	19.05	12.07	26.0	11.68	5.72	43.0	16.0	1.85	29.0/6591	31.7
12BS-43-P28/C28	19.05	12.07	28.0	11.68	5.72	43.0	16.0	1.85	29.0/6591	31.7
12BS-48-P24/C24	19.05	12.07	24.0	11.68	5.72	48.0	16.0	1.85	29.0/6591	31.7
12BS-48-P26/C26	19.05	12.07	26.0	11.68	5.72	48.0	16.0	1.85	29.0/6591	31.7
12BS-48-P28/C28	19.05	12.07	28.0	11.68	5.72	48.0	16.0	1.85	29.0/6591	31.7
12BS-58-P28/C28	19.05	12.70	28.0	11.68	5.72	58.0	16.0	1.85	29.0/6591	31.7
16BS-65-P38/C38	25.40	15.88	38.0	17.02	8.28	65.0	21.0	4.15/3.10	60.0/13636	72.8
100SF1-85-C45	31.75	19.05	45.0	25.50	9.53	85.0	30.0	4.00	86.7/19490	104.0
212BS-43-P48	38.10	12.07	48.0	11.68	5.72	43.0	16.0	1.85	28.9/6568	31.7

Note: P means roller made in plastic, C means roller made in steel.

Sprockets for Conveyor Chains with Large Rollers

Sprockets for conveyor chains with large rollers have a variety of performance characteristics. Some of these characteristics are dependent upon the type and style of chain. Some sprockets are double-pitch, while others engage the chain only on alternate pins. The latter are specialty designs that can be custom-fabricated. Several other criteria determine sprocket choice, including type, diameter, and tooth pitch.Sprockets for conveyor chains with large rollers are paired with the appropriate roller chains based on size and type. The size and type of chain are critical for the function of the conveyor. Depending on the application, there may be a specific chain length that is required. The chain length elongates with time due to the friction caused by the chain circling the sprocket. The elongated length of the chain causes the pin and bushing to wear out, increasing the distance between rollers.Ensure the sprockets are properly lubricated. This prevents excessive wear and tear. If not, consider replacing them. Regular manual lubrication is essential. Regular replacement of worn parts can also prevent excessive wear. In addition, check for excessive slack in the chain. This may result in excessive chain movement.Conveyor chain sprockets have different designs. Some sprockets have a hunting tooth arrangement, which distributes wear over two sets of teeth. Another way to identify a sprocket is by its chain size or pitch. Pitch is the distance between pins on a chain, and is usually measured in inches or millimeters.As a mature supplier of chains and sprockets in China, Raydafon also provides highly durable sprockets for sale besides conveyor chains. Contact us now if you are interested.

Related Chains

As one of the drive chain manufacturers, we specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery and good service. Standard products include various transmission and conveyor chains, like Roller Chain, double pitch Conveyor Chain, Hollow Pin Chain, Leaf Chain, Table Top Chain, Side Bow Chain, Lumber Chain, Agriculture Chain, Silent Chain, PIV Chain, Stainless Steel Chain, Nickel/ Zinc plated Chain, Dacromet Chain, Engineering Chain, Steel Pintle Chain, Welded steel chain, Forged chain, Malleable Iron chain, and many other types. Different kinds of attachment are available.
