Corner Condensate Pump PC-12C PC-36C for Commercial and Industrial HVAC Systems

Corner Condensate Pump PC-12C PC-36C for Commercial and Industrial HVAC Systems

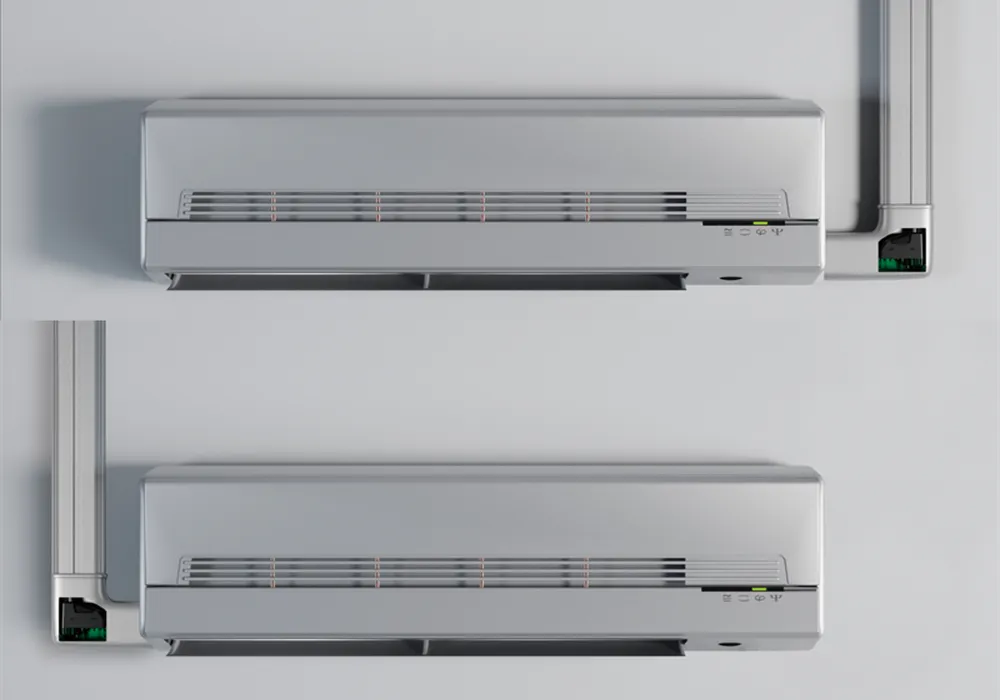

A corner condensate pump is a type of pump used in HVAC systems to remove condensate, which is the moisture that forms as a result of cooling the air. This pump is designed to be installed in the corner of a room or other confined space, where it can efficiently remove the condensate from the air conditioning unit or other equipment.The corner condensate pump works by using a motor-driven impeller to draw the condensate into the pump reservoir and then discharge it through a discharge pipe. The pump is typically activated by a float switch, which is triggered when the condensate level in the reservoir reaches a certain level.Corner condensate pumps are commonly used in commercial and industrial HVAC systems, where there is a need to remove large amounts of condensate quickly and efficiently. They are also used in residential HVAC systems, where space is limited, and it may be difficult to install a larger pump.

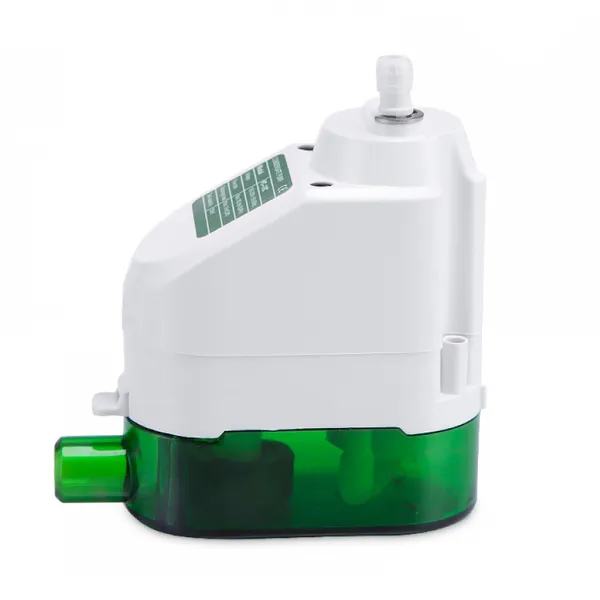

▍Features of Corner Condensate Pump PC-12C PC-36C

Integrated Design, Compact and Flexible• Integrated design, easy installation• Ultra silent, non-vibration• Built-in safety switch• Max discharge head at 10m

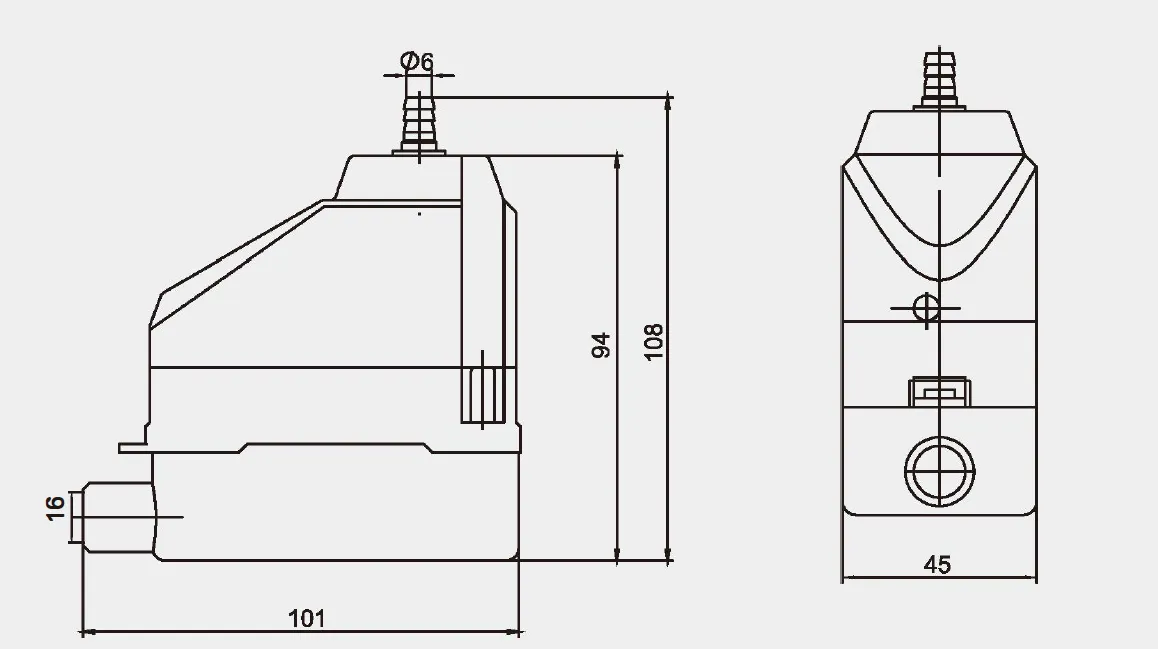

▍Corner Condensate Pump PC-12C PC-36C Dimensions:

▍Corner Condensate Pump PC-12C PC-36C Technical Data:

Model	PC-12C	PC-36C
Voltage	100V-230V-/50-60Hz
Discharge head	Max.10m(33ft)
Flow rate	Max.18L/h(4.8GPH)	Max.36L/h(9.6GPH)
Tank capacity	55ml
Mini splits up to	8kW(30,000btu/hr)	15kW(45,000btu/hr)
Sound level at 1m	19dB(A)	21dB (A)
Ambient temp	0°C-50°C
Power consumption	3W

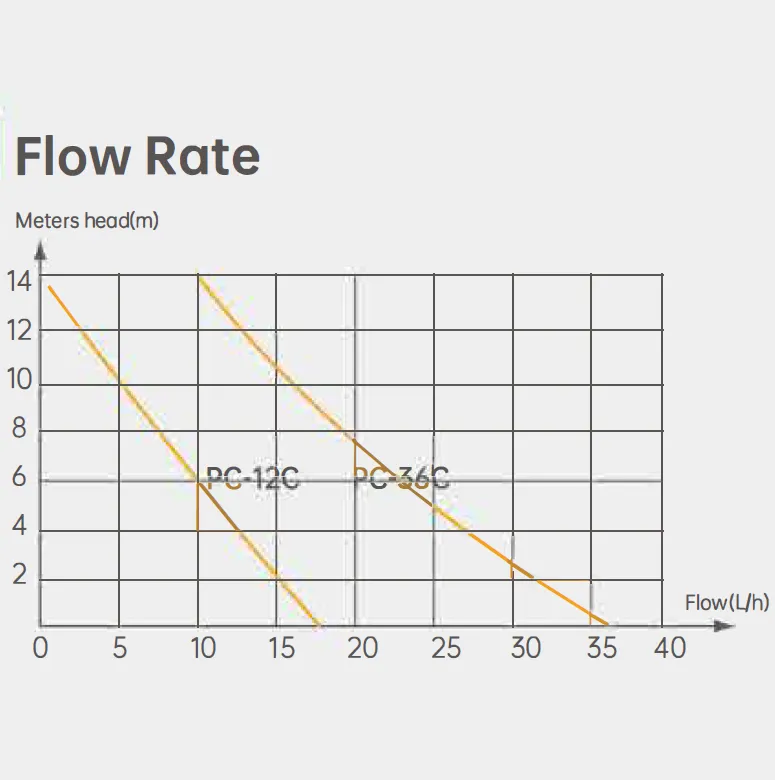

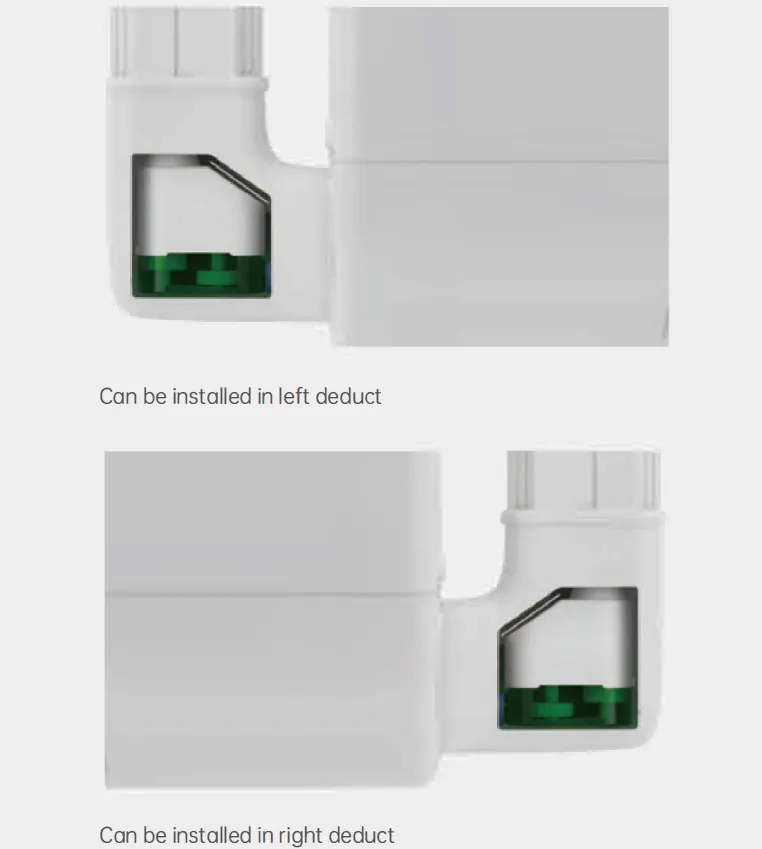

Corner Condensate Pump Flow Rate	Corner Condensate Pump Instructions

▍Benefits of Corner Condensate Pump PC-12C PC-36C

There are several benefits to using a corner condensate pump in HVAC systems:(1) Efficient condensate removal: The pump is designed to remove condensate quickly and efficiently, which helps to prevent the buildup of moisture in the HVAC system. This can help to improve the efficiency and lifespan of the equipment.(2) Space-saving design: The corner condensate pump is designed to be installed in the corner of a room or other confined space, which helps to save space and make installation easier.(3) Automatic operation: The pump is typically activated by a float switch, which means that it will automatically turn on and off as needed without the need for manual intervention.(4) Low maintenance: Corner condensate pumps are designed to be low maintenance, with durable components that can withstand the harsh conditions of an HVAC system.(5) Versatile: Corner condensate pumps can be used in a wide range of HVAC systems, from small residential units to large commercial and industrial systems.(6) Cost-effective: Installing a corner condensate pump can be a cost-effective way to prevent condensate buildup and protect HVAC equipment from damage, which can help to reduce repair and replacement costs over time.

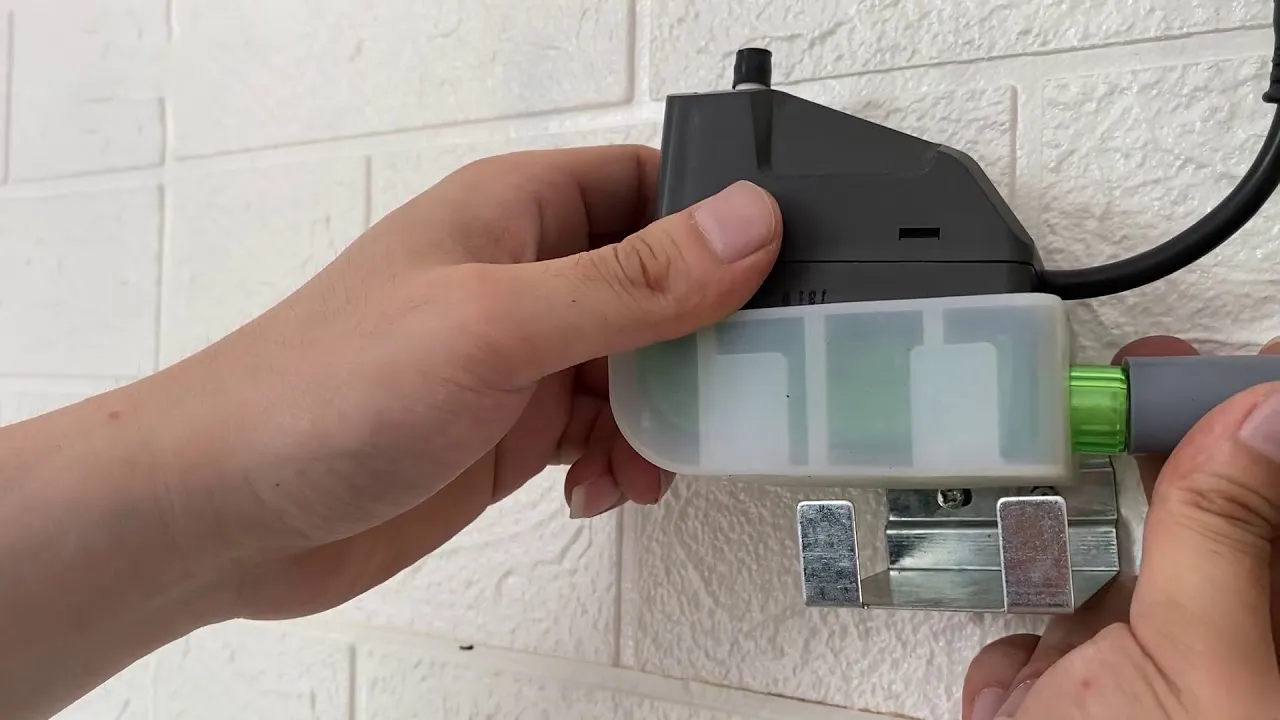

▍Corner Condensate Pump Installation Procedure

The installation procedure for a corner condensate pump may vary depending on the specific model and manufacturer. However, here are some general steps that are typically involved in installing a corner condensate pump:1. Choose a suitable location: The corner condensate pump should be installed in a location that is close to the HVAC equipment and where it can be easily accessed for maintenance. It should also be installed in a level and stable location.2. Mount the pump: Mount the corner condensate pump securely to the wall or floor using the mounting brackets provided with the pump. Make sure that the pump is level and secure.3. Connect the discharge pipe: Connect the discharge pipe to the corner condensate pump outlet and route it to a suitable drain or location for condensate disposal.4. Install the float switch: Install the float switch in the pump reservoir according to the manufacturer's instructions. The float switch should be set at the appropriate level to activate the corner condensate pump when the condensate level reaches a certain point.5. Connect the power supply: Connect the power supply to the corner condensate pump according to the manufacturer's instructions. Make sure that the power supply is properly grounded and that all electrical connections are secure.6. Test the pump: Test the corner condensate pump to ensure that it is working properly. Fill the pump reservoir with water and check that the float switch activates the pump when the water level reaches the appropriate level.7. Monitor the pump: Monitor the corner condensate pump regularly to ensure that it is functioning properly and to perform any necessary maintenance or repairs.It is important to follow the manufacturer's instructions and any applicable safety guidelines when installing a corner condensate pump. If you are not confident in your ability to install the pump yourself, it is recommended that you hire a qualified HVAC technician to perform the installation.

▍Corner Condensate Pump Safety Instructions

Here are some safety instructions that should be followed when installing or operating a corner condensate pump:Read and follow the manufacturer's instructions: Follow the manufacturer's instructions carefully when installing and operating the corner condensate pump to ensure that it is used safely and correctly.Turn off power before performing maintenance: Always turn off the power supply to the corner condensate pump before performing any maintenance or repairs to avoid the risk of electrical shock.Wear appropriate protective equipment: Wear appropriate protective equipment, such as gloves and safety glasses, when working with the corner condensate pump or handling condensate to avoid the risk of injury.Avoid contact with condensate: Avoid contact with condensate, which may contain bacteria and other contaminants that can cause illness. If contact is made, wash hands thoroughly with soap and water.Install in a well-ventilated area: Install the corner condensate pump in a well-ventilated area to ensure that any fumes or odors are properly ventilated.Properly ground electrical connections: Ensure that all electrical connections are properly grounded to reduce the risk of electrical shock.Regularly inspect the pump: Regularly inspect the corner condensate pump for any signs of damage or wear, and perform any necessary maintenance or repairs promptly to ensure safe and reliable operation.Do not modify the pump: Do not modify the corner condensate pump or its components in any way, as this can affect its safety and performance.Keep children and pets away: Keep children and pets away from the corner condensate pump to avoid the risk of injury or damage to the equipment.

▍FAQ

Q1: Does a condensate pump run all the time?A1: A condensate pump will only pump out the water from the tank when it reaches a certain level and stop once the water level goes down. If there’s a significant amount of condensate being produced by your HVAC system, then it may seem your pump is running continuously.Q2: How do you clean a condensate pump?A2: First, make sure it’s unplugged. Disconnect the pipes both on the inlets and outlet. Remove the top (which contains the motor and wirings) to access the tank at the bottom. Clean the tank and the discharge valve until they’re free from clogs or any debris. Rinse and replace all components.Q3: What happens if a condensate pump fails?A3: If your condensate pump fails, the water may overflow and spill. However, if you have a properly working safety switch connected, then it will automatically shut off your dehumidifier or any other appliance to prevent overflow.Q4: Why is my condensate pump so loud?A4: Condensate pumps are naturally loud due to the motor and the movement of water. If possible, add insulation to block the noise. But if you notice your unit getting unusually louder, then it may be a case of a clogged drain pipe. It makes a gurgling noise as it tries to push out the excess water and whatever is stuck in there. If you don’t check as soon as possible, it can lead to water leakage.Q5: How long does a condensate pump last?A5: Just like any device or appliance, it depends on your usage and maintenance. A lot of users get the most out of their condensate pumps from five years up to ten years.
