Wall-Mounted Condensate Pump PC-24A PC-40A PC-50A for HVAC Systems

Wall-Mounted Condensate Pump PC-24A PC-40A PC-50A for HVAC Systems

A wall-mounted condensate pump is a type of pump that is used to remove condensed water from HVAC (heating, ventilation, and air conditioning) systems. HVAC systems work by cooling warm air, which causes water vapor in the air to condense into liquid form and collect in a drip pan below the cooling coils. This collected water is then removed from the system by a condensate pump.A wall-mounted condensate pump is installed on the wall near the HVAC system and is connected to the drip pan using a hose or pipe. When the water level in the drip pan reaches a certain level, the pump is automatically activated, and the water is pumped out of the system and away from the building. Wall-mounted condensate pumps are often used in applications where it is not feasible to install a gravity drain, such as in a basement or in a location where the HVAC system is located above ground level.

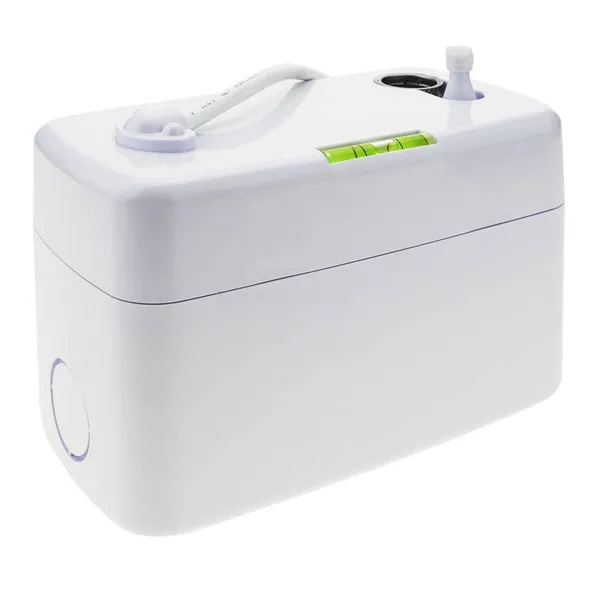

▍Wall-Mounted Condensate Pump PC-24A PC-40A

Reliable and Silence, Simple Installation• Super quiet, non-vibration• Buckle design, easy installation• Two inlets option(top or side)• Max discharge head at 10M

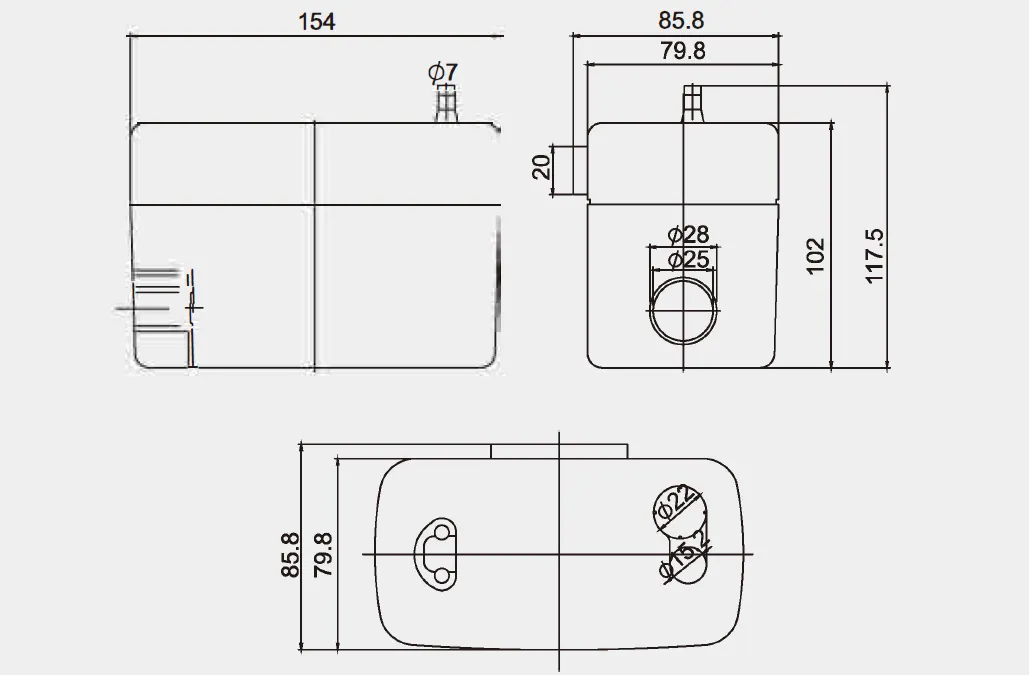

▍Wall-Mounted Condensate Pump PC-24A PC-40A Dimensions:

▍Wall-Mounted Condensate Pump PC-24A PC-40A Technical Data:

Model	PC-24A	PC-40A
Voltage	100V-230V-/50-60Hz
Discharge head	Max.10m(33ft)
Flow rate	Max.24L/h(6.2GPH)	Max.40L/h(10.5GPH)
Tank capacity	150ml
Mini splits up to	8kW(30,000Btu/hr)	15kW(45,000Btu/hr)
Sound level at 1m	19dB(A)	21dB(A)
Ambient temp	0°C-50°C
Power consumption	3W

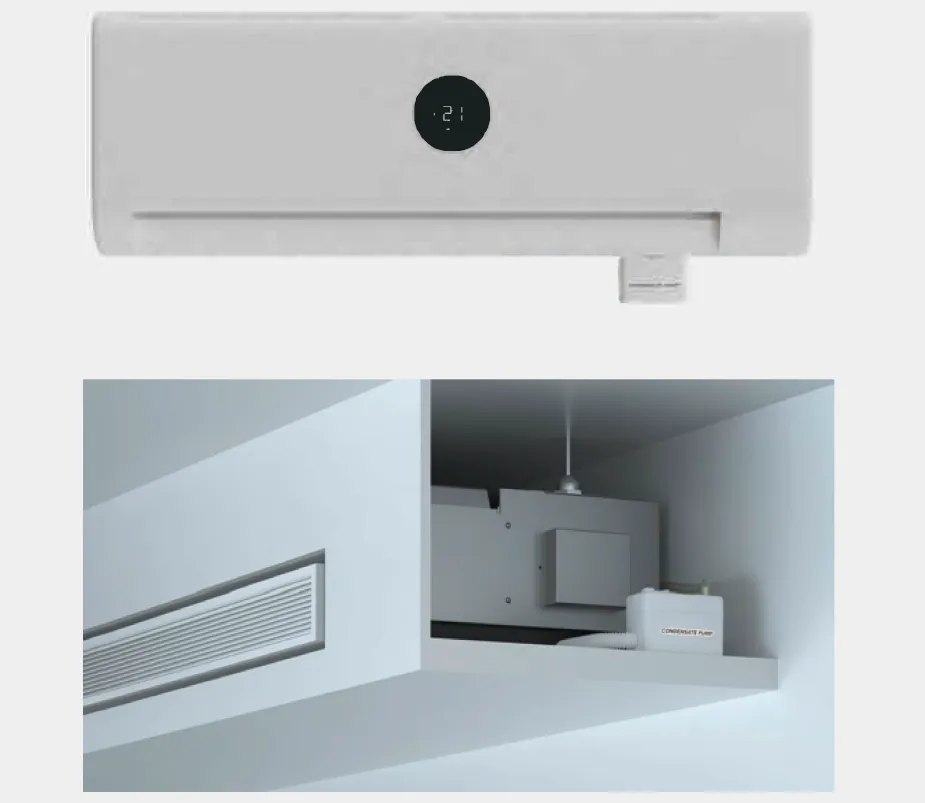

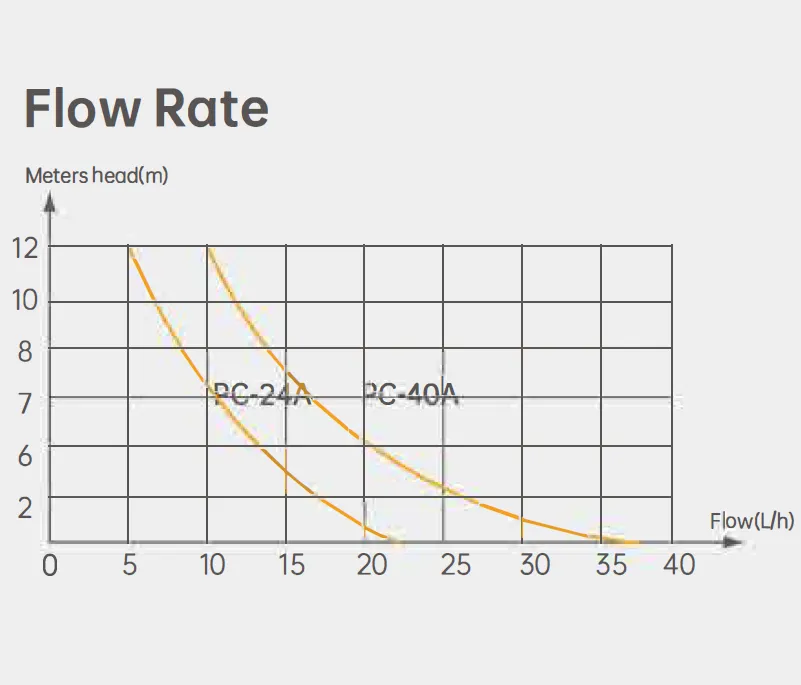

Flow Rate	Instructions

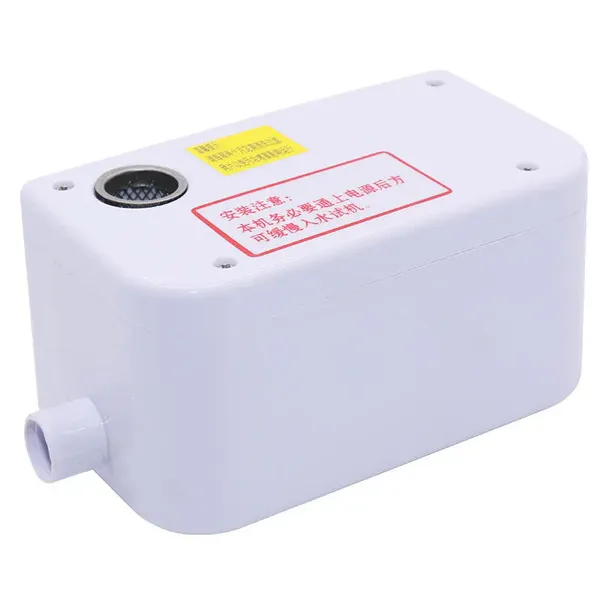

▍Wall-Mounted Condensate Pump PC-50A

Compact Structure, Easy Maintenance• Compact & discreet, 65mm height• 3 inlets option(top,side ,bottom)• Float-less structure, improve durability• Can be located in the drain pan• Built-in safety switch

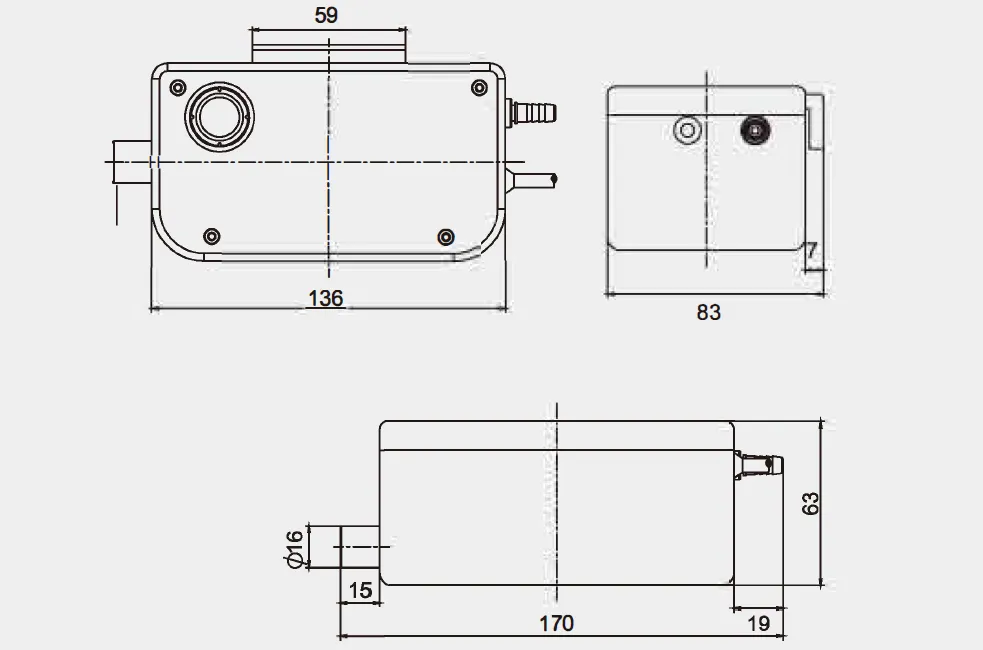

▍Wall-Mounted Condensate Pump PC-50A Dimensions:

▍Wall-Mounted Condensate Pump PC-50A Technical Data:

Model	PC-50A
Voltage	100-230V-/ 50-60Hz
Discharge head	Max.10m(33ft)
Flow rate	Max.50L/h(13.2GPH)
Tank capacity	200ml
Mini splits up to	15kW(45,000btu/hr)
Sound level at 1m	25dB(A)
Ambient temp	0°C~50°C
Power consumption	3W

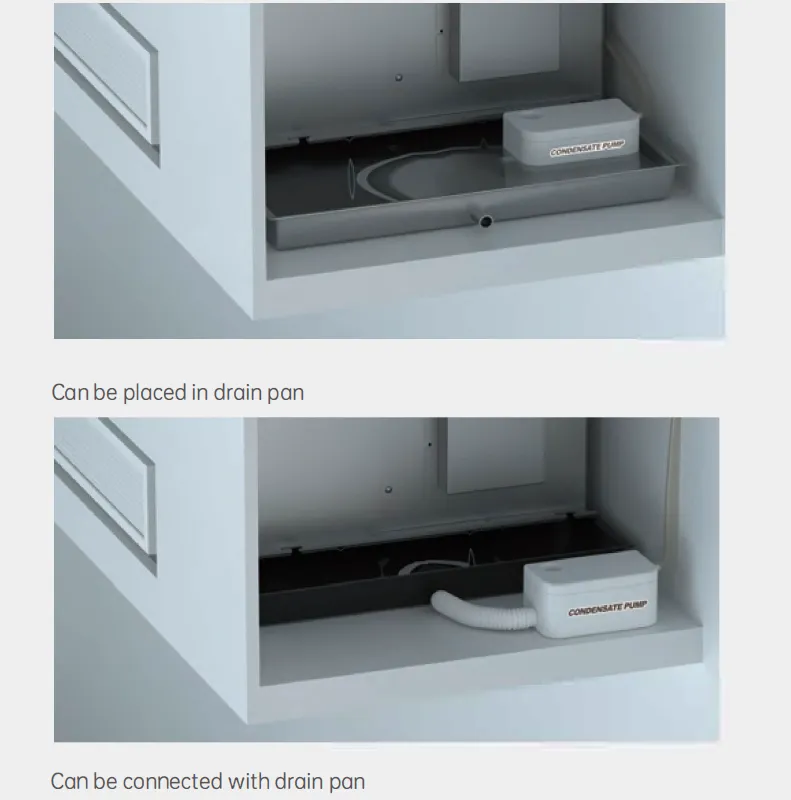

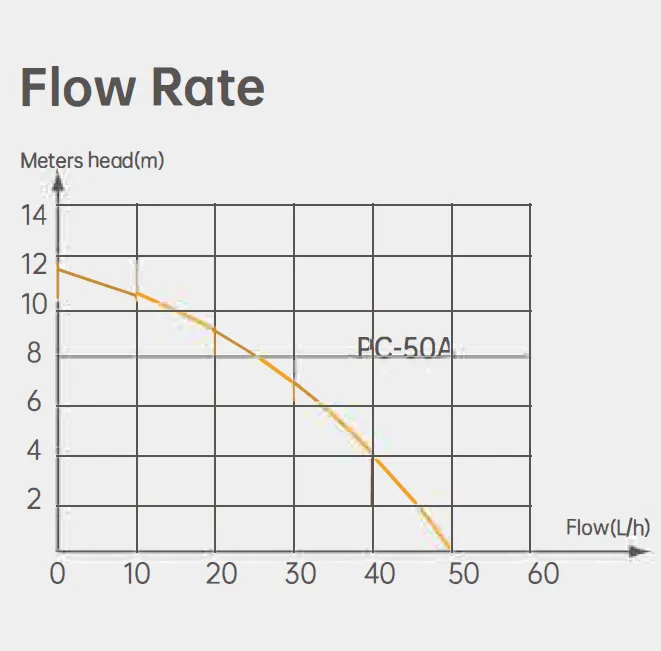

Flow Rate	Instructions

▍Benefits of Using a Wall-Mounted Condensate Pump

There are several benefits to using a wall-mounted condensate pump for HVAC systems:Improved efficiency: A wall-mounted condensate pump can help improve the efficiency of your HVAC system by removing moisture from the air and preventing it from building up in the system. This can help reduce the workload on the system and extend its lifespan.Easy installation: Wall-mounted condensate pumps are easy to install and can be mounted on a wall near the HVAC system without taking up much space.Versatility: Wall-mounted condensate pumps can be used in a variety of applications, including in basements and other locations where a gravity drain is not feasible.Automatic operation: Wall-mounted condensate pumps are designed to operate automatically, so you don't have to worry about turning them on and off manually.Improved indoor air quality: Removing moisture from the air with a wall-mounted condensate pump can help improve indoor air quality, as excess moisture can lead to the growth of mold and bacteria.Cost-effective: Wall-mounted condensate pumps are generally cost-effective and can help reduce maintenance and repair costs associated with HVAC systems.

▍Applications of Wall-Mounted Condensate Pump

Wall-mounted condensate pumps are used in a variety of applications where it is not feasible to install a gravity drain or where the HVAC system is located above ground level. Some common applications include:1. Residential HVAC systems: Wall-mounted condensate pumps are often used in residential HVAC systems to remove condensed water from air conditioning units and furnaces.2. Commercial HVAC systems: Wall-mounted condensate pumps are commonly used in commercial HVAC systems, such as in office buildings, hotels, and hospitals, where large HVAC systems are used to cool or heat large spaces.3. Dehumidifiers: Wall-mounted condensate pumps are also used in dehumidifiers to remove excess moisture from the air.4. Refrigeration units: Refrigeration units, such as walk-in coolers or freezers, also generate condensate that needs to be removed. Wall-mounted condensate pumps can be used to remove this water and prevent damage to the refrigeration unit.5. Industrial applications: Wall-mounted condensate pumps are also used in various industrial applications, such as in manufacturing facilities, where HVAC systems are used to control the temperature and humidity of the space.Overall, wall-mounted condensate pumps are used in any application where removing condensed water from an HVAC system or other equipment is necessary to prevent damage or improve efficiency.

▍FAQ

Q1: Does a condensate pump run all the time?A1: A condensate pump will only pump out the water from the tank when it reaches a certain level and stop once the water level goes down. If there’s a significant amount of condensate being produced by your HVAC system, then it may seem your pump is running continuously.Q2: How do you clean a condensate pump?A2: First, make sure it’s unplugged. Disconnect the pipes both on the inlets and outlet. Remove the top (which contains the motor and wirings) to access the tank at the bottom. Clean the tank and the discharge valve until they’re free from clogs or any debris. Rinse and replace all components.Q3: What happens if a condensate pump fails?A3: If your condensate pump fails, the water may overflow and spill. However, if you have a properly working safety switch connected, then it will automatically shut off your dehumidifier or any other appliance to prevent overflow.Q4: Why is my condensate pump so loud?A4: Condensate pumps are naturally loud due to the motor and the movement of water. If possible, add insulation to block the noise. But if you notice your unit getting unusually louder, then it may be a case of a clogged drain pipe. It makes a gurgling noise as it tries to push out the excess water and whatever is stuck in there. If you don’t check as soon as possible, it can lead to water leakage.Q5: How long does a condensate pump last?A5: Just like any device or appliance, it depends on your usage and maintenance. A lot of users get the most out of their condensate pumps from five years up to ten years.
