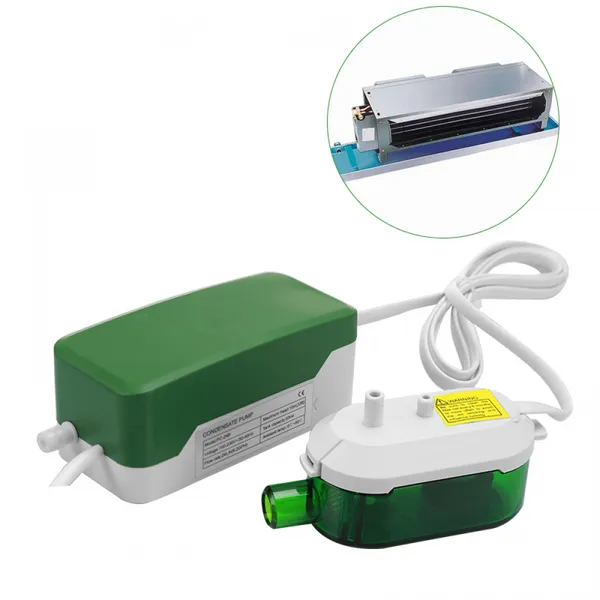

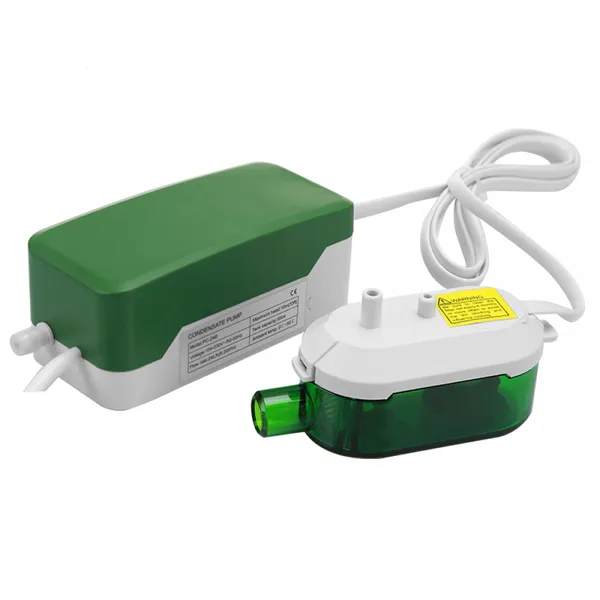

Mini-Split Condensate Pump PC-12B PC-36B for Mini-split HVAC System

Mini-Split Condensate Pump PC-12B PC-36B for Mini-split HVAC System

A mini-split condensate pump is a type of condensate pump that is specifically designed for use with mini-split HVAC systems. Mini-split systems are a type of ductless air conditioning and heating system that are popular in residential and commercial applications because they are energy-efficient and easy to install.Mini-split systems work by blowing air over a cooling coil, which causes moisture in the air to condense into liquid form. This condensed water then drips into a collection pan or tray that is located in the indoor unit. A mini-split condensate pump is used to remove this collected water from the unit and pump it outside or to a drain.Mini-split condensate pumps are typically small and compact and are designed to fit neatly inside the indoor unit. They are often powered by 12V DC power and can be connected to the mini-split system's control board to enable automatic operation. Some mini-split condensate pumps also come with built-in safety features, such as overflow switches or alarms, to prevent flooding or water damage.Overall, a mini-split condensate pump is an essential component of a mini-split HVAC system, as it helps to ensure efficient operation and prevent water damage to the indoor unit.

▍Mini-Split Condensate Pump PC-12B PC-36B Features

Silent Operation, Reliable & Durable• Ultra silent, non-vibration• Max discharge head at 10m• Superior performance• Plug & play

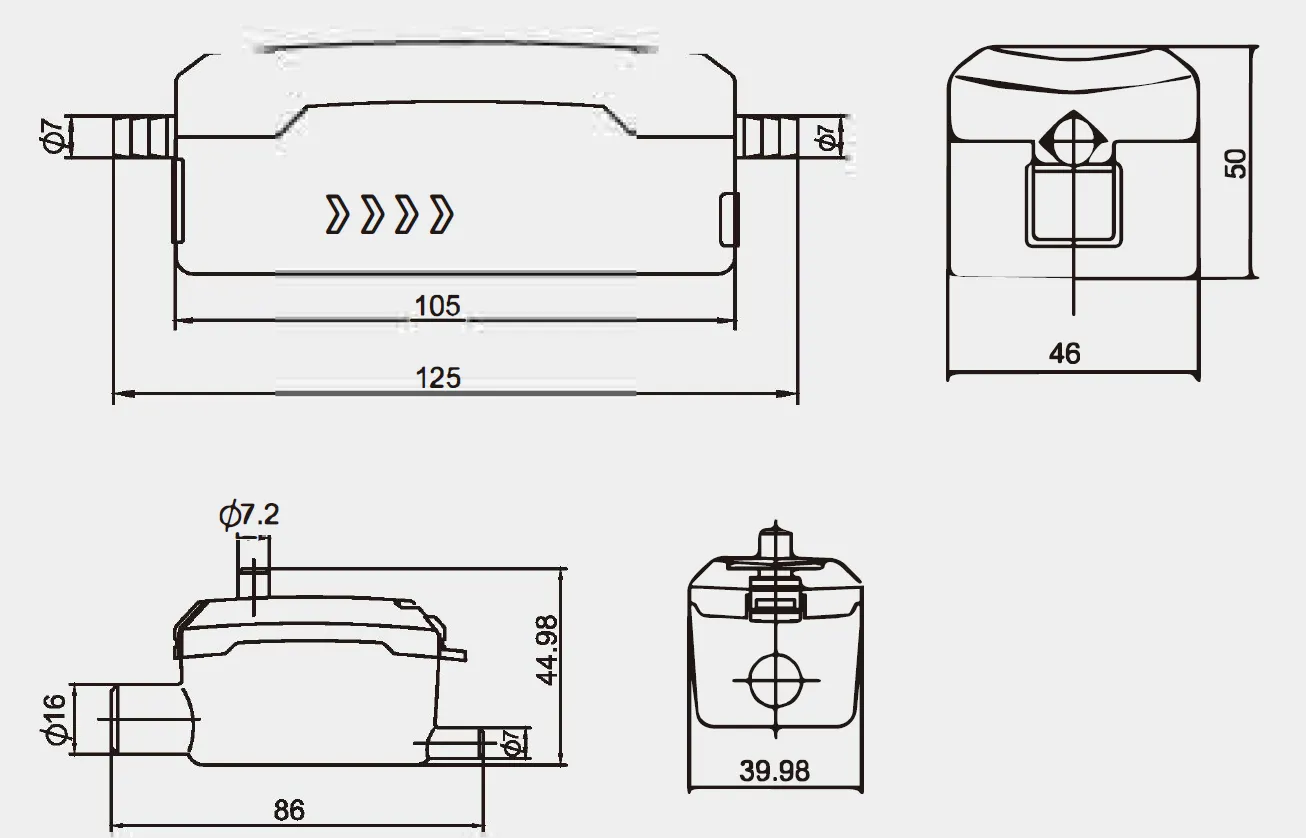

▍Mini-Split Condensate Pump PC-12B PC-36B Dimensions:

▍Mini-Split Condensate Pump PC-12B PC-36B Technical Data:

Model	PC-12B	PC-36B
Voltage	100V-230V~/50-60Hz
Discharge head	Max.10m(33ft)
Suction lift	Max.2m(6.5ft)
Flow rate	Max.18L/h(4.8GPH)	Max.36L/h (9.6GPH)
Tank capacity	35ml
Mini splits up to	8kW(30,000btu/hr)	15kW(45,000btu/hr)
Sound level at 1m	19dB(A)	21dB(A)
Ambient temp	0°C~50°C
Power consumption	3W

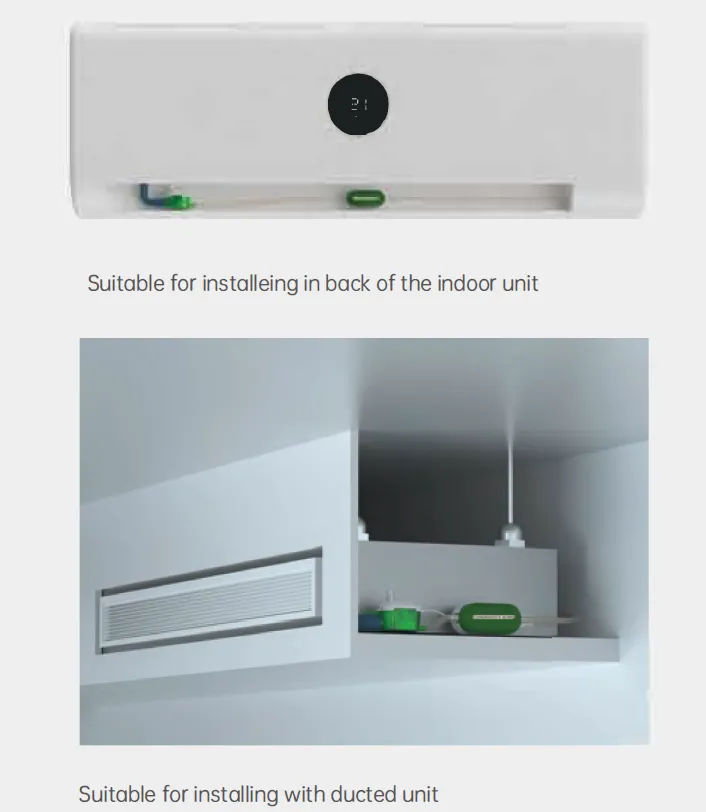

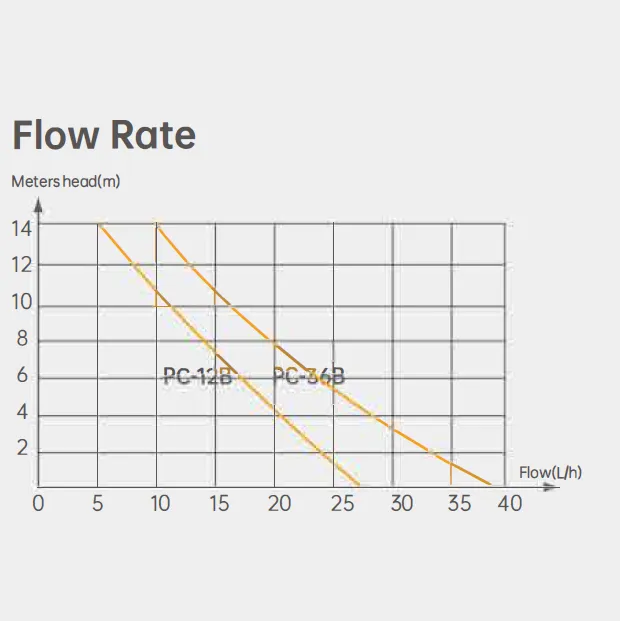

Flow Rate	Instructions

▍Advantages of Mini-Split Condensate Pump

There are several advantages to using a mini-split condensate pump with a mini-split HVAC system:Easy installation: Mini-split condensate pumps are designed to be compact and easy to install, making them a convenient addition to any mini-split system.Space-saving: Mini-split condensate pumps are designed to fit neatly inside the indoor unit of a mini-split system, which helps to save space and keep the area around the unit clean and uncluttered.Versatility: Mini-split condensate pumps can be used in a variety of applications, including in residential and commercial settings.Improved efficiency: By removing condensed water from a mini-split system, a mini-split condensate pump can help improve the efficiency of the system and reduce energy waste.Prevents water damage: Mini-split condensate pumps help prevent water damage to the indoor unit of a mini-split system by removing excess water and preventing it from overflowing or leaking.Automatic operation: Many mini-split condensate pumps are designed to operate automatically, which means they turn on and off as needed without requiring manual intervention.Cost-effective: Mini-split condensate pumps are a cost-effective solution for removing condensed water from mini-split systems, as they can help reduce maintenance and repair costs associated with water damage and system inefficiencies.Overall, a mini-split condensate pump is a reliable and efficient solution for removing condensed water from mini-split HVAC systems and can help improve the performance and lifespan of these systems.

▍Mini-Split Condensate Pump Common Applications

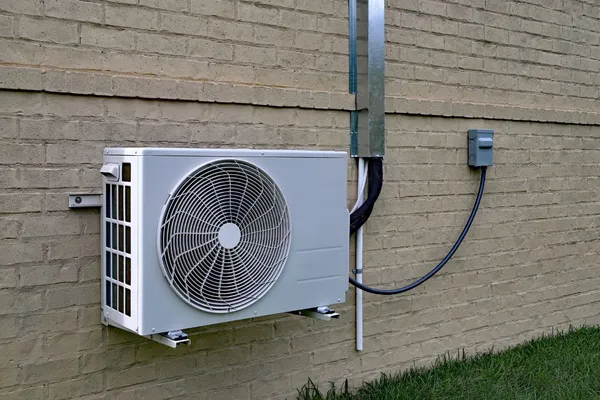

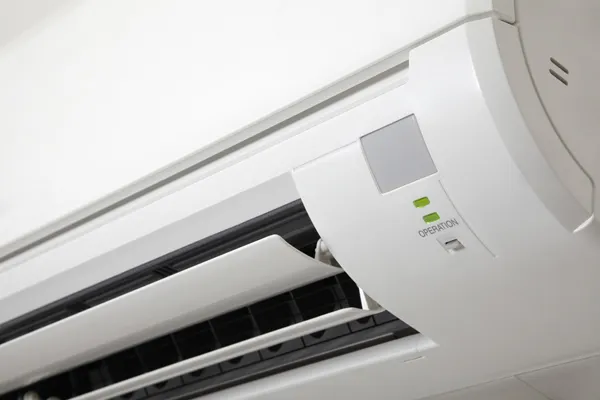

Mini-split condensate pumps are commonly used in a variety of applications where mini-split HVAC systems are installed. Some common applications include:1. Residential applications: Mini-split condensate pumps are commonly used in residential applications where mini-split HVAC systems are installed, such as in apartments, single-family homes, and condominiums.2. Commercial applications: Mini-split condensate pumps are also used in commercial applications, such as in retail stores, restaurants, and office buildings, where mini-split HVAC systems are used to control temperature and humidity.3. Server rooms: Mini-split condensate pumps are often used in server rooms where mini-split HVAC systems are used to control the temperature and humidity of the space. The pumps help to prevent water damage to the servers and equipment.4. Laboratories: Mini-split condensate pumps are commonly used in laboratory settings where mini-split HVAC systems are used to maintain specific temperature and humidity levels.5. Clean rooms: Mini-split condensate pumps are also used in clean room environments where precise temperature and humidity control is necessary to maintain a sterile environment.Overall, mini-split condensate pumps are used in any application where mini-split HVAC systems are installed and where efficient and reliable removal of condensed water is necessary to prevent water damage and ensure efficient operation of the HVAC system.

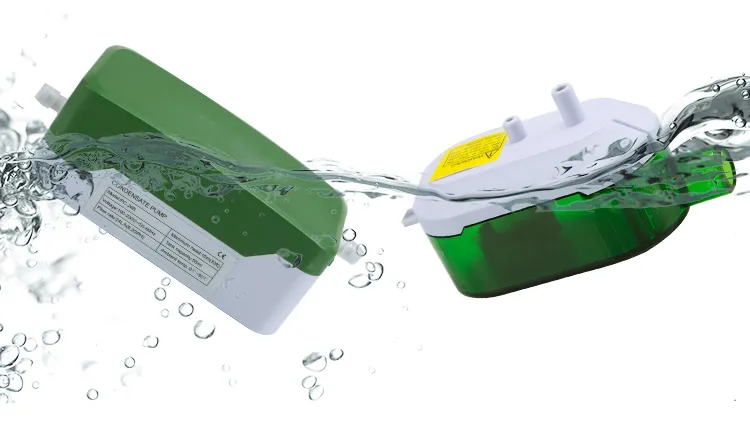

▍How to Choose a Mini-Split Condensate Pump?

When choosing a mini-split condensate pump, there are several factors to consider to ensure that you select the right pump for your needs. Here are some important factors to consider:Pump capacity: The pump capacity of a mini-split condensate pump refers to the amount of water it can handle per hour. It's important to choose a pump with a capacity that is appropriate for your mini-split system to ensure that it can handle the amount of condensed water produced by your unit.Power source: Mini-split condensate pumps can be powered by AC or DC power. It's important to choose a pump that is compatible with the power source available in your application.Automatic shut-off: Many mini-split condensate pumps come with automatic shut-off features that turn off the pump when the water level in the collection tray reaches a certain level. This feature can help prevent overflow and water damage.Noise level: Some mini-split condensate pumps can be noisy, which can be a concern in applications where noise is an issue. Look for pumps that are designed to operate quietly.Size and installation: Mini-split condensate pumps come in different sizes and are designed to be installed in different ways. Make sure to choose a pump that is appropriate for the size of your mini-split unit, and that can be installed easily in your application.Brand and warranty: Choose a pump from a reputable brand that offers a warranty. This can help ensure that you are getting a reliable product that will perform well over time.By considering these factors, you can choose a mini-split condensate pump that is appropriate for your mini-split system and that will meet your needs for reliable and efficient water removal.

▍FAQ

Q1: Does a condensate pump run all the time?A1: A condensate pump will only pump out the water from the tank when it reaches a certain level and stop once the water level goes down. If there’s a significant amount of condensate being produced by your HVAC system, then it may seem your pump is running continuously.Q2: How do you clean a condensate pump?A2: First, make sure it’s unplugged. Disconnect the pipes both on the inlets and outlet. Remove the top (which contains the motor and wirings) to access the tank at the bottom. Clean the tank and the discharge valve until they’re free from clogs or any debris. Rinse and replace all components.Q3: What happens if a condensate pump fails?A3: If your condensate pump fails, the water may overflow and spill. However, if you have a properly working safety switch connected, then it will automatically shut off your dehumidifier or any other appliance to prevent overflow.Q4: Why is my condensate pump so loud?A4: Condensate pumps are naturally loud due to the motor and the movement of water. If possible, add insulation to block the noise. But if you notice your unit getting unusually louder, then it may be a case of a clogged drain pipe. It makes a gurgling noise as it tries to push out the excess water and whatever is stuck in there. If you don’t check as soon as possible, it can lead to water leakage.Q5: How long does a condensate pump last?A5: Just like any device or appliance, it depends on your usage and maintenance. A lot of users get the most out of their condensate pumps from five years up to ten years.
