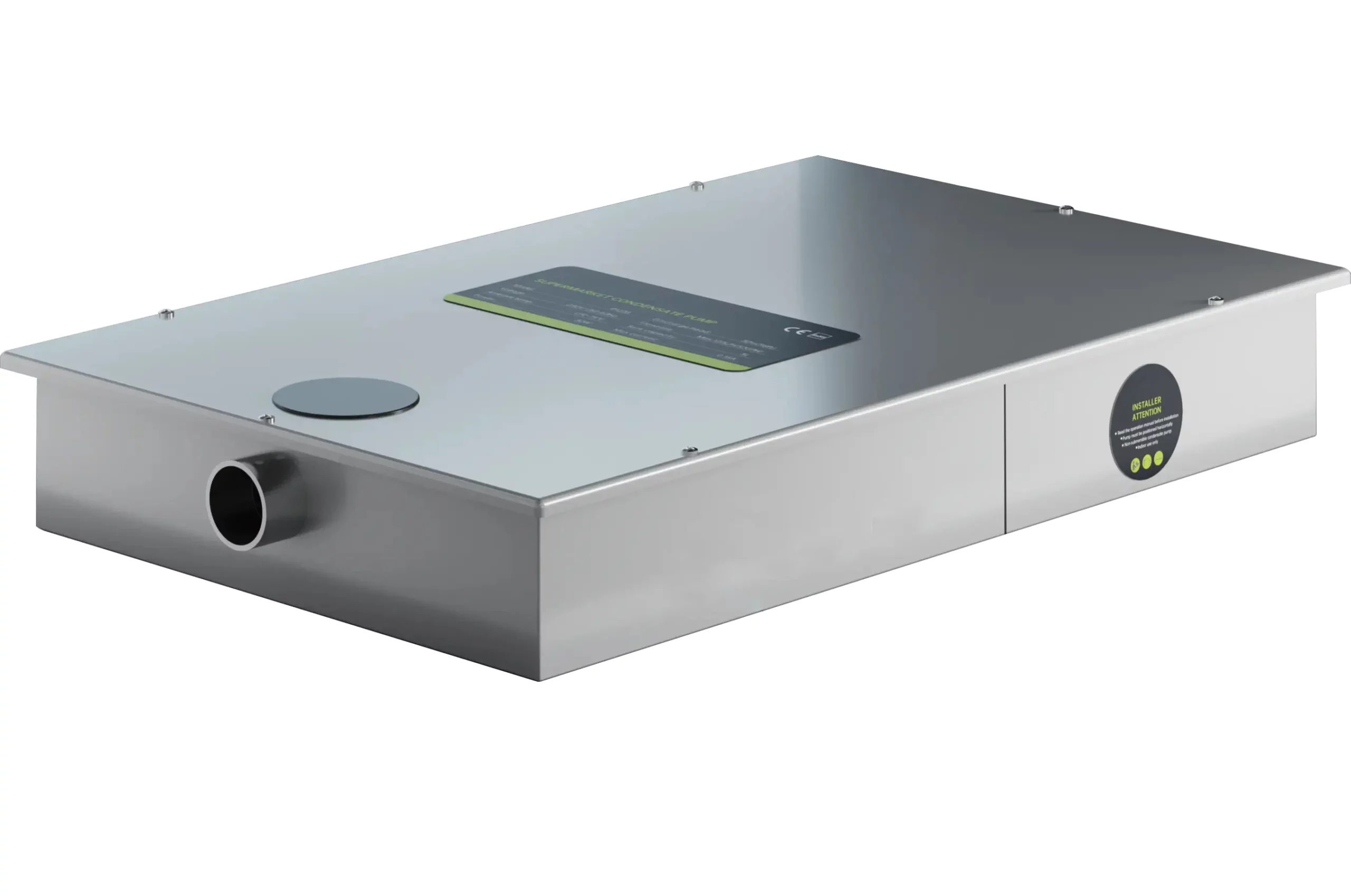

Supermarket Condensate Pump PC-120A for Supermarket Refrigerated Display Cabinets

Supermarket Condensate Pump PC-120A for Supermarket Refrigerated Display Cabinets

The supermarket condensate pump PC-120A is a type of condensate pump that is specifically designed for use in commercial refrigeration systems, such as those found in supermarkets and other retail environments. This supermarket condensate pump is designed to remove the condensate water that is produced by refrigeration equipment, such as display cases, walk-in coolers, and freezers. The supermarket condensate pump PC-120A is typically installed in a condensate collection pan or reservoir, and it automatically pumps the water out of the pan as it accumulates.The supermarket condensate pump PC-120A is a high-capacity pump that is capable of handling large volumes of water, making it an ideal choice for busy commercial refrigeration systems. It is also designed to operate quietly, helping to maintain a comfortable shopping environment for customers. In addition to its high capacity and quiet operation, the PC-120A supermarket condensate pump also features a compact design that allows it to be installed in tight spaces, and it requires minimal maintenance to keep it running smoothly.Overall, the supermarket condensate pump PC-120A is a reliable and efficient solution for removing condensate water from commercial refrigeration systems, helping to prevent damage to equipment and maintaining a comfortable shopping environment for customers.

▍Supermarket Condensate Pump PC-120A Features

Special Design, Simple Installation• Low profile (70mm height) for limited space• Top & side inlet options• Max discharge head at 30m• Large reservoir with 3L• Stainless steel case• Suitable for 75°C hot water

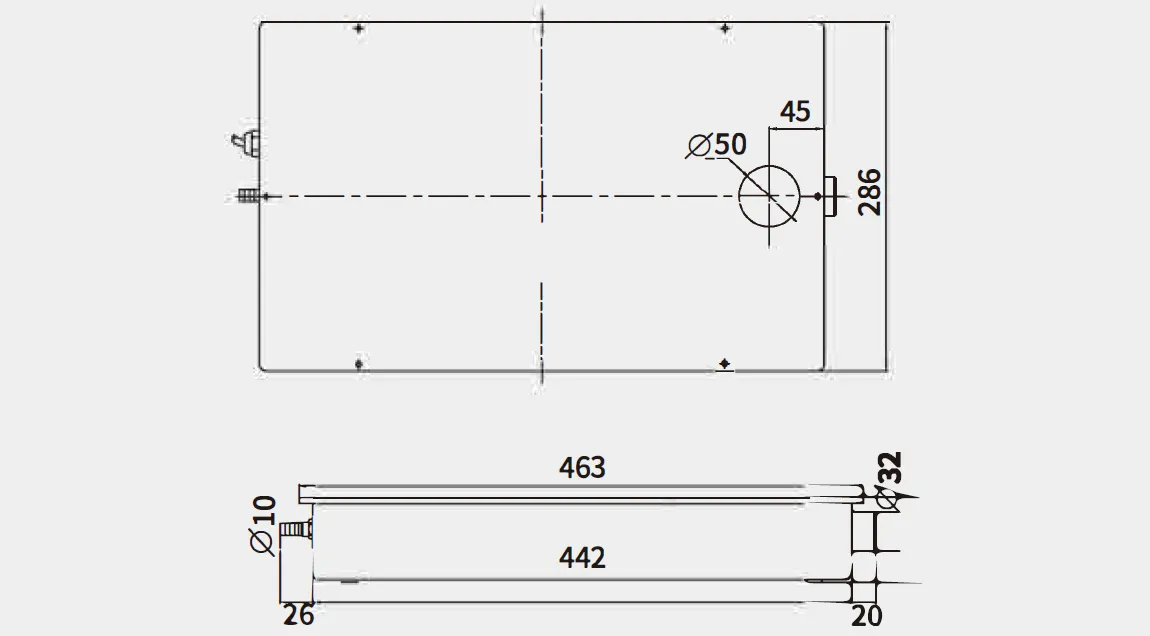

▍Supermarket Condensate Pump PC-120A Dimensions:

▍Supermarket Condensate Pump PC-120A Technical Data:

Model	PC-120A
Voltage	230V~/50-60Hz or 100-120V~/50-60Hz
Discharge head	Max.30M(98ft)
Flow rate	Max.120L/H(32GPH)
Tank capacity	3L
Sound level at 1m	40~62dB(A)
Hot water temp	Max 75°C
Power consumption	30W

Supermarket Condensate Pump PC-120A Flow Rate	Supermarket Condensate Pump PC-120A Instructions

▍Advantages of Supermarket Condensate Pump PC-120A

The supermarket condensate pump PC-120A offers several advantages for commercial refrigeration systems, including:(1) High capacity: The supermarket condensate pump PC-120A is designed to handle large volumes of condensate water, making it ideal for use in busy commercial refrigeration systems.(2) Automatic operation: The supermarket condensate pump PC-120A features automatic operation, which means it will turn on and off based on the level of water in the collection pan. This helps to conserve energy and ensure efficient operation.(3) Quiet operation: The supermarket condensate pump PC-120A operates quietly, making it an ideal choice for installations where noise is a concern.(4) Compact design: The supermarket condensate pump PC-120A has a compact design that allows it to be installed in tight spaces, making it an ideal choice for commercial refrigeration systems where space is limited.(5) Easy maintenance: The supermarket condensate pump PC-120A requires minimal maintenance to keep it running smoothly, reducing the overall cost of operation.(6) Reliable performance: The supermarket condensate pump PC-120A is designed to provide reliable performance, helping to prevent damage to refrigeration equipment caused by water buildup.Overall, the supermarket condensate pump PC-120A is a reliable and efficient solution for removing condensate water from commercial refrigeration systems. Its high capacity, automatic operation, quiet operation, compact design, easy maintenance, and reliable performance make it an ideal choice for supermarkets and other retail environments where commercial refrigeration systems are used.

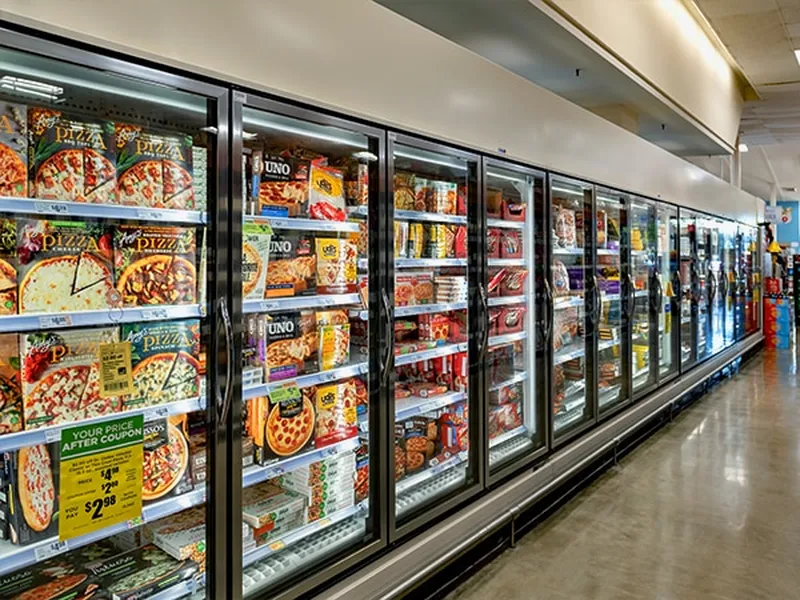

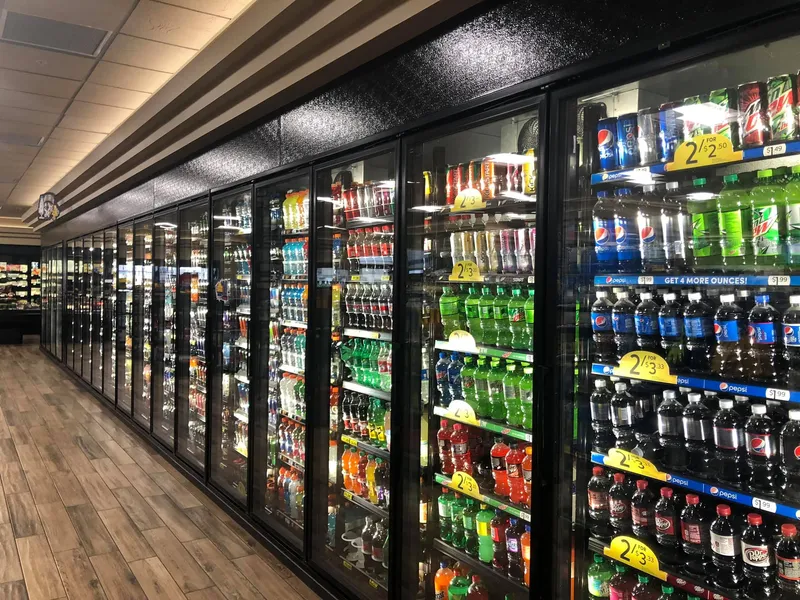

▍Applications of Supermarket Condensate Pump PC-120A

The supermarket condensate pump PC-120A is specifically designed for use in commercial refrigeration systems, such as those found in supermarkets and other retail environments. It is typically used to remove condensate water that is produced by refrigeration equipment, such as display cases, walk-in coolers, and freezers. Some of the common applications of the supermarket condensate pump PC-120A include:1. Supermarkets: The supermarket condensate pump PC-120A is commonly used in large supermarkets to remove condensate water from refrigeration equipment, ensuring that the equipment operates efficiently and preventing damage caused by water buildup.2. Convenience stores: The supermarket condensate pump PC-120A is also used in convenience stores to remove condensate water from refrigeration equipment, helping to maintain a comfortable shopping environment for customers.3. Restaurants: The supermarket condensate pump PC-120A is used in restaurants to remove condensate water from refrigeration equipment, such as walk-in coolers and freezers, helping to ensure that food stays fresh and safe.4. Hospitals: The supermarket condensate pump PC-120A is used in hospital refrigeration systems to remove condensate water, helping to prevent the growth of bacteria and other harmful organisms.5. Laboratories: The supermarket condensate pump PC-120A is used in laboratory refrigeration systems to remove condensate water, helping to prevent damage to sensitive equipment and maintain a safe working environment.Overall, the supermarket condensate pump PC-120A is a versatile pump that can be used in a wide range of commercial and industrial applications where efficient and reliable removal of condensate water is required in refrigeration systems.

▍FAQ

Q1: Does a condensate pump run all the time?A1: A condensate pump will only pump out the water from the tank when it reaches a certain level and stop once the water level goes down. If there’s a significant amount of condensate being produced by your HVAC system, then it may seem your pump is running continuously.Q2: How do you clean a condensate pump?A2: First, make sure it’s unplugged. Disconnect the pipes both on the inlets and outlet. Remove the top (which contains the motor and wirings) to access the tank at the bottom. Clean the tank and the discharge valve until they’re free from clogs or any debris. Rinse and replace all components.Q3: What happens if a condensate pump fails?A3: If your condensate pump fails, the water may overflow and spill. However, if you have a properly working safety switch connected, then it will automatically shut off your dehumidifier or any other appliance to prevent overflow.Q4: Why is my condensate pump so loud?A4: Condensate pumps are naturally loud due to the motor and the movement of water. If possible, add insulation to block the noise. But if you notice your unit getting unusually louder, then it may be a case of a clogged drain pipe. It makes a gurgling noise as it tries to push out the excess water and whatever is stuck in there. If you don’t check as soon as possible, it can lead to water leakage.Q5: How long does a condensate pump last?A5: Just like any device or appliance, it depends on your usage and maintenance. A lot of users get the most out of their condensate pumps from five years up to ten years.
