Coupling Chains 4012/4014/4016/5014/5016/5018

Coupling Chains 4012/4014/4016/5014/5016/5018/6018/6020/6022/8018/8020/8022/10018/12018/12022

Coupling chains are used to connect two shafts of a coupler. The chains have a continuous loop made up of master links and pins. This chain is continually in contact with the teeth on both the drive and driven chains. Proper side clearance between sprocket faces is necessary for optimal performance of chain couplers. There are many types of coupling chains. Each type is designed to handle different stresses and loads.

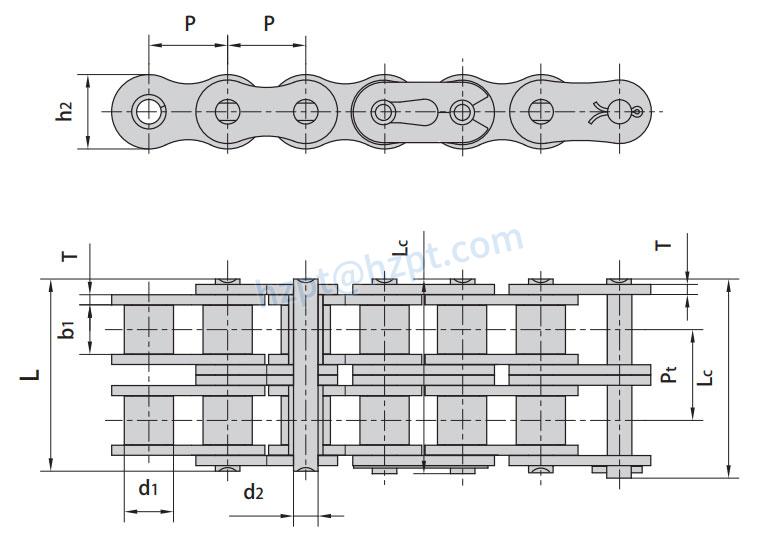

Coupling Chains Size Chart

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Transverse pitch	Ultimate tensile strength	Average tensile strength	Weight per piece
	P	d1max	b1min	d2max	Lmax	Lc max	h2max	Tmax	Pt	Qmin	Q0	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kN	kg/pc
4012	12.700	7.95	7.85	3.96	31.0	32.2	12.00	1.50	14.38	28.2/6409	35.9	0.16
4014	12.700	7.95	7.85	3.96	31.0	32.2	12.00	1.50	14.38	28.2/6409	35.9	0.19
4016	12.700	7.95	7.85	3.96	31.0	32.2	12.00	1.50	14.38	28.2/6409	35.9	0.21
5014	15.875	10.16	9.40	5.08	38.9	40.4	15.09	2.03	18.11	44.4/10091	58.1	0.49
5016	15.875	10.16	9.40	5.08	38.9	40.4	15.09	2.03	18.11	44.4/10091	58.1	0.56
5018	15.875	10.16	9.40	5.08	38.9	40.4	15.09	2.03	18.11	44.4/10091	58.1	0.63
6018	19.050	11.91	12.57	5.94	48.8	50.5	18.00	2.42	22.78	63.6/14455	82.1	1.00
6020	19.050	11.91	12.57	5.94	48.8	50.5	18.00	2.42	22.78	63.6/14455	82.1	1.11
6022	19.050	11.91	12.57	5.94	48.8	50.5	18.00	2.42	22.78	63.6/14455	82.1	1.22
8018	25.400	15.88	15.75	7.92	62.7	64.3	24.00	3.25	29.29	113.4/25773	141.8	2.35
8020	25.400	15.88	15.75	7.92	62.7	64.3	24.00	3.25	29.29	113.4/25773	141.8	2.62
8022	25.400	15.88	15.75	7.92	62.7	64.3	24.00	3.25	29.29	113.4/25773	141.8	2.88
10018	31.750	19.05	18.90	9.53	76.4	80.5	30.00	4.00	35.76	177.0/40227	219.4	4.95
10022	31.750	19.05	18.90	9.53	76.4	80.5	30.00	4.00	35.76	177.0/40227	219.4	4.95
12018	38.100	22.23	25.22	11.10	95.8	99.7	35.70	4.80	45.44	254.0/57727	314.9	8.14
12022	38.100	22.23	25.22	11.10	95.8	99.7	35.70	4.80	45.44	254.0/57727	314.9	8.14

What Are Coupling Chains?

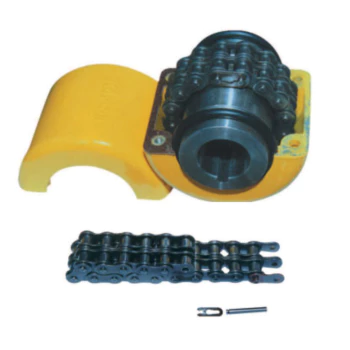

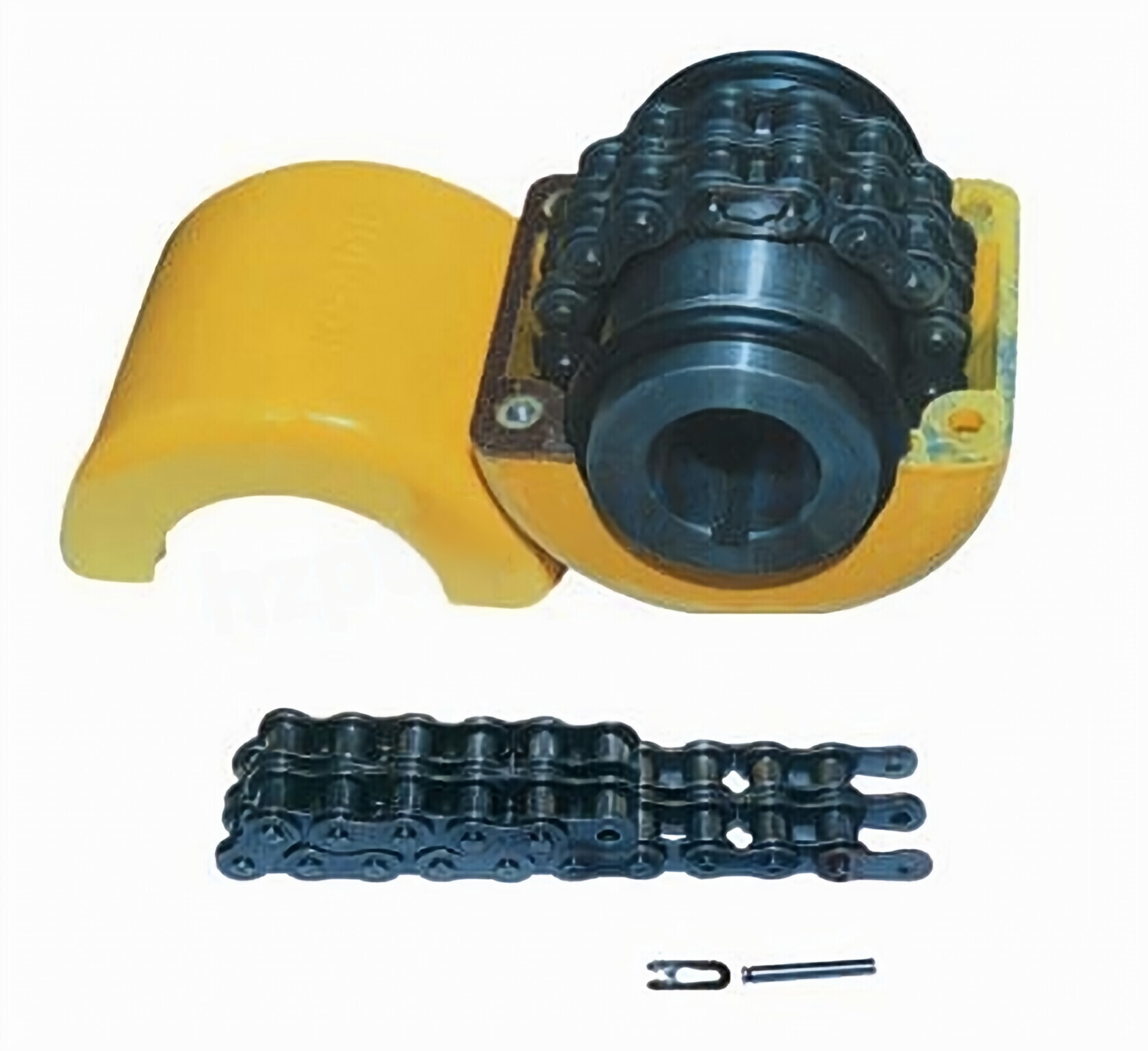

Coupling chains are an essential part of rotating equipment. They help move large loads, which is useful for mining, farming, and metal manufacturing applications. While the most common kind of chain is the roller chain, coupling chains can extend the life of the roller chain by increasing its tensile strength and weight capacity.The chain couplings consist of a pair of identical sprockets connected by duplex roller chains. Plastic chains can also be used, but they require no lubrication and do not have covers. Coupling chains are generally installed off the end of a motor or reducer, where they connect with the machine. A complete coupling consists of two hubs and one coupling chain. A chain coupling can be used for a variety of applications, depending on the conditions it must operate in. For example, a coupling chain can be made from acetal plastic, which is resistant to grease.Because coupling chains are relatively low-maintenance and easy to install or remove, they offer an excellent cost-performance ratio. Coupling chains are usually available in various sizes. They are usually mounted on opposite shaft extensions. They must meet specific requirements to be effective, and the chain must maintain a minimum clearance between the two sprockets. Coupling chains are also easy to install and remove, and the single connecting pin makes them quick and easy to use.

How to Use a Coupling Chain Properly?

A coupling chain is a mechanical fastener that connects two parts. It can be used for a variety of applications, including farming, mining, and metal manufacturing. It's also used to extend the usable life of roller chains. Roller chains are the most common type of chain used today, but coupling chains have a higher strength and can withstand more stress. Whether you're using a chain for agricultural applications or industrial applications, it's important to know how to use one properly.Coupling chains are continuous loops of pins and master links worn over and around the drive and driven chain wheels. As they are constantly in contact with the chain teeth on both wheels, they prevent the couplers from misaligning. Coupling chains can compensate for two degrees of misalignment, making them ideal for high-torque and low-speed environments. To maintain proper performance, use a chain coupler that has sufficient side clearance between the sprocket faces.Coupling chains are a simple mechanism that ensures all machine parts are functioning properly. They are easy to install, replace, and remove. They are a simple, straightforward way to keep your machine running smoothly. Coupling chains can also prevent inconsistencies in performance because they spread torque evenly across the chain. A good coupling chain will ensure that there is no lag time. And since coupling chains are a simple device, they are easy to use and install.

Chains and Sprockets

Chains and sprockets are mechanical devices that allow two shafts to rotate in synchronization. These two components are made of steel, nylon, or Teflon. There are a few common types of chains and sprockets. The material of these components determines their use and how long they should last.Whether you need a chain for a bicycle or a sprocket for a conveyor, a chain sprocket is your answer. Chains are widespread and have a long history of use. They have a wide range of uses, from industrial applications to recreation. A bicycle chain is a common part of many other mechanical devices. Depending on the application, there are different types of chains.For a general guide to choosing a chain, check your manual for a chain size chart. There are commonly listed chain sizes as well as sprockets, which are standardized by ANSI. The first digit of a chain's pitch measures the distance between the rivets. For example, a "5" chain has a pitch of five eighths of an inch. A sprocket with a "20" code is a sprocket with two strands running parallel to each other.Raydafon is one of the leading mechanical transmission parts manufacturers and suppliers who can offer a wide range of drive chains and sprockets for sale. Contact us now if you are interested!
