CRBF Series Crossed Roller Bearings

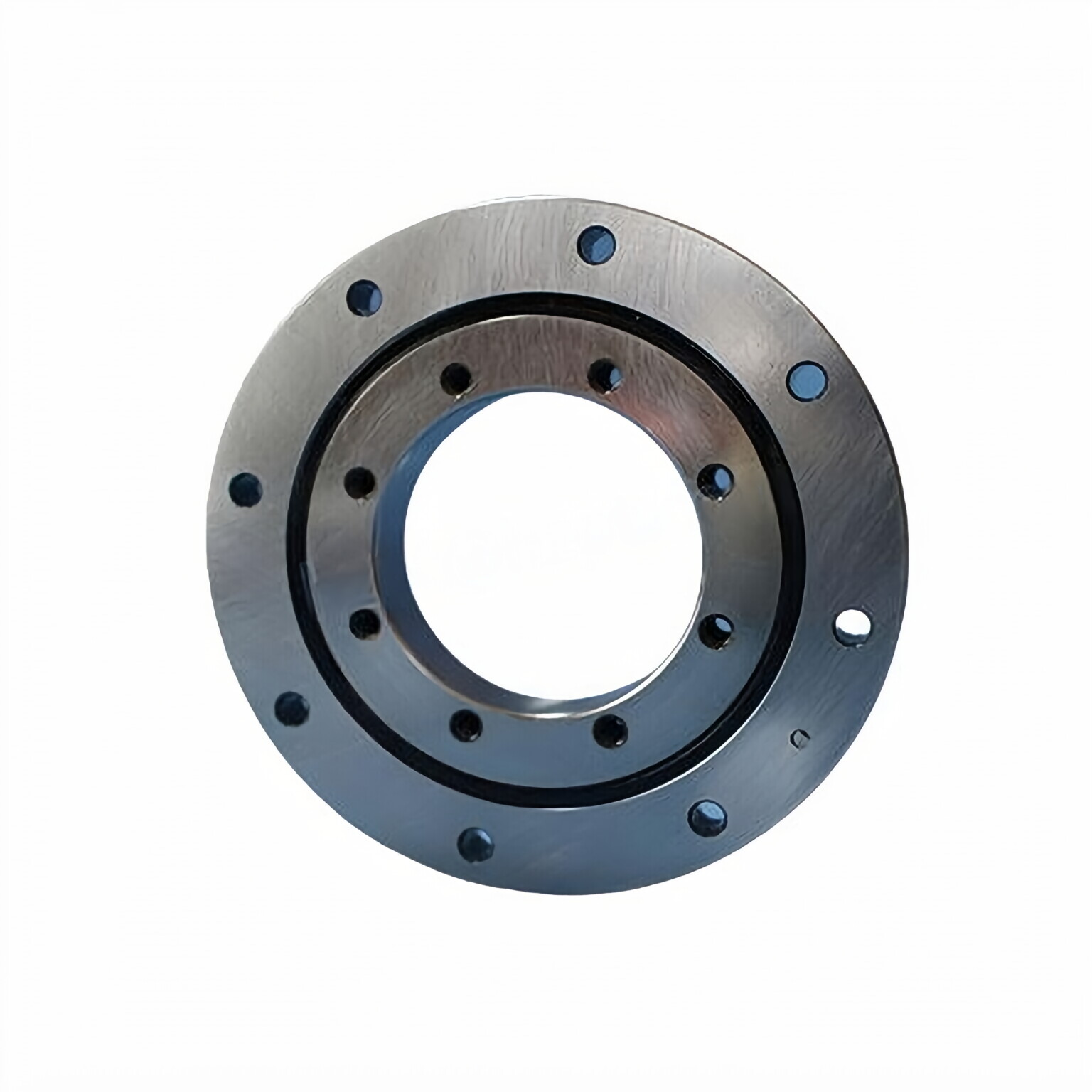

CRBF Series Crossed Roller BearingsCRBF series crossed roller bearing and high rigidity crossed roller bearing with mounting holes is a compact, high rigidity, and high accuracy bearing that can simultaneously receive complex loads in any direction. This can be easily installed on the device with the mounting holes of the inner and outer rings. It is minor subject to peripheral structures such as housing pressure plate and realizes high rigidity and high accuracy operation. There are two CRBF series crossed roller bearing types: open type and sealed type.

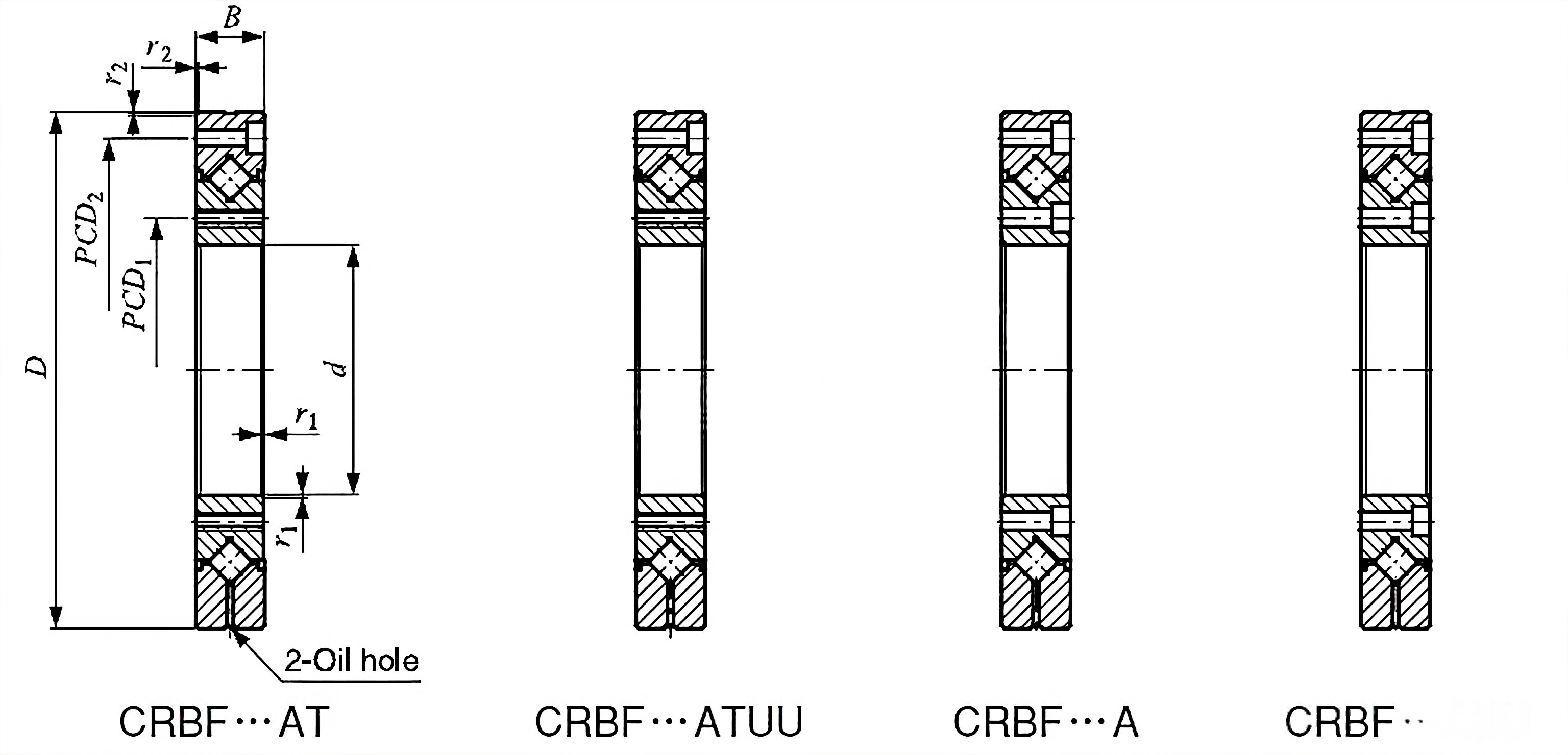

What are the meanings of the suffix A/AD/AT/UU?A: Mounting holes of both inner and outer rings are counterbore holes that face the same direction.AD: Mounting holes of both inner and outer rings are counterbore holes facing opposite directions.AT: Mounting holes of outer rings are counterbore holes, while mounting holes of inner rings are tapped holes.UU: Sealed both sides.

Technical data

Model		Dimension (mm)				Mounting (mm)		Load Rating (kN)		Mass
Open Type	Sealed Type	d	D	B	rsmin	PCD1	PCD2	Cr	Cor	kg
CRBF 108 AT	CRBF 108 AT UU	10	52	8	0.3	16	42	2.91	2.43	0.12
CRBF 2012 AT	CRBF 2012AT UU	20	70	12	0.3	28	57	7.6	8.37	0.31
CRBF 2512 AT	CRBF 2512 AT UU	25	80	12	0.6	35	67	8.61	10.6	0.4
CRBF 3515 AT	CRBF 3515 AT UU	35	95	15	0.6	45	83	17.3	20.9	0.66
CRBF 5515 AT	CRBF 5515 AT UU	55	120	15	0.6	65	105	20.1	27.7	0.96
CRBF 8022 AT	CRBF 8022 AT UU	80	165	22	0.6	97	148	51.1	72	2.63
CRBF 8022 A	CRBF 8022 A UU	80	165	22	0.6	97	148	51.1	72	2.6
CRBF 8022 AD	CRBF 8022 AD UU	80	165	22	0.6	97	148	51.1	72	2.6
CRBF9025AT	CRBF9025AT UU	90	210	25	1.5	112	187	73.4	108	4.83
CRBF9025A	CRBF9025A UU	90	210	25	1.5	112	187	73.4	108	4.67
CRBF9025AD	CRBF9025AD UU	90	210	25	1.5	112	187	73.4	108	4.67
CRBF11528AT	CRBF11528AT UU	115	240	28	1.5	139	217	84.3	138	6.81
CRBF11528A	CRBF11528A UU	115	240	28	1.5	139	217	84.3	138	6.63
CRBF11528AD	CRBF11528AD UU	115	240	28	1.5	139	217	84.3	138	6.63

CRBF series crossed roller bearing (Mounting Holed; High Rigidity):

1: Mounting holes are prepared on the outer and inner rings, providing easy mounting with high rigidity and high accuracy. A single structure is adopted to reduce mounting errors for inner and outer rings. Further, mounting holes are available for direct fixing on the mating mounting surface. So high rigidity and accuracy guide can be easily realized, being minor subject to the housing structure and accuracy.2: Contributing to miniaturizationIt can be easily mounted to a device with bolts without needing housing and a fixing plate, so surrounding parts of the bearing can be compact. Further, it reduces the number of parts and assembly processes, which contributes to miniaturization and weight saving of devices.

Applications

Joint units of robots, precision rotary tables, open rotating platforms, radar, precision measuring instruments, etc.
