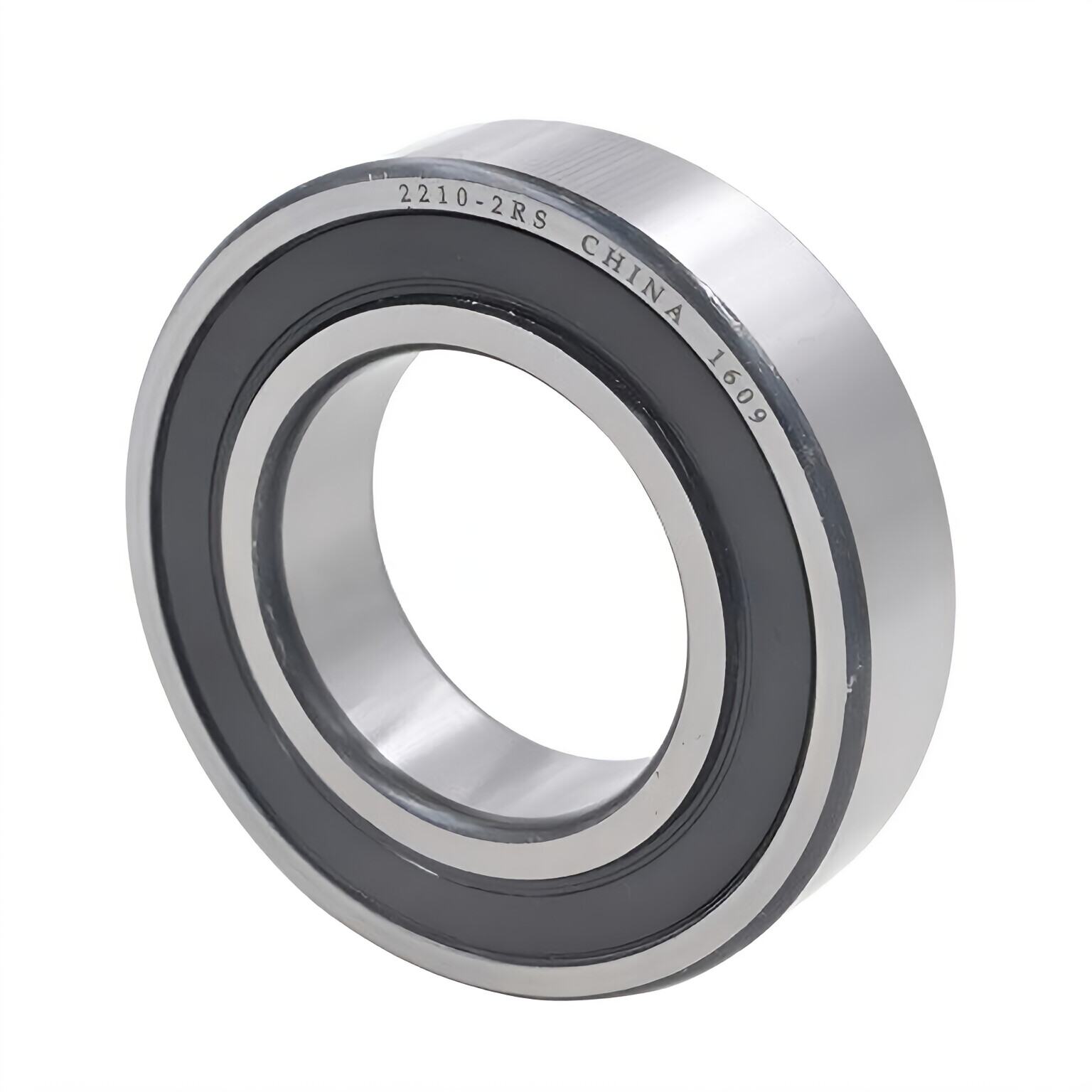

Sealed Self-aligning Ball Bearings

Sealed Self-aligning Ball BearingsSealed self-aligning ball bearings are a common type of self-aligning ball bearings. The bearing seal ring is a bearing seal, especially a ball bearing seal ring. The ball-bearing seal ring has two circular protrusions extending upward on one end surface of the circular ring. The bearing seal ring has the characteristics of preventing grease from catching fire, avoiding frequent oiling, and simple structure. It is widely used in bearings. Sealed self-aligning ball bearings have a contact seal on both sides that is made of oil and wear-resistant NBR and reinforced with a sheet steel insert (designation suffix 2RS). We can supply different cage types, such as Stamped steel, PA66 glass fiber supported, and Machined brass.

Product parameter

Boundary dimensions(mm)			Load ratings(KN)		Limiting speeds(r/min)		Mass(kg)	Bearing NO.
d	D	B	Cr	Cor	Grease	oil		Raydafon
10	30	14	5.53	1.18	17000	-	0.048	2200-2RS
12	32	14	6.24	1.43	16000	-	0.053	2201-2RS
15	35	14	7.41	1.76	14000	-	0.058	2202-2RS
15	42	17	10.8	2.6	12000	-	0.11	2302-2RS
17	40	16	8.84	2.2	12000	-	0.089	2203-2RS
17	47	19	12.7	3.4	11000	-	0.16	2303-2RS
20	47	18	12.7	3.4	10000	-	0.14	2204-2RS
20	52	21	14.3	4	9000	-	0.21	2304-2RS
25	52	18	14.3	4	9000	-	0.16	2205-2RS
25	52	18	14.3	4	9000	-	0.16	2205K-2RS
25	62	24	19	5.4	7500	-	0.34	2305-2RS
25	62	24	19	5.4	7500	-	0.34	2305K-2RS
30	62	20	15.6	4.65	7500	-	0.26	2206-2RS
30	62	20	15.6	4.65	7500	-	0.26	2206K-2RS
30	72	27	22.5	6.8	6700	-	0.51	2306-2RS
30	72	27	22.5	6.8	6700	-	0.51	2306K-2RS
35	72	23	19	6	6300	-	0.41	2207-2RS
35	72	23	19	6	6300	-	0.41	2207K-2RS
35	80	31	26.5	8.5	5600	-	0.7	2307-2RS
35	80	31	26.5	8.5	5600	-	0.7	2307K-2RS

Sealed self-aligning ball bearings application

Sealed self-aligning ball bearings are widely used in the paper industry, Gear Box, Spinning machines, plastic machinery, medical equipment, and all kinds of industrial machinery.
