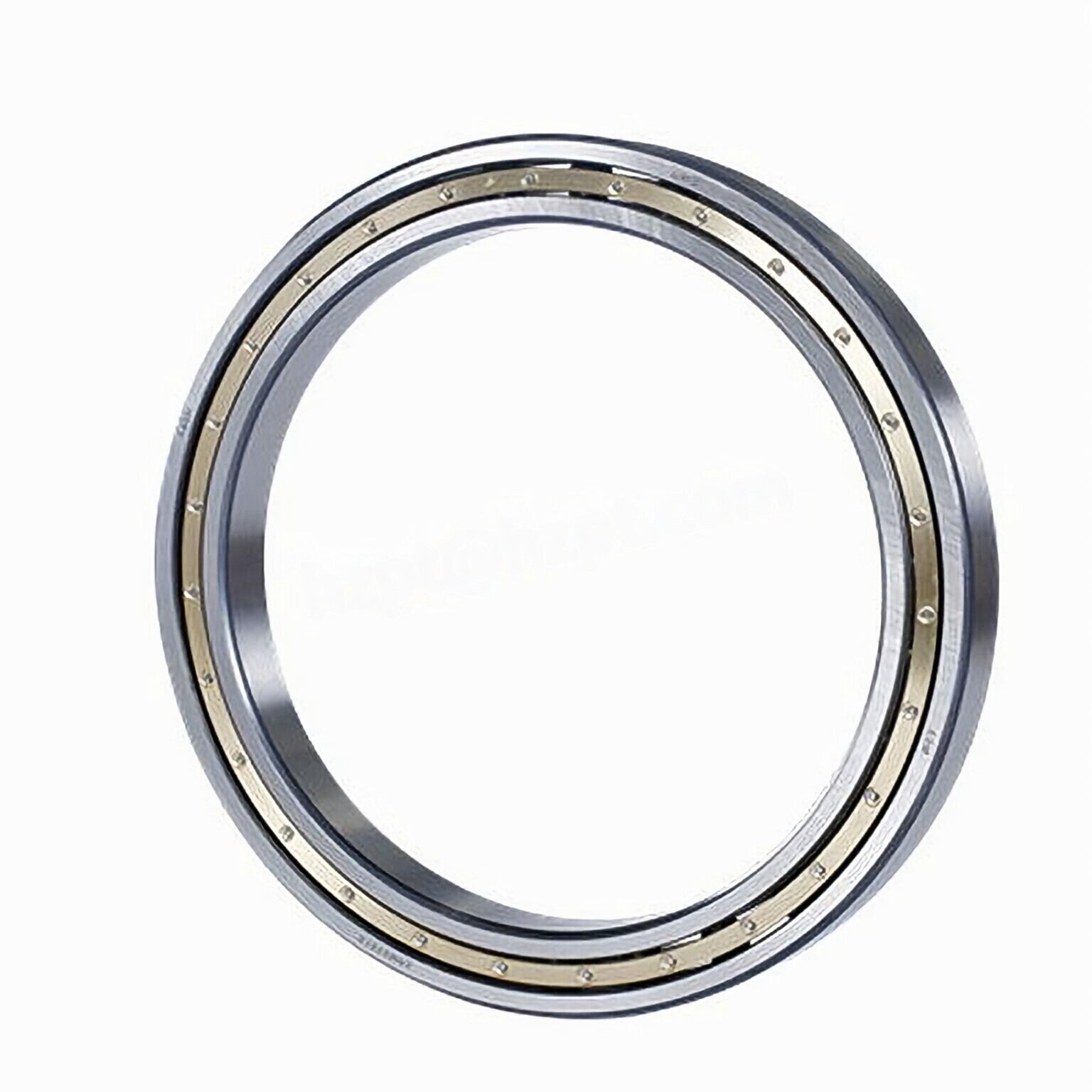

Thin Section Deep Groove Ball Bearing

Thin Section Deep Groove Ball BearingThin Section Deep Groove Ball Bearing was developed for applications where space limitations are of the utmost importance. As the name implies, the difference between the inside and outside diameters of the rings has been minimized or thinned out. Of course, this comes at a price by compromising load capacities. However, these bearings can accommodate relatively light radial thrust or combined loads. Thin Section Deep groove ball bearing is available in open-type bearings, shields (2Z), or seals (2RS).Thin Section Deep Groove Ball Bearing is similar to single row deep groove ball bearings and single row angular contact ball bearings except with a much smaller cross-section. Furthermore, the cross-section remains constant and does not increase with the bore diameter; therefore, these bearings are also known as continuous section ball bearings. Thin Section Deep Groove Ball Bearing are available in radial, angular, and four-point contact designs.

Product parameter

Model	d(mm)	D(mm)	B(mm)	weight(kg)
16004	20	42	8	0.05
16006	30	55	9	0.085
16010	50	80	10	0.166
16016	80	125	14	0.539
6000	10	26	8	0.018
6001	12	28	8	0.021
6002	15	32	9	0.03
6003	17	35	10	0.04
6004	20	42	12	0.068
6005	25	47	12	0.079
6006	30	55	13	0.113
6007	35	62	14	0.149
6201	12	32	10	0.036
6202	15	35	11	0.045
6203	17	40	12	0.065
6204	20	47	11	0.103
6205	25	52	15	0.127
6206	30	62	16	0.203
6207	35	72	17	0.287
6208	40	80	18	0.367
6209	45	85	19	0.416
6210	50	90	20	0.462

Features of Thin Section Deep Groove Ball Bearing

- Lightweight.- Their load carrying capacity is lower than standard deep groove ball bearing, but they can still carry relatively light radial thrust or combined load.

Applications of Thin Section Deep Groove Ball Bearing

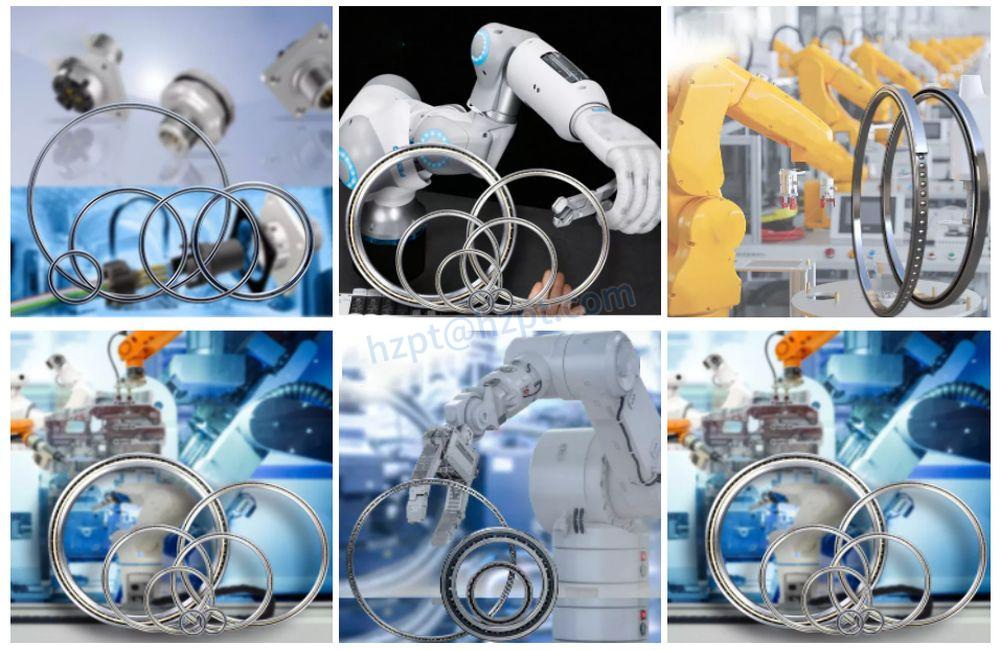

Thin wall deep groove ball bearings are used in many industries, including aerospace, medical imaging, robotics, semiconductors, data storage, machine tools, and packaging equipment, covering many different applications. E.g.:(1) Typically used where wires or pipes pass through holes in hollow shafts or other arrangements.(2) Also used in mechanisms such as gimbal platforms and optical and targeting systems for ships and aircraft. Thin-walled deep groove ball bearings are also used in radar and satellite communications equipment, on land, at sea, and in the air.(3) It Also has excellent applications in all types of work holding equipment such as turntables, indexing, and turntables.(4) They are also the perfect solution for smooth motion in articulated parts such as the elbows of robotic arms or other articulated joints.
