Self-aligning Ball Bearings With An Extended Inner Ring

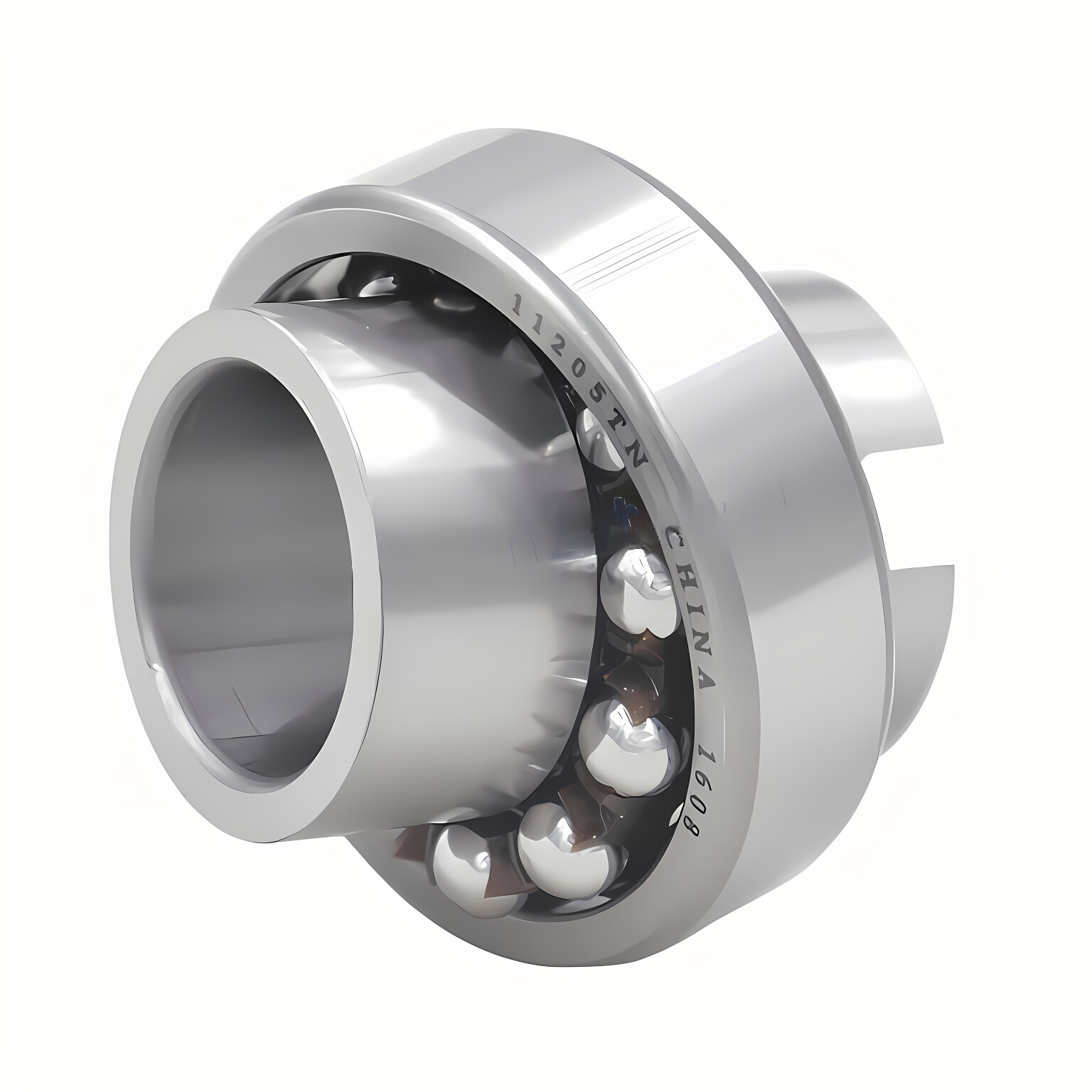

Self-aligning Ball Bearings With An Extended Inner RingSelf-aligning ball bearings with an extended inner ring are a common type of self-aligning ball bearings. Self-aligning ball bearings with a symbolic inner ring are designed for less demanding applications that use commercial-grade shafting. Self-aligning ball bearings with an extended inner ring are located axially on the shaft using a slot at one end of the inner circle that engages a pin or shoulder screw fitted to the post. The holding device also prevents the shaft from spinning in the bearing bore.

Product parameter

Boundary dimensions(mm)			Load ratings(KN)		Limiting speeds(r/min)		Mass(kg)	Bearing NO.
d	D	B	Cr	Cor	Grease	oil		Raydafon
20	47	14	10.1	2.6	13000	-	0.085	11204
25	52	15	12.3	3.25	10000	-	0.226	11205
30	62	16	15.9	4.6	8500	-	0.364	11206
35	72	17	16	5.1	7500	-	0.554	11207
40	80	18	19.4	6.5	6700	-	0.722	11208
45	85	19	22	7.3	6000	-	0.78	11209
50	90	20	22.9	8	5600	-	0.866	11210
55	100	21	27	9	5000	-	1.13	11211
60	110	22	30.5	11.4	4500	-	1.51	11212

Self-aligning ball bearings with an extended inner ring application

Sealed self-aligning ball bearings are widely used in the paper industry, Gear Box, Spinning machine, plastic machinery, medical equipment, and all kinds of industrial machinery.
