Cuplock Scaffolding Intermediate Transom for Building Construction

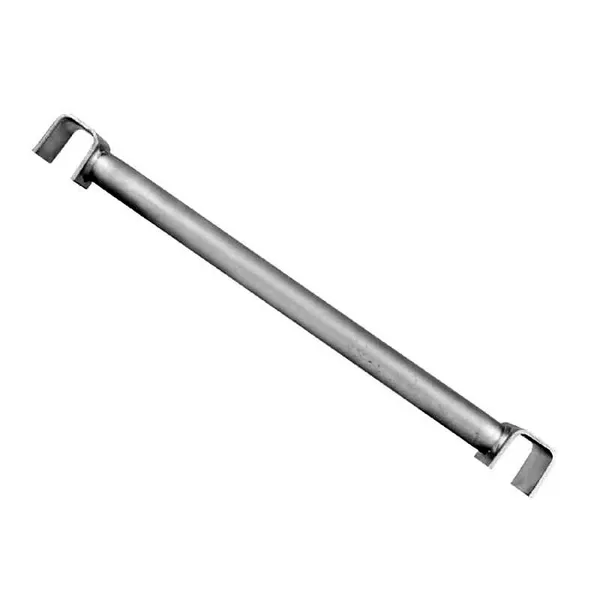

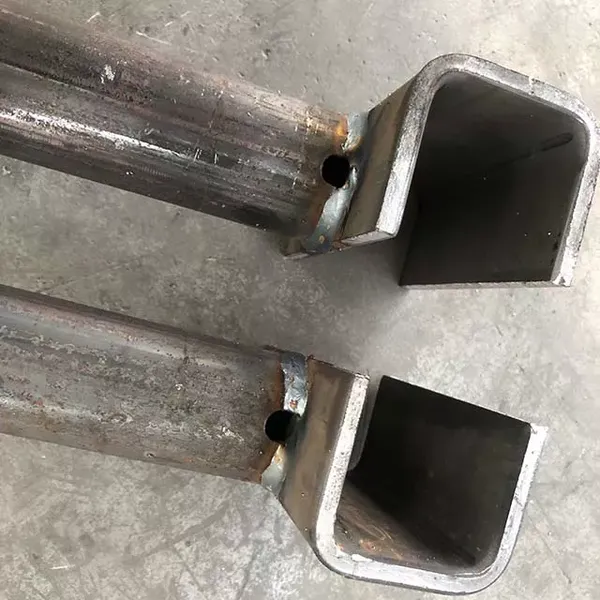

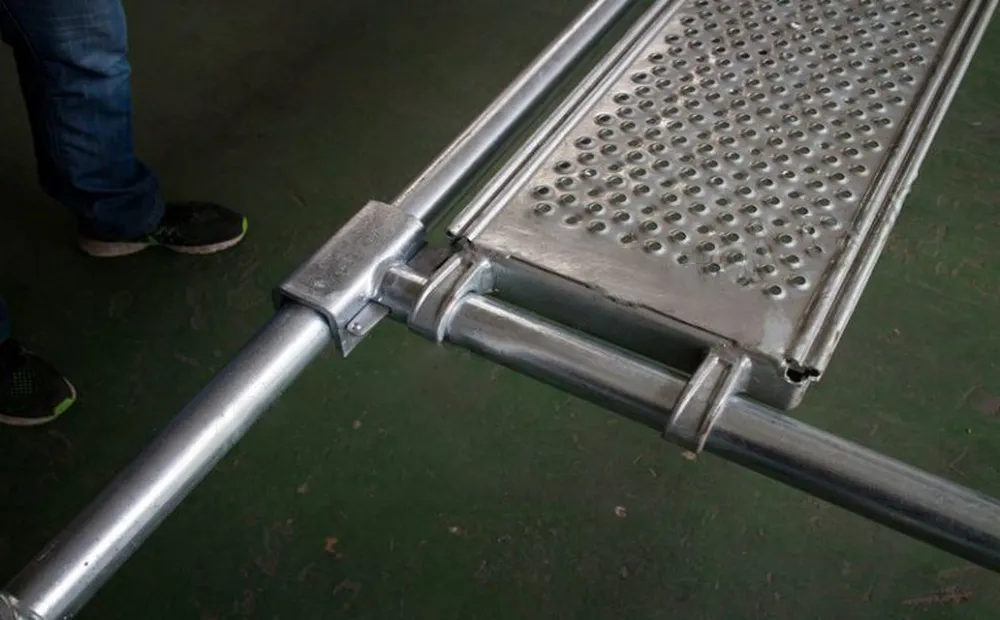

Cuplock scaffolding intermediate transom is one of the main components used to connect two horizontal ledgers. It is designed to provide safe mid-bay support for scaffold boards. It is made of one steel tube welded by two curved hooks at the ends. One end is provided with an integral locking device to prevent movement along the ledger direction during use.Features:● These Units are designed to provide intermediate support for standard scaffold boards between the inner and outer ledgers.●  The jaw section at each end is turned downwards to prevent dislocation.● One end is provided with an integral locking device to prevent horizontal movement.

Cuplock Intermediate Transom Specification

1. Normal Tube Size:Φ48.3x3.25mm

2. Color: Silver, Blue, Green

3.Material: Q235/Q3454. Surface treatment: Painting, Hot Dip Galvanized5. Application: Building Construction

Item No.	Description	Effective Length		Unit Weight
RSCT 0565	Cuplock Intermediate Transom	0.565M	22.25’’	3.83 KG	8.44 LBS
RSCT 0795	Cuplock Intermediate Transom	0.795M	31.30’’	4.67 KG	10.30 LBS
RSCT 1200	Cuplock Intermediate Transom	1.200M	47.25’’	5.98 KG	13.18 LBS
RSCT 1300	Cuplock Intermediate Transom	1.300M	51.18’’	6.48 KG	14.29 LBS
RSCT 1800	Cuplock Intermediate Transom	1.800M	70.87’’	8.29 KG	18.28 LBS
RSCT 2500	Cuplock Intermediate Transom	2.500M	98.43’’	11.82 KG	26.07 LBS

Note: Other Size Can be Customized

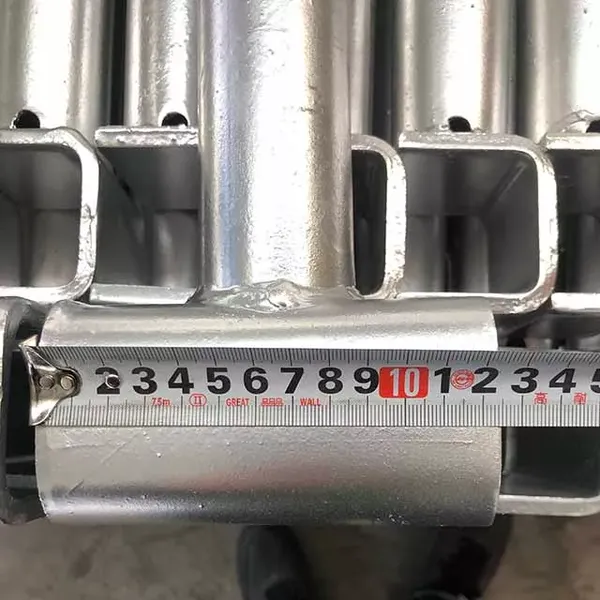

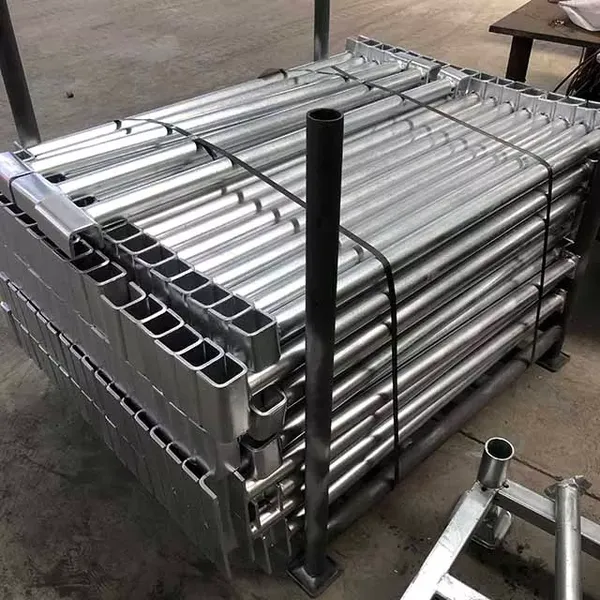

Product Images

Product Advantage

(1). High-quality materials, higher quality.Material--The product material is Q235 or Q345 carbon steel which is higher than the standard as the raw material.Quality assurance, not easy to crush deformation.(2). Advanced technology, better performanceProducts using advanced technology avoid the production malpractice of old craft, causing the effect of the anti-deformation and anti-stretching performance to be more robust and more fit the scaffolding.(3). Anti-rust treatment, long service life.After passivation and surface galvanized anti-rust treatment, its corrosion resistance is better than the ordinary tubes and has a longer service life.(4). Standard production, more secure.According to professional design and advanced technology, all products are manufactured strictly with EN74 and BS1139 standards, quality guarantee, and ensure construction safety and personnel safety.
