Cuplock Scaffolding System for Construction Engineering

The cuplock scaffolding system is a new type of scaffold developed based on absorbing advanced joint and accessories technology of the same kind of scaffold and combining it with the actual situation. The joint structure of cuplock type multifunctional scaffold is reasonable, the production process is simple, the operation is easy, and the application range is wide. It can fully meet the construction requirements of buildings, bridges and, culverts, tunnels. Compared with other types of scaffolds, the cuplock scaffolding system is a new type of scaffold with broad development prospects.

Components of the Cuplock Scaffolding System

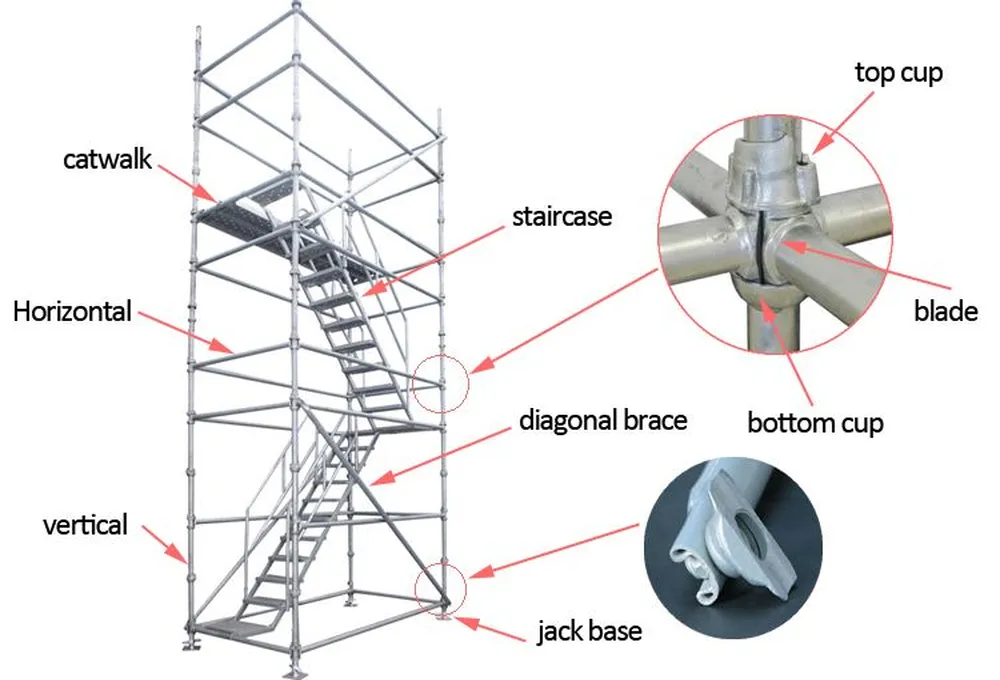

1. Standards/Verticals

Cuplock verticals are available with and without fixtures, increasing the adaptability of the Cuplock scaffolding system. These prefabricated verticles are fixed with lower cups at the bottom and rotating cups on the top. These can securely hold up to four components together.

2. Ledgers/Horizontals

Cuplock ledgers provide horizontal support to the system. They fit into the vertical tubes, ensuring a solid assembly. Horizontals can also be used as guardrails in the staircase tower. These have forged blade ends that make them easy to assemble.

3. Universal Jack

This is used as an adjustment part at the bottom or top of the system structure. It can accommodate different ground levels that are adjustable by up to half a meter, ensuring a leveled structure. The Universal Jack is used in conjunction with baseplates, adapters, and foreheads. They support the entire load of the system.

4. Transoms

These provide intermediate support to the scaffold boards. They connect the inner and outer horizontal ledgers and serve as a locking mechanism to keep them in place. Each end of the intermediate transom is designed like a jaw to prevent the logs from dislocating.

5. Board brackets

These are used to support two to three boards beyond the framework's interior, increasing the working platform's span. The exterior edge of the board brackets has a cup joint in which a cuplock ledger can be fixed. It also has a socket that is used as a handrail post support.

6. Other accessories

These include spigot pins, single board support, steel toeboard, handrail posts, swivel face brace, castor wheel, hook decks, safety gates, etc., that add up to the system's adaptability.

Model and Specification

The main material of cup lock scaffolding is: Q235/Q345The surface treatment is: hot-galvanized or painting

Standpipe
Specification	Length(mm)	Weight(kg)	Material
HG-30	300	1.6	Q235 T=3mm
HG-60	600	2.82	Q235 T=3mm
HG-90	900	3.97	Q235 T=3mm
HG-120	1200	5.12	Q235 T=3mm
HG-150	1500	6.28	Q235 T=3mm
HG-180	1800	7.43	Q235 T=3mm
HG-240	2400	9.73	Q235 T=3mm

Horizontal pipe
Specification	Length(mm)	Weight(kg)	Material
LG-30	300	2.03	Q345 T=3.25mm
LG-60	600	4.06	Q345 T=3.25mm
LG-90	900	5.6	Q345 T=3.25mm
LG-120	1200	7.41	Q345 T=3.25mm
LG-150	1500	8.91	Q345 T=3.25mm
LG-180	1800	10.67	Q345 T=3.25mm
LG-210	2100	12.21	Q345 T=3.25mm
LG-240	2400	14.02	Q234 T=3.25mm
LG-300	3000	17.31	Q345 T=3.25mm

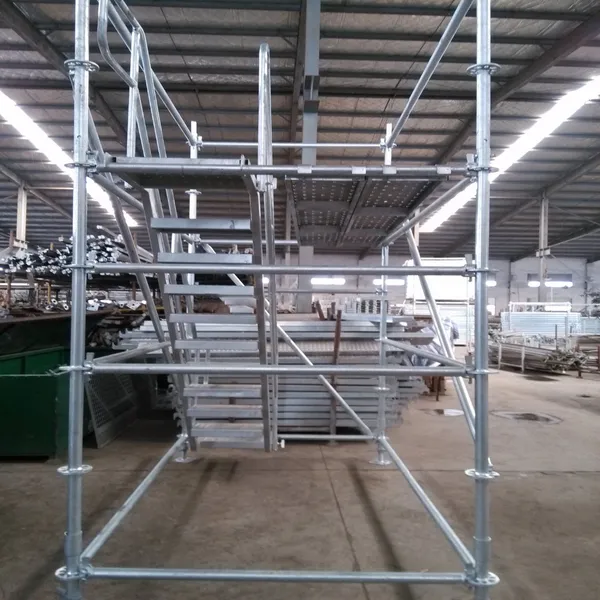

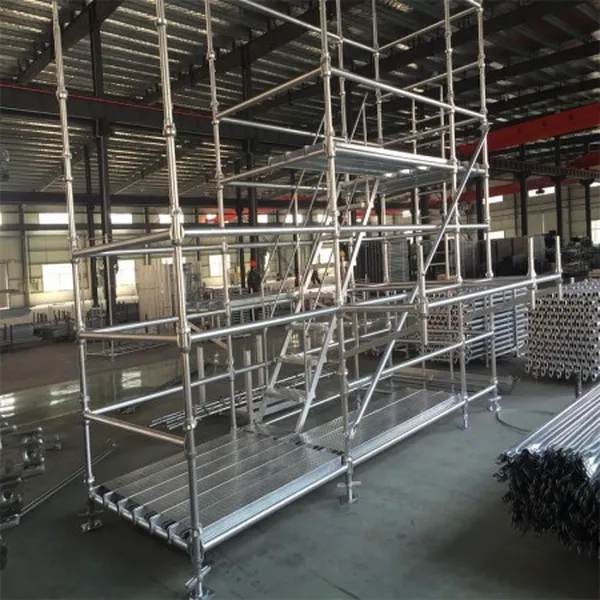

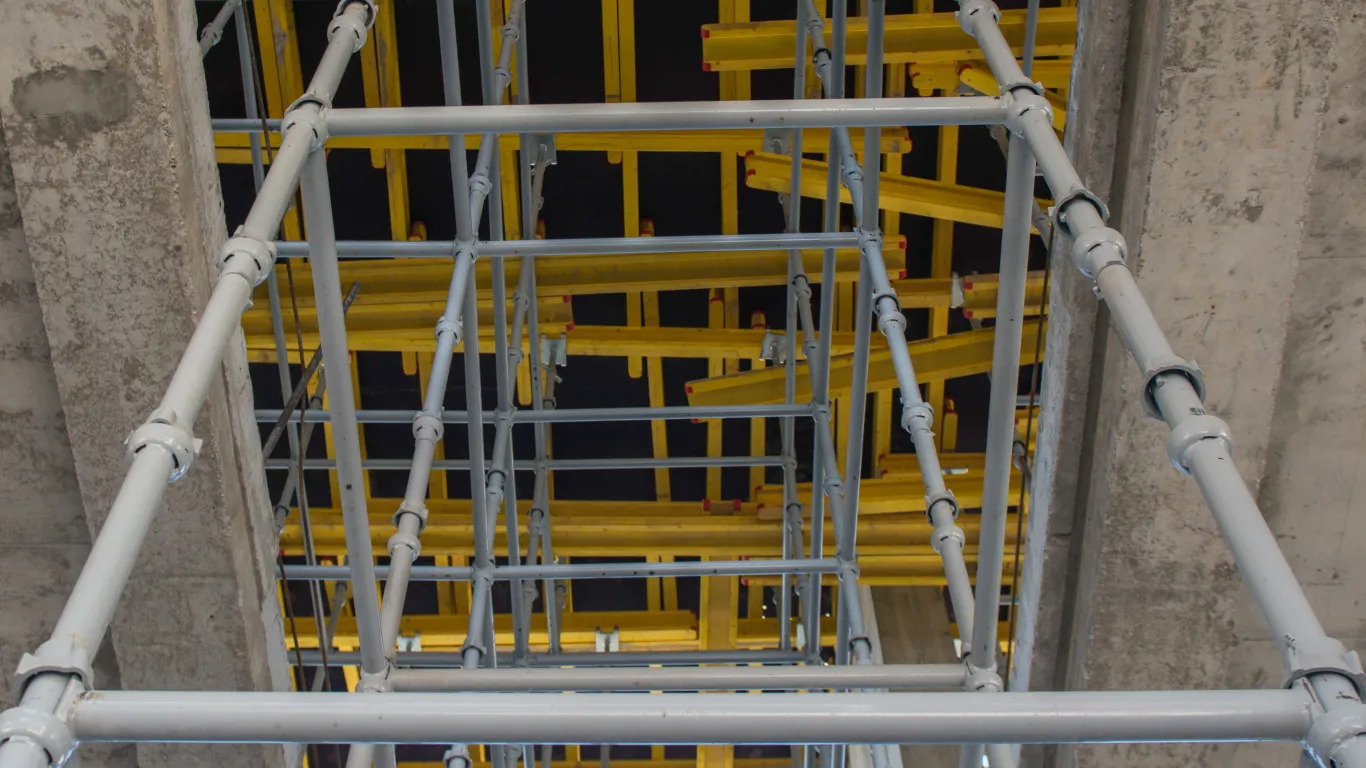

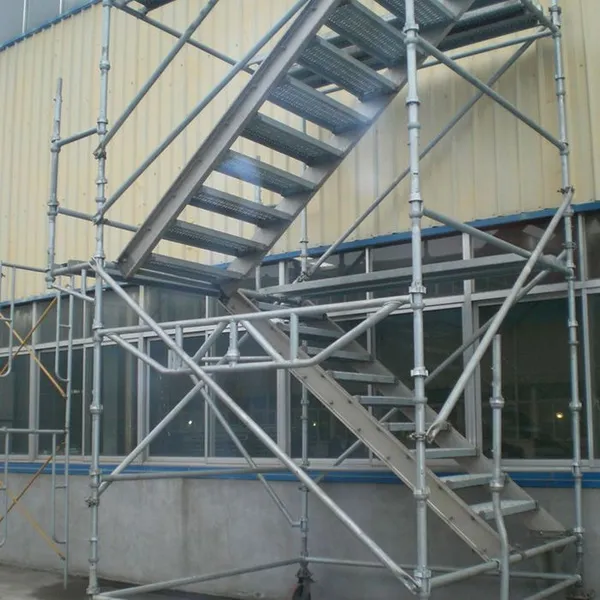

Product Display

Benefits of Using A Cuplock Scaffolding System

1. Easy to use

This system is flexible and adaptable. It can be used to build different structures for construction, refurbishment, or maintenance projects. Its application in any industry, like refineries, energy production, chemical plants, aircraft, shipyards, etc., makes it more widespread. It is used to build facade scaffolds, loading bays, curved structures, birdcage structures, mobile towers, staircases, shoring structures, etc., which makes it more versatile.

2. Light in weight and safe

This system is light-weighted and palletized. This makes them easy to transport and store. They are also durable as they feature a galvanized surface. This surface protects them from corrosion. The Cuplock system eliminates the use of diagonal braces, which makes it safer to navigate. It also accommodates staircases and ladder safety gates, which makes it the safest scaffolding system.

3. Easy to install

The Cuplock scaffolding system's node-point locking device is one of its distinguishing characteristics. This apparatus may connect a single vertical tube to four horizontal tubes. Furthermore, no loose bolts, wedges, or clips are required to secure components to the node point, making this scaffolding easier and faster to construct.
