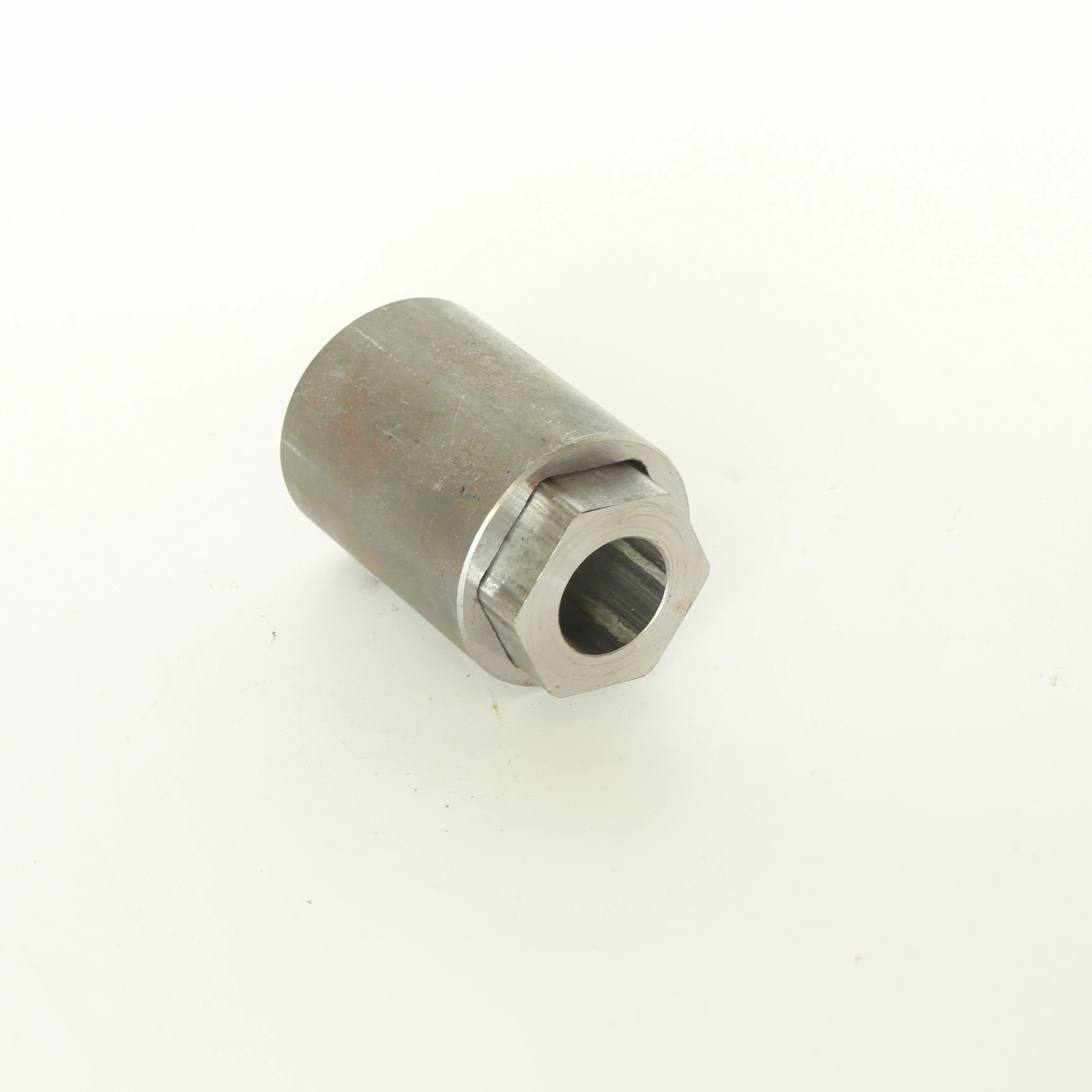

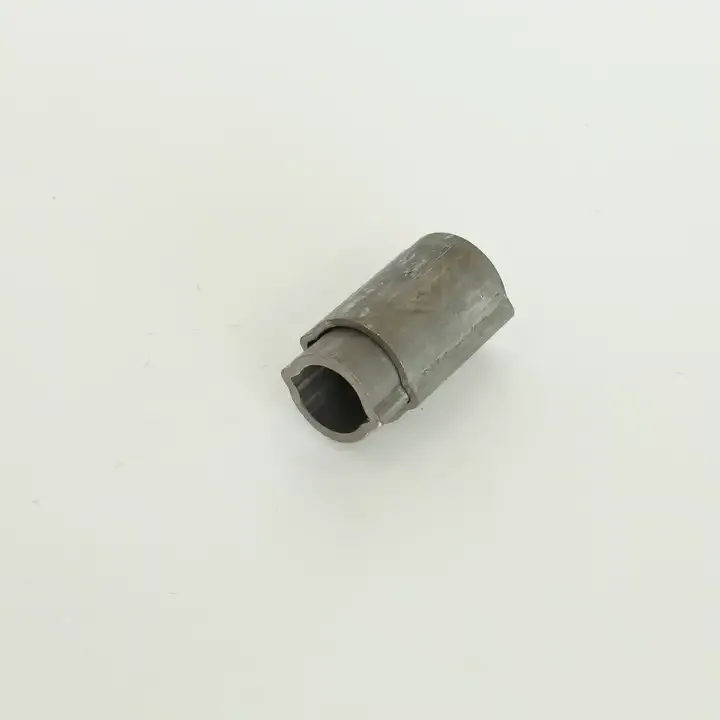

Customized High Hardness Steel Hexagon Tube for Car Pipe Harvester Machine

Presenting our top-grade, custom-made Steel Hexagon Tube for Car Pipe Harvester Machines. Fabricated with superior quality steel, our hexagon tube boasts high hardness, making it ideal for applications demanding robustness and durability. With a standard weight of 1 kg, it is suitable for various industries, including manufacturing plants, machinery repair shops, retail, farms, construction sites, and food & beverage shops, among others.

Advantages of Hexagon Tube for PTO Shaft

Agricultural Power Take-Off (PTO) shaft tubes are pivotal components in farm machinery, serving as the connection point between tractors and different implements such as mowers, balers, tillers, and more. These tubes play a significant role in ensuring the smooth, safe operation of agricultural equipment. Here are some of their key advantages:

1. Effective Power Delivery: PTO shaft tubes are designed to effectively transfer power from the tractor to the implement, ensuring optimal performance of the machinery.
2. Robust Construction: These tubes are typically crafted from high-strength materials, offering durability and resistance to the rigors of agricultural work. The construction material often exhibits properties that resist wear, corrosion, and environmental damage.
3. Protective Shielding: Most PTO shaft tubes come with protective coverings or guards that help prevent accidents and injuries caused by entanglement with the rotating shaft. They are often designed to meet specific safety standards, thereby reducing the risk of mishaps during operation.
4. Accommodates Various Equipment: PTO shaft tubes can adapt to a wide range of agricultural machinery, offering flexibility in connecting different types of implements. Many PTO shafts have telescopic designs, allowing them to accommodate different distances between the tractor and the implement.
5. Easy to Service: They are generally designed for easy maintenance, with the ability to replace worn or damaged parts like bearings or u-joints. Many PTO shaft tubes have standardized components, making it easier to find replacement parts.
6. Variety of Sizes and Types: PTO shaft tubes are available in various sizes and types to match specific torque and speed requirements, offering customization options to cater to different farming needs.

Applications of Hexagon Tube for PTO Shaft

Agricultural Power Take-Off (PTO) shaft tubes are essential components in a wide range of farm machinery, playing a critical role in power transmission from a tractor to various implements. Here are some key applications of agricultural PTO shaft tubes:

1. Rotary Cutters and Mowers: Used to transfer power to rotary cutters and mowers for cutting grass, crops, and other vegetation.
2. Balers: Vital in operating balers, especially for hay or straw baling. PTO shaft tubes ensure the efficient functioning of these machines during the compacting and binding process.
3. Tillage Equipment: Essential for powering tillage tools like plows, harrows, and cultivators, which are used for soil preparation and weed control.
4. Seeders and Planters: Facilitate the operation of seed drills and planters, ensuring seeds are sown effectively and at the right depth.
5. Harvesting Machinery: Crucial in the operation of harvesting equipment, such as combines and forage harvesters.
6. Manure Spreaders: Enable the functioning of manure spreaders, crucial for distributing organic fertilizers evenly across fields.

Agricultural PTO Shaft Tube Types

Agricultural Power Take-Off (PTO) shaft tubes are essential components in farm machinery, connecting the tractor to various implements. There are several types of PTO shaft tubes, each designed to meet specific requirements and applications in agriculture. Here are some PTO shaft tube types:

1. 1. Standard Duty Tubes: Ideal for light-duty work and smaller implements. They are typically lighter and used with equipment that doesn't require high torque or power transfer.

1. Heavy-Duty Tubes: Suited for heavy-duty applications, demanding higher torque and power transmission. These tubes are more robust and capable of handling the stress of more intensive tasks like deep plowing or heavy-duty mowing.

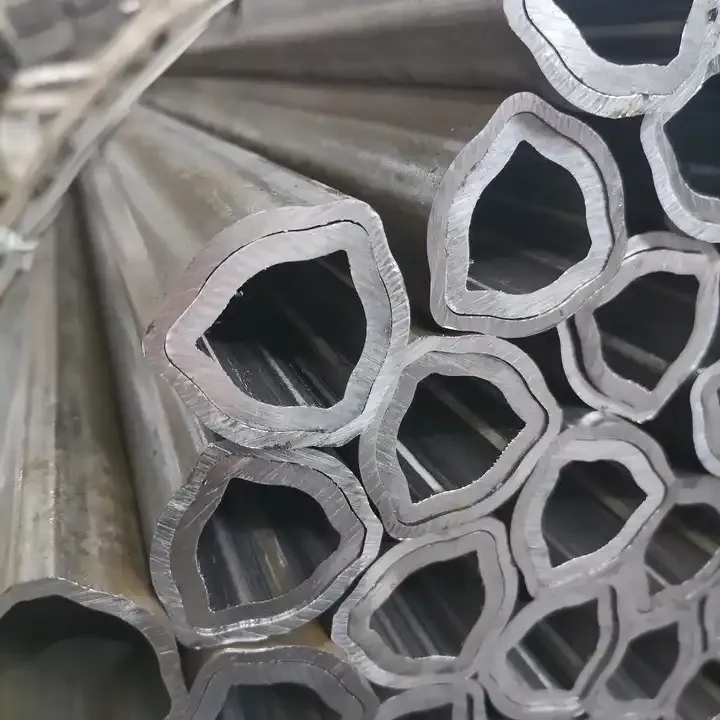

2. Lemon-Shaped or Star-Shaped Tubes: Designed for specific torque transmission requirements. These tubes have unique profiles (lemon or star-shaped) to provide different levels of flexibility and torque handling capabilities.
3. Wide-Angle Tubes: Ideal for situations where the PTO shaft needs to operate at greater angles. They allow for wider operating angles between the tractor and implement, useful in uneven terrain.
4. Splined Tubes: Common in most agricultural applications for secure attachment. These tubes feature internal and external splines for a secure fit and efficient power transmission.
5. Telescopic Tubes: Used when a variable distance between the tractor and implement needs to be accommodated. These shafts can extend or retract to adjust the length, providing flexibility and convenience in operation.

Agricultural PTO Shaft Tube Replacement Steps

Replacing an Agricultural Power Take-Off (PTO) shaft tube is an important maintenance task that ensures the effective and safe operation of your farm machinery. Here's a step-by-step guide on how to replace a PTO shaft tube:

1. Disconnect Power: Ensure the tractor or any power source is turned off. Remove the key to prevent accidental starting. Make sure the implement attached to the PTO is properly supported and stable.
2. Remove the Old PTO Shaft: Detach the PTO shaft from the implement and the tractor. This usually involves removing a locking pin or clip at each end. Carefully slide the PTO shaft off the tractor??s PTO stub and then away from the implement.
3. Disassemble the PTO Shaft: Secure the PTO shaft in a vise or lay it on a flat surface. Remove any guards or chains. Locate and remove the fasteners or pins that hold the tube in place on the shaft assembly.
4. Remove the Old Tube: Slide the old tube off the shaft. You may need to tap it gently with a hammer if it??s stuck.
5. Prepare the New Tube: Apply grease to the inside of the new tube and to any moving parts to ensure smooth operation.
6. Install the New Tube: Slide the new tube onto the shaft. Ensure it aligns correctly with the yokes and any other components. Secure the tube with the original fasteners or pins.
7. Reassemble the PTO Shaft: Replace any guards or chains that were removed. Ensure all components are secured properly. Carefully align and attach one end of the PTO shaft to the implement and then the other end to the tractor??s PTO stub. Secure both ends with locking pins or clips.
8. Test the Installation: Engage the PTO at a low speed while stationary to ensure the shaft rotates freely without wobbling or noise. Perform a functional test under normal operating conditions.

How to Choose the Right PTO Shaft Tube

Choosing the right PTO (Power Take-Off) shaft tube for your agricultural equipment is crucial for efficient and safe operation. Here are some key factors to consider when selecting a PTO shaft tube:

1. Length of the Shaft: Measure the distance between the tractor's PTO stub and the implement's input shaft. Consider the required length when the implement is in operation, as some implements may move further away from the tractor during use. Ensure the shaft can extend and retract. A telescopic shaft allows for flexibility in length, accommodating movement during operation.
2. Shaft Diameter and Spline Specification: Determine the size and type of the PTO stub on the tractor. Common sizes are 540 RPM (6 splines, 1 3/8 inch diameter) and 1000 RPM (21 splines, 1 3/8 inch diameter or 20 splines, 1 3/4 inch diameter). Check the implement??s input shaft size and spline count to ensure compatibility with the PTO shaft.
3. Torque and Horsepower Requirements: Review the tractor and implement specifications for torque and horsepower requirements. The PTO shaft should be capable of handling the maximum torque and horsepower output of the tractor.
4. Safety Features: Ensure the PTO shaft comes with appropriate safety guards to protect against entanglement and other accidents. Look for shafts that comply with recognized safety standards.
5. Type of Work: The type of implement (e.g., mower, baler, tiller) often dictates the type of PTO shaft needed. Some implements require specific types of shafts for optimal performance. Consider the intensity and duration of the work. Frequent, heavy use requires a more robust shaft.
6. Material and Build Quality: Opt for high-quality materials that offer durability and resistance to wear and corrosion.

Maintenance of Agricultural PTO Shaft Hexagon Tube

Maintaining an agricultural PTO (Power Take-Off) shaft tube is crucial for the safe and efficient operation of farm machinery. Regular maintenance ensures the longevity of the PTO shaft and helps prevent accidents. Here are key steps in maintaining an agricultural PTO shaft tube:

1. Regular Inspection: Regularly inspect the PTO shaft tube for any signs of wear, cracks, bends, or other damage. Ensure that all safety guards are in place and in good condition. They are essential for preventing entanglement injuries.
2. Lubrication: Lubricate the shaft regularly, focusing on universal joints, yokes, and the telescoping parts of the shaft. Use a high-quality grease that's suitable for agricultural equipment.
3. Cleaning: Keep the shaft clean from dirt, crop residue, and other debris. Dirt accumulation can hinder the telescopic action of the shaft and hide potential damage.
4. Checking and Adjusting Length: Ensure the shaft is the correct length for the tractor-implement combination. A shaft that's too short can disconnect, while one that's too long can compress and cause damage. Check the telescoping parts of the shaft for smooth operation. If they're difficult to slide, they may need cleaning or lubrication.
5. Inspect and Replace Worn Parts: Look for signs of wear in the yokes, universal joints, and tubing. Replace any worn or damaged parts promptly. Check and replace shear bolts and pins as necessary. These are designed to break under excess load to protect the tractor and implement.
6. Storage: When not in use, store the PTO shaft in a dry, covered area to prevent rust and corrosion. Hanging the shaft can prevent bending and warping.

Why Choose Raydafon's PTO Shaft Tubes?
