CX Series Biaxial Compact Hydraulic Cylinder

CX Series Biaxial Compact Hydraulic Cylinder

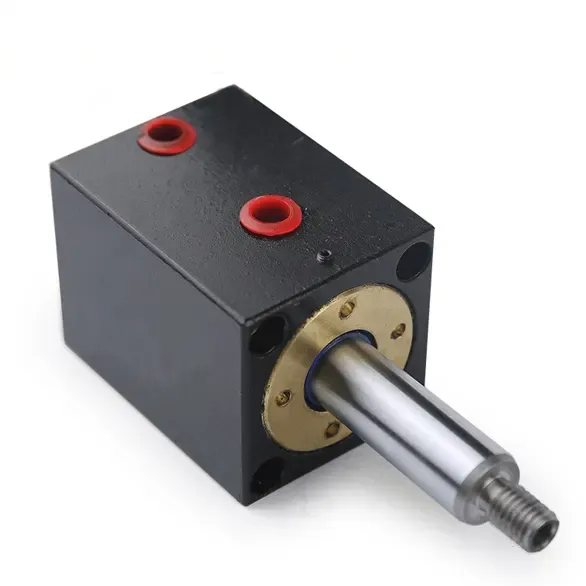

The cx series biaxial compact hydraulic cylinder is a cutting-edge hydraulic component designed to provide efficient and reliable power transmission in various industrial applications. With its compact design, superior performance, and durability, this hydraulic cylinder offers precise control and versatility. Whether used in manufacturing, material handling, or construction, the cx series biaxial compact hydraulic cylinder is engineered to optimize hydraulic operations and enhance productivity.CX series compact cylinders are used for clamping cylinders. Its installation is small. Our factory has advanced hydraulic equipment, including a vertical, and horizontal machining center and medium and large hydraulic cylinders. Thin cylinder production technology is excellent.

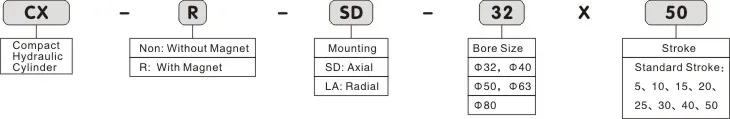

CX Series Biaxial Compact Hydraulic Cylinder Model Description:

CX Series Biaxial Compact Hydraulic Cylinder Features:

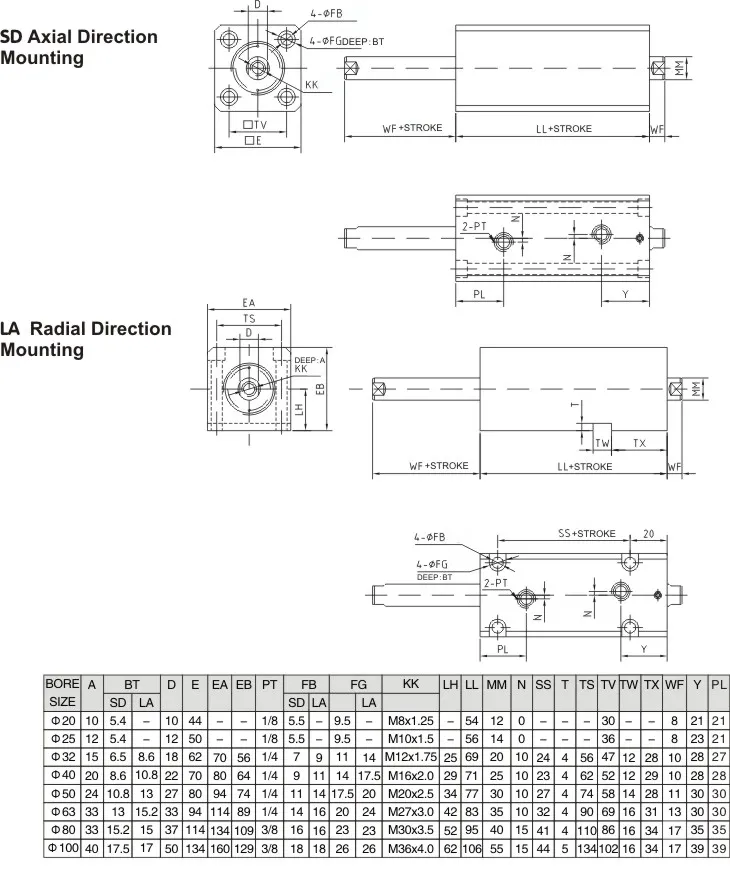

CX Series Biaxial Compact Hydraulic Cylinder Parameter:

Key Features and Benefits Of CX Series Biaxial Compact Hydraulic Cylinder:

1. Compact Design:
   • The CX Series Biaxial Compact Hydraulic Cylinder features a space-saving design, making it suitable for applications with limited mounting areas.
   • Its compact size allows for easy integration into various equipment setups, optimizing space utilization.
2. Precise Control:
   • This hydraulic cylinder offers exceptional control over movement and positioning, enabling accurate and efficient operations.
   • The precise control mechanism ensures smooth and controlled motion, enhancing overall productivity.
3. High Performance:
   • The CX Series Biaxial Compact Hydraulic Cylinder is engineered to deliver high-performance power transmission capabilities.
   • It can handle heavy loads and demanding industrial applications, ensuring reliable and consistent performance.
4. Versatile Applications:
   • With its versatile design, the CX Series Biaxial Compact Hydraulic Cylinder suits various industries, including manufacturing, material handling, and construction.
   • It can be utilized in various equipment such as presses, compactors, loaders, and more.

Usage Method Of CX Series Biaxial Compact Hydraulic Cylinder:

1. Mounting and Installation:
   • Identify the appropriate mounting position for the CX Series Biaxial Compact Hydraulic Cylinder based on the specific requirements of your equipment or machinery.
   • Ensure that the mounting surface is sturdy, level, and capable of securely supporting the weight and load of the cylinder.
2. Hydraulic System Connection:
   • Connect the hydraulic cylinder to the hydraulic system using compatible hydraulic hoses or pipes.
   • Align and secure the connections properly to prevent leaks and ensure optimal performance.
3. Operating the Cylinder:
   • Activate the hydraulic system to initiate the movement of the CX Series Biaxial Compact Hydraulic Cylinder.
   • Utilize the hydraulic control system to precisely control the cylinder's extension, retraction, and positioning for efficient operations.

How To Remove Hydraulic Cylinder From Front End Loader?

Removing a hydraulic cylinder from a front-end loader requires proper preparation and caution. Here is a step-by-step guide to help you through the process:

1. Ensure Safety:
   • Before starting work, park the front-end loader on a flat, stable surface.
   • Engage the parking brake and turn off the engine to prevent accidental movement.
2. Identify the Cylinder:
   • Locate the hydraulic cylinder that needs to be removed. Depending on the loader's design, there may be multiple cylinders.
3. Relieve Hydraulic Pressure:
   • To avoid any sudden pressure release, relieve the hydraulic pressure in the system. This step is crucial for safety.
   • Start the loader's engine and operate the hydraulic controls to move the cylinder's piston fully in one direction.
   • Shut off the engine and release residual pressure by operating the controls again.
4. Disconnect Hydraulic Lines:
   • Locate the hydraulic lines connected to the cylinder. There will typically be a supply line and a return line.
   • Place a drain pan beneath the cylinder to catch any hydraulic fluid leaking during disconnection.
   • Carefully disconnect the hydraulic lines from the cylinder using appropriate wrenches or fittings. Be prepared for some fluid spillage.
5. Support the Cylinder:
   • Since hydraulic cylinders can be heavy, it's essential to provide support before removing them.
   • Use a jack, blocks, or any other stable support structure to securely hold the weight of the cylinder.
6. Remove Mounting Bolts:
   • Identify the mounting points where the cylinder is attached to the loader's frame or other components.
   • Using the appropriate tools, such as wrenches or sockets, remove the mounting bolts or pins that secure the cylinder.
   • Keep track of the bolts and any associated hardware for reinstallation.
7. Carefully Remove the Cylinder:
   • With the hydraulic lines disconnected and the mounting bolts removed, slowly and carefully slide or lift the cylinder out of its mounting position.
   • Be mindful of the cylinder's weight and size to prevent accidents or injuries during removal.
8. Inspect and Store:
   • Once the cylinder is removed, inspect it for any signs of damage, leaks, or excessive wear. This assessment will help determine if the cylinder needs repair or replacement.
   • Clean the cylinder and store it in a clean and dry area to prevent contamination or further damage.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of compact hydraulic cylinders. It maintains a leading position in China's market segment of hydraulic cylinders. In 2020, the domestic market share was around 29%. We produce Industrial vehicle compact hydraulic cylinders, Aerial work vehicle compact hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The compact hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
