D472 Boiler Moving Grate Chains

D472 Boiler Moving Grate Chains

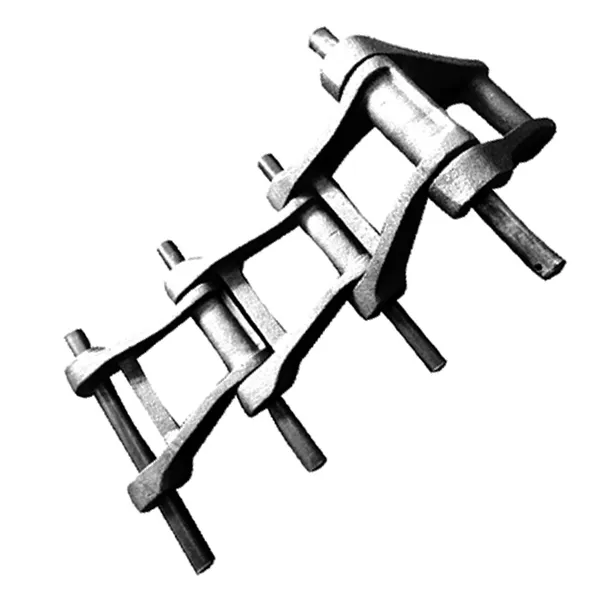

D472 Boiler Moving Grate Chains are a type of chain used to move the fuel bed in a traveling grate boiler. Traveling grate boilers are a type of industrial boiler that burns solid fuels, such as coal, biomass, and waste. The fuel is fed onto a moving grate at the front of the boiler and travels through the combustion chamber, burning as it goes. The grate then discharges the ash and unburned fuel at the back of the boiler.

D472 Boiler Moving Grate Chains are designed to withstand the harsh conditions of a boiler furnace. They are made of high-strength alloy steel and are heat-treated to resist wear and tear. The chains are also designed to be self-cleaning, which helps to prevent ash and clinker buildup.

D472 Boiler Moving Grate Chains are typically used in boilers that are generating between 10 and 100 megawatts of electricity. They are also used in some industrial and commercial boilers.

Here are some of the key features and benefits of D472 Boiler Moving Grate Chains:

• High strength and durability
• Heat-treated to resist wear and tear
• Self-cleaning design
• Suitable for a wide range of boiler applications

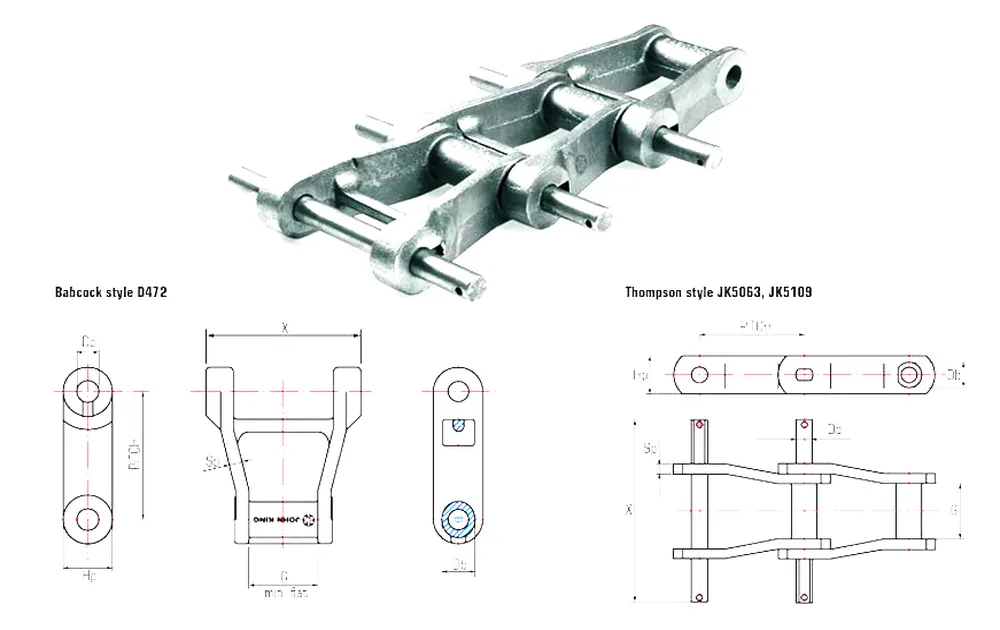

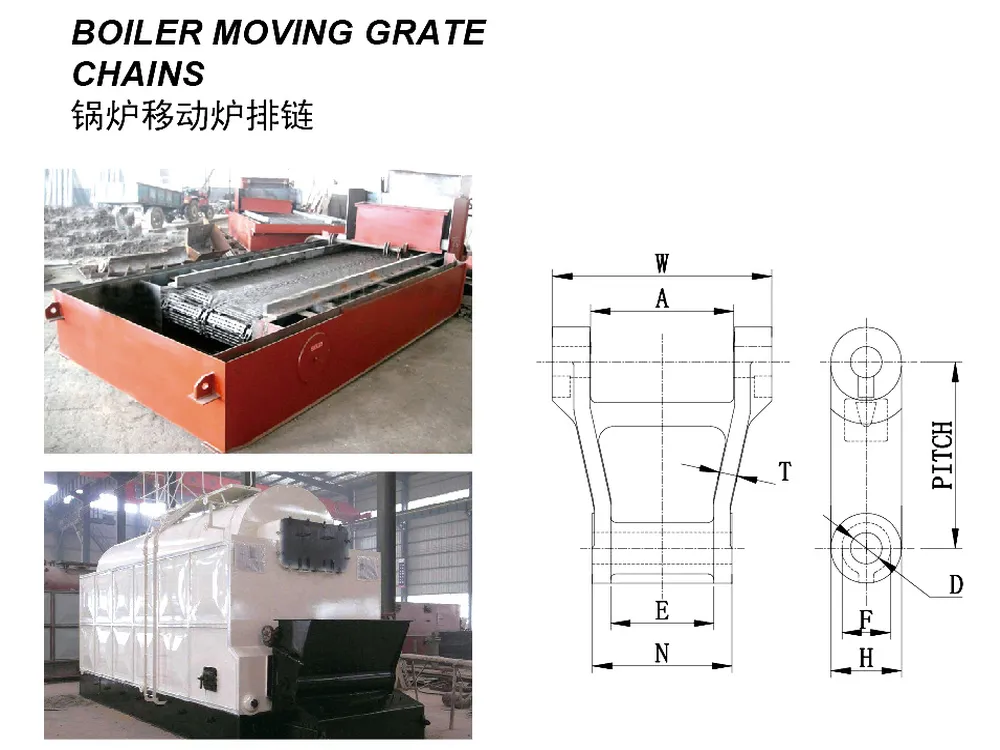

D472 Boiler Moving Grate Chain Dimensions:

ChainNo.		Pitch	Bush Diameter	Pin Diameter	Between Sidebars	Sidebar Height	Sidebar Thickness	Over Pin	Breaking Load
		P	D5	D6	L	H	S	F
D472	mm	101.00	25.40	15.88	50.80	38.10	10.00	119.00	n/s
	in	3.98	1.00	0.63	2.00	1.50	0.38	4.69	n/s

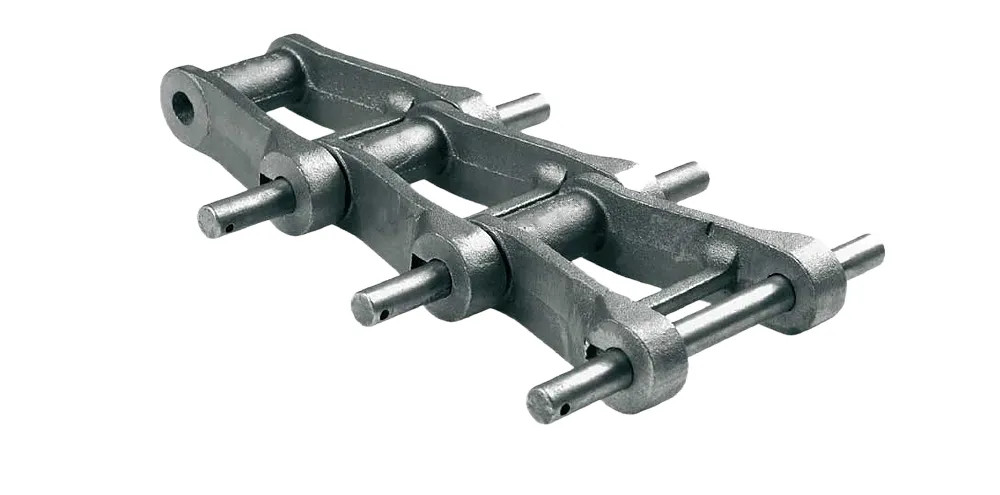

D472 Boiler Moving Grate Chain Features:

The D472 boiler moving grate chain is a heavy-duty chain designed for use in chain grate stokers. It is made of high-quality steel and is designed to withstand the harsh conditions of the boiler environment.

Here are some of the key features of the D472 boiler moving grate chain:

1. High strength and wear resistance:?The D472 boiler moving grate chain is made of high-strength and wear-resistant materials, which can withstand the high temperature, high pressure, and high wear environment of boiler combustion.2. Good heat resistance:?The D472 boiler moving grate chain has good heat resistance and can work normally at high temperatures for a long time.3. Long service life:?The D472 boiler moving grate chain has a long service life and can be used for a long time without replacement.4. Low maintenance cost:?The D472 boiler moving grate chain is easy to maintain and has a low maintenance cost.5. Wide range of applications:?The D472 boiler moving grate chain can be used in a variety of boilers, such as coal-fired boilers, biomass boilers, and waste boilers.

Overall, the D472 boiler moving grate chain is a high-quality and reliable product with many advantages. It is a good choice for boiler users who are looking for a durable and efficient moving grate chain.

Boiler Grate Chain Sprockets for Boiler Moving Grate Chains:

Boiler grate chain sprockets are an essential component of boiler systems that use a moving grate to combust solid fuels like coal, biomass, or waste. The sprockets are responsible for driving the movement of the grate chains, which transport the fuel across the combustion chamber.Here are some key points about boiler grate chain sprockets:Function: The primary function of a boiler grate chain sprocket is to engage with the links of the grate chain and transmit power to drive its movement. As the sprocket rotates, it pulls the chain, causing the grate to move and distribute the fuel evenly for combustion.Design and Construction: Boiler grate chain sprockets are typically made of high-strength materials such as steel or cast iron to withstand the demanding conditions of the boiler environment. They are designed with teeth or projections that align with the links of the grate chain to ensure a positive engagement and smooth operation.Tooth Profile: The tooth profile of the sprocket is crucial for maintaining a proper grip on the grate chain and preventing slippage during operation. Different types of tooth profiles, such as standard or special tooth forms, can be used based on the specific requirements of the boiler system.Sprocket Size: The size of the boiler grate chain sprocket depends on various factors, including the boiler design, grate dimensions, and the intended fuel type. Sprockets are available in different sizes and configurations to accommodate different chain sizes and operating conditions.Maintenance and Replacement: Regular inspection and maintenance of the grate chain sprockets are important to ensure their proper functioning. Over time, sprockets may wear out or develop damaged teeth due to the abrasive nature of the fuel and high operating temperatures. In such cases, it is necessary to replace the worn or damaged sprockets to maintain the efficiency and reliability of the boiler system.When selecting or replacing boiler grate chain sprockets, it is essential to consider factors such as the boiler grate chain pitch, number of teeth, material quality, and compatibility with the existing grate system.

Boiler Moving Grate Chain Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X conveyor chains,?agricultural chains, CA550 roller chains, S55 roller chains, silent chains, X458 conveyor chains, grip chains (film gripper chains), PIV chains,?stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain, steel pintle chain,?welded steel mill chain, drop forged chain, malleable iron chain, "H" Class mill chain, CC Class crate conveyor chain,??"H" Class refuse drag chain, 600 Class ley bushed chain, combination transfer chain, "H" Class transfer rooftop chain, and many other types. Different kinds of attachments are available.
