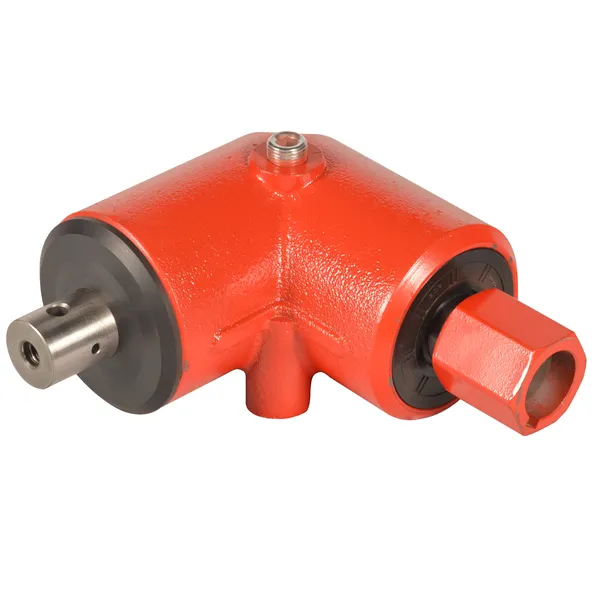

Double Disc Fertilizer Spreader Gearbox RDF-SF10 for Fertilizer Spreader

Double Disc Fertilizer Spreader Gearbox RDF-SF10 for Fertilizer Spreader

The Double Disc Fertilizer Spreader Gearbox RDF-SF10 is an essential component of a fertilizer spreader that is used in agricultural applications. It is designed to evenly distribute granular fertilizers onto the field, ensuring accurate and efficient fertilization. The gearbox is responsible for transmitting power from the tractor's power take-off (PTO) to the spreading discs. It converts the rotational motion from the PTO into the necessary speed and torque required to spin the spreading discs. The RDF-SF10 gearbox is specifically designed for use in double disc fertilizer spreaders. It is a durable and robust gearbox, constructed with high-quality materials to withstand the demanding conditions of agricultural operations. The gearbox is typically made of cast iron or other sturdy metals to ensure longevity and reliable performance. The Double Disc Fertilizer Spreader Gearbox RDF-SF10 features a compact design, making it easy to integrate into the spreader's overall structure. It is often mounted directly onto the spreader's frame or chassis. The gearbox is equipped with gears and bearings that are precisely engineered to handle the load and stress generated during fertilizer spreading. It provides a smooth and consistent power transfer to the spreading discs, ensuring even distribution of fertilizers across the field. The RDF-SF10 gearbox may have various speed settings and adjustment mechanisms, allowing operators to customize the spreading rate according to their specific requirements. These adjustments can be made through a control lever or mechanism located on the spreader.

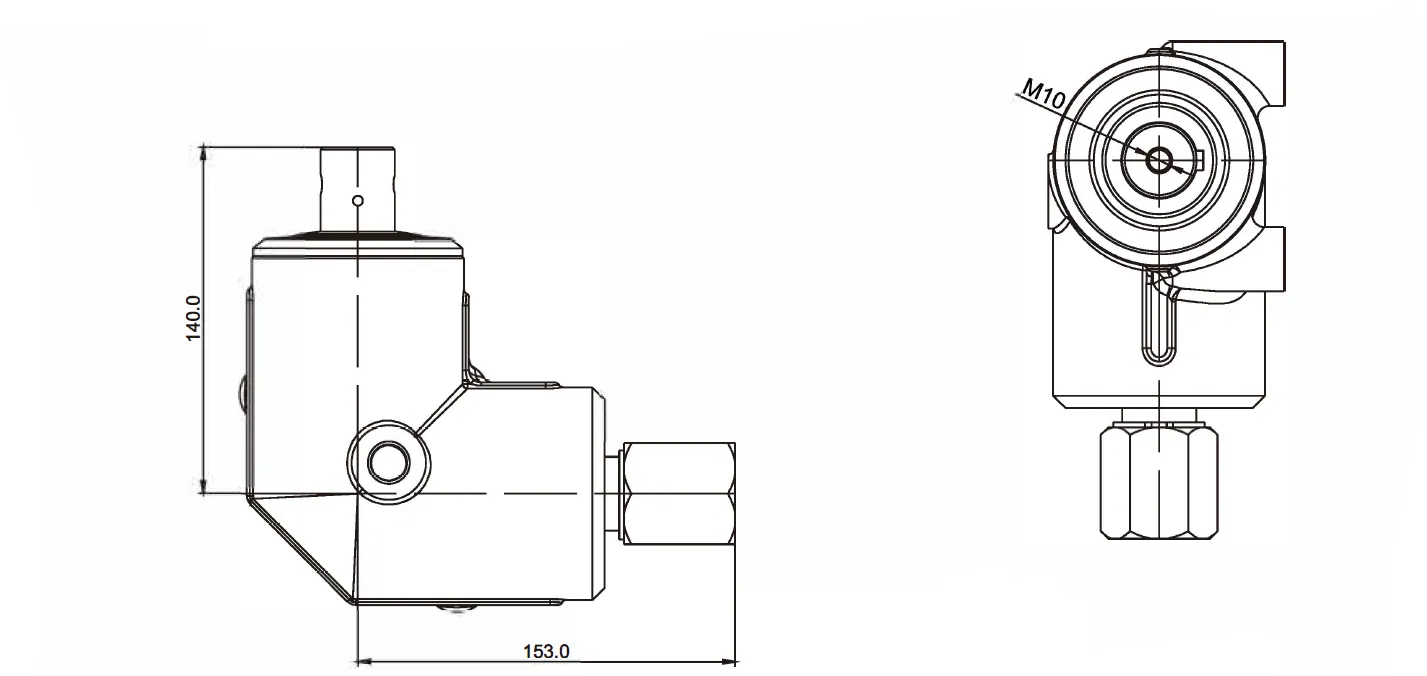

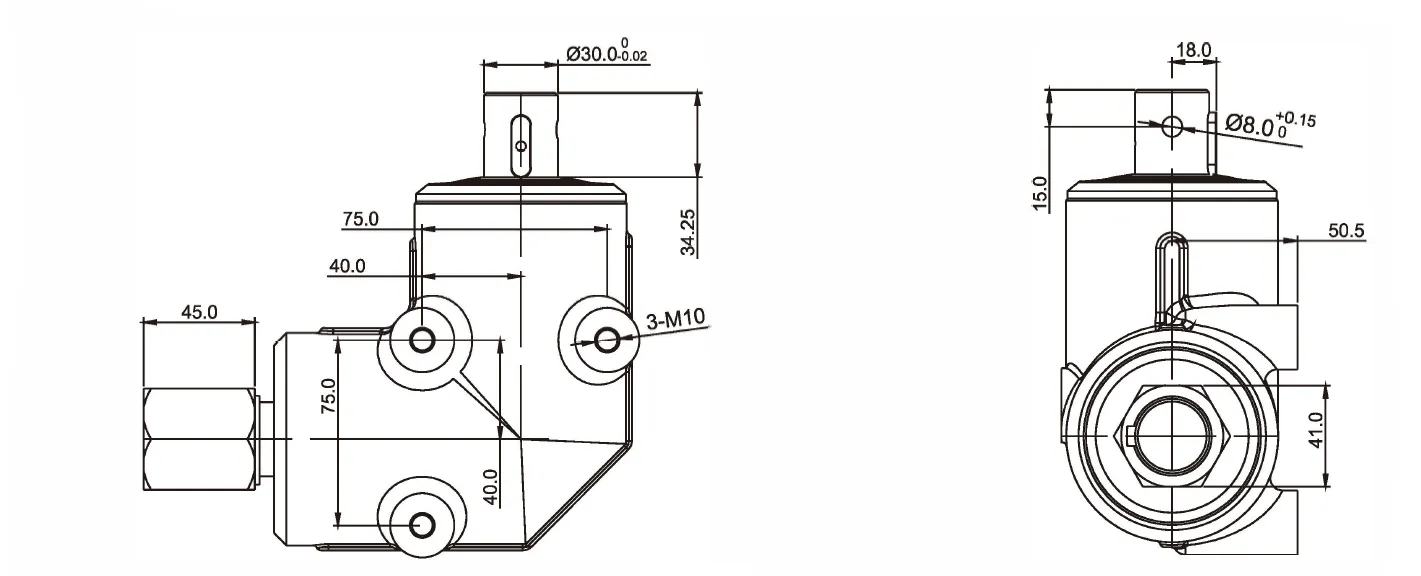

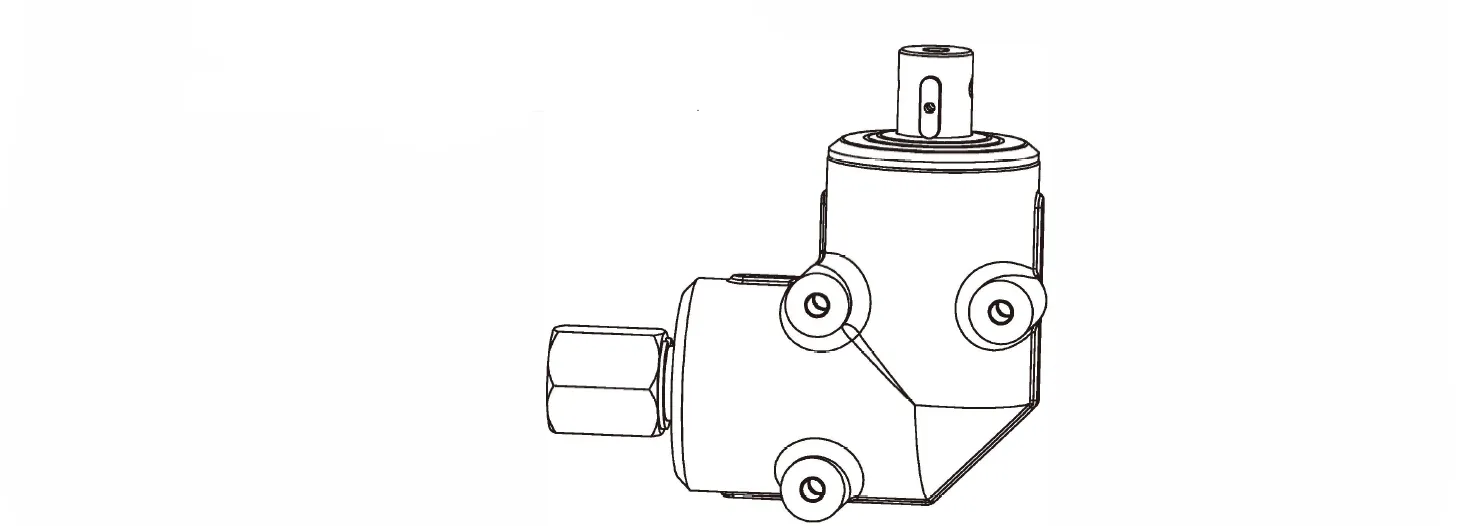

Double Disc Fertilizer Spreader Gearbox RDF-SF10 Dimensions

Double Disc Fertilizer Spreader Gearbox RDF-SF10 Technical Data

i		Suitable	Rpm input	Rpm output	Power		Toothing
			r/min	r/min	Kw	Hp
left/right box	1 :1.33	Fertilizer spreader, etc	540	406	15	20	Gleason Helical Teeth
Remark: If you have any special require feel free let me know, we also accept custom.

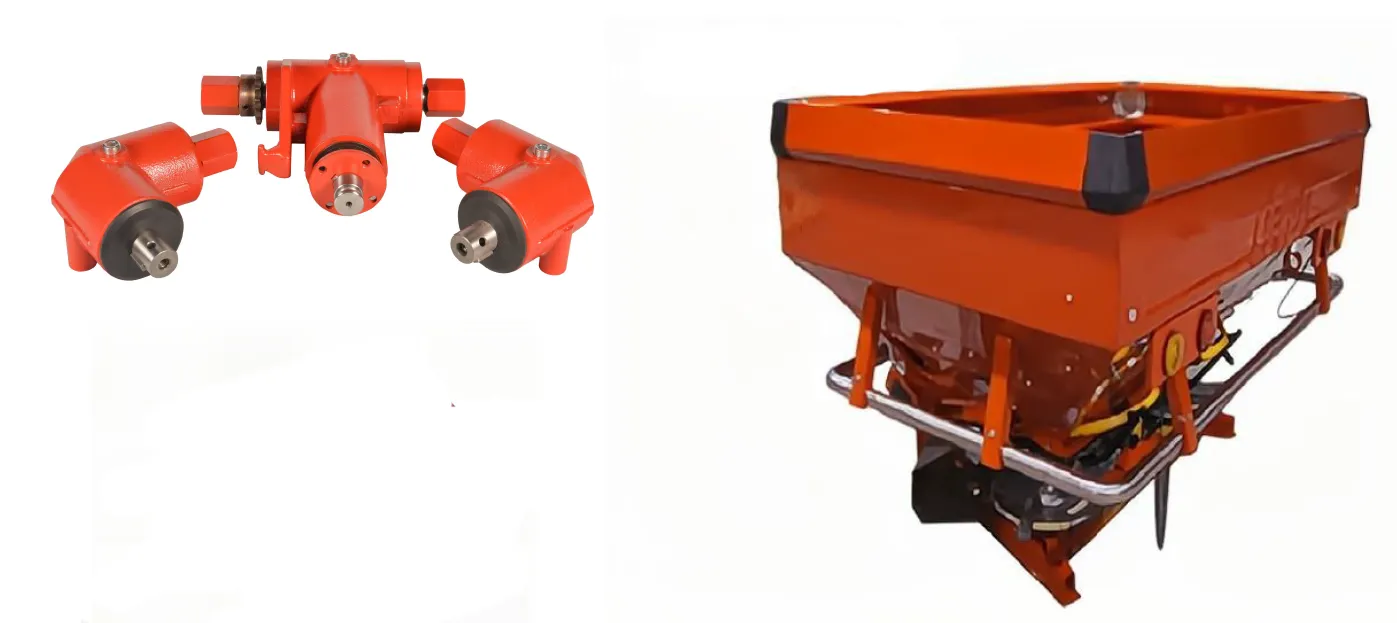

Advantages of Double Disc Fertilizer Spreader Gearbox RDF-SF10

Using the Double Disc Fertilizer Spreader Gearbox RDF-SF10 offers several advantages in agricultural applications: 1. Accurate and Even Fertilizer Distribution: The RDF-SF10 gearbox ensures precise and consistent distribution of granular fertilizers onto the field. It effectively transfers power from the tractor's PTO to the spreading discs, resulting in an even spread pattern. This ensures that the fertilizers are applied uniformly, avoiding over-application or under-application in certain areas. 2. Improved Efficiency: The Double Disc Fertilizer Spreader Gearbox RDF-SF10 enables high-speed rotation of the spreading discs, which leads to efficient fertilizer spreading. It allows for wider coverage and reduces the time required to fertilize a given area. This increased efficiency helps farmers save time and labor, enhancing overall productivity. 3. Customizable Spreading Rate: The RDF-SF10 gearbox often comes with adjustable speed settings and mechanisms, allowing operators to customize the spreading rate according to their specific needs. This flexibility is particularly beneficial when dealing with different types of fertilizers or varying field conditions. It enables precise control over the amount of fertilizer being applied, leading to optimized nutrient distribution. 4. Durability and Reliability: The Double Disc Fertilizer Spreader Gearbox RDF-SF10 is constructed with high-quality materials, such as cast iron or other sturdy metals, ensuring its durability and reliability even in harsh agricultural environments. It is designed to withstand the demanding conditions of fertilizer spreading operations, providing long-lasting performance. 5. Easy Integration: The compact design of the gearbox makes it easy to integrate into the overall structure of the fertilizer spreader. It can be conveniently mounted onto the spreader's frame or chassis, allowing for easy installation and maintenance. 6. Compatibility with Double Disc Spreaders: The RDF-SF10 gearbox is specifically designed for use in double disc fertilizer spreaders, ensuring compatibility and seamless operation. It is tailored to meet the specific requirements of this type of spreading equipment, enhancing performance and efficiency.

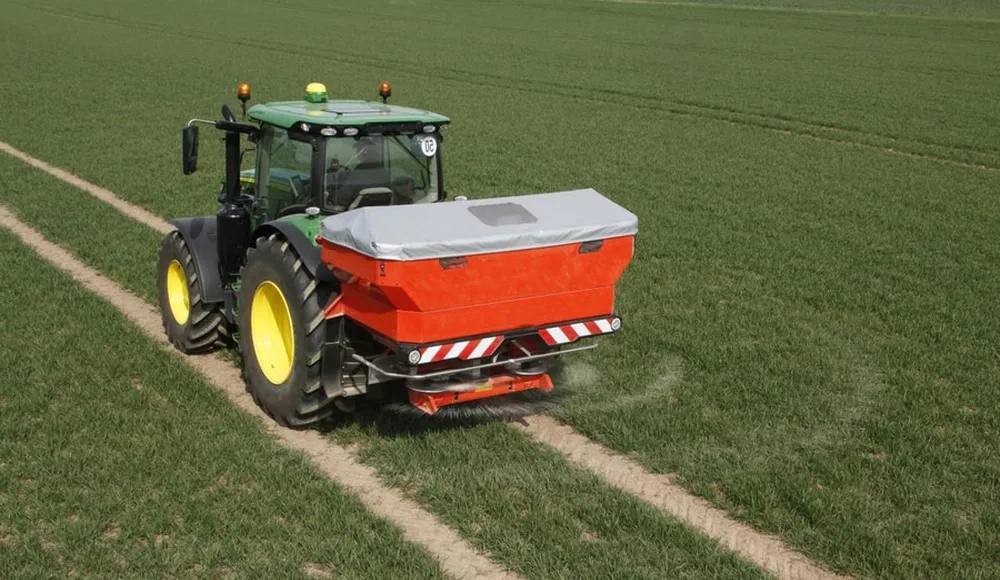

Double Disc Fertilizer Spreader Gearbox RDF-SF10 Working Principle

The Double Disc Fertilizer Spreader Gearbox RDF-SF10 operates based on a simple yet effective working principle. Here is an overview of how it works: (1) Power Transfer: The gearbox is connected to the power take-off (PTO) of a tractor or other power source. The PTO provides rotational power, which is transmitted to the gearbox. (2) Speed and Torque Conversion: The gearbox is responsible for converting the rotational motion from the PTO into the appropriate speed and torque required for the spreading discs. It contains a set of gears that mesh with each other to achieve this conversion. (3) Gear Ratio Selection: The Double Disc Fertilizer Spreader Gearbox may have different gear ratios or speed settings, allowing operators to adjust the spinning speed of the spreading discs. This selection is typically done using a control lever or mechanism on the spreader. (4) Spindle Rotation: The gearbox transfers the rotational motion to the spindles or axles connected to the spreading discs. These spindles rotate at a high speed, driven by the power transmitted from the gearbox. (5) Disc Rotation: The spreading discs are mounted on the spindles and rotate along with them. As the discs rotate, they create centrifugal force that propels the granular fertilizers outward. (6) Fertilizer Spreading: The granular fertilizers are evenly spread onto the field as they are thrown off the rotating discs. The speed and rotation of the discs, controlled by the gearbox, determine the spreading width and pattern. (7) Adjustments and Control: Operators can adjust the spreading rate by modifying the speed setting on the gearbox. This allows for precise control over the amount of fertilizer being applied. Additionally, some spreaders may have mechanisms to adjust the spreading width and pattern.

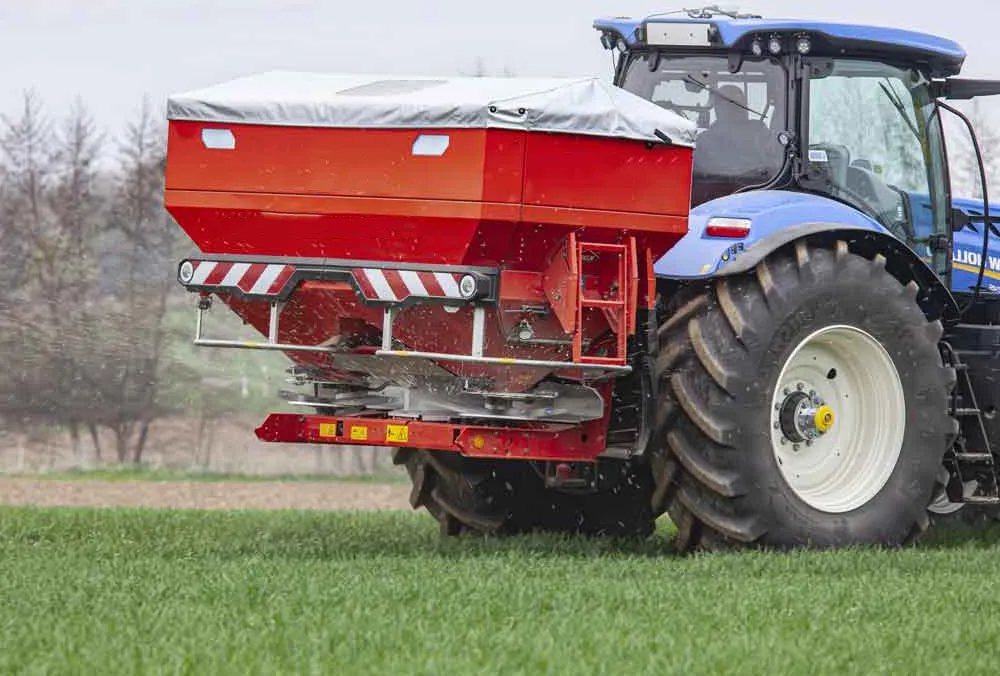

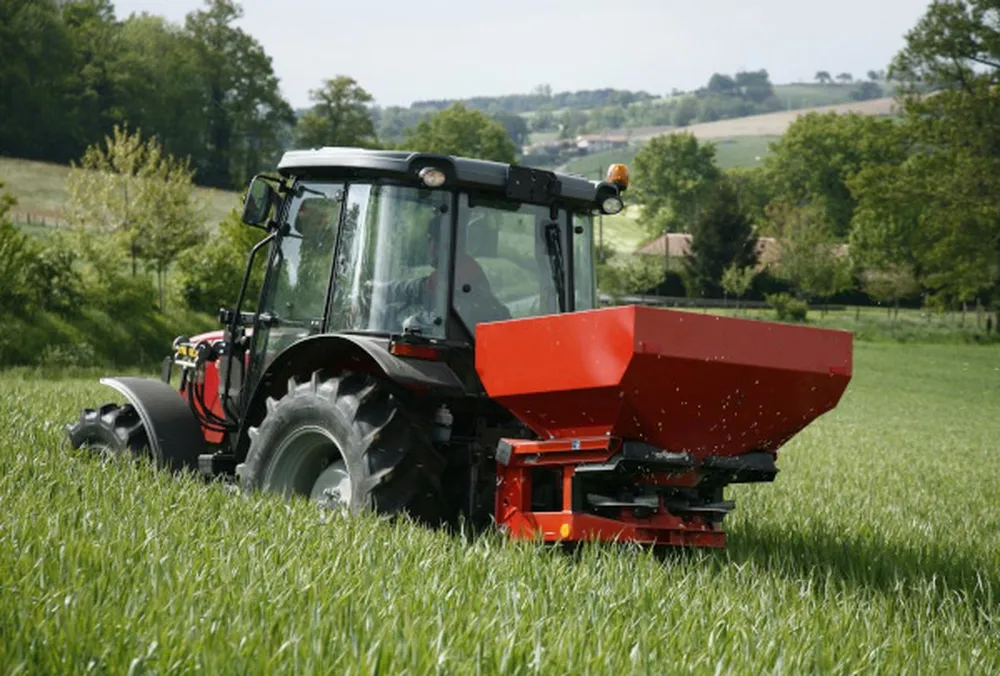

Applications of Double Disc Fertilizer Spreader Gearbox RDF-SF10

The Double Disc Fertilizer Spreader Gearbox RDF-SF10 has various applications in agricultural settings. It is primarily used in double disc fertilizer spreaders, which are commonly employed in the following scenarios: (1) Crop Fertilization: The RDF-SF10 gearbox is utilized in double disc spreaders to evenly distribute granular fertilizers onto crop fields. It ensures accurate and uniform application of nutrients, promoting healthy plant growth and maximizing crop yields. This gearbox is compatible with a wide range of fertilizers, including nitrogen, phosphorus, and potassium-based formulations. (2) Pasture and Forage Management: Double disc fertilizer spreaders equipped with the Double Disc Fertilizer Spreader Gearbox RDF-SF10 are employed in the management of pastures and forage crops. They help evenly distribute fertilizers to enhance the nutrient content of the grazing areas, leading to improved forage production and better livestock nutrition. (3) Turf and Lawn Care: The RDF-SF10 gearbox finds application in the maintenance of turf and lawns, such as in golf courses, sports fields, and residential landscapes. It enables accurate and precise spreading of fertilizers, promoting healthy grass growth and ensuring a lush and vibrant appearance. (4) Landscaping and Horticulture: The Double Disc Fertilizer Spreader Gearbox RDF-SF10 is utilized in horticultural and landscaping applications where precise fertilizer application is crucial for plant health and aesthetics. It helps distribute fertilizers evenly around ornamental plants, trees, and shrubs, facilitating their growth and overall appearance. (5) Soil and Nutrient Management: Double disc spreaders equipped with the RDF-SF10 gearbox are used in soil and nutrient management programs. They aid in the targeted application of fertilizers, allowing farmers and agronomists to address nutrient deficiencies and maintain soil fertility levels.

We Also Offer Other Agricultural Gearboxes

We also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc. Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
