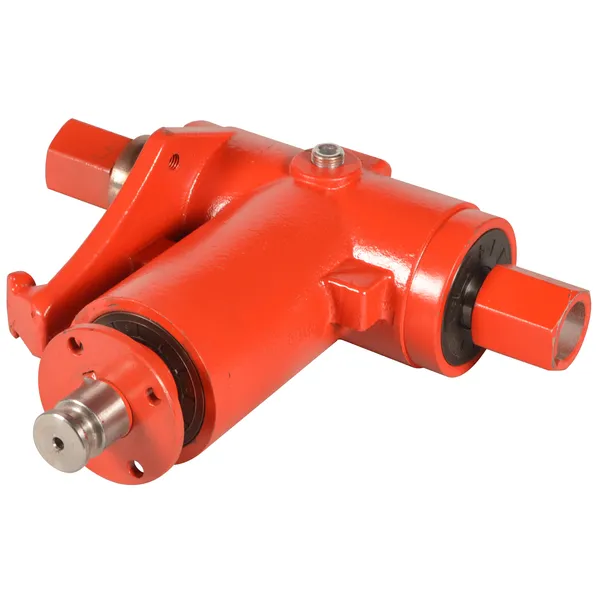

Double Disc Fertilizer Spreader Gearbox RDF-SF11 for Fertilizer Spreader

Double Disc Fertilizer Spreader Gearbox RDF-SF11 for Fertilizer Spreader

The Double Disc Fertilizer Spreader Gearbox RDF-SF11 is a crucial component of a fertilizer spreader machine used in agriculture to efficiently distribute fertilizers or other granular materials onto fields or crops. This gearbox plays a vital role in controlling the rotational speed and distribution mechanism of the spreading discs, ensuring accurate and uniform application of fertilizers across the agricultural land.The RDF-SF11 gearbox is designed with precision engineering to withstand the demands of heavy-duty agricultural applications. It is typically made from durable materials, such as cast iron or steel, to ensure long-lasting performance even in harsh conditions. As the name suggests, this double disc fertilizer spreader gearbox is specifically designed for use in fertilizer spreaders with two spinning discs. These discs are responsible for evenly distributing the fertilizer material over a wide area as the machine moves across the field.The Double Disc Fertilizer Spreader Gearbox RDF-SF11 allows for precise control over the rotational speed of the spreading discs. This control is essential to regulate the rate of fertilizer application, ensuring that the correct amount of fertilizer is dispersed per unit area of the field. Farmers can adjust the speed to match their specific fertilizer and field requirements. One of the primary goals of using a Double Disc Fertilizer Spreader Gearbox is to achieve uniform distribution of fertilizers. The gearbox's design ensures that the spinning discs operate synchronously, preventing clumps or uneven distribution of the material.

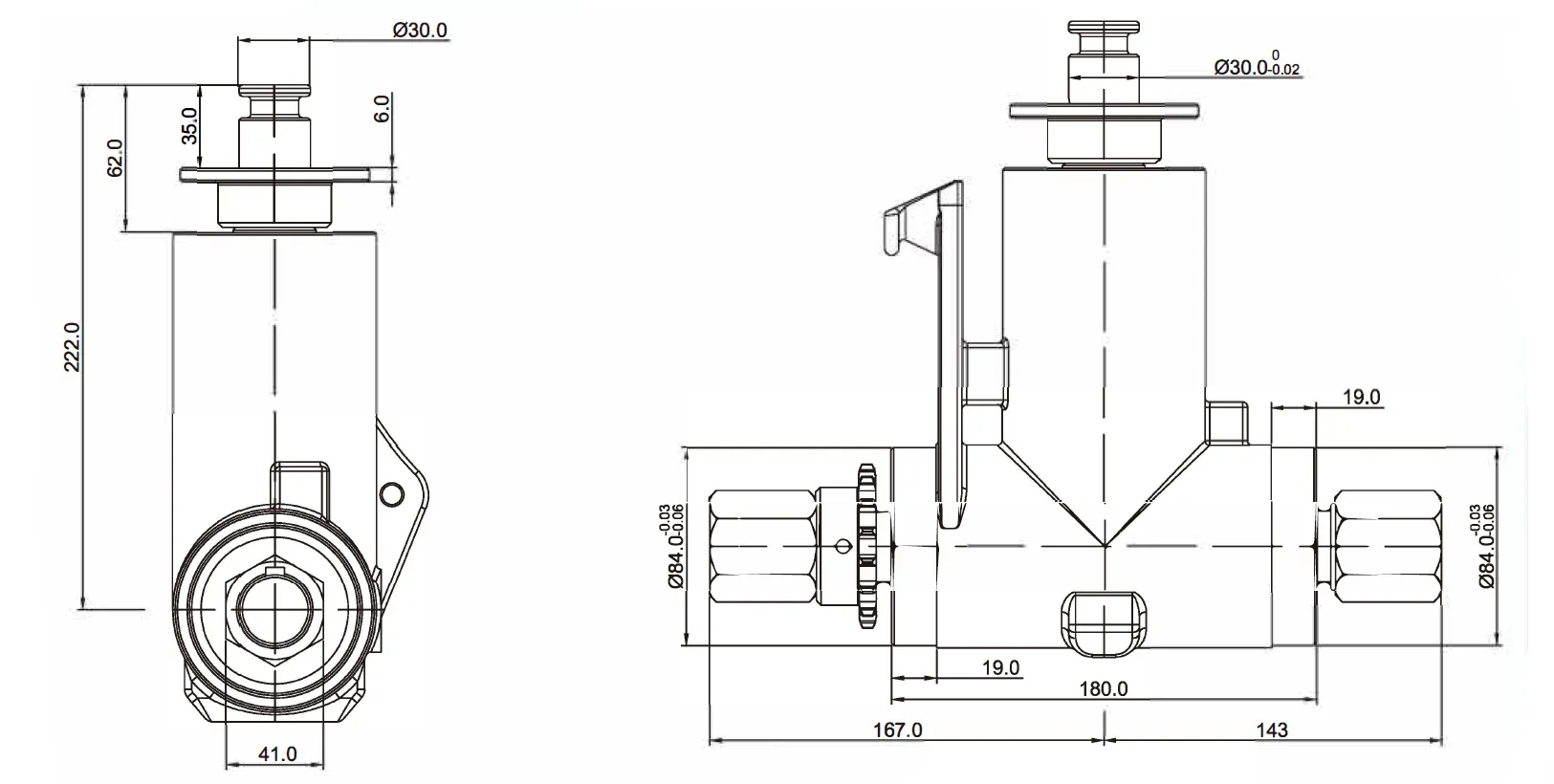

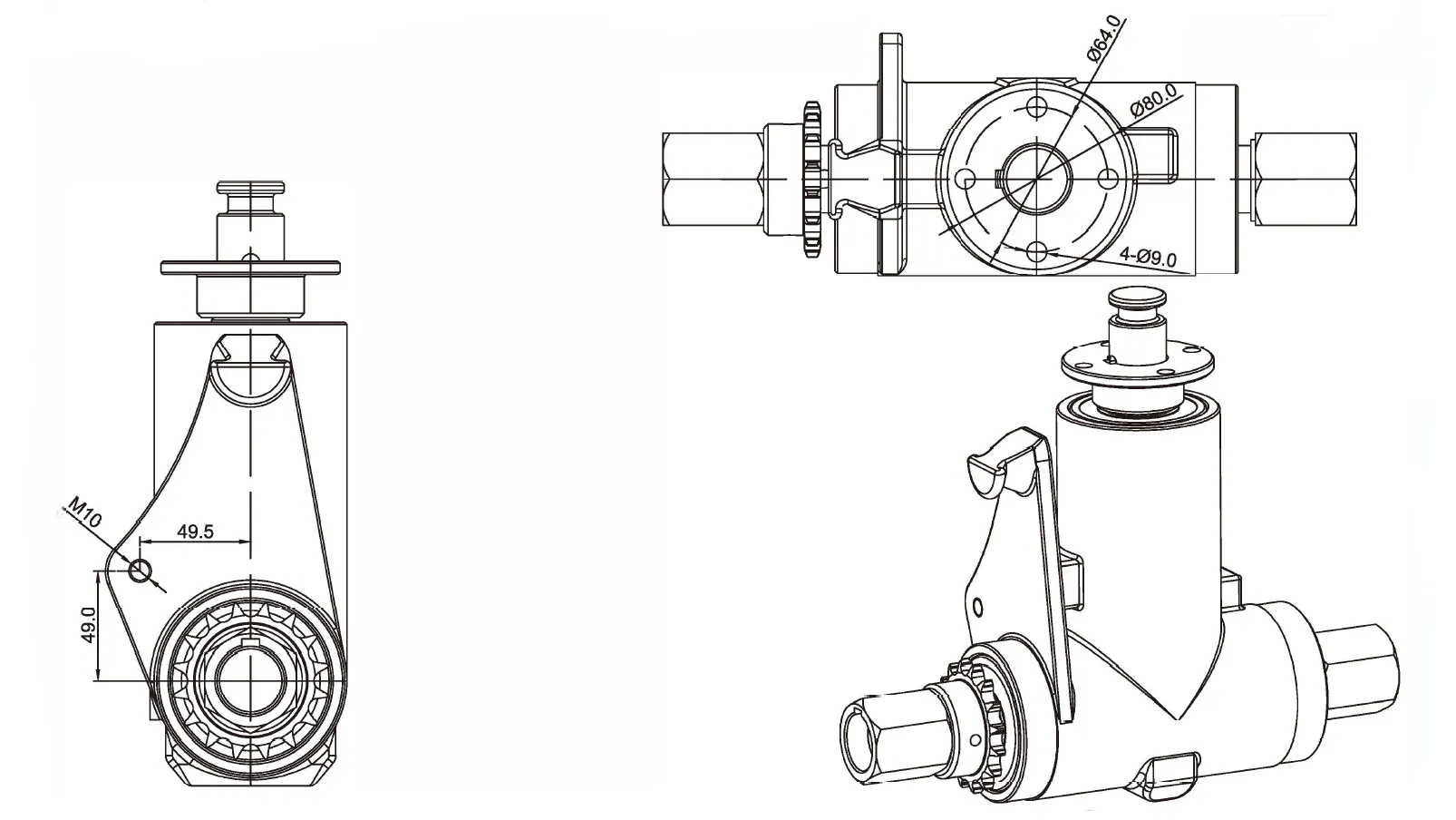

Double Disc Fertilizer Spreader Gearbox RDF-SF11 Dimensions

Double Disc Fertilizer Spreader Gearbox RDF-SF11 Technical Data

i		Suitable	Rpm input	Rpm output	Power		Toothing
			r/min	r/min	Kw	Hp
	1:1	Fertilizer spreader, etc	540	540	15	20	Gleason HelicalTeeth
Remark: If you have any special require feel free let me know, we also accept custom.

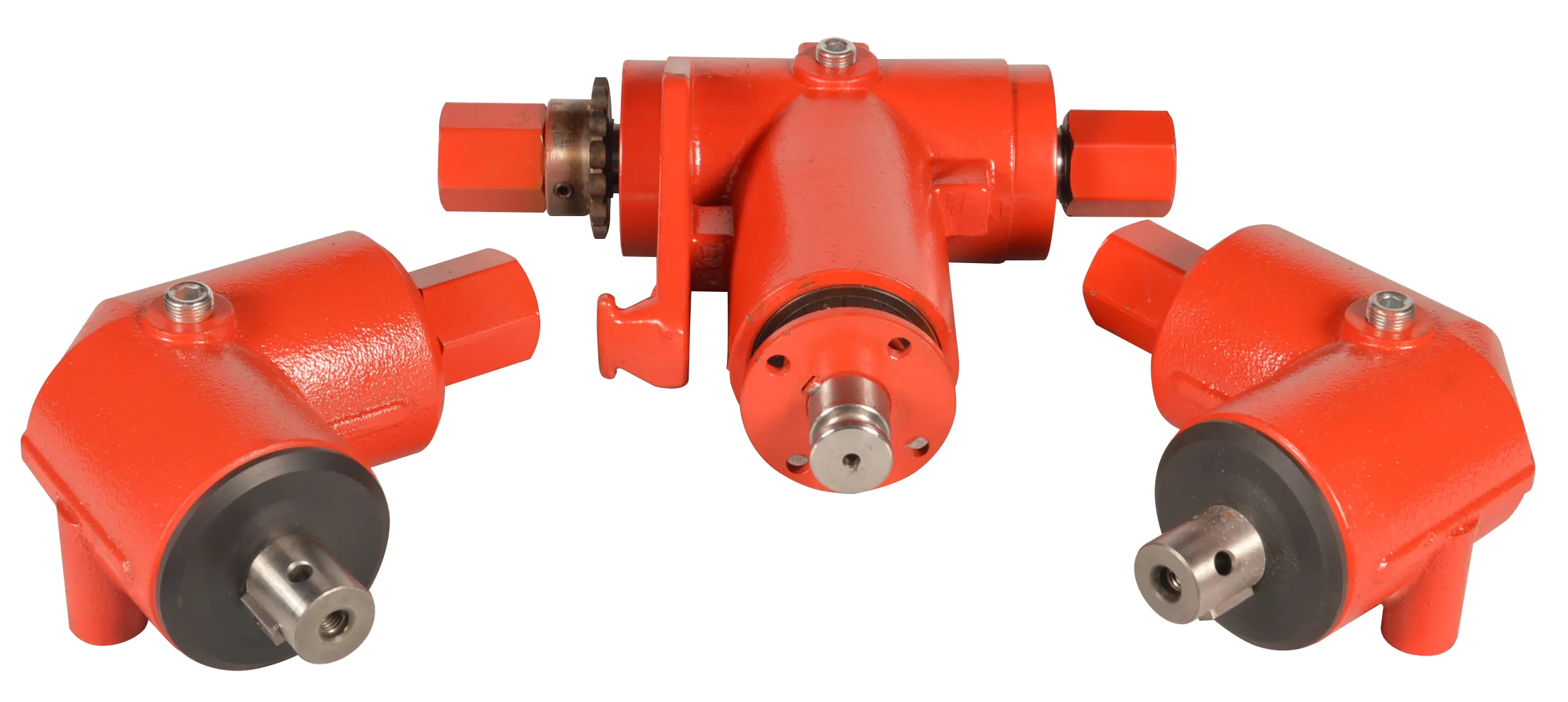

Benefits of Double Disc Fertilizer Spreader Gearbox RDF-SF11

The Double Disc Fertilizer Spreader Gearbox RDF-SF11 offers several benefits for agricultural applications. Here are some of the key advantages:1. Efficient and precise distribution: The gearbox is designed to provide accurate and uniform spreading of fertilizers. It ensures that the fertilizers are evenly distributed across the field, minimizing wastage and optimizing nutrient uptake by crops. This leads to improved crop health and higher yields.2. Adjustable spreading patterns: The Double Disc Fertilizer Spreader Gearbox RDF-SF11 allows farmers to adjust the spreading width and pattern according to their specific requirements. This flexibility enables them to adapt to different field sizes and shapes, ensuring that the fertilizers are applied precisely where needed.3. Increased productivity: By providing efficient and consistent spreading, the gearbox helps farmers save time and effort. It allows for faster application rates, reducing the time spent on fertilizing operations. This increased productivity can be especially beneficial during busy planting seasons when time is of the essence.4. Durability and reliability: The RDF-SF11 gearbox is built to withstand the demanding conditions of agricultural operations. It is constructed with high-quality materials and designed to be durable and long-lasting. This ensures that the gearbox can withstand heavy use and continue to perform reliably over an extended period.5. Ease of maintenance: The Double Disc Fertilizer Spreader Gearbox RDF-SF11 is designed for easy maintenance, with accessible components and straightforward servicing procedures. This reduces downtime and allows for quick repairs or replacements if necessary, minimizing any disruptions to the farming operations.6. Compatibility: The RDF-SF11 gearbox is designed to be compatible with a wide range of double disc fertilizer spreader models. This means that farmers who already own compatible spreaders can easily retrofit the gearbox onto their existing equipment, making it a cost-effective solution.

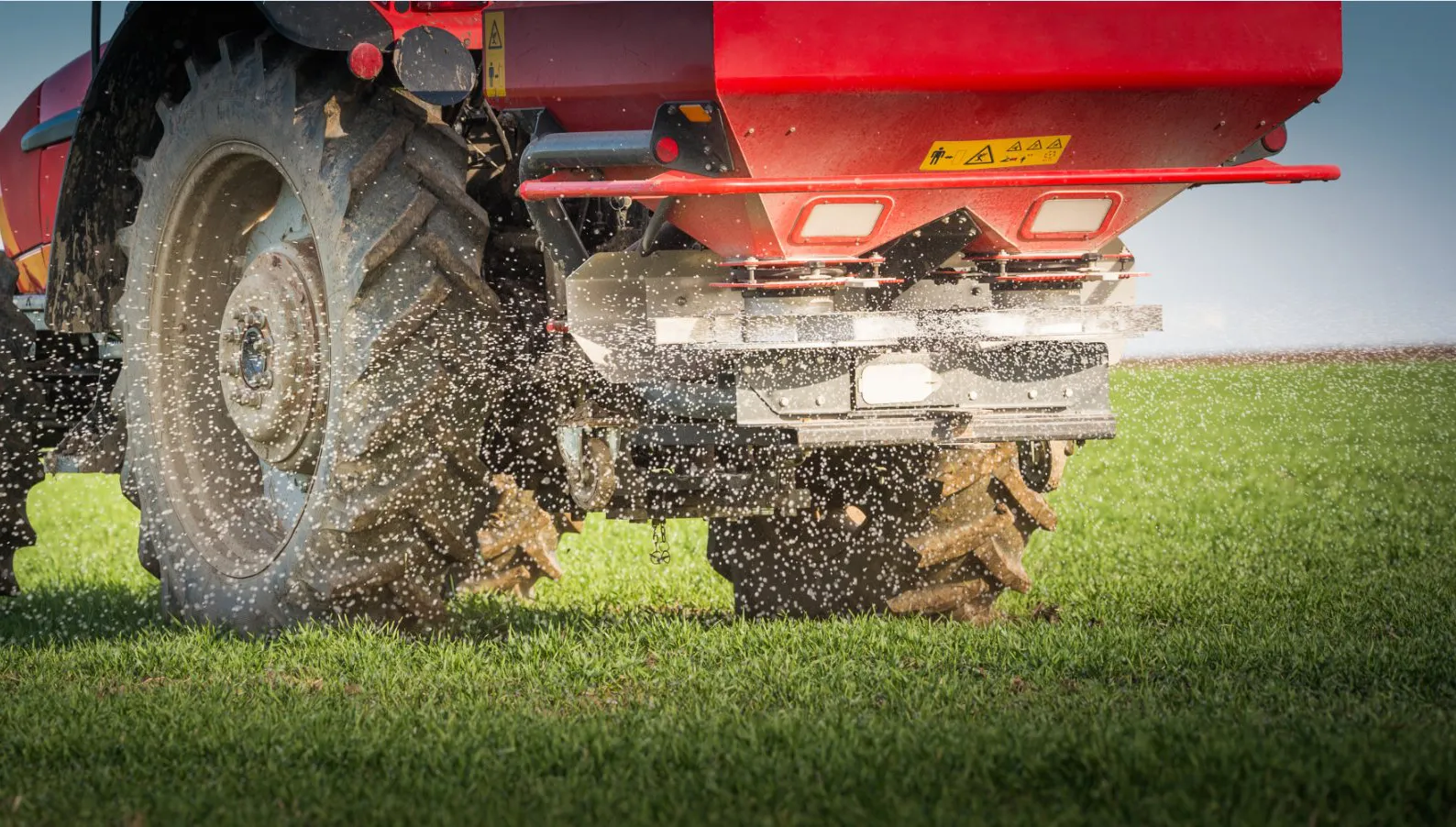

Double Disc Fertilizer Spreader Gearbox RDF-SF11 Applications

The Double Disc Fertilizer Spreader Gearbox RDF-SF11 is primarily used for agricultural applications, specifically in the spreading of fertilizers. It is designed to be compatible with double disc fertilizer spreaders, which are commonly used in the agricultural industry for efficient and uniform distribution of fertilizers across fields. Here are some specific applications of the RDF-SF11 gearbox:(1) Crop farming: The RDF-SF11 gearbox is widely used in crop farming, including the cultivation of grains, cereals, oilseeds, vegetables, and fruits. It allows farmers to evenly distribute fertilizers such as nitrogen, phosphorus, and potassium, which are essential for crop growth and development. The precise spreading pattern ensures that nutrients are delivered to the crops in a balanced manner, promoting healthy plant growth and optimal yields.(2) Pasture and forage management: The Double Disc Fertilizer Spreader Gearbox RDF-SF11 is also suitable for spreading fertilizers on pastures and forage fields. By evenly distributing fertilizers over grazing areas, farmers can enhance the nutrient content of the grass, improving the quality and quantity of forage available for livestock. This can lead to healthier and more productive livestock and better overall pasture management.(3) Turf and lawn care: The RDF-SF11 gearbox can be used in the maintenance of sports fields, golf courses, parks, and other turf areas. By spreading fertilizers evenly across the turf, it helps promote healthy grass growth, vibrant color, and improved resistance to diseases and pests. This ensures that the turf remains visually appealing and durable, even under heavy use.(4) Horticulture and gardening: In horticultural settings, such as nurseries and gardens, the gearbox can be utilized for precise fertilizer application. By controlling the spreading width and pattern, gardeners can ensure that fertilizers are applied only to the targeted areas, avoiding waste and potential damage to sensitive plants. This allows for efficient nutrient management and promotes healthy growth and blooming of flowers, shrubs, and trees.(5) Landscaping and reclamation: The Double Disc Fertilizer Spreader Gearbox RDF-SF11 can also be employed in landscaping projects and land reclamation efforts. It enables controlled spreading of fertilizers and soil amendments, helping to establish vegetation and restore nutrient levels in disturbed or depleted soil. This is particularly useful in areas affected by erosion, construction, or mining activities, where soil fertility needs to be restored for successful revegetation.

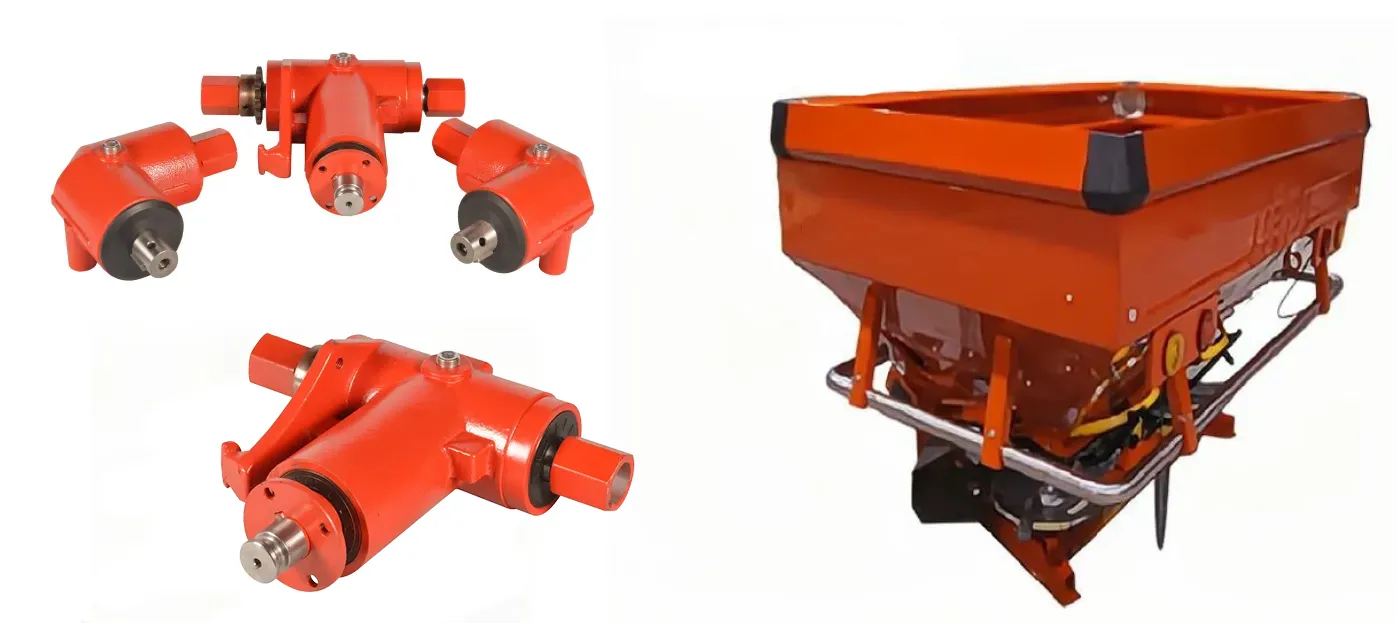

Double Disc Fertilizer Spreader Gearbox RDF-SF11 Installation and Maintenance

Installing and maintaining the Double Disc Fertilizer Spreader Gearbox RDF-SF11 is crucial for its optimal performance and longevity. Here are the general steps for installation and maintenance:Installation:

• Ensure safety: Before starting any installation work, make sure to follow proper safety protocols, such as wearing appropriate protective gear and ensuring the spreader is turned off and securely supported.
• Prepare the spreader: If you are retrofitting the RDF-SF11 gearbox onto an existing double disc fertilizer spreader, remove the existing gearbox carefully. Clean the mounting area and inspect it for any damage or wear that may affect the new gearbox's performance. Make any necessary repairs or replacements.
• Mount the gearbox: Align the Fertilizer Spreader Gearbox RDF-SF11 with the mounting holes on the spreader frame. Securely attach the gearbox using the appropriate bolts, nuts, or other fasteners provided with the gearbox. Follow the manufacturer's instructions for specific torque specifications and tightening procedures.
• Connect the driveline: Connect the driveline of the spreader to the gearbox output shaft, ensuring a secure and proper fit. Verify that the driveline is aligned correctly and not excessively worn or damaged. Make any necessary adjustments or replacements.
• Check adjustments and calibration: Ensure that the fertilizer spreader gearbox is adjusted properly for the desired spreading width and pattern. Consult the gearbox's user manual for the specific adjustment procedures and settings. Calibrate the spreader to ensure accurate and uniform fertilizer distribution.

Maintenance:

• Regular cleaning: Clean the gearbox and the spreader regularly to remove any dirt, debris, or fertilizer residues that may affect its performance. Use appropriate cleaning agents and tools, following the manufacturer's recommendations.
• Lubrication: Check and lubricate the gearbox as recommended by the manufacturer. Use the specified lubricant and apply it to the appropriate lubrication points. Regular lubrication helps reduce friction, wear, and corrosion, ensuring smooth operation.
• Inspection: Periodically inspect the fertilizer spreader gearbox for any signs of damage, wear, or loose components. Pay attention to belts, chains, gears, and bearings. Replace any worn or damaged parts promptly to prevent further damage or failure.
• Tighten and adjust: Regularly check and tighten all fasteners, including bolts, nuts, and screws, to ensure they are secure. Verify that the gearbox adjustments, such as spreading width and pattern, remain accurate and make any necessary adjustments.

We Also Offer Other Agricultural GearboxesWe also offer other types of agricultural gearboxes, such as rotary cutter gearboxes, fertilizer spreader gearboxes, lawn mower gearbox, post hole digger gearboxes, rotary tiller gearboxes, corn headers gearboxes, fertilizer seeder gearboxes, feed mixer gearboxes, flail mower gearboxes, square baler gearboxes, round baler gearboxes, grader-driven rake gearboxes, universal gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, gearbox for hay tedders, etc.Our technical staff can reconfigure an existing design or assist you in designing a custom agricultural PTO gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, design type, load nature, mounting position, and the application’s environment are all considerations when choosing an agricultural gearbox. We offer a wide range of agricultural gearboxes and PTO shafts for different applications. If you want to buy agricultural gearboxes, please get in touch with us.
