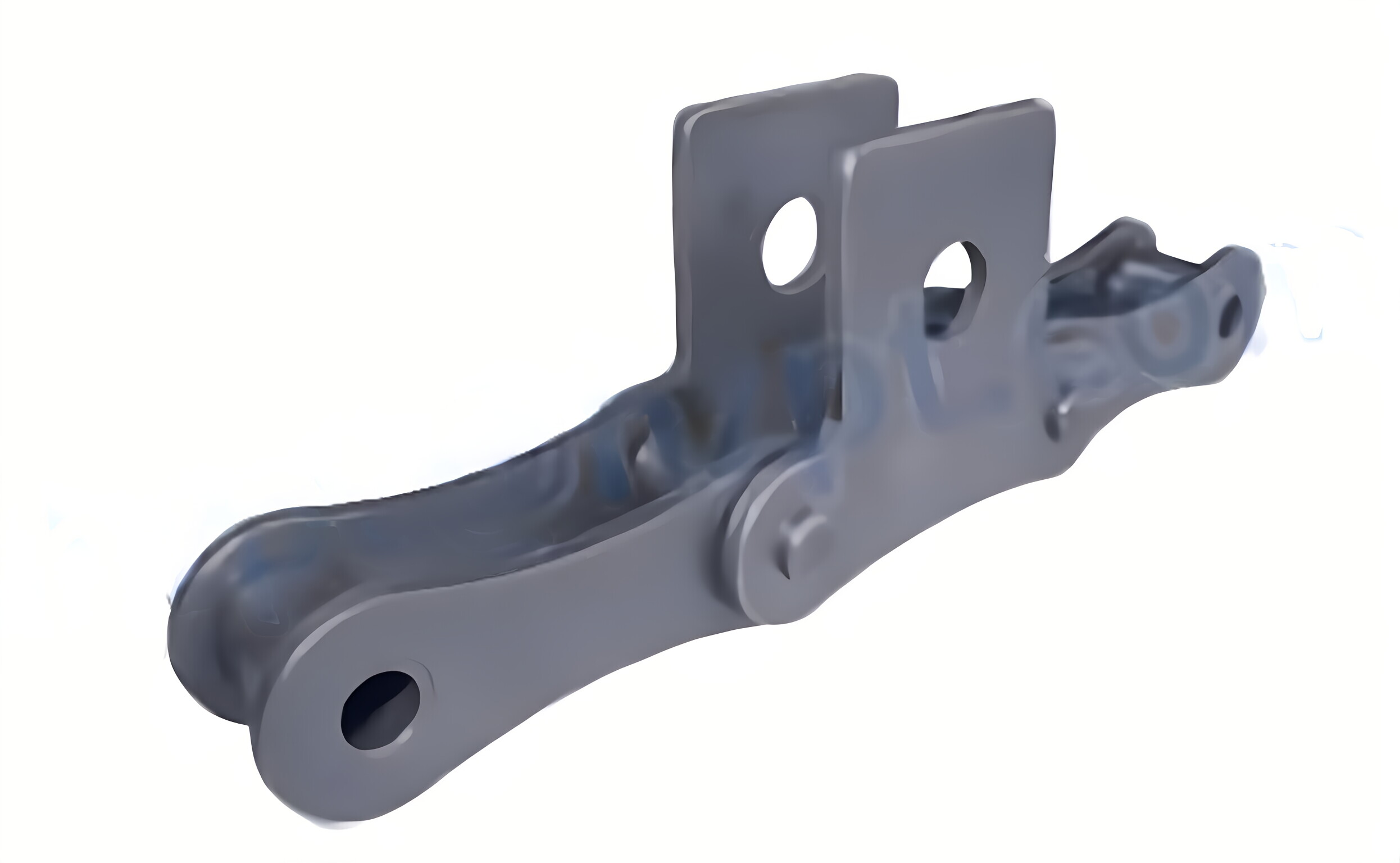

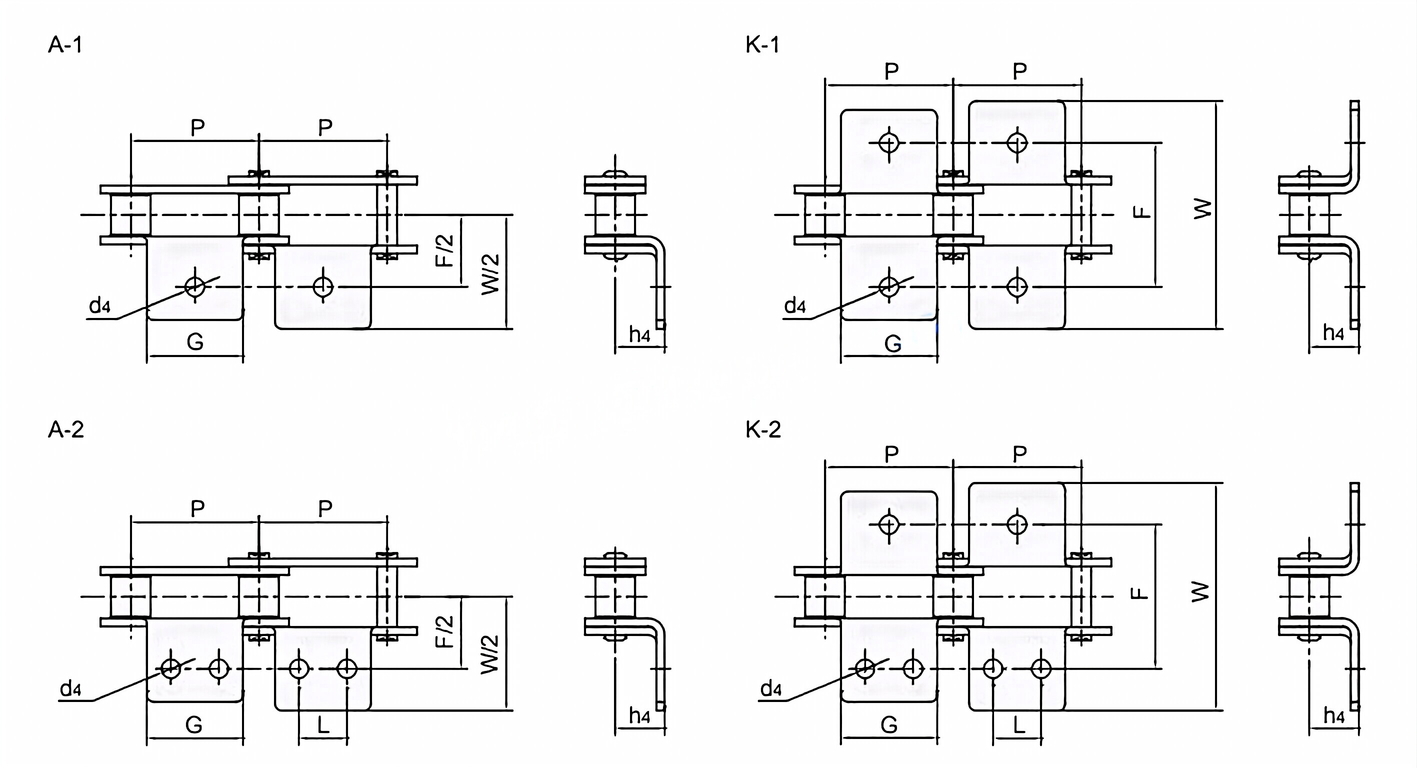

Double Pitch Conveyor Chain Attachments A-1 A-2 K-1 K-2
Double-pitch conveyor Chains extend the traditional shorter-pitch chain.?They share the same length and strength, however the pitch is widened which reduces the overall weight of the chain.?The standard double Pitch Conveyor Chains can be combined with a variety of attachments.
| Chain No. | P | G | L | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| C208AF1 | 25.40 | 19.0 | - | 25.7 | 38.3 | 8.8 | 4.10 |
| C2042F1 | 25.40 | 19.0 | - | 25.4 | 40.0 | 9.0 | 5.20 |
| C2040A1F3 | 25.40 | 19.0 | - | 25.4 | 38.2 | 19.8 | 5.30 |
| C2042A1F4 | 25.40 | 19.0 | - | 25.4 | 39.6 | 9.1 | 5.00 |
| C2040A2F1 | 25.40 | 19.0 | 9.00 | 25.4 | 38.4 | 9.0 | 5.20 |
| C2042HK1F1 | 25.40 | 19.0 | - | 47.0 | 60.0 | 9.1 | 7.00 |
| C2050A1F6 | 31.75 | 23.8 | - | 31.8 | 49.0 | 11.4 | 6.30 |
| C2052A2F1 | 31.75 | 19.0 | 11.90 | 31.8 | 49.0 | 11.1 | 6.00 |
| C2052A2F2 | 31.75 | 19.0 | 15.88 | 31.8 | 49.0 | 11.1 | 5.50 |
| C2052A2F3 | 31.75 | 25.8 | 12.70 | 31.8 | 49.2 | 11.1 | 4.80 |
| C2060K1F1 | 38.10 | 28.6 | - | 42.9 | 68.0 | 14.7 | 8.50 |
| C2062HK1F5 | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 7.90 |
| C2062A1F13 | 38.10 | 30.0 | - | 70.2 | 98.0 | 14.7 | 8.50 |
| C2062A2F6 | 38.10 | 28.6 | 14.30 | 42.9 | 67.8 | 14.7 | 6.00 |
| C2062K2F7 | 38.10 | 28.6 | 14.30 | 42.9 | 67.8 | 14.7 | 6.50 |
| C2060HF3A2 | 38.10 | 28.6 | 14.30 | 42.9 | 67.8 | 14.7 | 5.20 |
| C2062HF15 | 38.10 | 28.6 | 14.30 | 42.9 | 67.8 | 14.7 | M5 |
| C2060HK1F | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 8.00 |
| C2062HA1F4 | 38.10 | 20.0 | - | 45.8 | 65.8 | 9.0 | 6.80 |
| C2062HK1F5 | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 7.90 |
| C2062HA1F7 | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 5.20 |
| C2060HA1F12 | 38.10 | 28.0 | - | 43.4 | 61.8 | 13.9 | 6.60 |
| C2060HK2F3 | 38.10 | 28.6 | 14.30 | 42.9 | 64.8 | 14.7 | 5.00 |
| C2062HK2F4 | 38.10 | 28.6 | 14.30 | 42.9 | 56.4 | 14.7 | 5.20 |
| C2062HK2F5 | 38.10 | 28.6 | 14.30 | 55.6 | 76.0 | 11.1 | 5.50 |
| C2060HK1F26 | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 9.20 |
| C2062HA1F25 | 38.10 | 28.0 | - | 59.0 | 75.0 | 9.0 | 6.00 |
| C2062A2F22 | 38.10 | 28.6 | 14.30 | 42.9 | 57.4 | 14.7 | 5.50 |
| C2060HK1F22 | 38.10 | 28.6 | - | 42.9 | 67.8 | 14.7 | 8.50 |
| C2062A2F24 | 38.10 | 28.6 | 14.30 | 42.9 | 67.8 | 14.7 | 4.76 |
| C216AF3 | 50.80 | 39.0 | 19.10 | 59.0 | 78.5 | 23.0 | 7.00 |
| C2082A2F1 | 50.80 | 39.0 | 19.00 | 58.0 | 82.0 | 21.5 | 7.00 |
| Chain No. | P | G | L | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082A2F2 |
