Double Row Angular Contact Ball Bearings

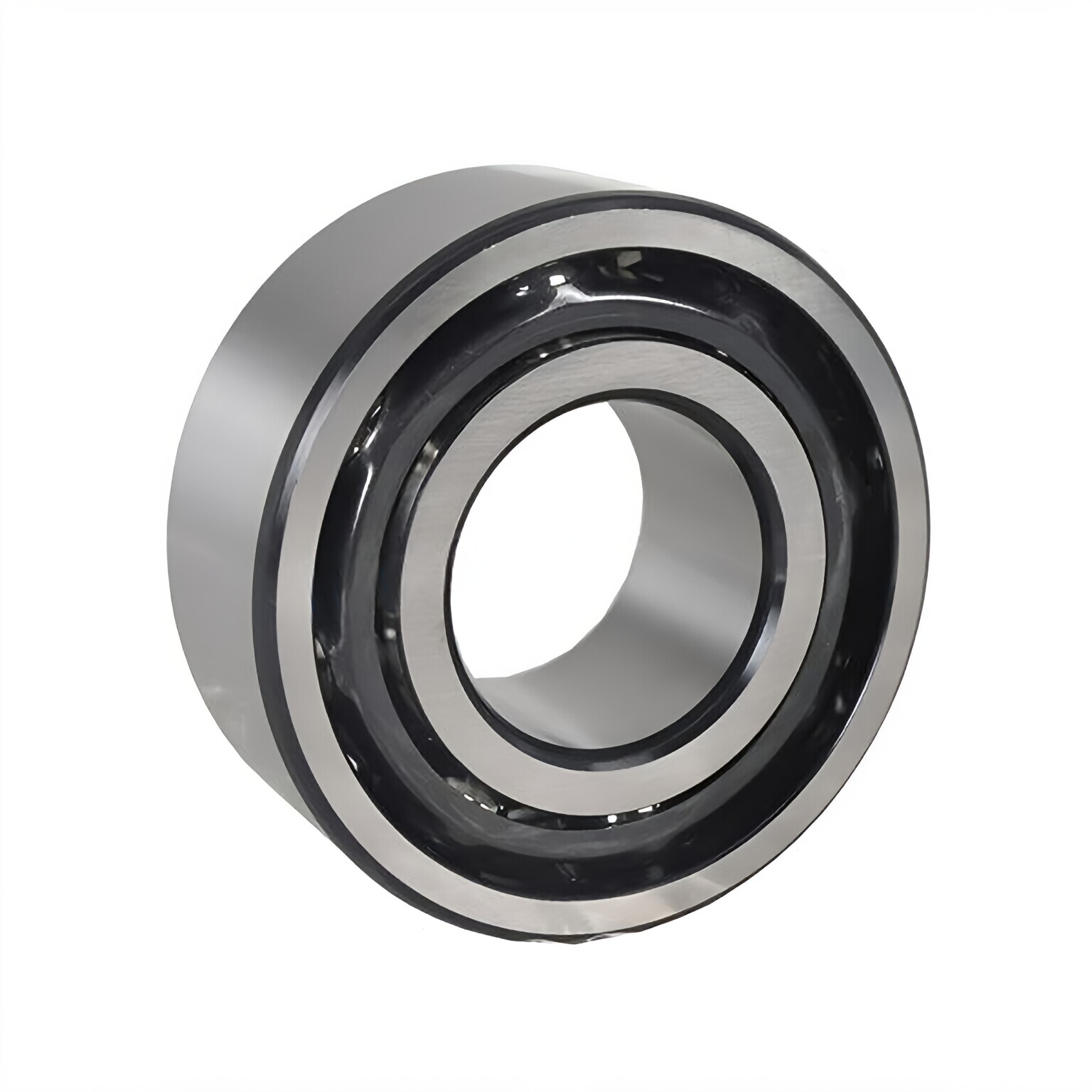

Double Row Angular Contact Ball BearingsDouble row angular contact ball bearings are a common type of angular contact ball bearings. Double row angular contact ball bearings correspond in design to two single row angular contact ball bearings arranged back-to-back but take up less axial space. They can accommodate radial loads as well as axial loads in both directions. They provide stiff bearing arrangements and can accommodate tilting moments.

Product parameter

Boundary dimensions(mm)			Mass(kg)	Bearing NO.
d	D	B		Raydafon
10	26	12	0.022	3000A
10	26	12	0.022	3000A-2RS
10	26	12	0.022	3000A-2Z
10	30	14	0.05	3200A
10	30	14	0.05	3200A-2RS
10	30	14	0.05	3200A-2Z
12	28	12	0.025	3001A
12	28	12	0.025	3001A-2RS
12	28	12	0.025	3001A-2Z
12	32	15.9	0.058	3201A
12	32	15.9	0.058	3201A-2RS
12	32	15.9	0.058	3201A-2Z
15	32	13	0.036	3002A
15	32	13	0.036	3002A-2RS
15	32	13	0.036	3002A-2Z
15	35	15.9	0.066	3202A
15	35	15.9	0.066	3202A-2RS
15	35	15.9	0.066	3202A-2Z
15	42	19	0.13	3302A
15	42	19	0.13	3302A-2RS

Features of Double Row Angular Contact Ball Bearings

Double row angular contact ball bearings can bear bidirectional axial force, higher radial force, and a certain overturning moment. Double row angular contact ball bearings are suitable for bearing arrangements requiring rigid axial guidance.The main advantages of the double row type are high rigidity, compactness, and high capacity.

Double Row Angular Contact Ball Bearings Applications

Double row angular contact ball bearings are mainly used in oil pumps, root blowers, air compressors, motorcycle transmission, high-speed vacuum pumps, printing machinery, planetary reducer, extraction equipment, cycloid reducer, and food machinery.
