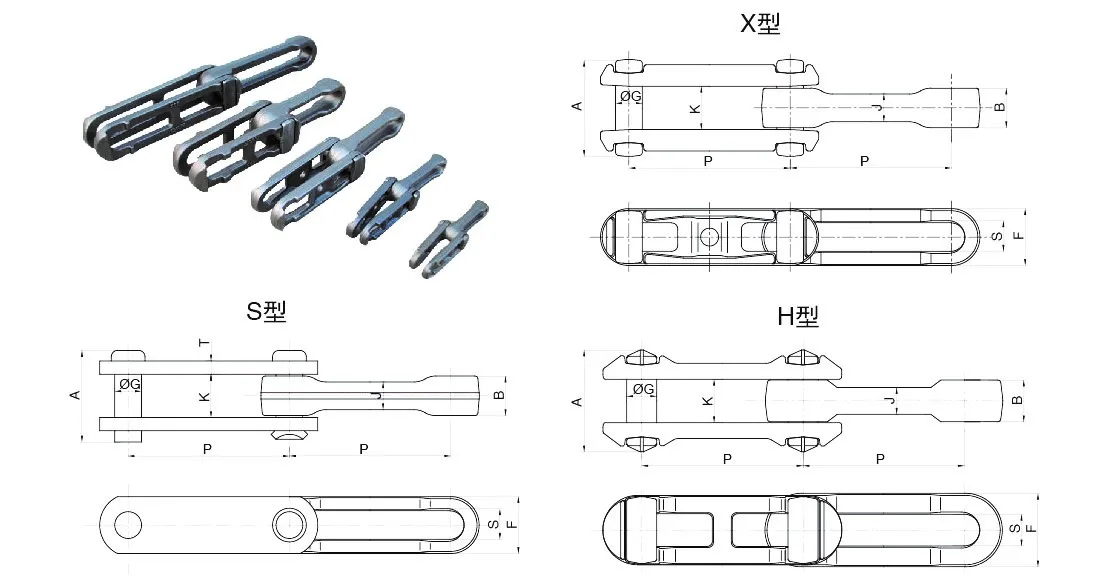

Drop Forged Rivetless Chain for Overhead Conveying Systems X Type X348 X458 X658 X678

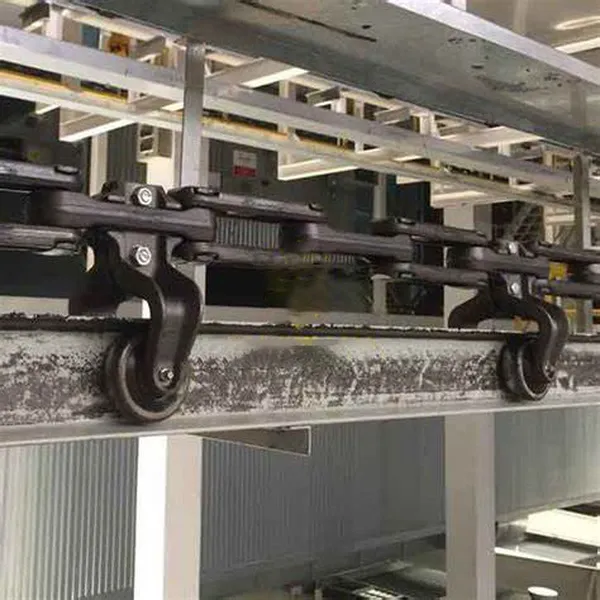

Drop forged rivetless chain is a high-strength-to-weight ratio chain that can be quickly and easily assembled and disassembled without the use of tools. The loose link designs help to prevent material from packing into the joints therefore offering some self-cleaning ability. Typical applications include overheard conveyors, twin-strand conveyors, flight conveyors, washing lines and trolley conveyors. It is often found being used in compacting or sticky material applications, paint lines, heavy-duty swarf conveyors, sugar mill conveyors, meat processing and appliance assembly lines to name a few.

Drop-Forged Rivetless Chain Attachments

Side Link Pusher Dog?Side link pusher dogs are forged components and are used for drop forged rivetless chains. Their main function is to engage with the Front Flopper Dog of the leading free trolley on the lower track of the Power and Free Conveyor System.Center Link Pusher DogThis products main function is to connect Pusher Dogs in the conveyor system. It can connect with one Pusher Dog or one on both sides of the Center Link.Center Link AttachmentThis series of forged or casted parts are mounted on the center link of the rivetless conveyor chain, adding a variety of different functions and applications to the center link.Extended PinThis product is a forged part. Its function is to connect the side link and the center link to fixed chains. It can also be combined with different types of trolleys, hangers, and pusher dog extensions to provide alternative conveying functions.H AttachmentThis is a universal auxiliary hanger accessory. It is made of a combination of two metal plates and which is suitable for most types of hooks, racks, and trays.I AttachmentThis accessory serves as a spacer and does not carry work pieces on the trolley.B AttachmentThis accessory is a formed by hot forging and has a thread stud. It has various applications including attaching trolley pairs to load bars.C AttachmentThis accessory is used to support lightweight work pieces within a trolley.Overhead Trolley Load BarsCasted Overhead Trolley Load Bars are used in conjunction with the two trolley wheels and B attachments. The main purpose is to increase the load capability over the trolley wheels.HangerA variety of hanger styles and accessories are available to suit the design of the conveyor chain equipment. Hangers do not affect the operation of the chain. They are used where vertical lifting of weight is required, and the load must be directly above or below the trolley wheel set. If the load is heavy, we can use the load bar to connect more than 2 sets of trolley wheels, and equally distribute the load over the pair of trolleys. This will suspend the load at the center of the load bar to equalize the loading distribution over the trolley wheels.Swivel HookThe swivel hook can be forged or casted. It allows the load to be positioned at a 90-degree angle. It allows operators to move the product in a full 360 degrees while on the conveyor system. It is used with H attachments.Forged BracketThe strength of the forged bracket indirectly determines the lifespan of the conveyor system. To ensure that the chain runs according to the track design route, the forged bracket is pulled by the chain and runs along the track. It needs to bear the combined force of the chain tension when turning vertically and horizontally. The hanger is made of high-strength carbon steel and can be divided into two types: overhead and ground. Our forged brackets are forged from high-strength carbon steel. The brackets are divided into two types: Overhead and Inverted.Power TrolleyPower trolleys are an important option during the design phase of the conveyor equipment. The main function of a power trolley is to support the chain, bear the weight of hangers and the conveyor equipment parts such as pieces in work. Bearings, hangers, and forged brackets are the main components of a power trolley.

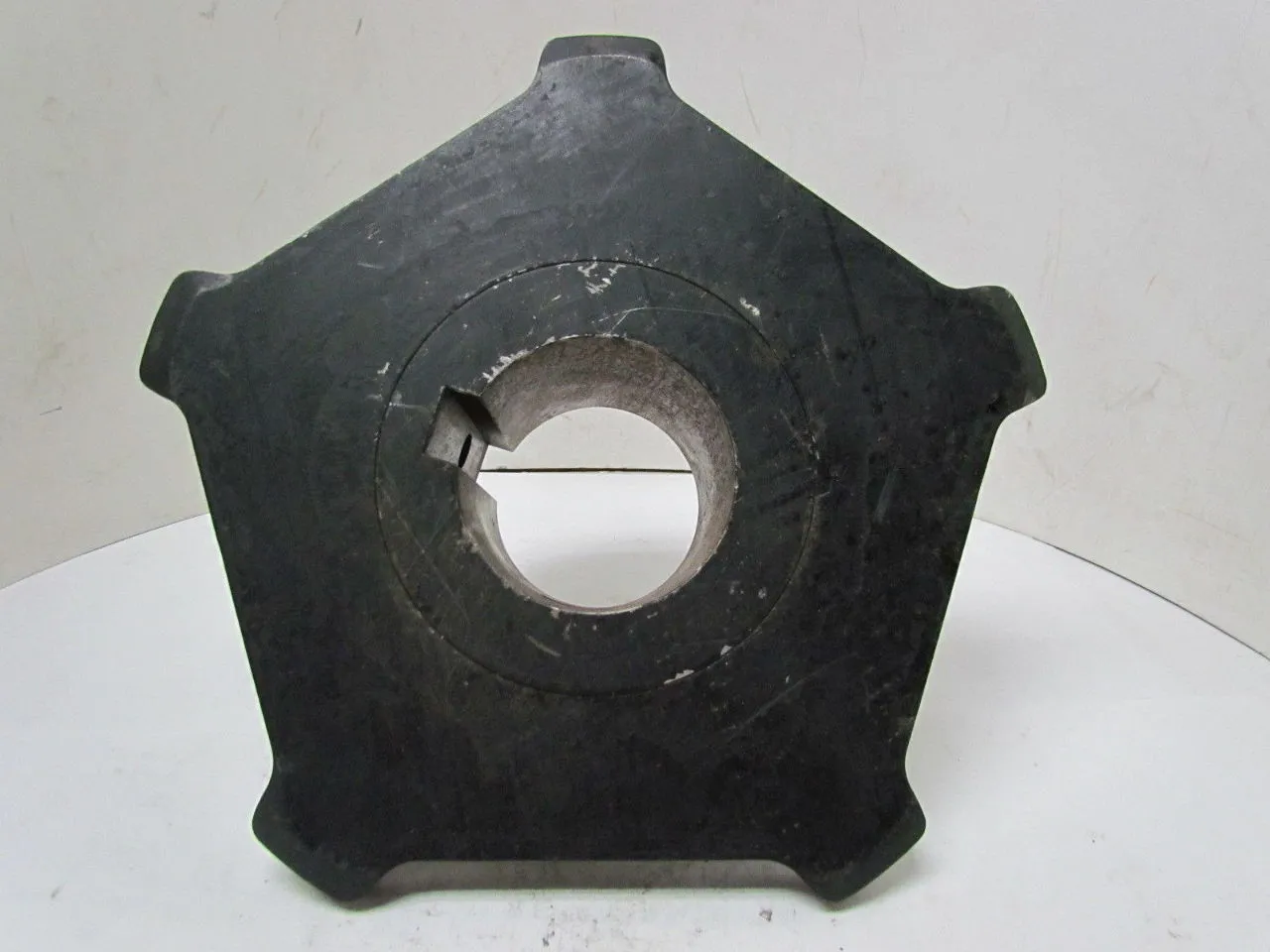

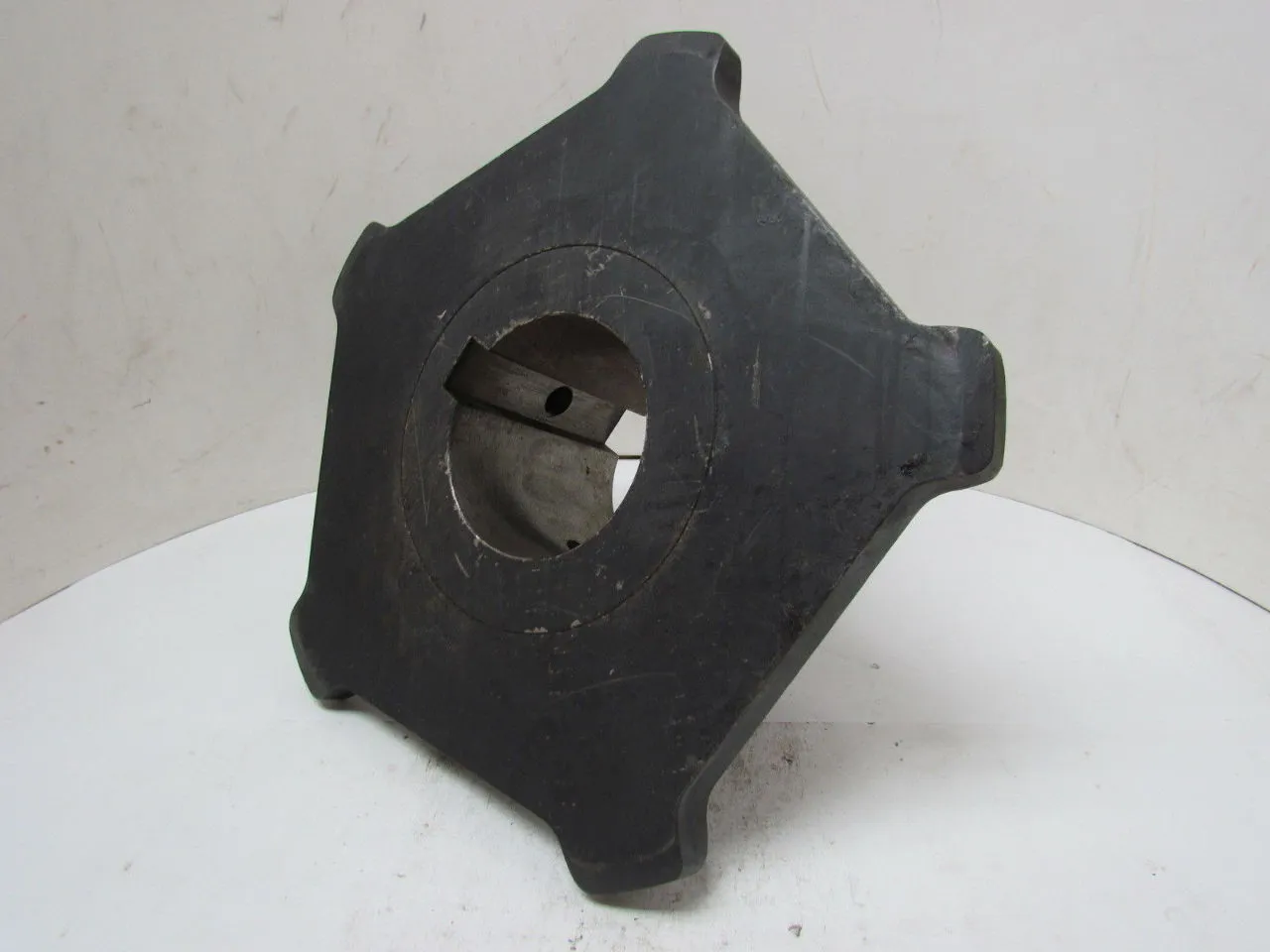

Matching Drop Forged Rivetless Chain Sprockets

This drop forged rivetless chain sprockets is manufactured specifically for drop forged rivetless chain, and is designed to work with the chain and attachments as smoothly as possible. However, some applications require sprockets that have an extra clearance that is commonly known as the "relief area". We offer both styles as shown below, make sure to let us know what your application is or which style of sprocket you need so we can get you the exact match for your application. We offer some of the best pricing in the industry while supplying you with a high-quality and durable sprocket. To get pricing and availability please contact us and we will be happy to assist you.We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like?roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains, lumber chains,?agricultural chains, silent chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain,?engineering chain, steel pintle chain, welded steel chain, forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.

We Also Provide Other Types of Chain Sprockets?

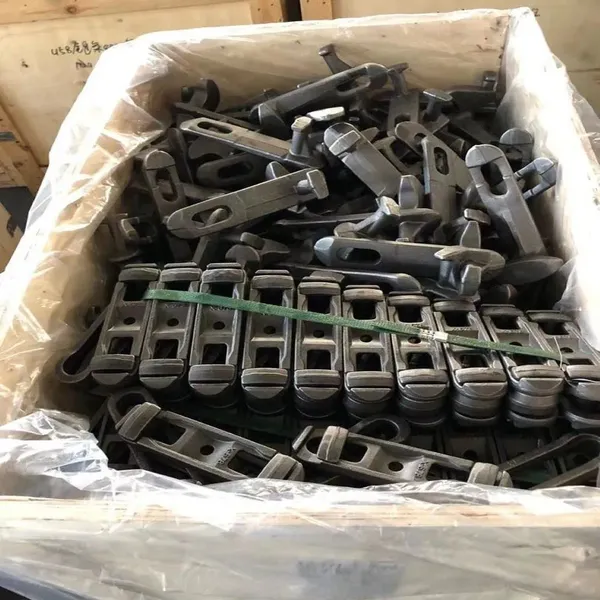

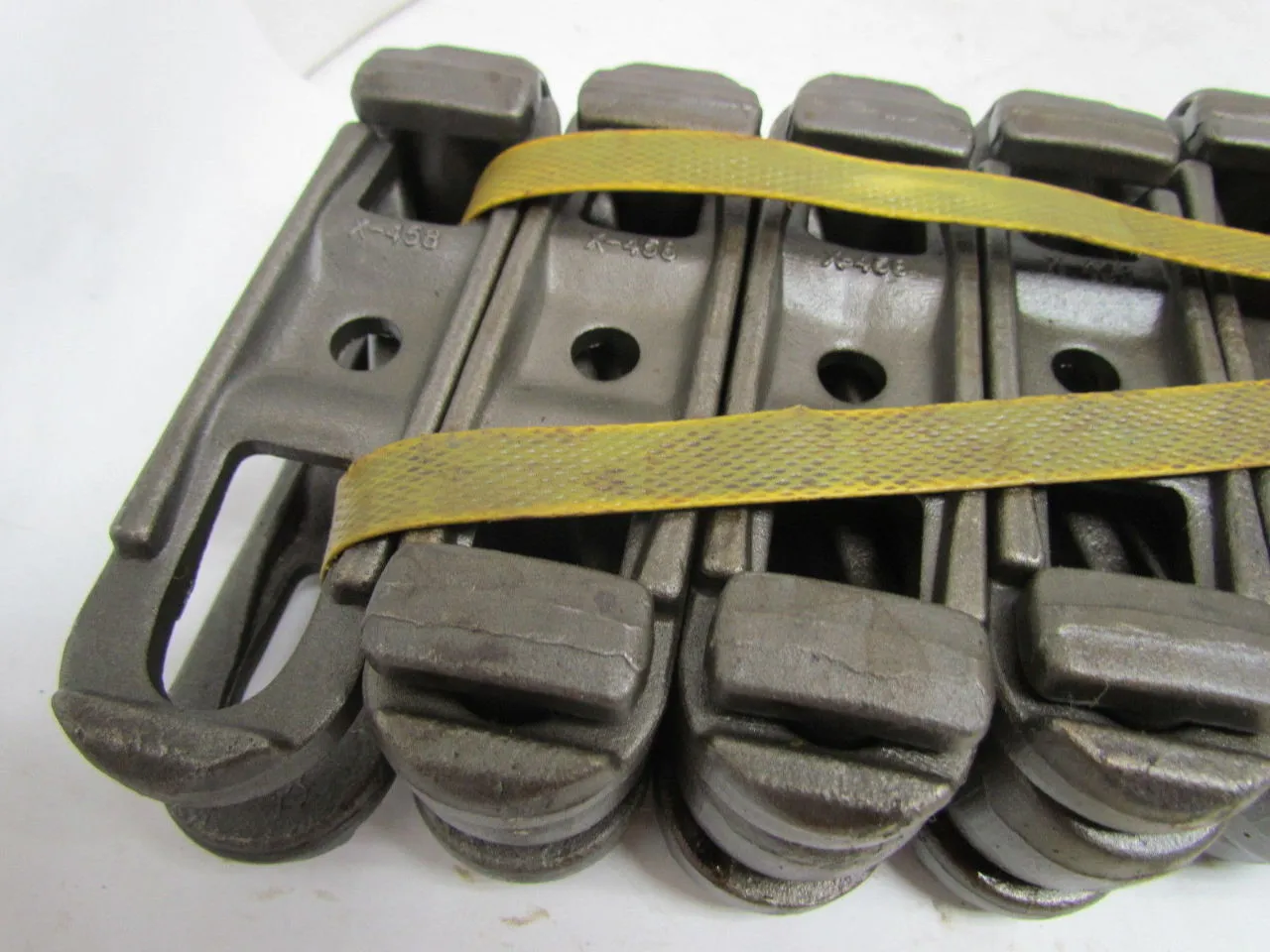

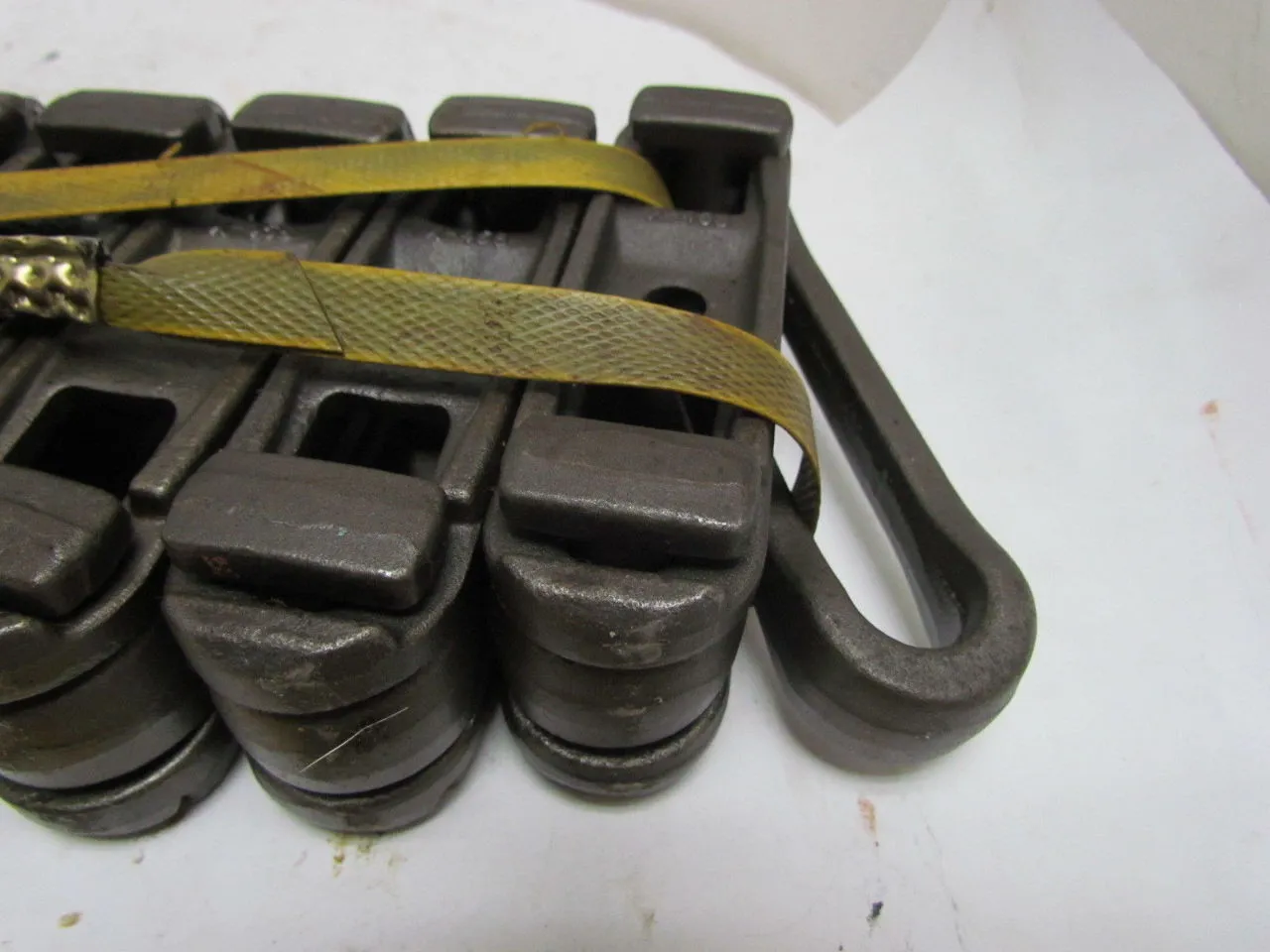

Packaging Display of Drop-Forged Rivetless Chain?

Our chain is most commonly supplied in 10ft boxes including one connecting link per box, but we can also supply this chain at custom lengths as needed. We also offer a full line of good-quality sprockets for this chain. For pricing and availability please contact us at any time.

Drop Forged Rivetless Chain Manufacturers

A chain's quality is only as good as its design and construction. Make a solid purchase with drop forged chain links from Raydafon. Choose from a variety of sizes and weight limits. An X-348 drop-forged rivetless chain keeps any automated machine working well into the day or night.Raydafon is different than any other supplier you'll encounter in the industry. Are you wondering about which drop forged conveyor chain to select? We'll go over your application and specifications. There's no drop-forged rivetless chain that cannot solve a mechanical dilemma. Your system benefits from pitch control that's built into the X458 drop forged rivetless chain. The chain remains flexible as it moves around your mechanical parts, but it has hardened sections where it counts. Select between alloy and carbon steel as you upgrade your system. Raydafon improves your production line, service center and conveyor setups with chain links that last.Drop forged rivetless chain is manufactured with cast steel inner and outer links and heat-treated steel pins. This makes a chain that is high-strength, corrosion resistant, and extremely functional! This chain can be found in car washes, automotive manufacturing, trolley systems, as well as general and overhead conveying systems. We also stock standard attachments for these drop forged rivetless chains and drop forged rivetless chain sprockets, to get a quote please contact us and we will be happy to assist you!
