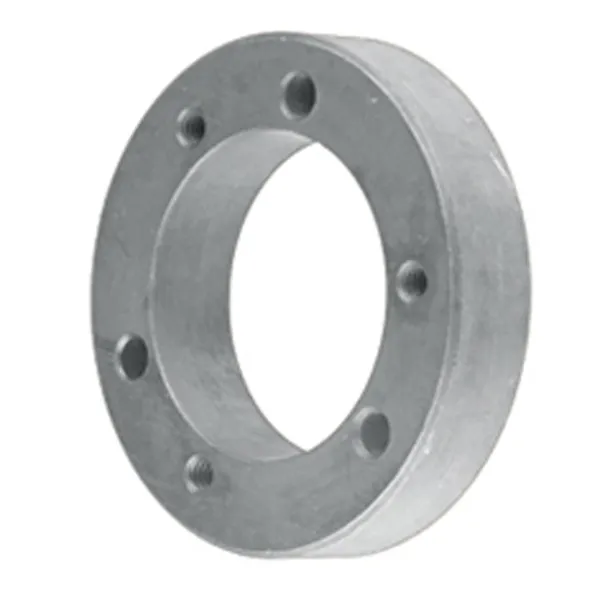

E-A QD Weld-On Hubs

E-A QD Weld-On Hubs

E-A QD weld-on hubs are a type of hub designed for use with E QD (Quick Detachable) bushings. These E-A QD hubs are specifically used in applications where a shaft or component needs to be securely attached to a rotating assembly, such as pulleys, sprockets, or gears.The E-A QD weld-on hubs are made from high-quality steel and feature a flange with pre-drilled holes for welding onto a shaft or other component. The E-A QD hub is designed to provide a solid and reliable connection, ensuring proper torque transmission and minimizing the risk of slippage or misalignment.The E QD bushing, on the other hand, is a type of bushing that provides a mechanical interference fit onto the hub. It uses a split design with tapered surfaces and a tightening screw to securely attach to the hub. The E QD bushing allows for easy installation and removal without the need for special tools or extensive disassembly.By combining the E-A QD weld-on hub with an E QD bushing, you can create a robust and efficient connection between the rotating assembly and the shaft or component. This type of arrangement offers flexibility in terms of adjustable positioning and ease of maintenance, as the bushing can be easily replaced if needed without requiring major disassembly.Overall, E-A QD weld-on hubs for E QD bushings provide a reliable and convenient solution for attaching rotating components, offering flexibility, ease of installation, and secure torque transmission.

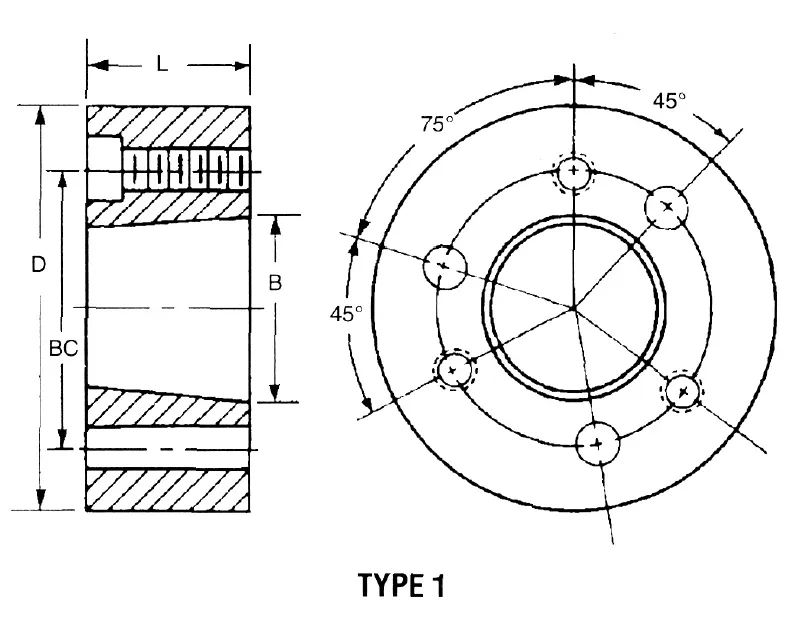

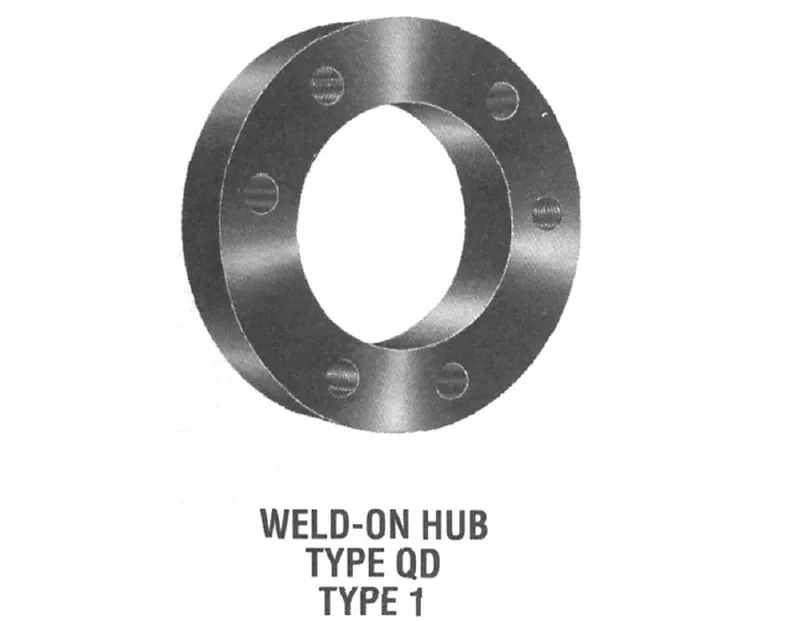

E-A QD Weld-On Hubs Dimensions:

QD Hub Types		E-A Weld-On Hubs
For Bushing		E QD Bushings
Dimensions (Inches)	D	6.250"
	L	1 5/8"
	B	3.832"
	P	-
	L1	-
	BC	5"
Type Drilling		1"
Weight (lbs)		9 lbs

Tolerance of D Dimension (or P dimension where applicable) JA-A Thru J-A = (+-.002) M-A Thru S-A = (+-.003)

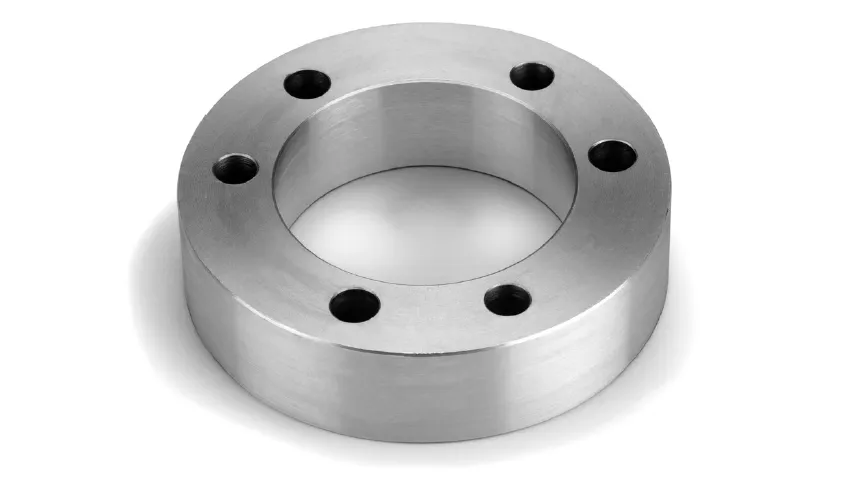

Features of E-A QD Weld-On Hubs:

The E-A QD weld-on hubs are often attached to the sprockets, pulleys, and sheaves to provide a tapered bore to match the tapered outer surface of the bushing. All E-A QD weld-on hubs with high quality, performance, and durability by made from solid steel and precisely machined for the best and longest working life. Here are some of the features of E-A QD weld-on hubs:1. Durable Construction: These E-A QD weld-on hubs are typically constructed from high-quality steel or other sturdy materials. This ensures their durability and ability to withstand heavy loads, vibrations, and harsh operating conditions.2. Welding Compatibility: The E-A QD weld-on hubs feature a flange with pre-drilled holes, specifically designed for welding onto a shaft or component. This allows for a secure and permanent attachment, ensuring the hub remains in place during operation.3. Interchangeability: E-A QD weld-on hubs are designed to be compatible with E QD bushings. This interchangeability allows for easy installation and removal of the bushings without requiring extensive disassembly or special tools.4. Adjustable Positioning: The E QD bushing and E-A QD weld-on hubs combination provide adjustable positioning of the attached component. By loosening the tightening screw on the bushing, the component can be repositioned along the shaft, offering flexibility in alignment and assembly.5. Torque Transmission: The E-A QD weld-on hubs are engineered to ensure efficient torque transmission from the rotating assembly to the attached component. This minimizes slippage and ensures reliable power transfer.6. Wide Range of Applications: E-A QD weld-on hubs for E QD bushings are suitable for various applications, including power transmission systems, conveyor systems, material handling equipment, and more. They can be used with pulleys, sprockets, gears, and other rotating components.

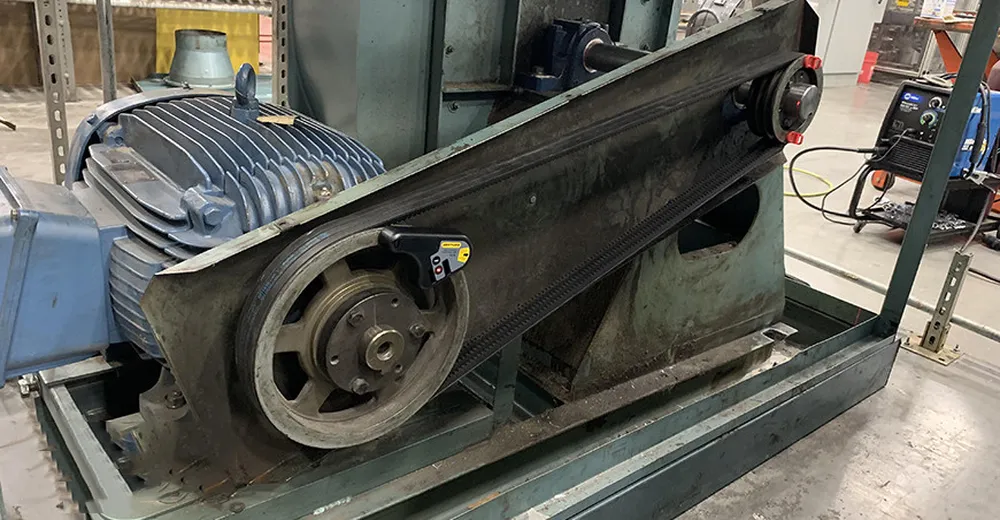

Applications of E-A QD Weld-On Hubs:

E-A QD weld-on hubs for E QD bushings find applications in various industries and systems where a secure and adjustable connection between rotating components and shafts is required. Here are some common applications:(1) Power Transmission Systems: E-A QD weld-on hubs are widely used in power transmission systems, such as belt drives, chain drives, and gear drives. They provide a reliable connection between the rotating components (pulleys, gears, sprockets) and the shafts, ensuring efficient torque transmission.(2) Conveyor Systems: Conveyor systems rely on rotating components, such as pulleys or rollers, to move materials along a conveyor belt. E-A QD weld-on hubs are used to securely attach these rotating components to the shafts, ensuring smooth and uninterrupted operation.(3) Material Handling Equipment: E-A QD weld-on hubs are used in various material handling equipment, such as conveyors, lifts, and cranes. They provide a secure connection between the rotating components, such as drums or wheels, and the shafts, enabling efficient movement and lifting of heavy loads.(4) Industrial Machinery: E-A QD weld-on hubs find applications in a wide range of industrial machinery, including pumps, compressors, mixers, and agitators. They are used to attach rotating components, such as impellers or propellers, to the shafts, ensuring proper functioning and torque transmission.(5) Mining and Construction Equipment: In heavy-duty applications like mining and construction, E-A QD weld-on hubs are used to connect rotating components, such as drums, winches, or crushers, to the shafts. These hubs ensure robust and secure attachment in challenging operating conditions.

China QD Weld-On Hubs Manufacturers

Are you looking for high-quality bushings or steel hubs for your industrial or agricultural needs? Look no further than Raydafon, where our comprehensive selection of taper lock bushing, QD bushing, split taper bushing, FHPK bushing, XT bushing, XT weld-on hubs, Type “B” steel hubs, split taper weld-on hubs, QD Type weld-on hubs, and taper bore weld-on hubs will suit all of your typical application needs, including sprockets, pulleys, and sheave applications. The basic purpose of a bushing is to couple a component to a shaft. Whether you face space constraints, time constraints, or size constraints, our bushings have you covered and are commonly utilized instead of a bored-to-size hub due to these very reasons. Plus, with our vast array of in-stock bore sizes, including an abundance of standard inch and metric bore size bushings, you can be certain that we’ll have the right fit for your application.
