EGA5 Series Slewing Drive
  • EGA5 Series Slewing DriveEGA5 Series Slewing Drive

EGA5 Series Slewing Drive

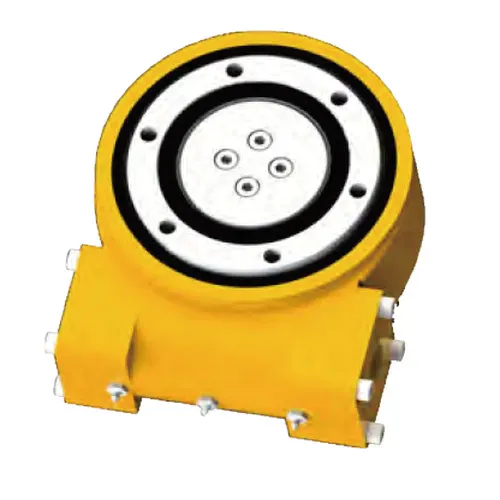

The EGA5 Series Slewing Drive from Raydafon Group is a high-performance, precision-engineered solution for demanding applications like manufacturing, robotics, and automation. Built with cutting-edge technology and durable materials, it offers superior reliability, smooth operation, and long-lasting performance. Ideal for engineers, industrial users, or tech enthusiasts, it ensures effortless control, reduces downtime, and enhances productivity. Unlike competitors, its compact design and advanced features provide unmatched efficiency. Experience the Raydafon difference today—your go-to for innovation!
The slewing drive is a gearbox that can safely hold radial and axial loads and transmit torque for rotating. The rotation can be on a single axis or multiple axes together. Slewing drives are made by manufacturing gearing, bearings, seals, housing, motor, and other auxiliary components and assembling them into a finished gearbox.Slew drive is a new series of slewing products named slewing reducer. It is commonly composed of the worm, slewing bearing, housing, motor adapter, end cap, and other components. By adopting slewing bearing as its core component, slewing drive can simultaneously handle axial force, radial force, and tilting moment. Compared with the EWA series slewing drive, the EGA series has the advantages of better defensive performance, excellent transmission torque, better impact resistance, and long working life.To judge what kind of slewing drive you need, you have to clear out the configuration of the slew drive and the purpose of the equipment. Each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:(1) Gear ratios(2) Precision(3) Weight(4) Output(5) Tilting moment(6) Torque(7) Dynamic and static axial(8) Radial dynamic

Performance Parameters

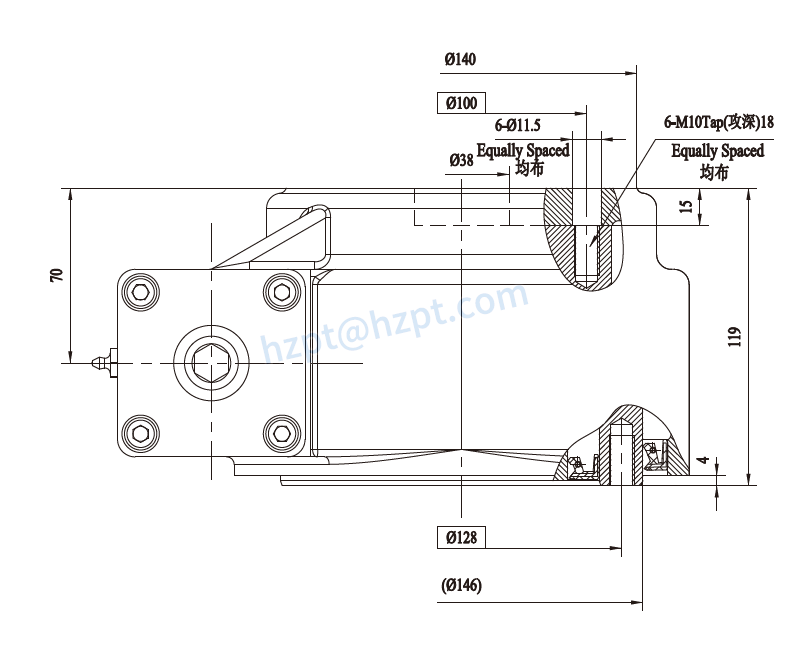

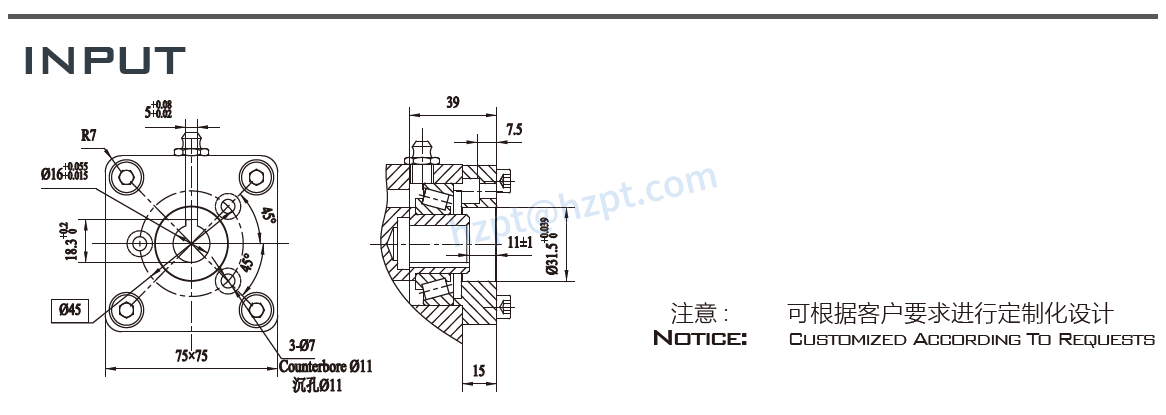

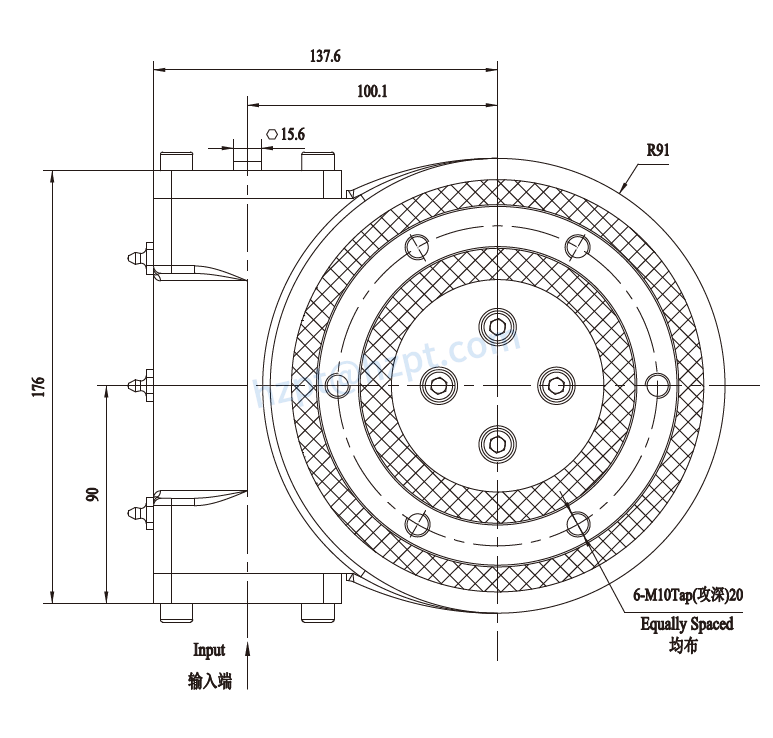

Front ViewTop View
EGA5 Series Slewing Drive EGA5 Series Slewing Drive
EGA5 Series Slewing Drive EGA5 Series Slewing Drive

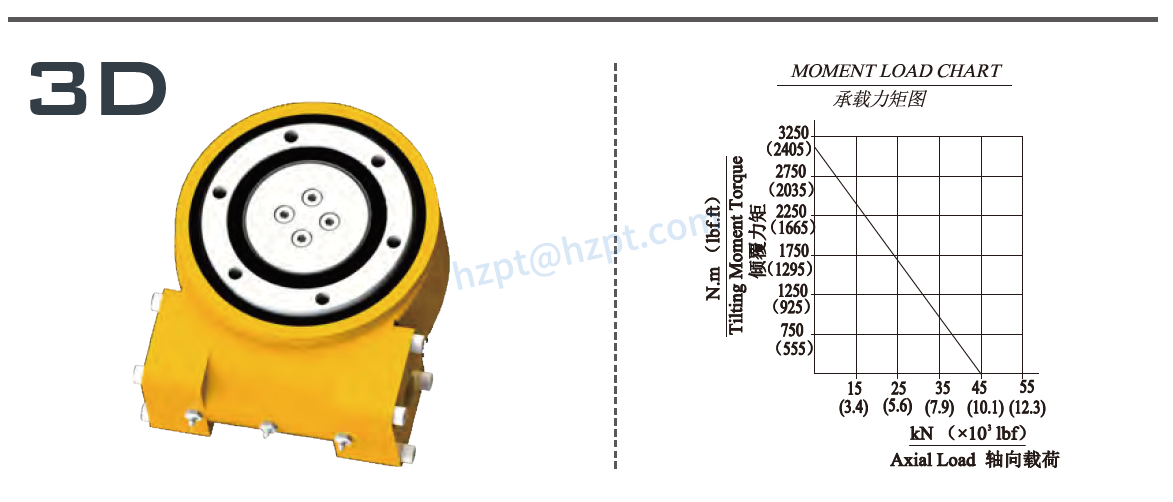

Output torqueTilting moment torqueHolding torqueAxial loadRadial loadRatioBacklashWeight
输出转矩倾覆力矩保持力矩轴向承载力径向承载力速比精度重量
600 kN.m3000 kN.m5500 kN.m45 KN22 KN62:1<= 0.20 °16Kg
443 Lbf.ft2212.5 Lbf.ft4056 Lbf.ft1116 Lbf4945 Lbf

The Installation Method and Precautions of Slewing Drive

1. Preparation before installation of slewing drive
(1) Clean the slewing drive and installation structure:Remove foreign matter from the mounting support surface, such as paint residue, solder beads, burrs, etc. The corrosion protection coating on the slewing drive bearing surfaces should also be removed. Be careful not to infiltrate the cleaning fluid into the slewing drive; do not use cleaning materials that will corrode the seals.(2) Inject lubricating oil into the slewing drive device:The slewing drive has been filled with grease before leaving the factory, but before the initial operation, it should be lubricated again, especially for the slewing drive that has been stored for a long time. It should be ensured that the slewing drive is completely lubricated. The grease must be the one specified on the delivery drawing.(3) Select the appropriate mounting bolts:• Use the bolt size, quantity, and quality grade specified in the installation instructions.• A clamping ratio (clamping length to bolt diameter) should be observed from a minimum value of ≥5 to a maximum weight of ≤10.• Bolts with fully threaded shafts are not permitted.• Failure to comply can affect the bolted joint's functionality and longevity, and durability.• If the allowable interface pressure is exceeded, use a suitable size and strength gasket.• Do not use old bolts, nuts, and washers.(4) Selection of tightening torque:• Under normal conditions, the mounting bolts are fully secured with the correct preload.• Mounting bolts can be secured with a Loctite thread locker.• Split rings, split washers, etc., are not permitted.• If using washers, make sure they have the correct strength class.
2. The process of installing the slewing drive
(1) Position the slewing drive and fix it with bolts:• Lightly lubricate bolt threads to ensure even frictional resistance (does not apply to bolt locking devices with adhesive).• Cross preload bolts, including washers in three steps with 30%, 80%, and 100% tightening torque or hydraulically applied preload.• Repeat the above steps for bearing rings that are not yet bolted.The preload should not exceed 90% of the yield stress when using hydraulic fastening devices.(2) Determine the existing tilt clearance and backlash:• Tilt clearance increases with raceway wear. The permissible increase in tilt clearance is 1.5 to 2 mm. To determine the rise in tilt play, basic measurements must be carried out after installation and before the slewing drive is put into operation for the first time.• The increased backlash signals gear wear. The amount of backlash allowed depends on the slewing drive applied.• Record all measurements.All measurements are made at the same point, the same load, the exact position of the bearing rings relative to each other, and in the same order. All measurements should be recorded. Check for tilt clearance for axial or radial loads by applying additional tilt load.(3) Operation test:If the slewing drive is installed correctly, the slewing drive should rotate evenly, and factors such as the deviation of the installation structure and external loads will affect the friction torque.• Rotate the mounted slew drive several times.• Check that the slew drive is smooth and free of jumping.• Carry out further test runs under full load.After running the test, recheck the tightening torque of the mounting bolts.

Slewing drives are used worldwide for:

• Vehicle and crane systems.• Rotation of attachments such as excavators, hydraulic tongs, and forklifts.• Facility management (automated systems).• Loading and unloading equipment.• Positioning Systems.EGA5 Series Slewing Drive

Custom Slewing Drives

We can provide custom solutions for specific applications as a global slew drive and slew bearing manufacturer. We have a long and proud engineering history starting in 1925 and have worked at the cutting edge of slew drive technology ever since.
Benefits of our slew drive technology
— Long-life performance.— Smooth rotation.— Slew bearing protection.
Why Choose Us As Your Slew Drive Manufacturers?
— We provide custom slewing drive solutions.— We can provide on-site slew drive gearbox installation.— All of our slew drive gearboxes come with dedicated engineering support.EGA5 Series Slewing Drive

FAQ

1. What is the producing process?
A: Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, and package.
2. How to control the product's quality?
A: Combining advanced equipment and strict management, we provide a high standard and quality slewing drive for our customers worldwide.
3: How long is your delivery time?
A: If there is stock, it is within seven days; if there is no stock, it is 25-45 days, depending on the quantity.4. Are you a trading company or a manufacturer?
A: We have our factory with 20 years of experience in slewing drive; our type is factory + trade.5: What are your terms of payment?
A: Stocks goods,100% prepaid. If goods need to produce,30% prepaid and the balance paid before shipment. For big orders over 50000 USD, we can accept L/C At sight.6. What is your MOQ?
A: For standard type, no MOQ. To produce goods, we need according to slewing drive type.
7. What is transportation?A: Small quantity, by express, such as DHL, UPS, TNT FEDEX. If large quantity, by sea or air.
8. Can you provide OEM service?
A: Yes, we provide OEM service, do as your size, packing, and other requirements.
