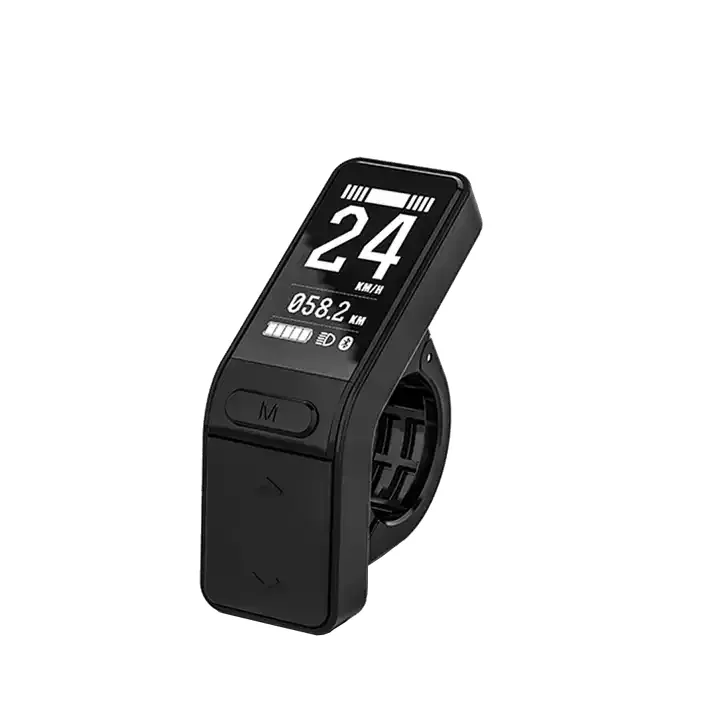

Electric Bicycle Motor Kit Display OLED130

The OLED130 display is a high-quality component for electric bicycles, featuring a sleek black design and providing a range of data for cyclists. This product is carefully packaged in a carton box with bubble wrap for secure transportation and can be shipped from multiple ports including Shanghai, Ningbo, and Shenzhen.

Electric Bicycle OLED130 Display Specification

Specification	OLED130
Display Size (L×W×H mm)	75mm×47mm×35mm
Screen Size (inch)	1.3mm
Display Type	OLED
Holder Diameter (mm)	Φ22.2mm
Voltage (V)	24V / 33V/ 36V
Material	ABS/PA
Communication	UART
Show Info	PAS Level / Speed / Trip /ODO etc.
Error Info	Yes
Data Port	Wireless
Working Temperature (℃)	-20℃ ~ 60℃
Waterproof	IP65
Weight (g)	38g

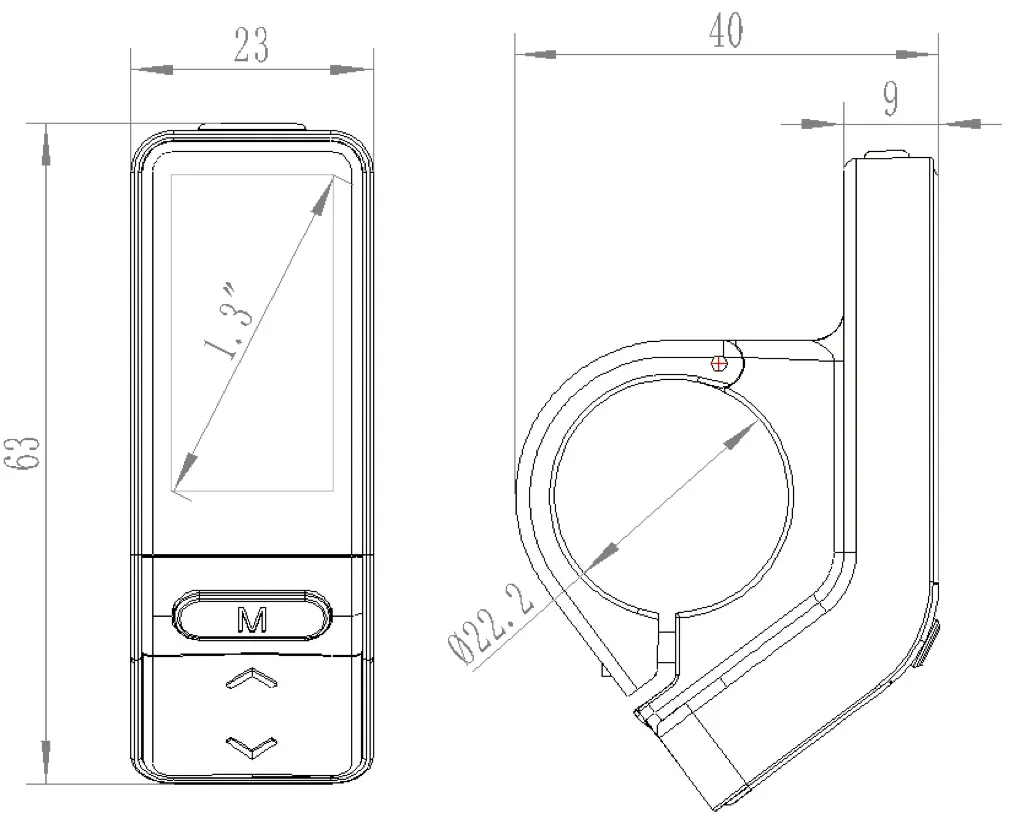

Electric Bicycle OLED130 Display Dimension

Advantages of OLED130 Electric Bike Display

There are numerous benefits that come with using the OLED130 display. These advantages make it an ideal choice for any electric bicycle:

1. 1.3 inch OLED screen: The OLED130 features a bright and clear 1.3-inch OLED screen that offers high contrast and color accuracy. This ensures that all data displayed is easy to read, even in bright sunlight.
2. 2.5D shape craft: The OLED130 is designed with a 2.5D shape craft, giving it a sleek and modern look that complements any electric bike design.

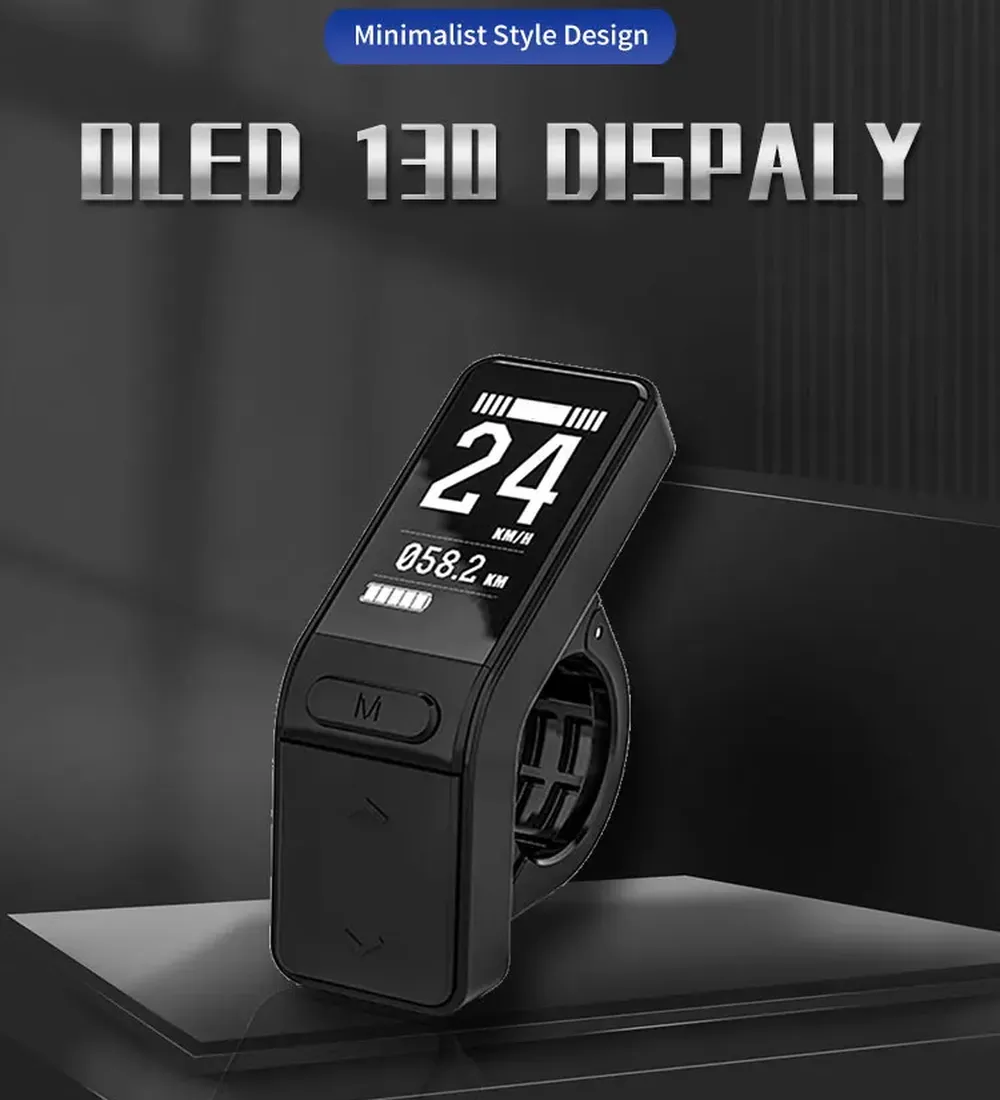

3. Minimalist style design: With its minimalist style, the OLED130 blends seamlessly with your bike's design and doesn't distract from the overall aesthetics.
4. Durable solid button: The OLED130 features a durable solid button that can withstand regular use, ensuring longevity.
5. Cycling data display: The OLED130 provides a range of data including speed, distance, and battery status, helping riders to monitor their performance and battery life.
6. Motor parameter setting: The OLED130 allows riders to easily adjust motor parameters to suit their riding style and conditions.

Features of the OLED130 Electric Bike Display

The OLED130 display is packed with features that make it an excellent addition to any electric bicycle:

1. Four buttons: The display has four buttons, making it easy to operate and navigate through the various settings and data.
2. Password Protection: The OLED130 includes a password protection feature to prevent unauthorized use of your bike.
3. Speed display: The display provides real-time speed data, as well as maximum and average speed readings.
4. Power assist control: The OLED130 allows you to choose from six levels of power assist to suit your riding conditions and personal preference.
5. Electricity instructions: The display provides clear power level indicators, including low voltage warnings and battery BMS information.
6. Mileage display: The OLED130 displays both total and trip mileage, helping you to track your journeys.
7. Riding time: The display includes a riding time function, letting you know how long you've been on your bike.
8. Error code indication: If there's a problem with your bike, the OLED130 will display an error code, helping you to diagnose and fix any issues.

How Does the Electric Bike OLED Display Work?

The OLED130 display uses advanced OLED technology to provide clear, high-contrast displays. Here's a basic explanation of how it works:

1. OLED Structure: The OLED display is made up of several layers of organic materials between two electrodes. When an electric current is applied, these materials emit light.
2. Pixel Arrangement: The display is made up of numerous tiny pixels which can each be controlled independently, allowing complex images and text to be created.
3. Electronic Control: A control circuit regulates the flow of electricity to each pixel, determining the brightness and color of the light emitted.
4. Information Display: The OLED130 display receives data from various sources and presents it to the rider in an easy-to-understand format.
5. User Interaction: The display often includes touch-sensitive capabilities, allowing the rider to interact with the interface by tapping or swiping on the screen.

Choosing the Right OLED Display for Your Electric Bicycle

When choosing the right OLED display for your electric bicycle, there are several factors to consider:

1. Display Size: The size of the display should be large enough to be clearly visible, but not so large that it obstructs your view.
2. Resolution: Higher resolution displays provide sharper and more detailed images and text.
3. Brightness and Contrast: An OLED display with high brightness and contrast levels ensures good visibility in different lighting conditions.
4. Information and Features: Consider what type of information you want the display to provide, such as speed, distance, battery level, and assist level.
5. User Interface and Interaction: The user interface should be intuitive and easy to use, with touch-sensitive capabilities or physical buttons for easy navigation and control.
6. Compatibility: The OLED display must be compatible with your electric bicycle's system to ensure proper integration and accurate data display.

Maintenance of the OLED130 Electric Bike Display

To keep your OLED130 display in good condition, follow these maintenance tips:

1. Cleaning: Regularly clean the display to remove dirt and smudges. Use a soft cloth and avoid using harsh chemicals.
2. Pressure: When cleaning or using the display, avoid applying excessive pressure as this can damage the screen.
3. Impact Protection: Protect the display from impacts or sudden shocks to avoid damage.
4. Water and Moisture Resistance: Although the OLED130 is water-resistant, it's important to avoid prolonged exposure to water and to dry the display as soon as possible after it gets wet.
5. Firmware Updates: Check for firmware updates regularly to ensure your display is operating at its best.

Why Choose Raydafon's Electric Bike OLED Display?

Raydafon Electric Technology Co Ltd. is a leading manufacturer of high-end electric bicycle parts. We are dedicated to the R&D, manufacturing, and worldwide marketing of our products, all of which are designed and developed in-house and protected by a number of domestic and international intellectual property rights. We have introduced professional production and testing equipment, advanced production lines, and have established a complete quality management system. All our products are CE-certified and protected by independent intellectual property rights. Our product is renowned for its reliable quality, exquisite craftsmanship, and stylish design.Our main products include super-mini wireless motors, super-mini intelligent motors, water bottle battery, down tube battery, ALL-IN-ONE rear hub motors, P100/P110 rear hub motors, S100/S110 rear hub motors, ALL-IN-ONE front hub motors, P100/P110 front hub motors, S100/S110 front hub motors, ALL-IN-ONE rear hub motors, down tube battery, Wireless buttons, Wireless displays etc. They are suitable for all kinds of bikes. Our products can provide electric power support for bicycles while maximizing bicycles' original appearance and characteristics, making riding more convenient, easy, and environmentally friendly.If you are seeking high-end electrical components for electric bicycles, if you are still worried about traffic jams, and if you would like to contribute to environmental protection, Raydafon sincerely welcomes global distributors to visit and negotiate. We look forward to working with you to jointly promote the development of the electric bicycle industry and contribute to environmental protection.

FAQ

Q: Are you a manufacturer?A: Yes. Established in 1993, our company is keeping dedicated to the R&D, manufacturing and worldwide marketing of high-end electric bicycle parts. We provide ODM & OEM services as per your requests. Welcome to our company.Q: Can I get a sample and how long will it take?A: Yes. We'd like to submit a sample for checking at the beginning of our business. Usually it needs take about 2 weeks to produce sample order.Q: What is your MOQ and delivery time?A: Our MOQ is 1 pcs normally. It takes about 30 days to complete an order. The specific delivery time depends on the items and the quantity of your order.Q: How to control the quality of the products?A: We have independent quality inspection department for products quality. The parts are inspected in every production process to prevent bad parts from entering the next process. 100% products are inspected before shipment. Third party detection is welcomed.Q: Do you have customized service?A: Yes, the technical specifications and logo of Motor, and the Raydafon APP both can be customized.Q: What is the warranty period for your products?A: Motor: 2 years. Battery: 1.5 - 2 years. Other Accessories: 1 year.Q: Where is your after-sales service location?A: Germany or China. You can choose a suitable after-sales location according to your convenience.Q: How do I pay for my order?A: We accept your payment through T/T, L/C, D/C, Paypal, Western Union, etc.Author: Yjx
