EP700L EP701L EP703AL EP705AL Planetary Slew Drives

EP700L EP701L EP703AL EP705AL Planetary Slew Drives

Discover Raydafon Group's EP700L EP701L EP703AL EP705AL Planetary Slew Drives, engineered for precision motion in robotics, renewable energy, and heavy machinery. With advanced planetary gear technology and durable construction, these drives offer superior torque, efficiency, and reliability, solving complex rotational challenges. Ideal for engineers and industries seeking innovative solutions, they deliver seamless performance and enhanced productivity. Stand out with Raydafon's cutting-edge design and proven durability, empowering your projects to excel. Experience the difference—choose Raydafon for unmatched quality and performance.

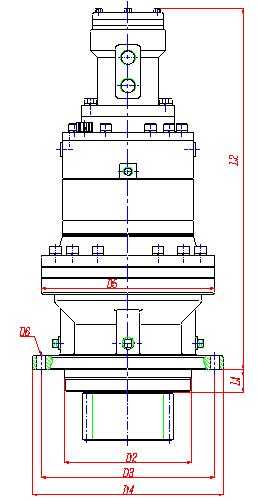

EP700L, EP701L SLEW DRIVESEP703AL, EP705AL SLEW DRIVES

Dimension

Type

EP700L

EP701L

EP703AL

EP705AL

D2

150

150

175

175

D3

195

195

245

245

D4

220

220

270

270

D5

185

185

245

245

D6

10-ф13

10-ф13

12-ф13

12-ф13

L1

31

31

32

32

L2

Size according to motor type

Pinion data

Pinion data according to customer

EP700L EP701L EP703AL EP705AL Planetary Slew Drives

Technical specification

Type

Max.Output Torque

Ratio

RecommendHydraulicMotor

Max.inputspeed

Braketorque

Brake workpressure

Excavator

Crane

(i)

(rpm)

(N.m)

(bar)

EP700L

1000

1200

3.4--32

SAE A adopt

3500

50-400

20-50

EP701L

1800

2400

3.4--32

SAE B adopt

EP703AL

2500

3500

12.4—174.5

SAE C adopt

EP705AL

5000

6500

12.4—174.5

A2FE 45·56·63

    • Input – output rotate same direction.
    • Other ratio and other input type can be specially designed.
