EP705L EP706L EP707L EP709L Planetary Slew Drives

EP705L EP706L EP707L EP709L Planetary Slew Drives

Raydafon Group's EP705L, EP706L, EP707L, and EP709L Planetary Slew Drives are precision-engineered solutions delivering unmatched torque and smooth rotation for heavy-duty machinery in sectors like renewable energy, construction, and robotics. These drives feature robust planetary gear systems, enhanced durability, and quiet operation, reducing downtime and boosting efficiency for engineers and industrial users. Unlike conventional models, they offer superior load capacity and reliability, ensuring seamless performance in demanding applications. Elevate your projects with Raydafon's innovation today!

EP705L, EP706L SLEW DRIVESEP707L, EP709L SLEW DRIVES

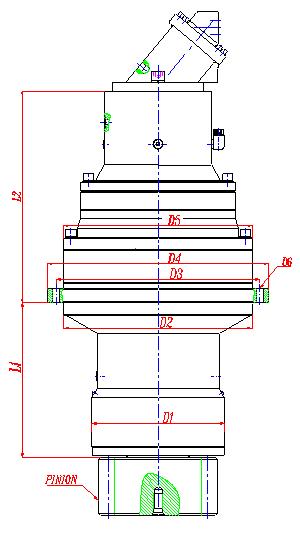

Dimension

Type

EP705L

EP706L

EP707L

EP709L

D1

180

200

230

250

D2

195

250

280

280

D3

245

325

314

380

D4

290

360

348

420

D5

245

292

345

345

D6

12-ф13

10-ф17

12-ф17

12-ф17

L1

171

225

295

295

L2

Size according to motor type

Pinion data

Pinion data according to customer

EP705L EP706L EP707L EP709L Planetary Slew Drives

Technical specification

Type

Max.Output Torque

Ratio

RecommendHydraulicMotor

Max. inputspeed

Braketorque

Brake workpressure

Excavator

Crane

(i)

(rpm)

(N.m)

(bar)

EP705L

5000

6500

12.4—174.5

SAE A·B ·C adopt

3500

50-400

20-50

EP706L

7700

12000

13.5—142.5

SAE D·E adopt

50-1000

EP707L

10500

165000

12.6—257.7

A2FE 45·56·63

EP709L

16000

26000

12.6—257.7

A2FE 80·90

    • Input – output rotate same direction.
    • Other ratio and other input type can be specially designed.
