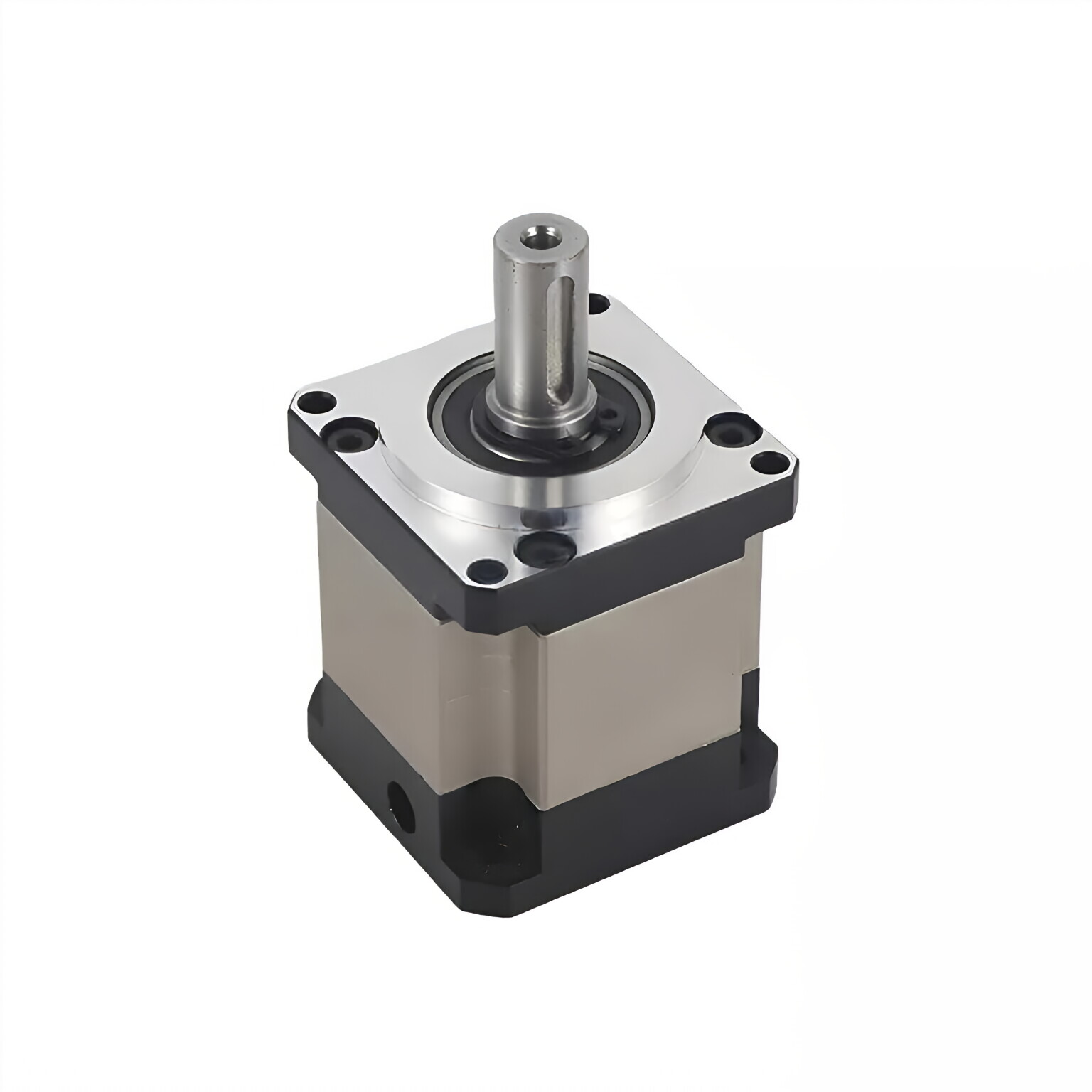

EPB HIGH PRECISION & TORQUE PLANETARY GEARBOX

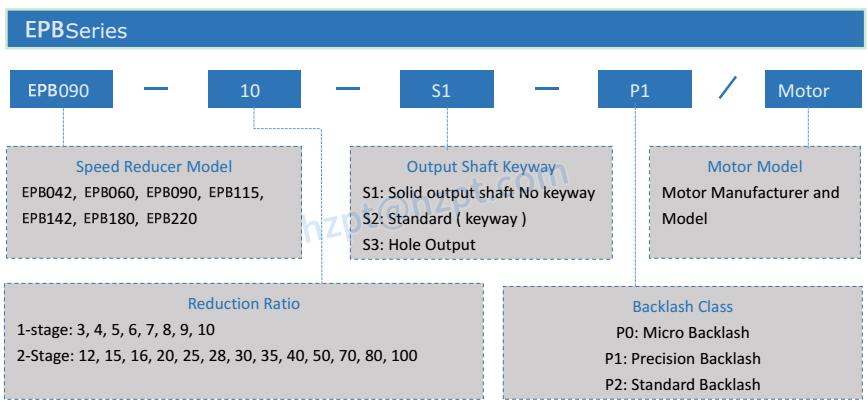

Indication of Model Numbers of EPB Speed Reducers

Description of EPB High Precision Planetary Gearboxes

Our company's famous EPB series high-precision planetary gearbox adopts the integrated design of planet carrier and output shaft to ensure maximum torque rigidity and stability. A variety of backlash types can be selected according to customer needs: micro precision backlash (P0), precision backlash (P1) and standard backlash (P2). Thanks to the high cost performance of 3F's famous EPB series planetary gearboxes, it is widely used in servo applications in the motion control industry. Our company's famous PEB precision gearbox has large torque and input diameter D4 can reach φ255mm, which greatly meets customer needs. Single-stage planetary gearboxes and two-stage gearboxes are available:●First-level ratio: 3, 4, 5, 6, 7, 8, 9, 10●Two-level ratio: 12, 15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100Application of ＥPB High Precision Planetary Reducers:Our company's famous PAB high-precision planetary gearboxes are widely used in the aviation industry, aerospace, ships, radar, submarines, food machinery, medical machinery, women's equipment machinery, and composite materials. equipment, precision testing instruments, data communication systems, robots, robotic arms, CNC machine tools, cutting and welding equipment, laser systems, textile machinery, printing and dyeing machinery, packaging machinery, printing machinery, testing machines, stamping technology, plastic machinery, glass machinery, starting Heavy machinery, metallurgical machinery, construction machinery, and university research institutes, etc.Configurations of EPB Planetary Gearbox

• Housing and flange: Aluminum alloy die-casting ADC12.
• Ring Gears:40Cr.
• Planetary gears:20CrMnTi, the surface hardness value: is HRC58~62, and the inner hardness data is around HRC33~40.
• The input end of the gearbox is equipped with a motor adaptor and keyed hollow shaft.
• Output structure EPB gearboxes include keyed solid shaft-output method, Keyless Solid Shaft Output and output for holes to meet customers’ requirements.
• It can be applied for servo motors and stepper motors of all Japanese, German, Taiwan or American brands.

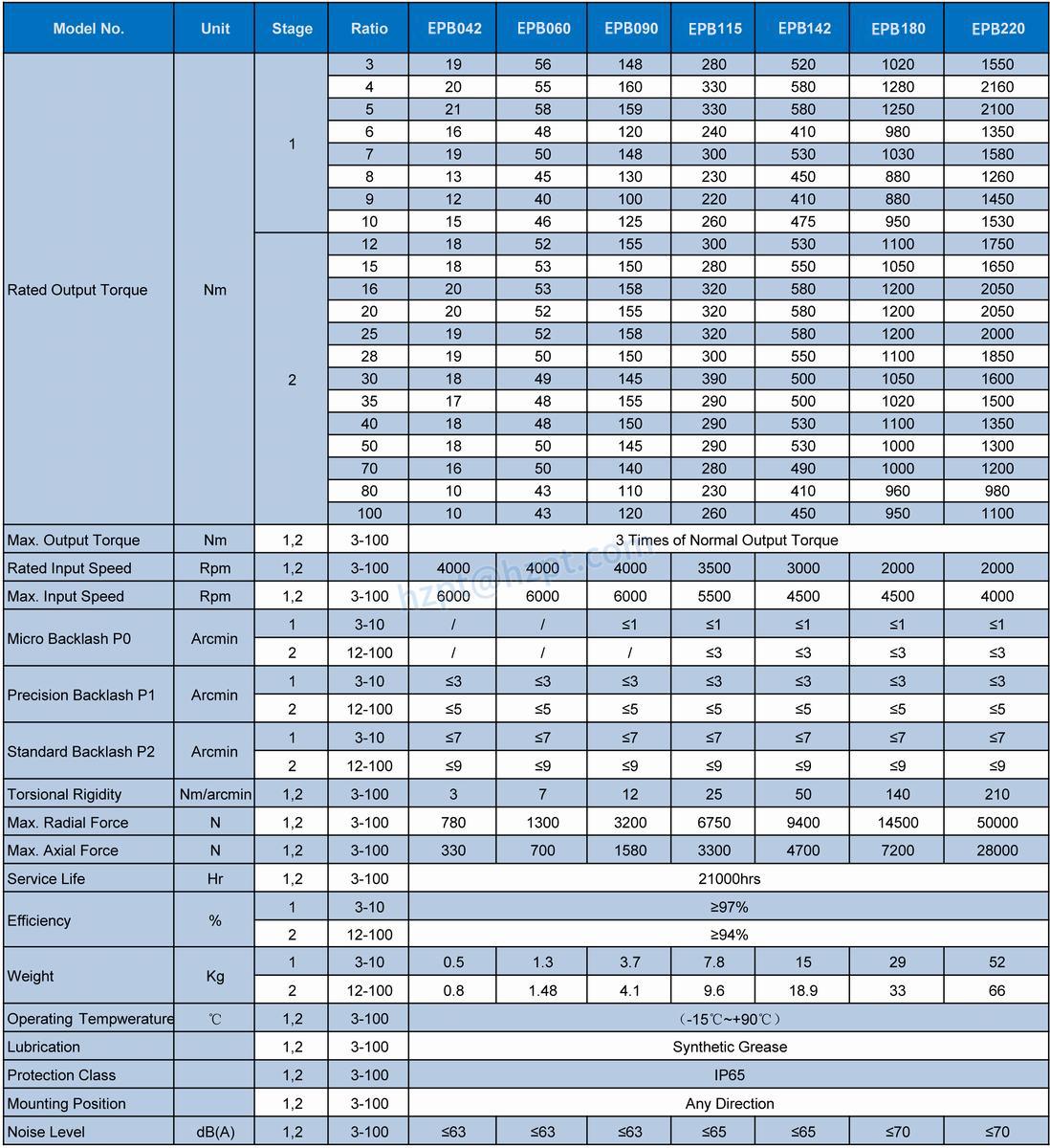

Specification Table of EPB Planetary Gear Reducer

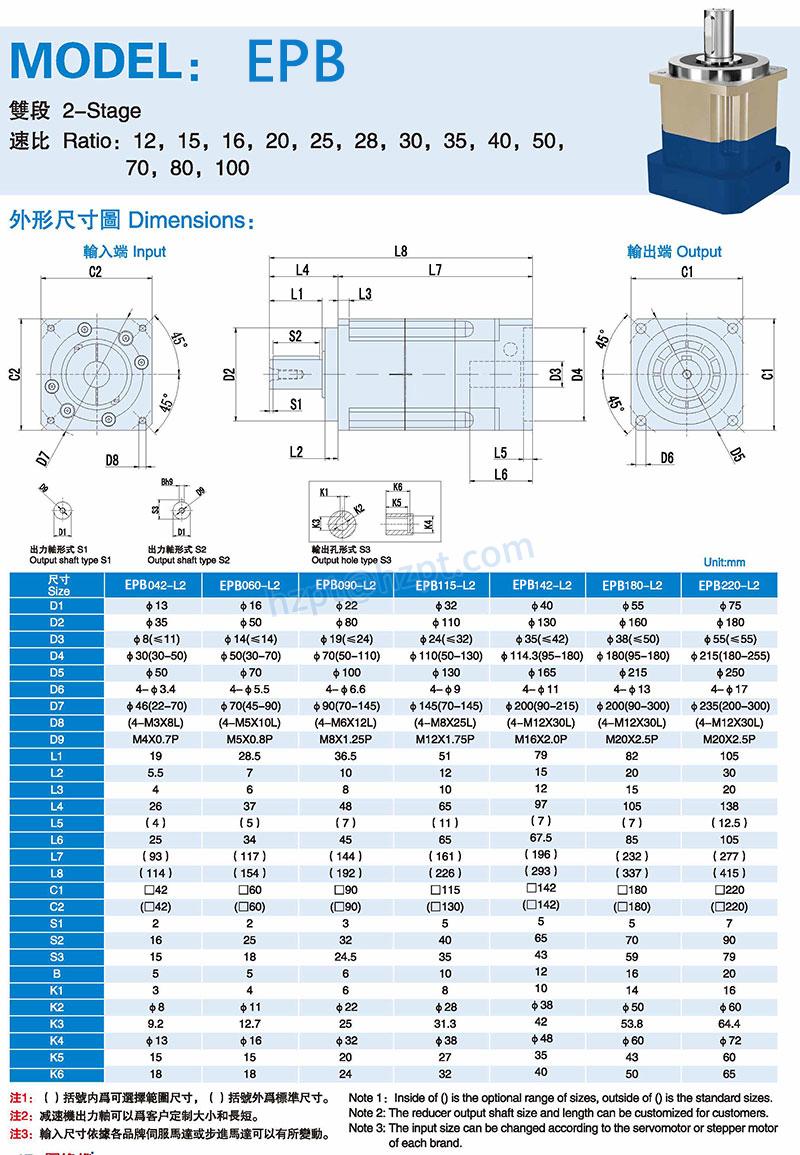

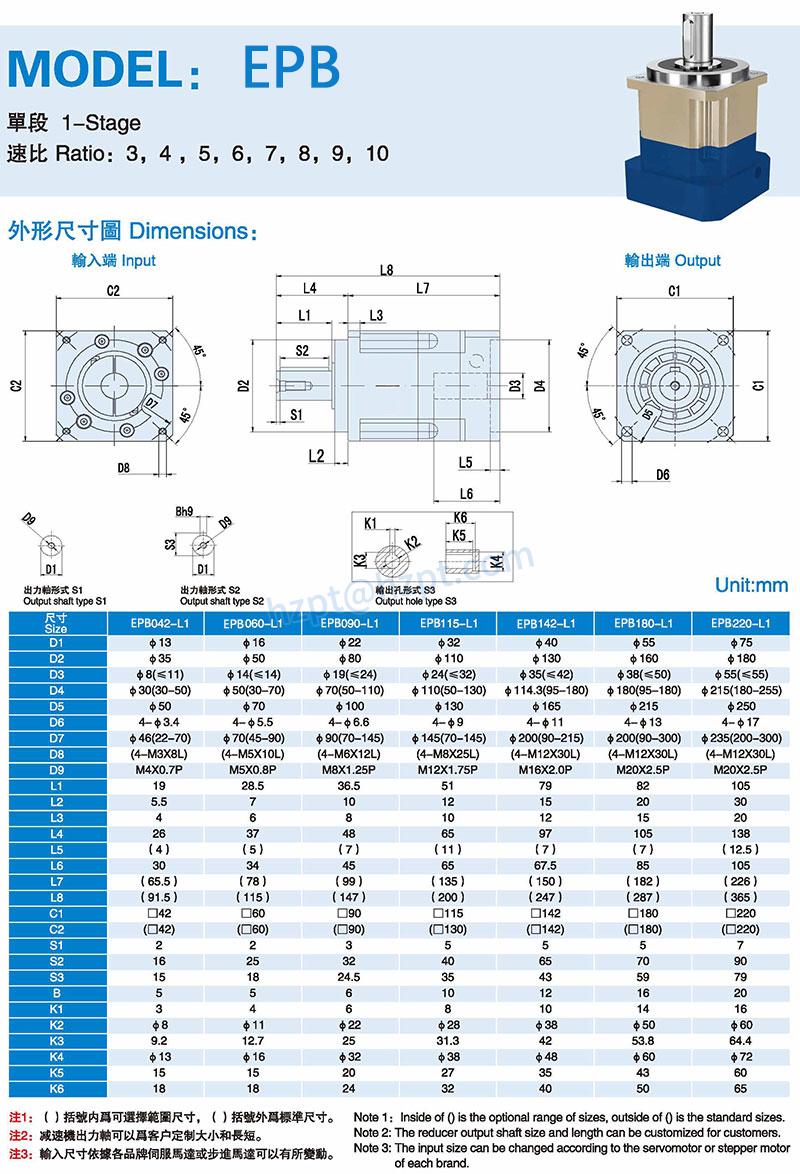

Catalog of EPB Precision Speed Reducer

edited by CX
