EPG78E Asphalt Paver Chain

EPG78E Asphalt Paver Chain

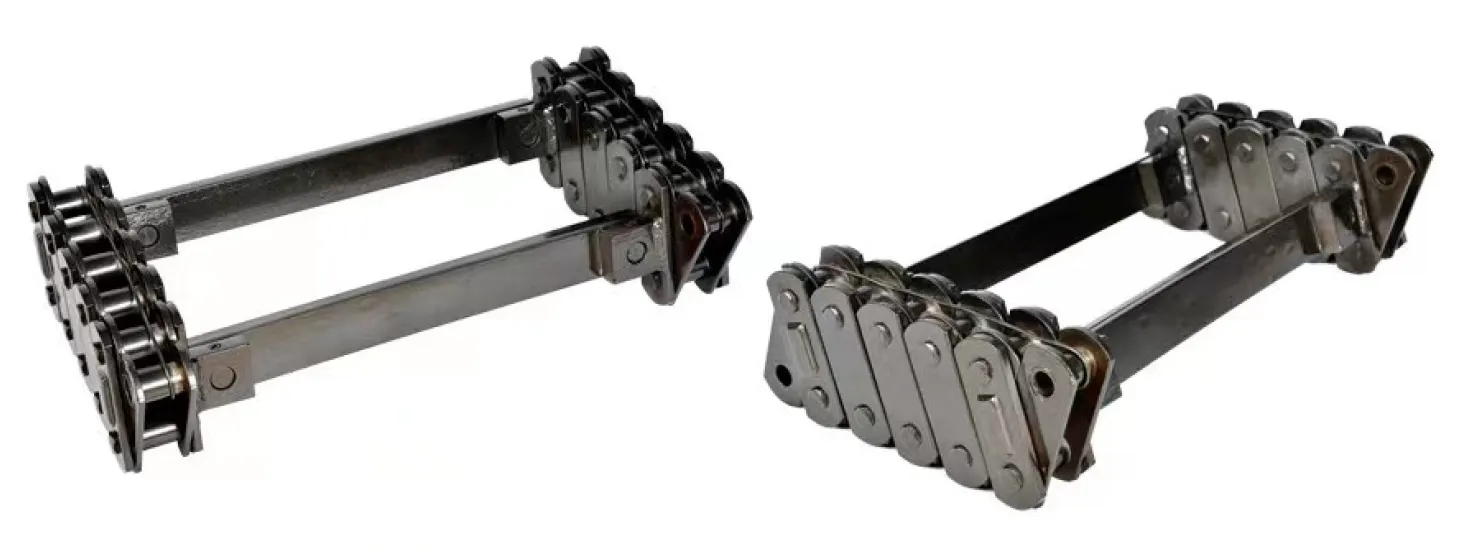

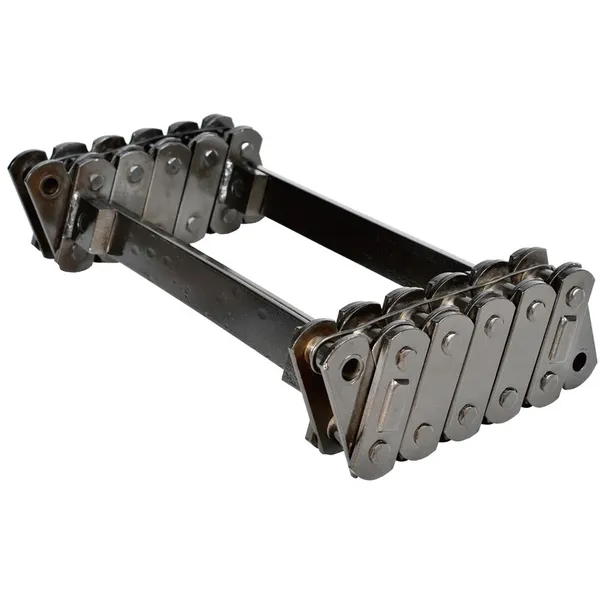

The EPG78E asphalt paver chain is a type of chain that is used in asphalt paving machines to convey asphalt mix from the hopper to the screed. It is a specific model of paver chain that is designed for use in certain types of asphalt pavers. The EPG78E asphalt paver chain is made of high-strength steel and has a series of specially designed links that are connected to each other to form a continuous loop. The asphalt paver chain is designed to be durable and reliable, with high resistance to wear and tear, corrosion, and fatigue.The EPG78E asphalt paver chain is typically used in larger asphalt paving machines that handle higher volumes of asphalt mix. It is designed to maintain its strength and performance even in harsh operating conditions, such as extreme temperatures, heavy loads, and high speeds. Overall, the EPG78E asphalt paver chain plays a critical role in the efficient and effective operation of asphalt pavers, ensuring that the asphalt mix is delivered to the screed accurately and consistently, resulting in a smooth and even road surface.

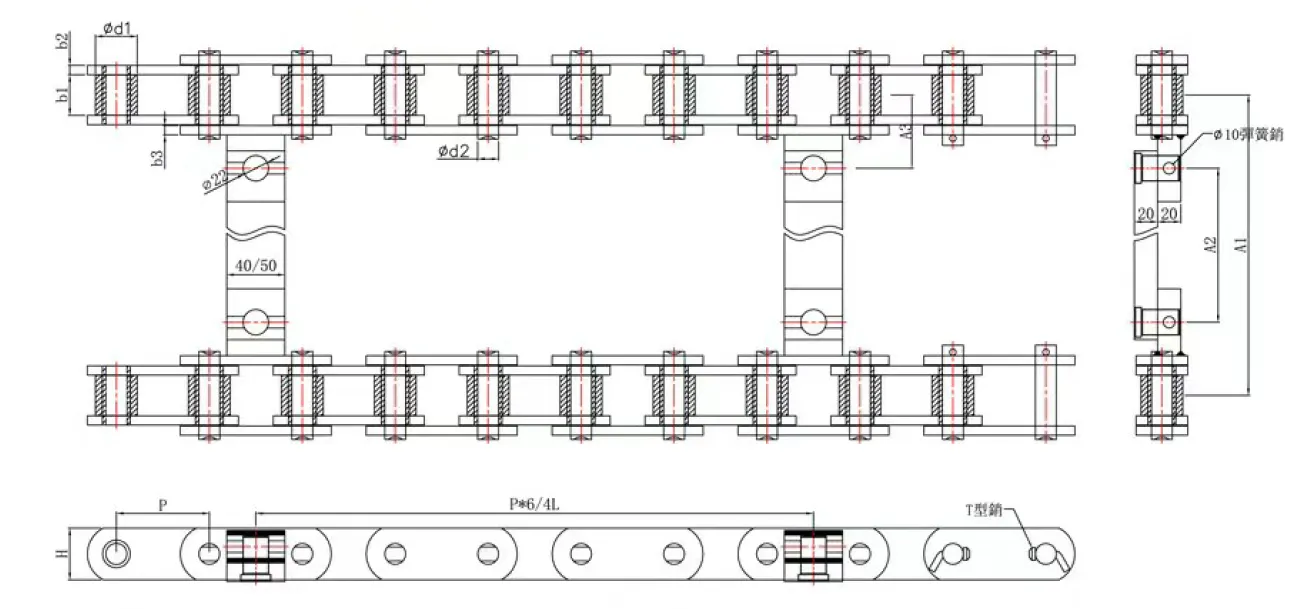

▍EPG78E Asphalt Paver Chain Dimensions:

Chain No.	Pitch(P)	Roller diameter(d1)	Pin diameter(d2)	Width between inner plates(b1)	Scraper?Link	Scraper Pitch to Roller Center Distance(A3)	Inner Chain Links?(b2)	External?Chain?Links		Chain Plate Height(H)
								External Links (b3)	Scraper Link(b4)
EPG78E Chain	78	32	15.9	32.3	4	56.5	8	8	8	38.1

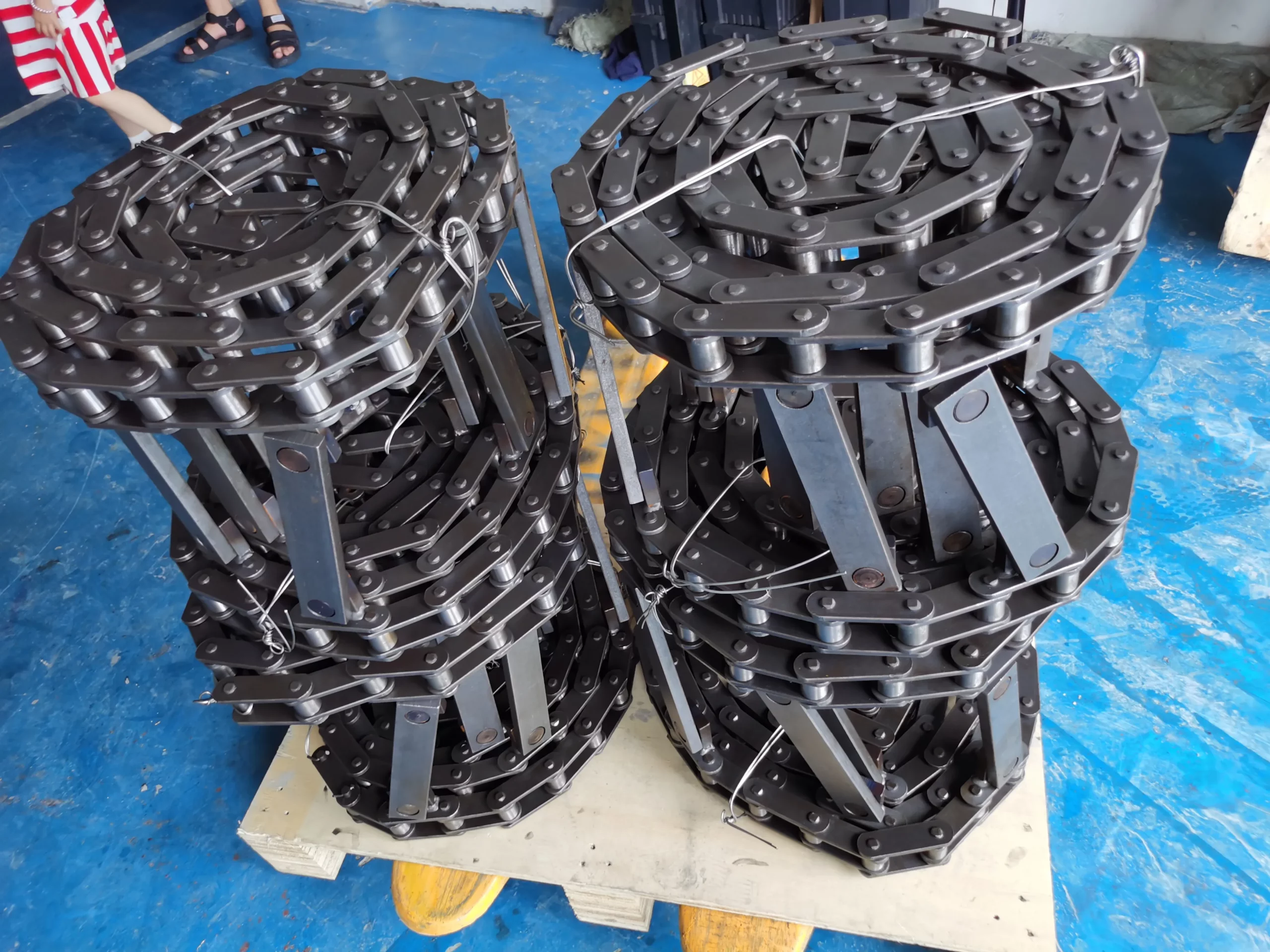

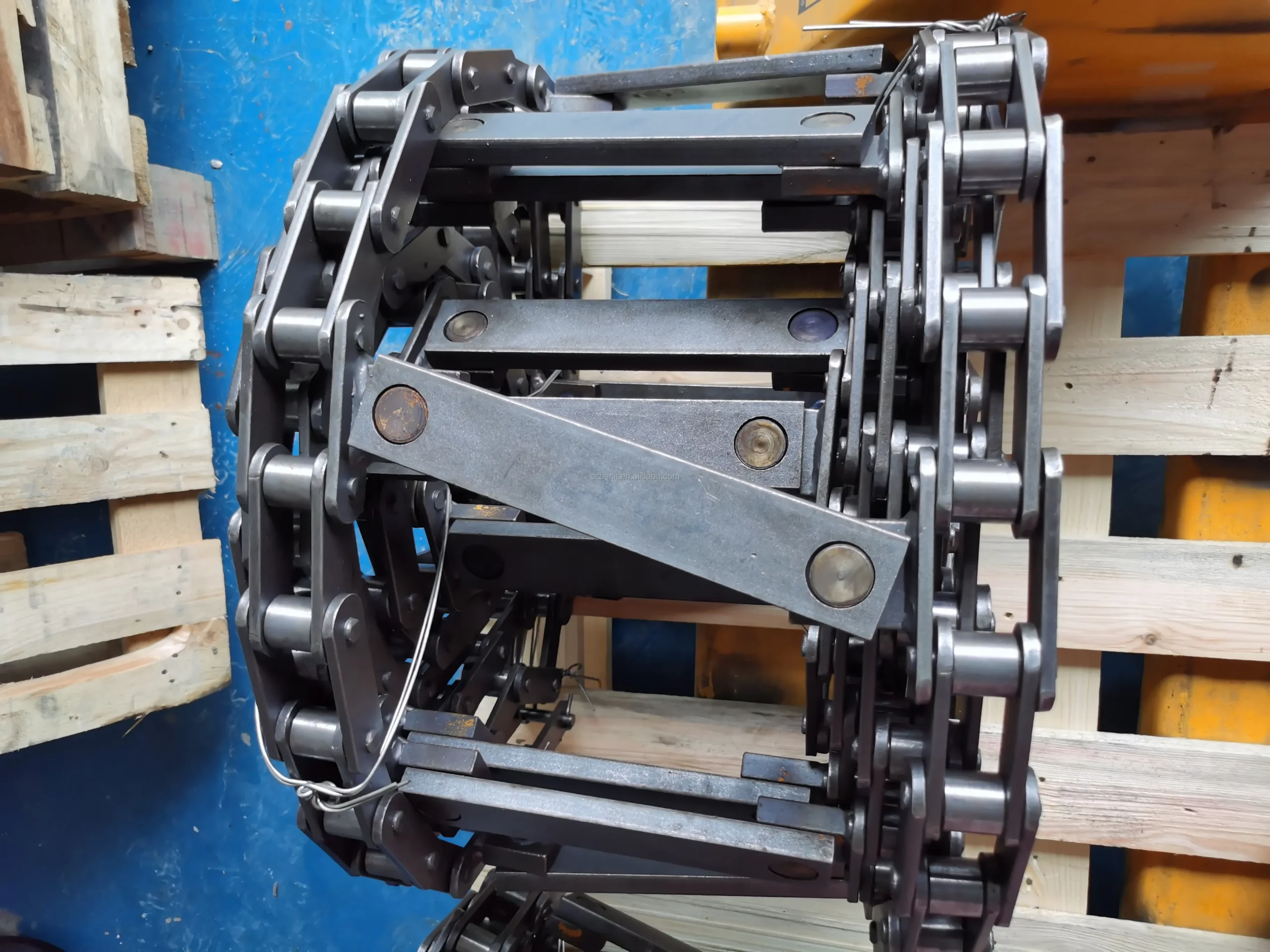

▍Advantages of EPG78E Asphalt Paver Chain:

The EPG78E asphalt paver chain has several advantages over other chains, including:1. High tensile strength:?The EPG78E asphalt paver chain has a tensile strength of 10,000 pounds per link, making it one of the strongest chains on the market. This makes it ideal for use in large asphalt pavers that need to withstand a lot of force.2. Heat-treated:?The EPG78E asphalt paver chain is heat-treated, which makes it even stronger and more durable. This means that it can withstand the harsh conditions of asphalt paving, such as high temperatures and heavy loads.3. Easy to install and maintain:?The EPG78E asphalt paver chain is easy to install and maintain. This is important because it means that you can keep your asphalt paver running smoothly and efficiently.4. Long lifespan:?The EPG78E asphalt paver chain has a long lifespan. This means that you can get many years of use out of it, saving you money on replacement chains.Overall, the EPG78E asphalt paver chain is a high-quality chain that is designed to provide years of reliable service. It is a good choice for use in large asphalt pavers.

▍EPG78E Asphalt Paver Chain Lubrication:

The EPG78E asphalt paver chain should be lubricated regularly to keep it running smoothly and prevent wear and tear. The frequency of lubrication will depend on the operating conditions, but it is generally recommended to lubricate the chain every 8 hours of operation.To lubricate the EPG78E asphalt paver chain, you will need a high-quality chain lubricant. The lubricant should be applied to all of the moving parts of the chain, including the links, pins, and bushings. You can use a spray-on lubricant or a drip-feed lubricant.Here are the steps on how to lubricate the EPG78E asphalt paver chain:

1. Turn off the asphalt paver and let it cool down.
2. Remove the chain guard.
3. Apply the lubricant to all of the moving parts of the chain.
4. Put the chain guard back on.
5. Turn on the asphalt paver and check the chain for any leaks.

If you are using a spray-on lubricant, you will need to apply it to the chain in a thin, even coat. Be sure to get the lubricant into all of the nooks and crannies of the chain. If you are using a drip-feed lubricant, you will need to attach the lubricant reservoir to the chain and then adjust the flow rate so that the lubricant is dripping onto the chain at a steady rate.It is important to use a high-quality chain lubricant that is designed for use in asphalt pavers. This will help to keep the chain running smoothly and prevent wear and tear.Here are some additional tips for lubricating the EPG78E asphalt paver chain:

• Use a lubricant that is compatible with the type of steel that the chain is made of.
• Apply the lubricant more frequently in dusty or dirty conditions.
• Clean the chain before lubricating it.
• Inspect the chain regularly for wear and tear.

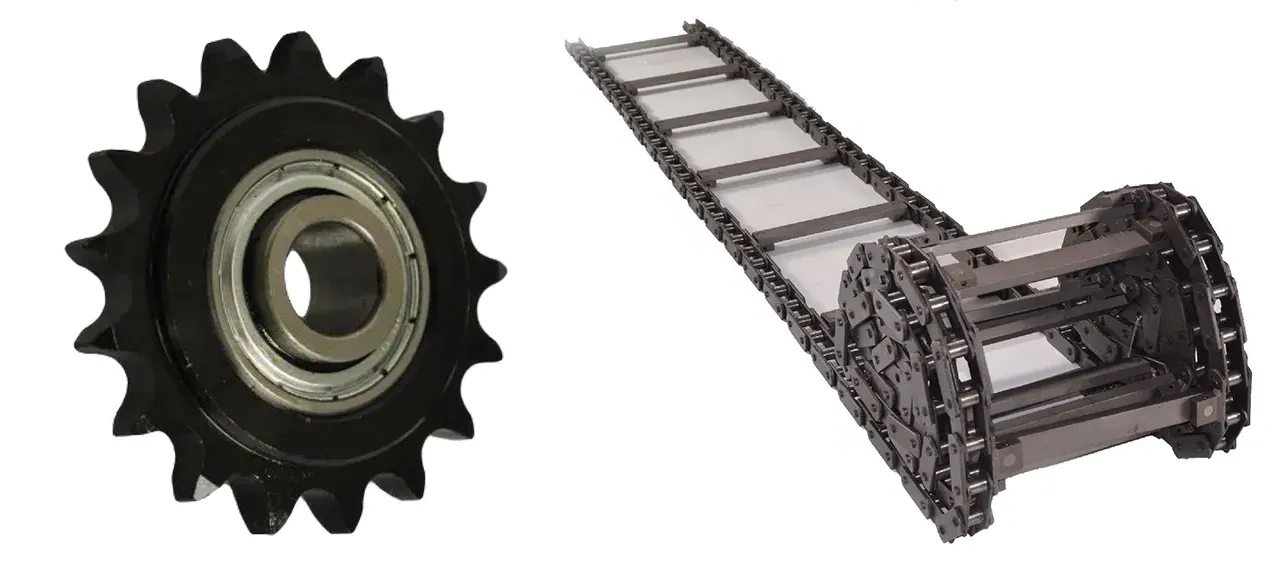

▍Asphalt Paver Chain Sprockets for Asphalt Paver Chains

Asphalt paver chain sprockets are the wheels that the chains run on. They are made of high-quality steel and are designed to withstand the harsh conditions of asphalt paving. The sprockets are attached to the frame of the asphalt paver and are driven by the engine. The chains are connected to the sprockets and are used to transfer the asphalt from the hopper to the screed.Asphalt paver chains are made of high-quality steel and are heat-treated to make them strong and durable. The chains are also designed to be flexible so that they can withstand the bumps and vibrations of the asphalt paver. The chains are typically made with a roller link design, which helps to reduce wear and tear.The asphalt paver chain sprockets and asphalt paver chains work together to transfer the asphalt from the hopper to the screed. The sprockets drive the chains, which in turn move the asphalt. The asphalt is then spread evenly by the screed.It is important to regularly inspect the asphalt paver chain sprockets and chains for wear and tear. If the sprockets or chains are damaged, they should be replaced immediately. This will help to prevent the asphalt paver from operating properly and could lead to accidents.

▍China Asphalt Paver Chain?Manufacturers

We specialize in chains made to customers’ drawings and specifications. Our advantage is reliable quality, competitive price, prompt delivery, and good service. Standard products include various transmission and conveyor chains, like roller chains, double pitch conveyor chains, hollow pin chains, leaf chains, flat top chains, side bow chains,?lumber conveyor chains, 81X chains, agricultural chains, CA550 roller chains,?S55 roller chains, silent chains, X458 conveyor chains, PIV chains, stainless steel chains, nickel/ zinc plated chain, slient chain, engineering chain,?steel pintle chain, welded steel chain,?drop forged chain, malleable iron chain, and many other types. Different kinds of attachments are available.
