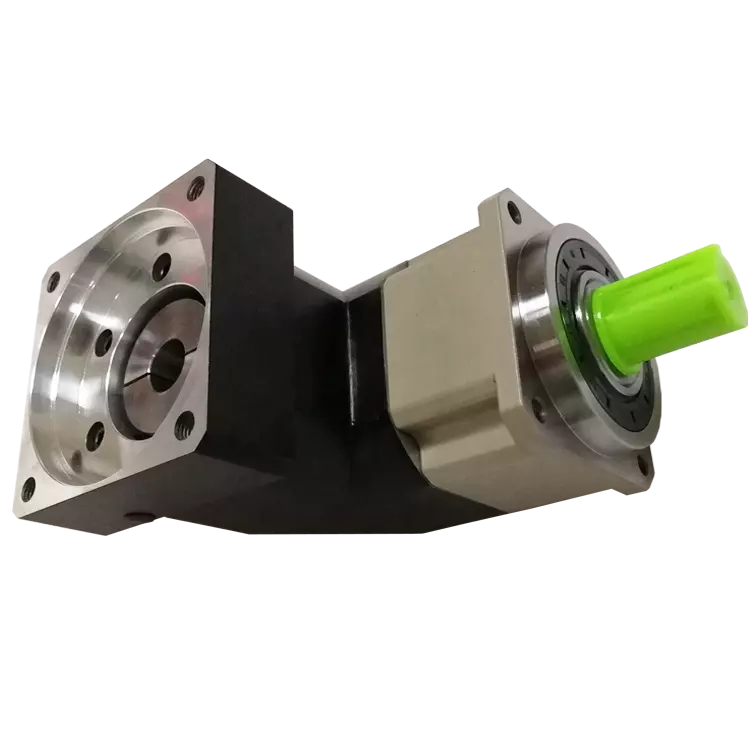

EPR RIGHT ANGLE PRECISION PLANETARY GEARBOX

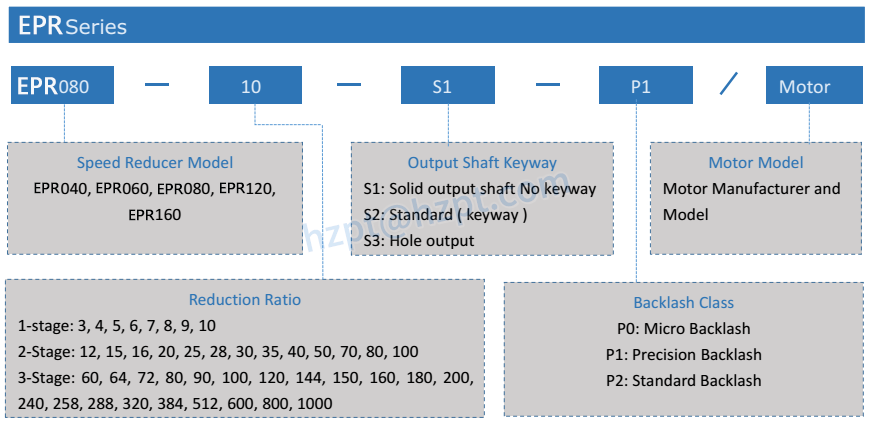

Indication of Model Numbers of EPR Speed Reducers

Description of EPR Planetary Right Angle Speed ReducerThe EPR series is suitable for applications with special requirements, especially in space. The compact EPR planetary gear unit is the perfect solution when installation space is limited. Both ends of the planetary gears are supported by needle bearings to improve torsional rigidity. Both ends of the output shaft are supported by high-precision low-clearance bearings, which have a larger bearing capacity. What's more, the flange output design makes it easier to connect with equipment.

Application of EPR Precision Planetary Gearbox

EPR precision planetary right angle gear reducers are widely used in various fields: environmental protection equipment, precision instruments, flame-cutting, CNC machine tools, tool machinery, automation industry, printing machinery, textile printing and dyeing, pharmaceutical leather, environmental protection equipment, coal equipment, cement equipment, beer Beverages, mining machinery, wire rope drive life testing machines, glass equipment, winding machines, food packaging, welding equipment, CNC machine tools, laser cutting, industrial robot measuring equipment, rubber and plastics, petrochemicals, hoisting and other light and heavy industries, machinery Transmission and precision control fields.

EPR planetary gearbox excellent manufacturing process:

All components of the EPR series planetary gearbox are in compliance with our company's strict quality control system. Planetary gears and sun gears are designed as helical gears, carburized and quenched to 58-62HRC, and subjected to precision grinding and technical correction to achieve a perfect transmission effect. The planetary gear is supported by needle rollers at both ends, which improves the torsional rigidity. The protection level of the EPR planetary gearbox reaches the international standard IP65 (full dustproof and waterproof).

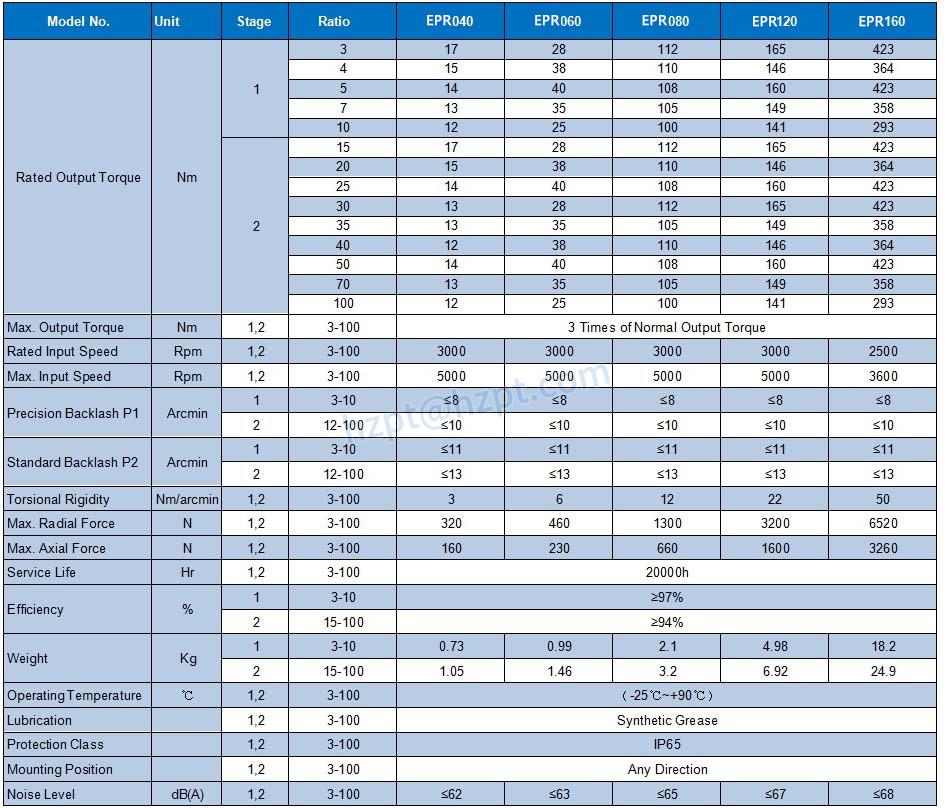

Specification Table of EPR Planetary Gear Reducer

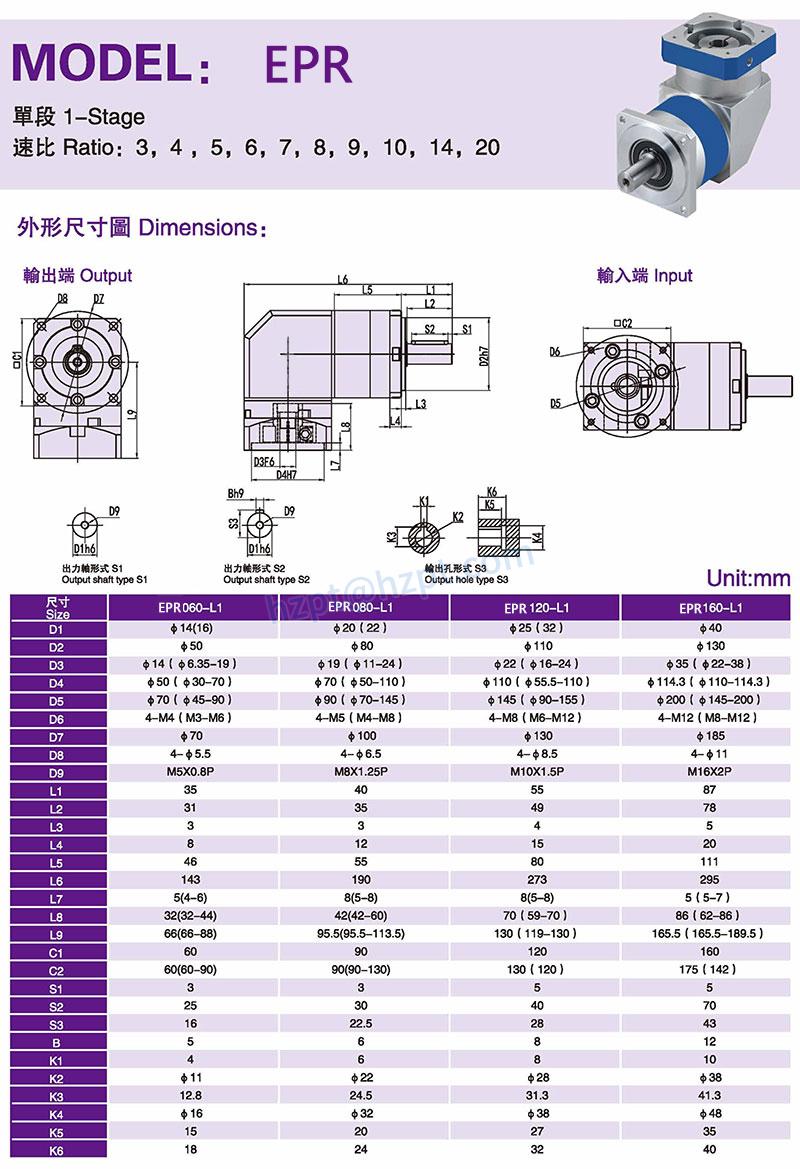

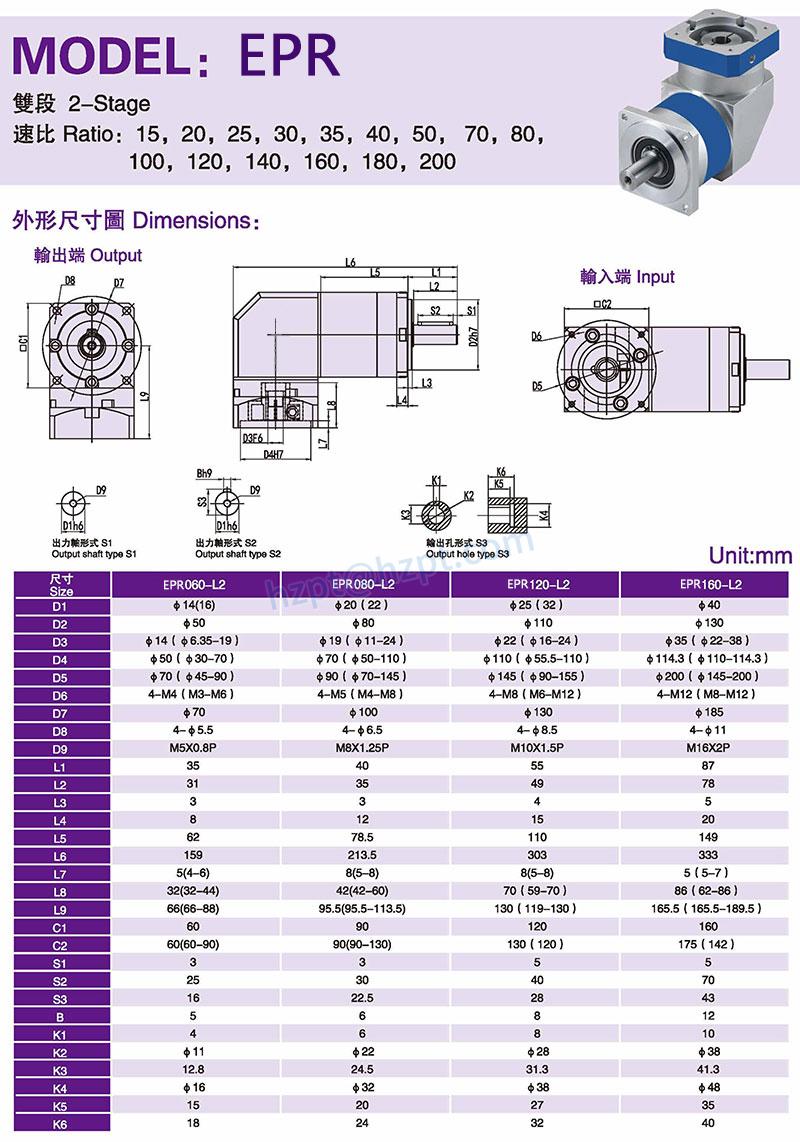

Catalog of EPR Precision Speed Reducer
