F21 Series PTO Shafts with Lemon Profile Replacement of Blueline 377071021912

Introduction to PTO Shaft

Power Take-Off (PTO) Shafts are critical components in the power delivery systems of various machinery, including agricultural and industrial equipment. Here are five key features of PTO shafts:

• Power transmission: PTO shafts transmit power from the engine to the machinery.
• Variety of applications: They are commonly used in agricultural machinery, industrial equipment, and transportation equipment.
• Flexible design: The length and connection of the shaft can be customized to fit specific requirements.
• High durability: These shafts are designed to withstand heavy workloads and harsh environments.
• Safety features: Reliable anti-jamming devices and safety pins are included to ensure safe operation.

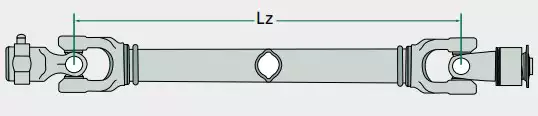

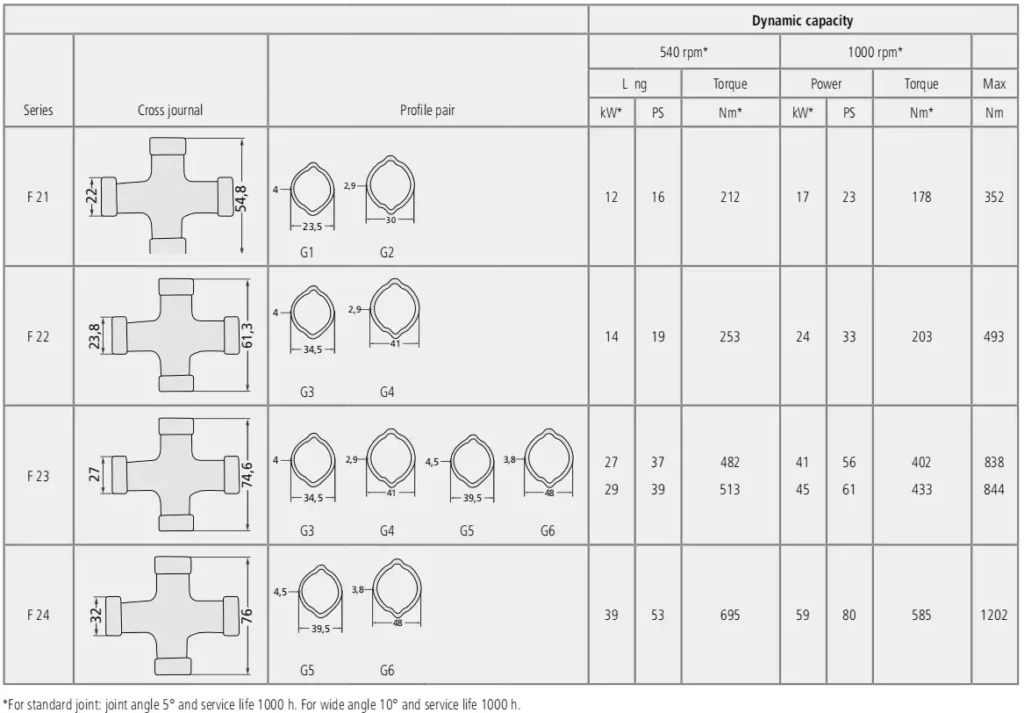

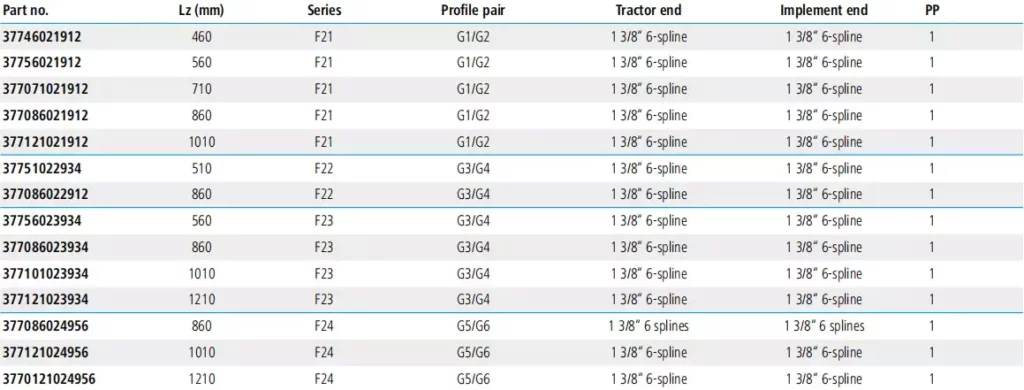

Technical Parameter

Our PTO Shafts

We produce PTO shafts that are identical in size and installation method to the Blueline model, providing a perfect replacement option. Our PTO shafts have been awarded the CE certificate, as well as TS/16949 and ISO 9001 certificates.

How to Choose the Right PTO Shaft

When selecting a PTO shaft, several parameters should be considered:

1. Length: The distance between the driving device and the receiving device.
2. Rated power: The maximum power that the shaft can transmit.
3. Shaft type and connection method: Different applications require different types and connections.
4. Torque transmission capacity: This refers to the maximum torque that the shaft can transmit.
5. Environmental requirements: Considerations should be made for protective covers, sealing performance, and durability.
6. Safety features: Reliable anti-jamming devices and safety pins are essential.
7. Adaptability: The shaft should fit the equipment perfectly.
8. Certification: CE certification is a must for the European market.

Importance of CE Certificate

The CE certificate signifies that our PTO shafts comply with European Union regulations and standards, ensuring safe design, manufacture, and usage. It is a mandatory requirement for selling PTO shafts in the European market. The CE certificate provides reliable assurance of the safety performance of our PTO shafts and indicates our commitment to product quality and safety.

Structure of PTO Shaft

A PTO shaft comprises of a housing, drive shaft, universal joint, protective cover, and connectors. Each part is made from high-quality materials to ensure durability and effectiveness. We also sell individual parts for replacements.

Applications of PTO Shaft

PTO shafts are widely used in agriculture, industry, transportation, and solar energy systems:

• Agricultural machinery: PTO shafts connect tractors to equipment like mowers, harvesters, straw crushers, sprayers, and mixers.
• Industrial equipment: They drive rotating equipment such as pumps, generators, centrifuges, and mixers.
• Transportation equipment: PTO shafts are used in trailers, semi-trailers, and other transportation equipment.
• Solar energy systems: PTO shafts are used to rotate and adjust solar panels on trackers.

Adjusting the Length of PTO Shaft

Here are the steps to adjust the length of a PTO shaft:

1. Remove the plastic protective cover.
2. Shorten the inner and outer tubes according to the required length.
3. Remove burrs with a file.
4. Shorten the inner and outer plastic tubes according to the required length.
5. Oil the inner steel tube, then reinstall the drive shaft plastic protective cover.

About Raydafon Group
