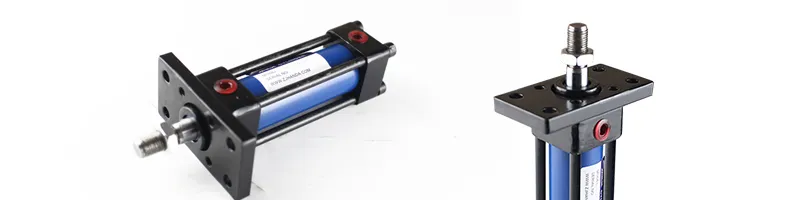

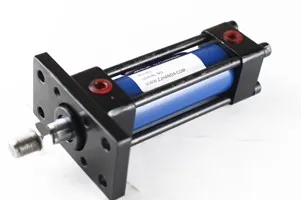

FA Front Flange Type Light Rod Hydraulic Cylinder

FA Front Flange Type Light Rod Hydraulic Cylinder

The FA Front Flange Type Light Rod Hydraulic Cylinder is a specific type of hydraulic cylinder that features a front flange design and is designed to be lightweight and compact. Here are some key features and characteristics of this type of cylinder:Front Flange Design: The cylinder has a front flange that allows easy mounting and integration into various systems and applications. The front flange serves as a connection point for attaching the cylinder securely.Lightweight and Compact: The cylinder is designed to be light and compact, making it suitable for applications where weight and space constraints are essential considerations. This design feature allows for easier handling and installation.Light Rod Construction: The cylinder incorporates a "Light Rod" design, focusing on minimizing weight while maintaining strength and durability. This design approach helps optimize the cylinder's performance while reducing its weight.Materials: The cylinder is typically constructed using lightweight materials such as aluminum or composite materials. These materials provide a good balance between strength and weight reduction.Customization Options: Depending on the manufacturer, the FA Front Flange Type Light Rod Hydraulic Cylinder may offer customization options such as stroke length, mounting configurations, and hydraulic connections. This allows for greater flexibility in meeting specific application requirements.Applications: This type of hydraulic cylinder is commonly used in various industries and applications, including automation, robotics, material handling, and other situations where compact size, lightweight design, and precise control of linear motion are essential factors.

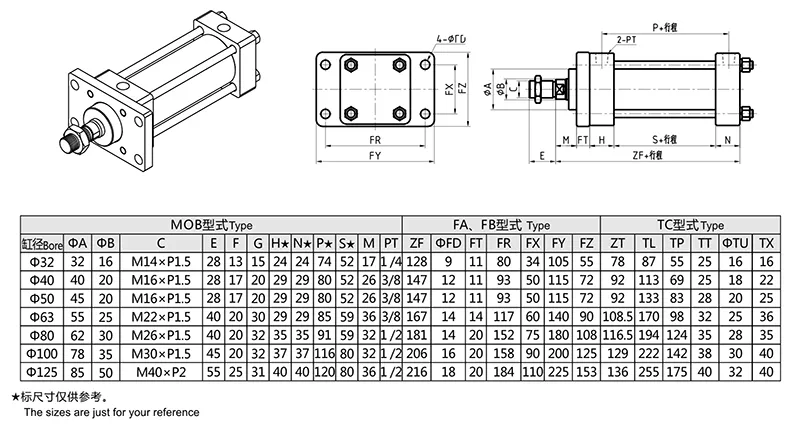

FA Front Flange Type Light Rod Hydraulic Cylinder Parameter:

How To Take Apart A Hydraulic Cylinder?

Taking apart a hydraulic cylinder requires careful handling and adherence to proper disassembly procedures. Here's a general guide on how to disassemble a hydraulic cylinder:

1. Safety Precautions:
   • Ensure that the hydraulic system is depressurized and that the cylinder has no residual pressure. Follow proper lock-out/tag-out procedures to prevent accidental activation of the system.
   • Wear appropriate personal protective equipment (PPE), such as gloves and safety glasses, to protect yourself from hydraulic fluid and potential hazards.
2. Cylinder Removal:
   • Disconnect the hydraulic lines connected to the cylinder, ensuring any residual fluid is adequately contained.
   • Remove any fasteners or mounting brackets to free the cylinder if the cylinder is mounted or secured to other components.
   • Carefully lift and remove the cylinder from its mounting position, taking care not to damage or strain any attached hoses or fittings.
3. Inspection and Documentation:
   • Thoroughly examine the exterior of the cylinder for any signs of damage, leaks, or excessive wear. Document any observations or issues for future reference.
   • Take note of the cylinder's orientation and the position of seals, bearings, and other components before disassembly. This will help during reassembly.
4. Disassembling the Cylinder:
   • Locate the end caps or retaining rings at each end of the cylinder. These components hold the cylinder barrel and piston assembly together.
   • Using appropriate tools, carefully remove the end caps or retaining rings, not damaging any surfaces or components.
   • Once the end caps or retaining rings are removed, the cylinder barrel and piston assembly should be free to separate.
5. Component Removal:
   • Remove the piston from the cylinder barrel, taking note of any seals, bearings, or other components that may be attached to it.
   • Inspect and document the condition of all removed components, checking for wear, damage, or signs of leakage. Replace any worn or damaged parts as necessary.
6. Clean and Store Components:
   • Thoroughly clean all disassembled components using an appropriate cleaning agent to remove dirt, debris, or hydraulic fluid.
   • Store the components clean and organized, protecting them from contamination and damage.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of light rod hydraulic cylinders. It maintains a leading position in the market segment of hydraulic cylinders for forklifts in China. In 2020, the domestic market share was around 29%. We produce Industrial vehicle light rod hydraulic cylinders, Aerial work vehicle light rod hydraulic cylinders, Agricultural Machinery hydraulic cylinders, and Sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The light rod hydraulic cylinder production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
