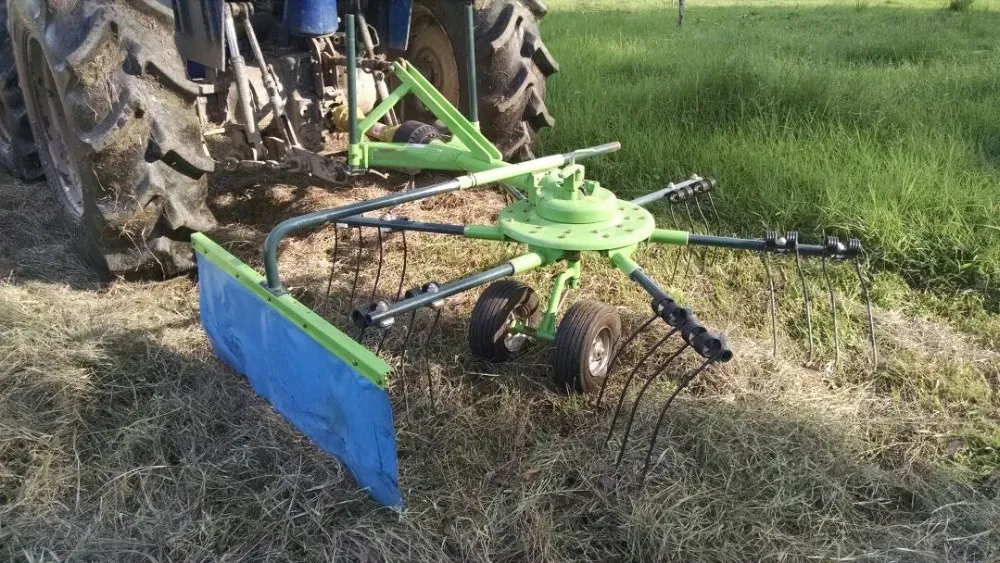

Farm Equipment Tractor PTO Hay Rake for Raking and Tedding Straw RXHR2500

A tractor power take-off (PTO) hay rake is a versatile agricultural implement used for raking and tedding straw. It attaches to the rear of a tractor using the PTO shaft and is powered by the tractor's engine. The PTO hay rake is specifically designed to gather, lift, and arrange straw in an efficient manner, making it easier to handle and manage. The primary function of a PTO hay rake is to gather straw and other loose material into neat windrows or rows. It achieves this by using a series of rotating tines or teeth that comb through the straw, lifting and arranging it into rows. These rows make it easier for subsequent operations such as baling or further processing. The PTO hay rake typically consists of a main frame that attaches to the tractor's three-point hitch. It also includes a PTO-driven rotor with multiple tines or teeth attached to it. The rotor rotates as it is powered by the tractor's PTO, effectively raking the straw and moving it into rows. There are different types of PTO hay rakes available, including wheel rakes, rotary rakes, and parallel bar rakes. Wheel rakes use a series of wheels with tines to gather and arrange the straw. Rotary rakes have a spinning rotor with tines that lift and move the straw. Parallel bar rakes use a set of parallel bars with tines that lift and arrange the straw into rows. In addition to raking, some PTO hay rakes also have tedding capability. Tedding is the process of spreading and fluffing the straw to promote drying. These rakes have adjustable tines that can be set to ted the straw effectively. The PTO hay rake offers several advantages in the agricultural industry. It increases efficiency by reducing the time and labor required to gather and arrange straw manually. It also ensures consistent row formation, which facilitates subsequent operations like baling. Moreover, the tedding feature helps accelerate the drying process, allowing for faster and more efficient straw management.

Tractor PTO Driven Rotary Hay Rake RXHR2500 Specifications

Specifications for Hay Rake RXHR2500
Model		RXHR2500
Raking width		2500mm
Tedding width		1600mm
Dimensions		2100x2500x950mm
Teeth No.s		12
Working speed		4-8km/h
Matched Power		18-50HP
PTO speed		540rpm
Packaging size		2100x1950x950mm

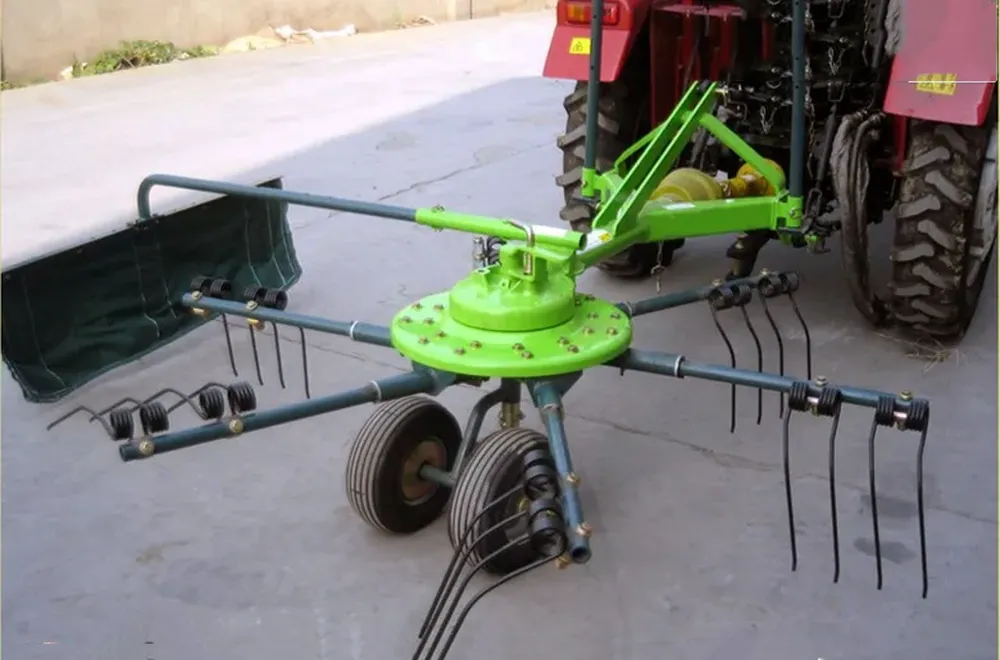

Main Features of Tractor PTO Driven Rotary Hay Rake

1. Strong, rugged frame provides years of dependable performance. 2. Rotor tilt can be adjusted easily with a convenient crank for maximum crop handling. 3. The torque-limiting clutch on the heavy-duty PTO provides overload protection. PTO speed is variable, so you can match ground speed to crop and field conditions. 4. The three-wheel-height position lets you adjust for different crops, conditions, and operations. 5. Vertical tines pick up fewer stones and less debris than horizontal tines for cleaner tedding and raking. 6. Cam track adjustment allows you to quickly tailor tedding/raking action to varying crops and conditions without tools. 7. Convenient jack simplifies three-point hitch arrangements. 8. one machine, three functions, tedding, raking, and reversing multi-functions

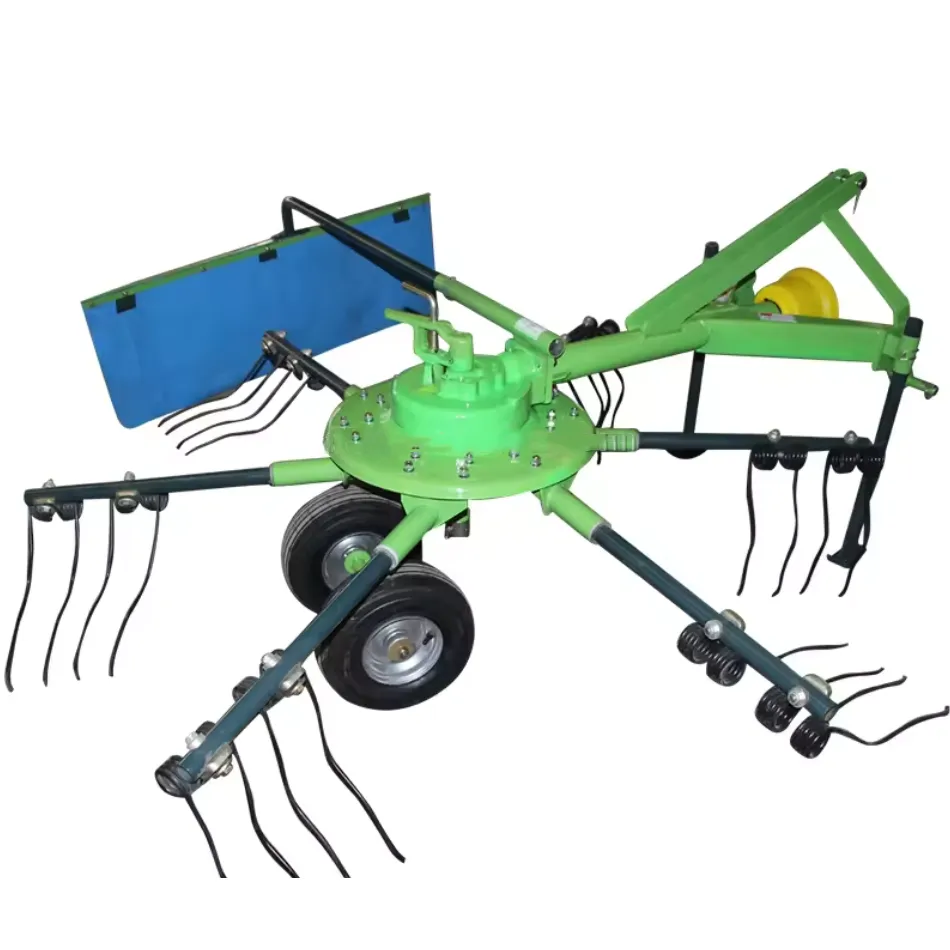

Tractor PTO Driven Rotary Hay Rake Part Structure

A tractor PTO (Power Take-Off) rotary hay rake is an agricultural implement designed to collect cut hay or straw into windrows for easier collection and baling. It operates off the tractor's PTO system, which powers the rake's moving parts. Here is an overview of the typical part structure of a PTO rotary hay rake:

• Main Frame: The main frame is the backbone of the hay rake, providing structural support and stability. It is typically made of sturdy steel or other durable materials and connects to the tractor's three-point hitch.
• PTO Driveline: The power take-off (PTO) driveline connects the hay rake to the tractor's PTO shaft. It transfers the rotational power from the tractor's engine to the hay rake's rotor, enabling it to perform the raking and tedding operations.

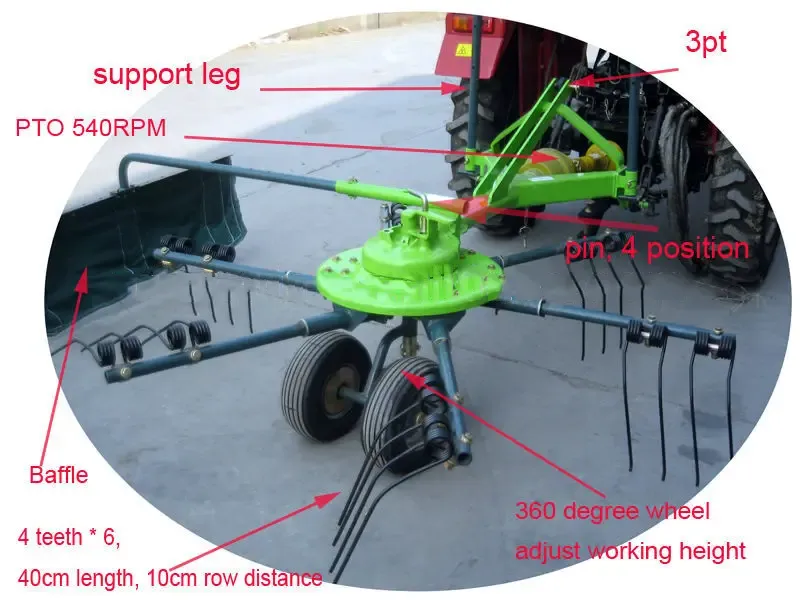

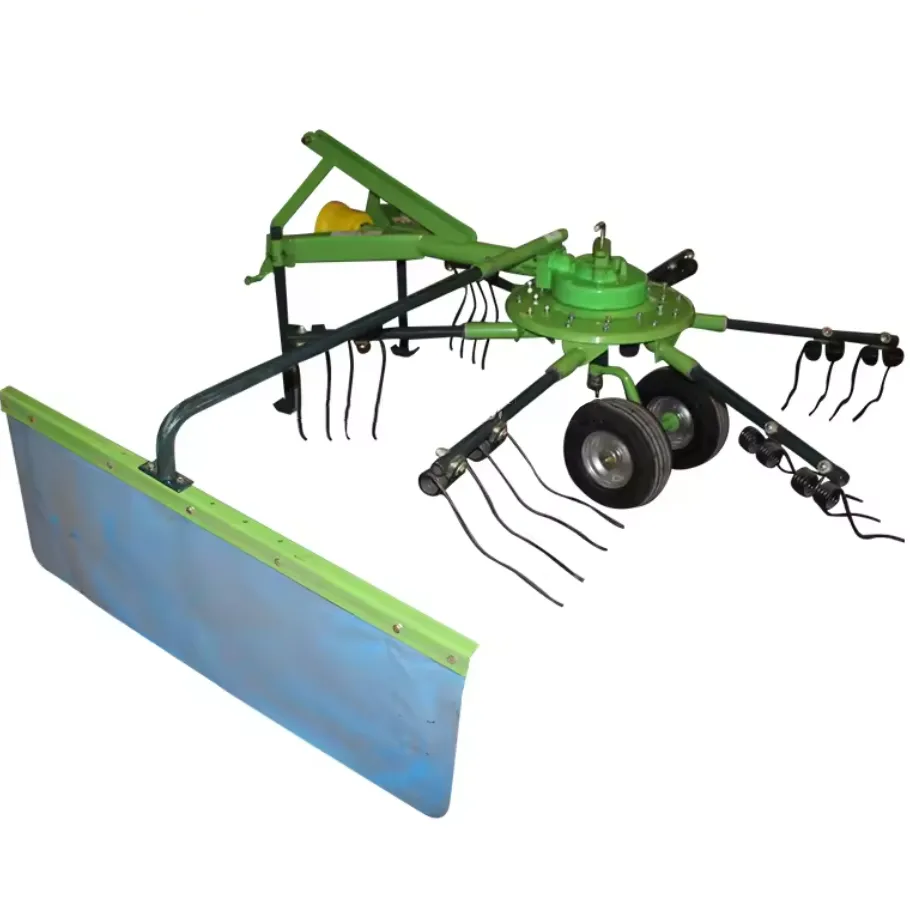

• Rotor: The rotor is the central rotating component of the hay rake. It consists of a shaft and a series of arms attached to it. The rotor is driven by the PTO driveline and rotates as it collects and moves the straw. The arms often have tines or teeth attached to them, which comb through the straw to lift and arrange it.
• Tines/Teeth: The tines or teeth are the small, pointed components that are attached to the arms of the rotor. They play a crucial role in raking and tedding the straw. As the rotor spins, the tines penetrate the straw, lifting and moving it into rows or spreading it for drying. The tines are usually made of durable materials such as hardened steel to withstand the rigors of the job.
• Height Adjustment Mechanism: Many PTO rotary hay rakes have a height adjustment mechanism. This feature allows the operator to control the height at which the tines engage with the ground. By adjusting the height, the rake can accommodate varying crop conditions, ensuring efficient raking and tedding.
• Wheels: PTO rotary hay rakes often feature wheels that provide support and maneuverability. These wheels help in maintaining a consistent working height and allow for easy transportation of the hay rake between different fields.
• Tedding Function (Optional): Some PTO rotary hay rakes come with an additional feature for tedding straw. These models have adjustable tines that can be set to spread and fluff the straw, promoting faster and more uniform drying.

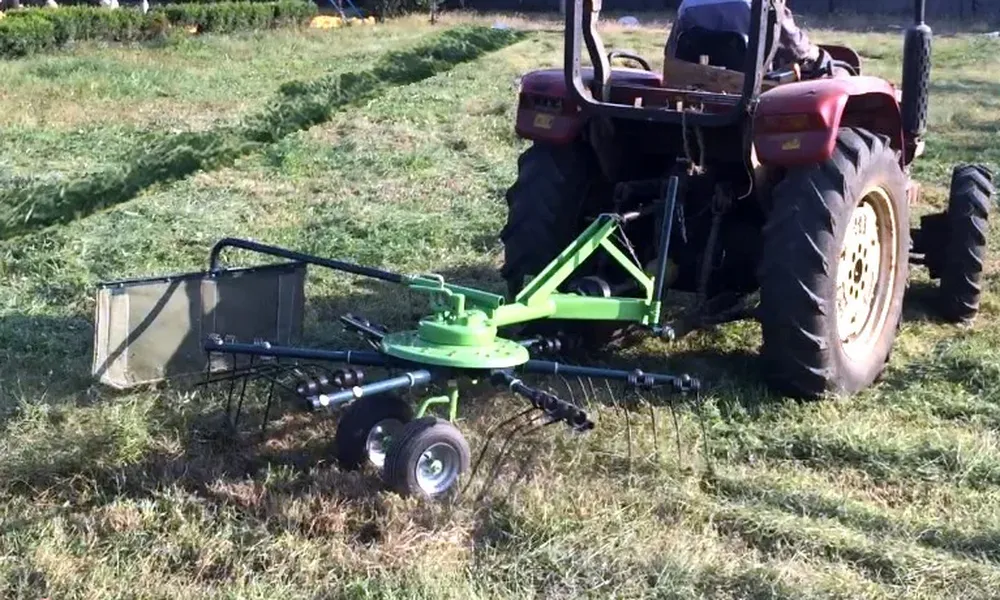

Application of Tractor PTO Driven Rotary Hay Rake

A tractor PTO rotary hay rake is a versatile implement that can be used in various agricultural scenarios. Here are some common application scenarios where a PTO rotary hay rake proves useful: (1) Hay Harvesting: The primary application of a PTO rotary hay rake is in the harvesting of hay. After mowing the hay, the rake is used to gather and arrange the cut grass into windrows or rows. This makes it easier for subsequent operations such as baling or forage chopping. (2) Straw Management: PTO rotary hay rakes are also used for managing straw after crop harvesting. They can gather and arrange straw into rows, which can then be baled for storage or used as bedding for livestock. (3) Tedding: Some PTO rotary hay rakes have a tedding feature. Tedding involves spreading and fluffing the hay or straw to promote faster and more uniform drying. This is particularly useful in areas with high humidity or when weather conditions are not ideal for drying the crop. (4) Forage Drying: In addition to hay and straw, PTO rotary hay rakes can be used for drying other forage crops such as alfalfa or clover. By spreading and turning the cut forage, the rake helps accelerate the drying process, reducing the risk of spoilage and preserving the nutritional quality of the crop. (5) Field Cleanup: After certain agricultural operations such as threshing, a PTO rotary hay rake can be used to gather and clear the remaining crop residue from the field. It helps collect the loose material, making the field ready for the next planting or cultivation cycle. (6) Soil Preparation: PTO rotary hay rakes can also be used for soil preparation tasks. They can help break up clumps of soil, remove stones or debris, and level the surface before planting. By raking the soil surface, they create a smoother and more even seedbed. (7) Pasture Maintenance: PTO rotary hay rakes can be used for maintaining pastures and grasslands. They help remove dead grass, thatch, and debris, promoting healthy regrowth of the pasture and improving grazing conditions for livestock.

Common Troubleshooting of Tractor PTO Driven Rotary Hay Rake

Troubleshooting a tractor PTO (Power Take-Off) driven Rotary Hay Rake involves identifying and resolving common problems that may affect its operation. Here are some typical issues and how to address them:

1. PTO Shaft Does Not Turn

• Cause: The PTO shaft is not engaged properly, the tractor’s PTO is not activated, or there is an issue with the tractor's transmission.
• Solution: Ensure the PTO shaft is correctly connected and securely fastened. Check the tractor’s manual to properly engage the PTO. If the tractor’s PTO still does not engage, there might be a more significant issue with the tractor itself, requiring professional service.

2. Rake Fails to Operate Even When PTO Shaft is Turning

• Cause: Broken drive components within the rake, such as shear pins or drive chains, or an engaged slip clutch.
• Solution: Inspect the rake for broken shear pins or damaged components and replace as necessary. If the slip clutch is engaged (slipping), adjust or service it according to the manufacturer's specifications.

3. Inefficient Raking or Uneven Windrows

• Cause: Incorrect rake height or angle settings, worn or improperly adjusted tines, or operating speed too fast.
• Solution: Adjust the rake height and angle for optimal performance according to the crop and field conditions. Replace worn tines and ensure they are properly adjusted. Adjust the tractor's speed to ensure efficient raking.

4. Excessive Vibration

• Cause: Unbalanced rake components, damaged or bent tines, or a PTO shaft that is either too long or too short.
• Solution: Check for and replace any bent or damaged tines. Ensure the rake and all its components are correctly balanced. Adjust or replace the PTO shaft to ensure it is the correct length for the tractor and rake combination.

5. Rake Does Not Follow Ground Contours Properly

• Cause: Incorrect ground pressure settings, worn components, or improper height adjustment.
• Solution: Adjust the rake’s ground pressure according to the manufacturer's instructions. Replace any worn parts that may affect the rake's ability to follow the ground. Ensure the rake is set to the correct height for the terrain.

6. Difficulty Attaching or Detaching the Rake

• Cause: Misalignment of the hitch, PTO shaft issues, or hydraulic connections not properly engaged.
• Solution: Ensure that the tractor and rake are on level ground when attaching or detaching. Check the PTO shaft for correct length and proper alignment. Ensure hydraulic connectors are clean and engage smoothly.
