Female Elbows-NPT Flared Tube Fittings

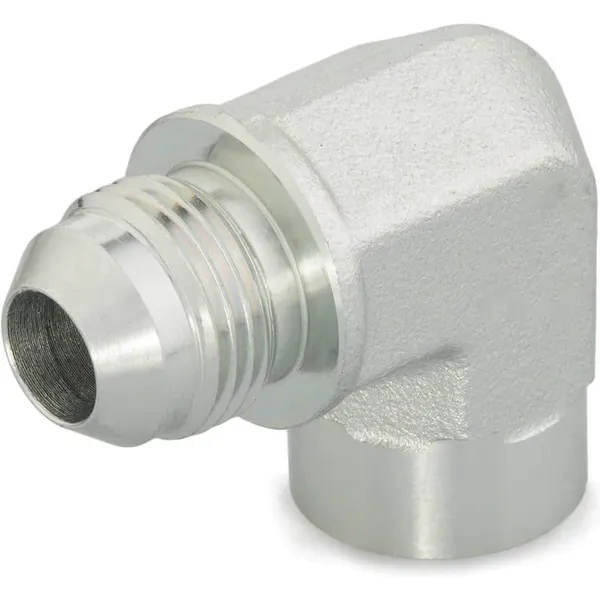

Flared Tube Female Elbows

Flared tube female elbows are a type of plumbing fitting used to connect two pipes or tubes together at an angle. They are commonly used in various industries and applications, including plumbing, HVAC (Heating, Ventilation, and Air Conditioning), and automotive systems. Flared tube female elbows are designed to provide a secure and leak-free connection while allowing for changes in direction.Here are the key features and usage of flared tube female elbows:1. Design: Flared tube female elbows consist of a female threaded end on one side and a flared tube connection on the other side. The female threaded end allows for easy attachment to a male threaded pipe or fitting, while the flared tube connection enables a secure connection to a flared tube end.2. Flared Tube Connection: The flared tube connection is a cone-shaped end on the elbow that is specifically designed to mate with a flared tube end. The flared tube end is typically created by expanding the tube end and forming a 45-degree cone shape. This design ensures a tight seal and prevents leaks in the connection.3. Material: Flared tube female elbows are commonly made from materials such as brass, stainless steel, or copper. The choice of material depends on the specific application and the compatibility with the fluids or gases flowing through the system.4. Angle Options: Flared tube female elbows are available in various angles, typically ranging from 45 degrees to 90 degrees. The angle refers to the change in direction that the elbow provides, allowing pipes or tubes to be connected at different angles depending on the plumbing layout or system requirements.5. Installation: To install a flared tube female elbow, the flared end of the tube is inserted into the flared tube connection of the elbow. The connection is secured by using a nut that is threaded onto the female end of the elbow, compressing the flared end of the tube against the conical surface. This creates a tight seal and ensures a leak-free connection.6. Applications: Flared tube female elbows are widely used in plumbing systems, HVAC systems, and automotive applications. They are commonly employed in gas and fluid lines, refrigeration systems, hydraulic systems, and pneumatic systems.

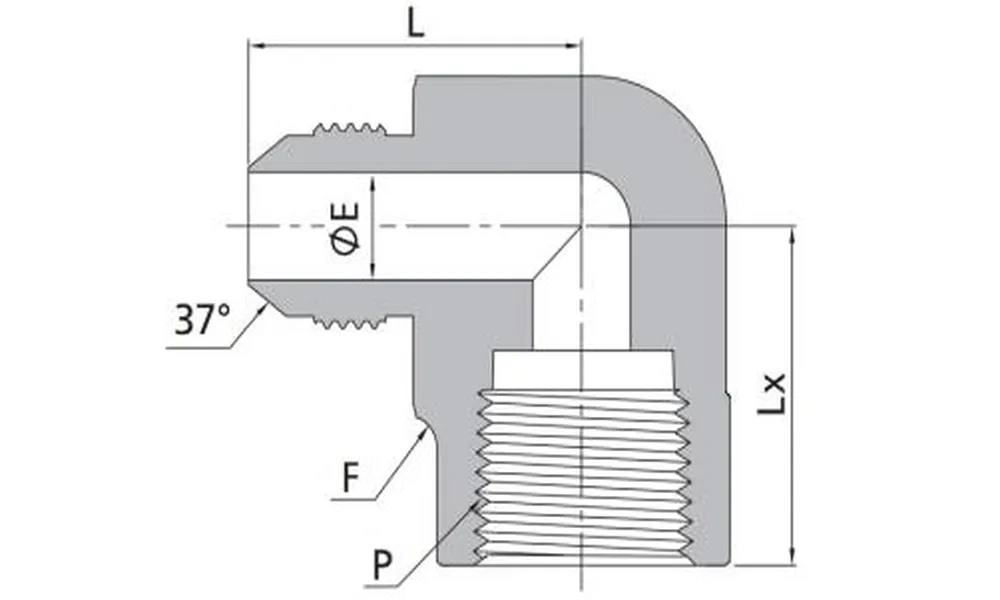

Flared Tube Female Elbows Size Chart:

T-Tube O.D		P-NPTSize	Basic Ordering Number	Dimension, in. (mm)
In.	mm			L	E	F (Flat)	Lx
1/8	3	1/8	-JFE-AN2-FN2	1.00(25.4)	0.06 (1.6)	0.56 (14.3)	0.66(16.8)
3/16	4	1/8	-JFE-AN3-FN2	1.03(26.2)	0.13(3.2)	0.56 (14.3)	0.66(16.8)
1/4	6	1/8	-JFE-AN4-FN2	1.08 (27.4)	0.17 (4.4)	0.56 (14.3)	0.66(16.8)
1/4	6	1/4	-JFE-AN4-FN4	1.22 (30.9)	0.17 (4.4)	0.81 (20.6)	0.88(22.4)
5/16	8	1/8	-JFE-AN5-FN2	1.08 (27.4)	0.24 (6.0)	0.56 (14.3)	0.66(16.8)
5/16	8	1/4	-JFE-AN5-FN4	1.22 (30.9)	0.24 (6.0)	0.81 (20.6)	0.88(22.4)
3/8	10	1/8	-JFE-AN6-FN2	1.06 (26.9)	0.30 (7.5)	0.63 (15.9)	0.66 (16.8)
3/8	10	1/4	-JFE-AN6-FN4	1.23 (31.2)	0.30 (7.5)	0.81 (20.6)	0.88(22.4)
3/8	10	3/8	-JFE-AN6-FN6	1.31 (33.2)	0.30 (7.5)	0.94(23.8)	1.02(25.9)
1/2	12	1/4	-JFE-AN8-FN4	1.24(31.6)	0.39 (9.9)	0.81 (20.6)	0.88 (22.4)
1/2	12	3/8	-JFE-AN8-FN6	1.42 (36.1)	0.39 (9.9)	0.94 (23.8)	1.02 (25.9)
1/2	12	1/2	-JFE-AN8-FN8	1.42 (36.1)	0.39 (9.9)	1.06 (27.0)	1.23 (31.2)
5/8	16	1/2	-JFE-AN10-FN8	1.64 (41.7)	0.48(12.3)	1.06(27.0)	1.23(31.2)
3/4	18	1/2	-JFE-AN12-FN8	1.66(42.1)	0.61(15.5)	1.25 (31.8)	1.23 (31.2)
3/4	18	3/4	-JFE-AN12-FN12	1.89 (48.0)	0.61(15.5)	1.37 (34.9)	1.36 (34.5)
7/8	22	3/4	-JFE-AN14-FN12	1.86(47.2)	0.72(18.3)	1.37 (34.9)	1.42 (36.1)
1	25	1	-JFE-AN16-FN16	2.17 (55.1)	0.85(21.5)	1.69 (42.9)	1.62 (41.1)
1 1/4	32	1 1/4	-JFE-AN20-FN20	2.33(59.2)	1.08(27.5)	2.00 (50.8)	1.70 (43.2)
1 1/2	38	1 1/2	-JFE-AN24-FN24	2.89 (73.4)	1.30(33.0)	2.50 (63.5)	2.08 (52.8)
2	50	2	-JFE-AN32-FN32	3.30 (83.8)	1.77(45.0)	2.50 (63.5)	2.39 (60.7)

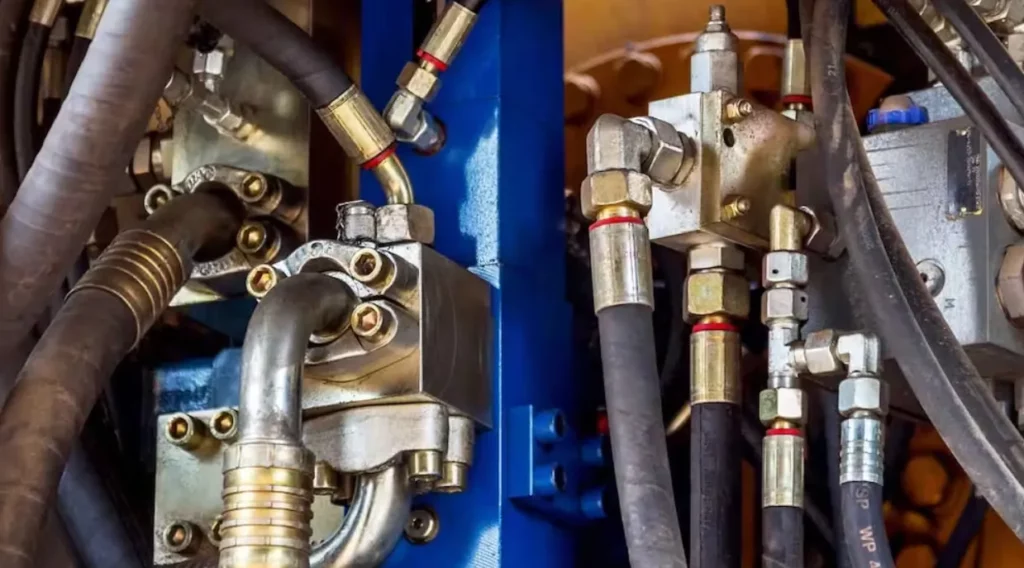

Common Applications of Flared Tube Female Elbows:

Flared tube female elbows find applications in a wide range of industries and systems where secure and leak-free connections are required. Here are some common applications where these fittings are used:(1) Plumbing Systems: Flared tube female elbows are commonly used in plumbing systems for both residential and commercial applications. They are used to connect pipes at different angles, allowing for changes in the direction and routing of water, gas, or other fluids. They are often found in water supply lines, drainage systems, and irrigation systems.(2) HVAC (Heating, Ventilation, and Air Conditioning) Systems: Flared tube female elbows are extensively used in HVAC systems. They are employed in refrigerant lines to connect various components such as compressors, condensers, evaporators, and air handlers. These fittings facilitate the efficient flow of refrigerant and ensure the proper functioning of the HVAC system.(3) Automotive Systems: Flared tube female elbows are utilized in automotive applications, particularly in the fuel and brake systems. They are commonly found in fuel lines, where they connect fuel tanks, fuel pumps, filters, and carburetors or fuel injectors. In brake systems, flared tube female elbows enable the connection of brake lines, allowing for the transfer of hydraulic fluid.(4) Pneumatic Systems: Flared tube female elbows are employed in pneumatic systems, which use compressed air or gas to power machinery and equipment. These fittings are used to connect pneumatic tubes and hoses, allowing for changes in direction and the routing of air or gas to different components. Pneumatic systems are commonly used in industries such as manufacturing, automation, and packaging.(5) Hydraulic Systems: Flared tube female elbows are used in hydraulic systems, which use fluid power to transmit force and control movement. These fittings enable the connection of hydraulic lines, allowing the flow of hydraulic fluid to various components such as cylinders, motors, valves, and actuators. Hydraulic systems are widely utilized in construction equipment, industrial machinery, and automotive applications.(6) Industrial Applications: Flared tube female elbows are employed in various industrial applications where fluid or gas transfer is required. They are used in chemical processing plants, oil and gas refineries, power generation facilities, and other industrial settings. These fittings provide reliable connections in pipelines, allowing for fluid or gas transport while accommodating changes in direction.
