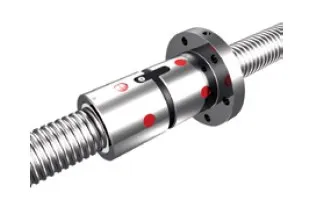

FFZD Type Inner Cycle Combined Spacer Preload Nut

FFZD Type Inner Cycle Combined Spacer Preload Nut

The FFZD type inner cycle combined spacer preload Nut is a cutting-edge linear motion component that brings unparalleled efficiency and accuracy to various industrial applications. With its innovative design and superior quality, this product is the ultimate solution for industries that demand precise and reliable linear motion.The FFZD type inner cycle combined spacer preload nut sets a new standard for efficiency and accuracy in linear motion applications. With its enhanced precision, efficient load distribution, easy installation, and reduced friction design, it offers exceptional performance in diverse industrial settings. By following the recommended usage methods and maintenance guidelines, users can maximize the efficiency and lifespan of the FFZD type inner cycle combined spacer preload nut, making it an indispensable component for their linear motion needs. Experience the revolution in linear motion efficiency and accuracy with the FFZD type inner cycle combined spacer preload nut and unlock new productivity levels in your industrial processes.

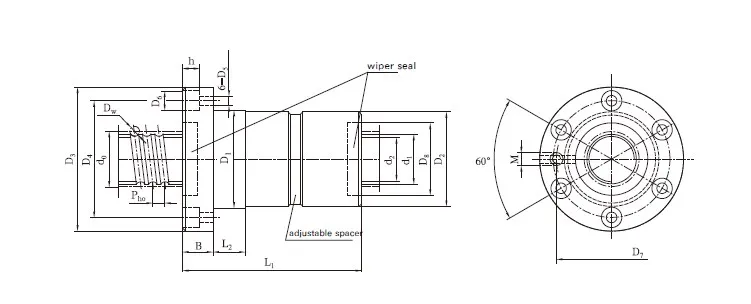

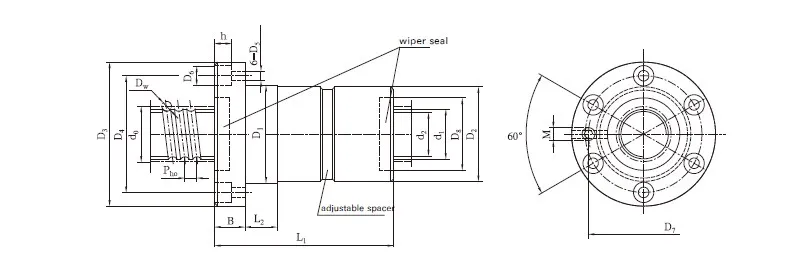

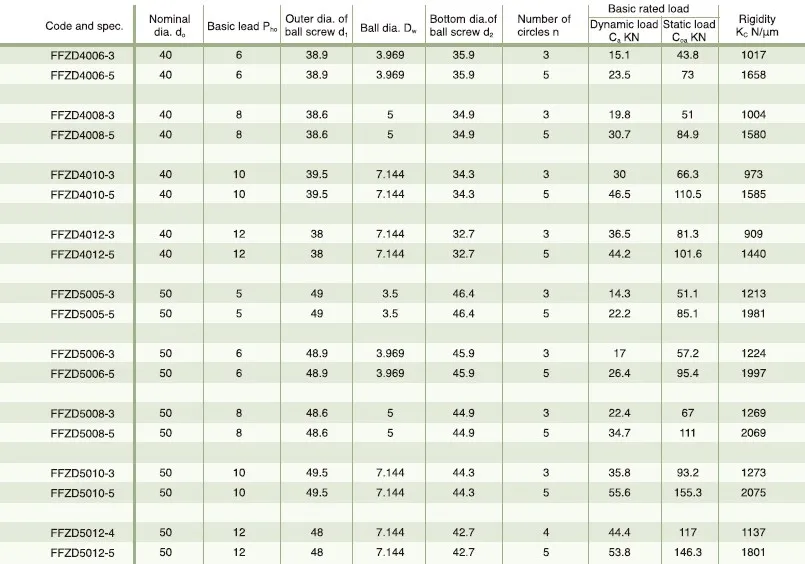

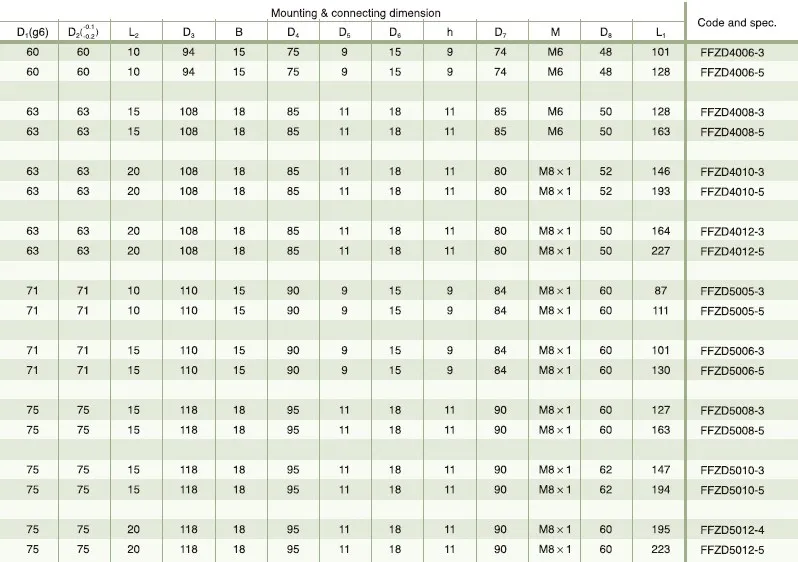

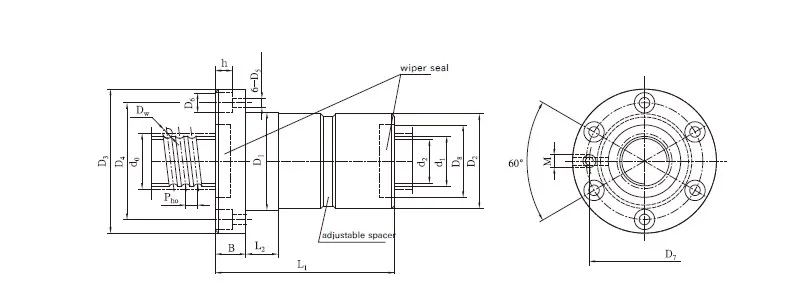

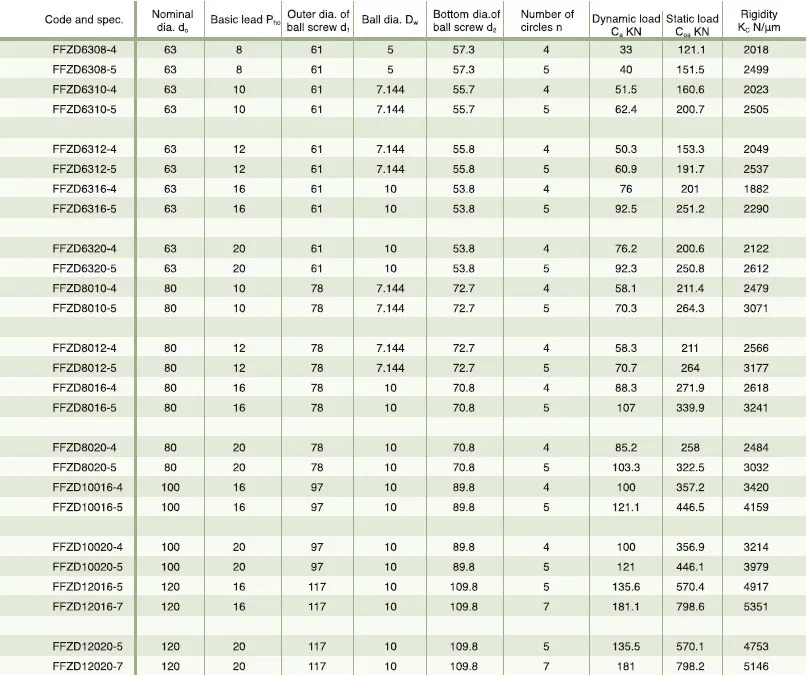

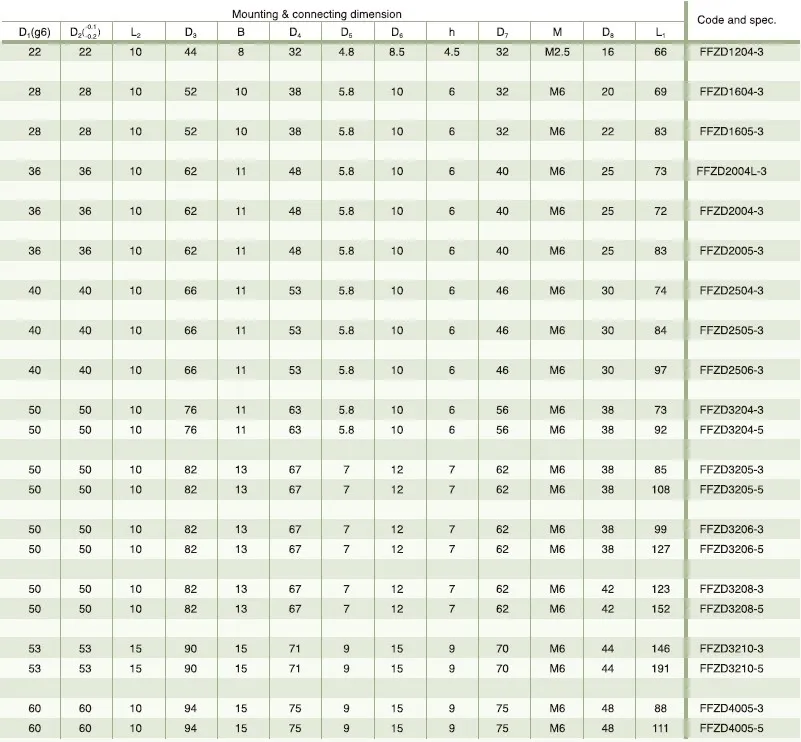

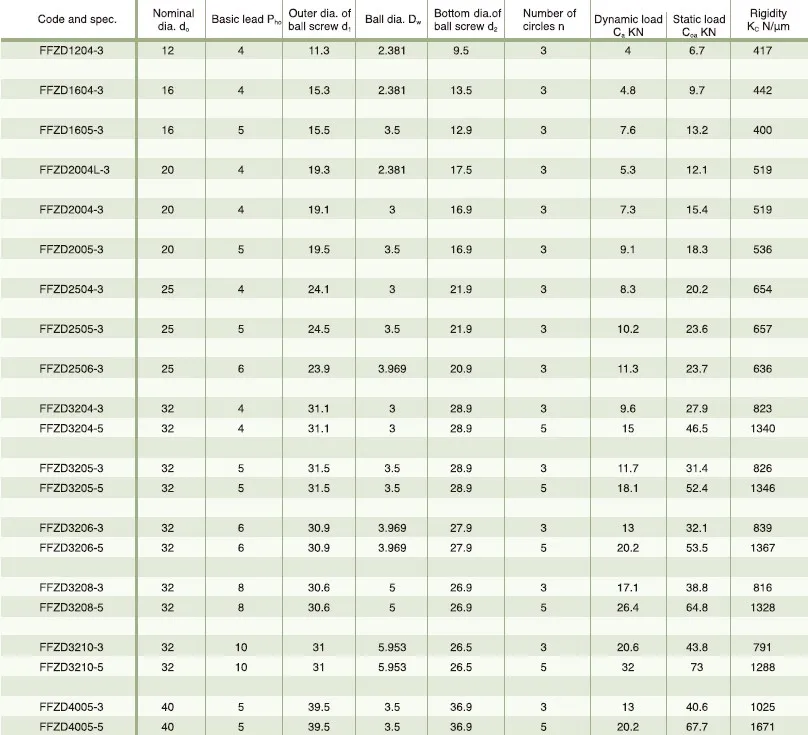

Parameter of FFZD Type Inner Cycle Combined Spacer Preload Nut:

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Key Features and Benefits:

Enhanced Precision: The FFZD Type Inner Cycle Combined Spacer Preload Nut is engineered with precision in mind. Its advanced design reduces axial clearance and backlash, ensuring exceptional positioning accuracy. This makes it the ideal choice for applications that require high precision and repeatability.Efficient Load Distribution: This combined spacer preload nut optimizes load distribution along the screw shaft, resulting in smoother and more efficient linear motion. It minimizes the risk of overload on specific areas, enhancing the overall performance and longevity of the system.Easy Installation: The FFZD Type Inner Cycle Combined Spacer Preload Nut is designed for easy installation. Its compact size and user-friendly design allow for quick and hassle-free integration into existing systems. It is compatible with a wide range of linear motion setups, making it a versatile choice for various applications.Reduced Friction: With its innovative design, the FFZD Type Inner Cycle Combined Spacer Preload Nut minimizes friction during linear motion. This reduces power consumption, enhances energy efficiency, and prolongs the lifespan of the system. It also contributes to smoother operation and quieter performance.

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Notes:

1. Kc is the theoretical calculation value when preload Fp is 0.1Ca and axial load F is 0.3Ca.2. When axial load F is not equal to 0.3Ca,In formula:K is the rigidity value shown in Table.3. This normal working environment temperature for FF type ball screw is ±80℃.

Usage Method of FFZD Type Inner Cycle Combined Spacer Preload Nut:

Installation: Begin by securely mounting the FFZD Type Inner Cycle Combined Spacer Preload Nut onto the designated machine frame or surface. Ensure proper alignment and parallelism with other components for optimal performance and accuracy.Lubrication: Apply the recommended lubricant to the combined spacer preload nut assembly to reduce friction and ensure smooth linear motion. Follow the manufacturer's guidelines for lubrication intervals and use the specified lubricant type to maintain performance and longevity.Load Distribution: Distribute applied loads evenly along the FFZD Type Inner Cycle Combined Spacer Preload Nut to prevent excessive stress on specific areas. This promotes optimal load-bearing performance and extends the nut's service life.System Compatibility: Integrate the combined spacer preload nut with compatible motion control systems, such as servo motors or stepper motors. Ensure proper calibration and synchronization between the driving mechanism and the nut to achieve precise and efficient linear motion.
