Flared Reducing Adapters for 37° Flared Tube Fittings

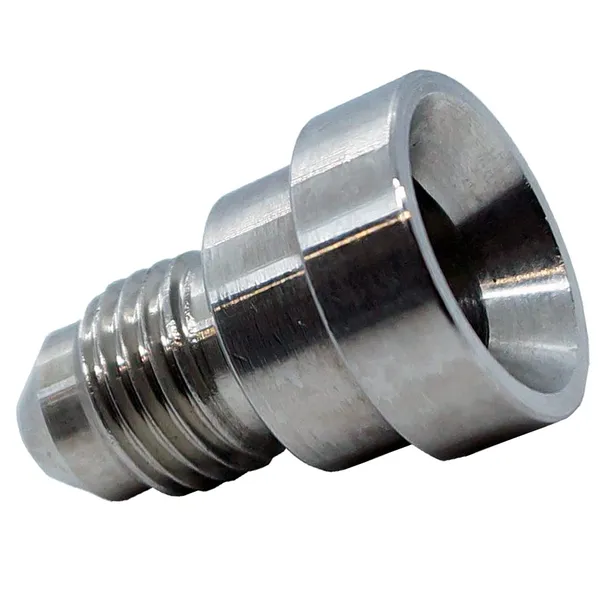

Flared Reducing Adapters

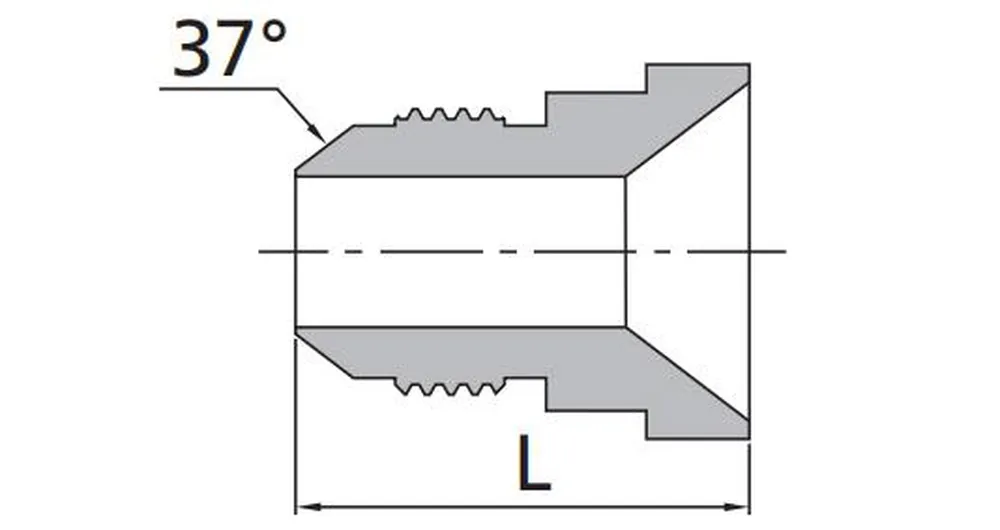

Flared Reducing Adapters Size Chart:

Tube O.D.		Basic OrderingNumber	Lin.(mm)
in.-mm	in.-mm
3/8-10	1/4-6	-RA-AN6-AN4	0.97 (24.6)
1/2-12	1/4-6	-RA-AN8-AN4	1.00 (25.4)
1/2-12	3/8-10	-RA-AN8-AN6	1.00 (25.4)
5/8-16	1/4-6	-RA-AN10-AN4	1.03 (26.2)
5/8-16	3/8-10	-RA-AN10-AN6	1.03 (26.2)
3/4-18	1/4-6	-RA-AN12-AN4	1.09 (27.7)
3/4-18	3/8-10	-RA-AN12-AN6	1.09 (27.7)
3/4-18	1/2-12	-RA-AN12-AN8	1.19 (30.2)
7/8-22	3/8-10	-RA-AN14-AN6	1.13 (28.7)
7/8-22	5/8-16	-RA-AN14-AN10	1.33 (33.7)
1-25	1/4-6	-RA-AN16-AN4	1.22 (31.0)
1-25	3/8-10	-RA-AN16-AN6	1.22 (31.0)
1-25	1/2-12	-RA-AN16-AN8	1.27 (32.3)
1-25	5/8-16	-RA-AN16-AN10	1.38 (35.1)
1-25	3/4-18	-RA-AN16-AN12	1.47 (37.3)
1 1/4-32	3/4-18	-RA-AN20-AN12	1.53 (38.8)
1 1/4-32	1-25	-RA-AN20-AN16	1.59 (40.3)
1 1/2-38	1/2-12	-RA-AN24-AN8	1.56 (39.6)
1 1/2-38	3/4-18	-RA-AN24-AN12	1.63 (41.4)
1 1/2-38	1-25	-RA-AN24-AN16	1.63 (41.4)
2-50	1 1/2-38	-RA-AN32-AN24	1.91 (48.5)

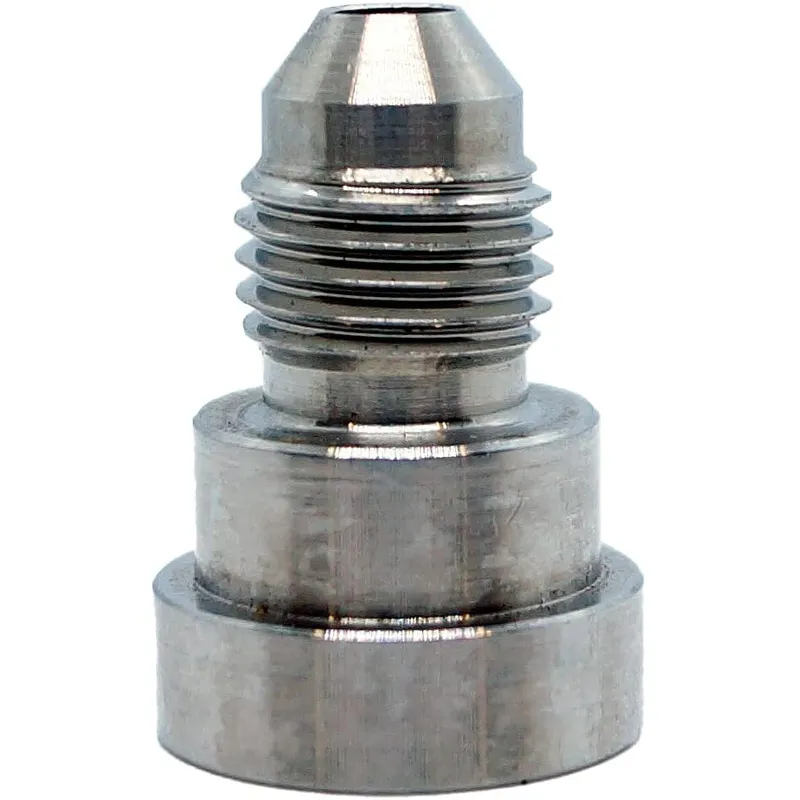

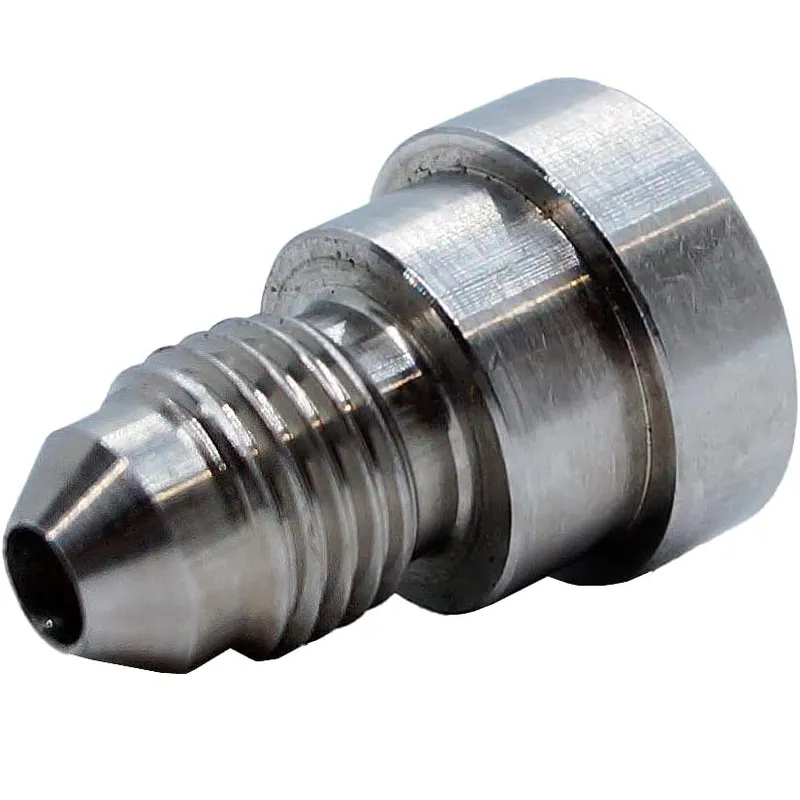

Benefits of Using Flared Tube Reducing Adapters:

Flared tube reducing adapters are commonly used in various piping and tubing applications, particularly where there's a need to transition between different tube sizes. These adapters have a flared end that allows for secure connections without the need for clamps or special tools. Here are some benefits of using flared tube reducing adapters:1. Leak-Proof Seal: When properly made, the flared connection provides a high-integrity, leak-proof seal. The conical surface of the flare interfaces tightly with the mating surface, ensuring that there are no gaps for fluid or gas to escape.2. Versatility: Flared tube reducing adapters allow users to easily transition between different sizes of tubing. This is particularly useful in systems that have components of varying sizes or in retrofitting situations.3. No Need for Additional Sealants: When connections are flared correctly, there’s often no need for additional sealants like tape or dope. This minimizes potential contamination in systems where purity is critical.4. Durable Connection: Flared connections, when made properly, are very durable and can withstand high pressures and temperatures. This makes them suitable for various applications, including those in the automotive and HVAC industries.5. Easy Disassembly and Reassembly: Unlike some other types of connections, flared reducing adapters can be disassembled and reassembled multiple times without significant wear or degradation to the sealing surfaces.6. Vibration Resistance: Flared reducing adapters tend to offer good resistance to vibrations, which can be a common cause of leaks in many piping systems.7. Broad Material Availability: Flared tube reducing adapters are available in a wide range of materials, from brass and steel to stainless steel and other alloys. This allows for use in various environments, from corrosive to high-temperature applications.8. Safety: The design of flared tube reducing adapters generally provides a more secure connection than some other types of fittings. This added security can help prevent accidents and leaks, especially in high-pressure applications.9. Cost-Effective: In many applications, using flared tube reducing adapters can be more cost-effective than redesigning a system to use one uniform size or than using other types of connectors and fittings.10. Minimal Flow Restriction: The design of these flared reducing adapters ensures a smooth transition between different tube sizes, thus minimizing any significant restriction in flow or turbulence.11. Standards Compliance: Many flared tube fittings, including reducing adapters, meet specific industry standards, ensuring compatibility, reliability, and safety across different applications and industries.12. Reduced Maintenance: Given the durability and reliability of flared connections, systems using these often require less maintenance over time compared to other connection types.

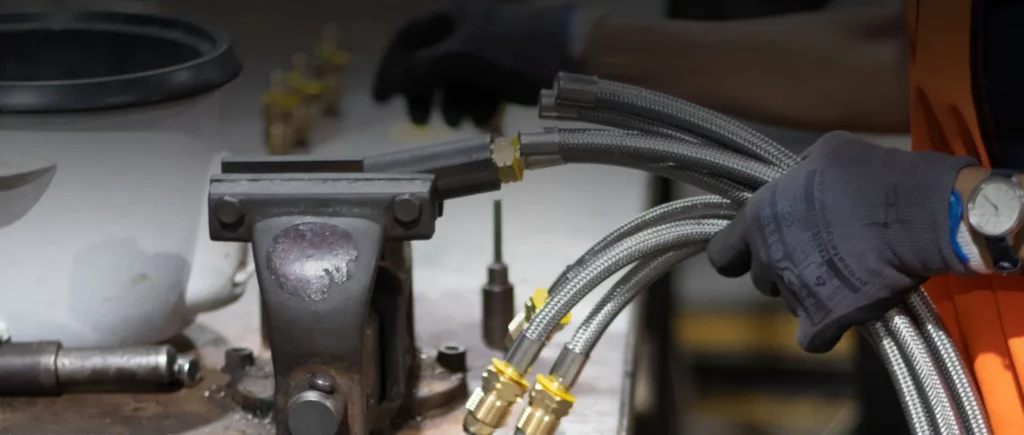

Installation of Flared Tube Reducing Adapters:

Flared Reducing Adapters Installation:

• Flared tube reducing adapters typically require a flaring tool to create the flare on the end of the tubing. The tubing is placed into the flaring tool, which then expands the end to create the necessary flare.
• Once flared, the tubing is fitted into the flared end of the adapter, and a flare nut is used to secure the connection. Proper alignment and tightening are crucial to ensure a leak-proof seal.

Flared Reducing Adapters Considerations:

• Proper Flaring: It's essential to achieve a uniform flare to prevent leaks.
• Compatibility: Ensure that the materials of the adapter and the tubing are compatible with the fluid being conveyed to prevent corrosion or other adverse reactions.
• Size: Always select the appropriate size adapter for the tubing and the intended application.

In summary, flared tube reducing adapters are crucial components in various systems where there is a need to connect tubing of different sizes or types. When properly selected and installed, they provide a reliable, leak-proof connection, ensuring the efficient and safe operation of the system.
