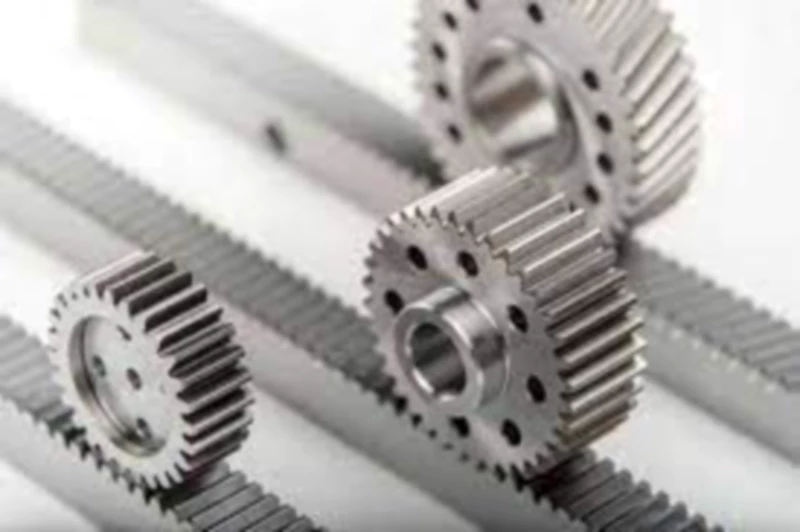

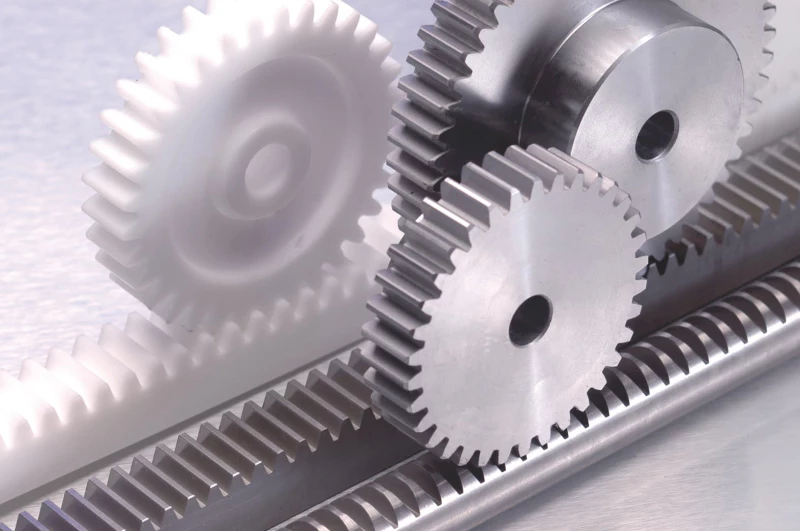

Gear racks for machine tool industry

Gear racks for machine tool industry are mechanical components used to convert rotary motion into linear motion or vice versa. They consist of a straight bar with gear teeth cut into one side, providing a linear gear profile. These gear racks are designed to work in conjunction with a mating gear or pinion, which is typically a cylindrical gear with teeth.In the machine tool industry, gear racks play a crucial role in various applications such as CNC machines, milling machines, lathes, drilling machines, and grinding machines. They enable precise linear positioning of cutting tools, facilitate the movement of machine tool components, and provide accurate linear motion along the workpiece.The gear rack and mating gear/pinion combination work together to transfer motion and power. When a rotating gear meshes with the gear rack, rotary motion is converted into linear motion along the length of the rack. Conversely, when a linear force is applied to the gear rack, it causes the mating gear or pinion to rotate, converting linear motion into rotary motion.Gear racks for the machine tool industry are manufactured with high precision to ensure smooth and accurate motion transfer. They are typically made from materials such as steel or stainless steel to provide strength and durability. Surface treatments like heat treatment or coating may be applied to enhance their performance and resistance to wear.

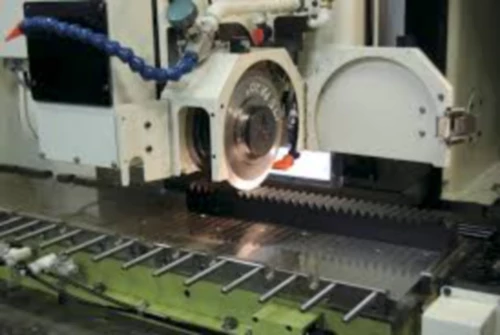

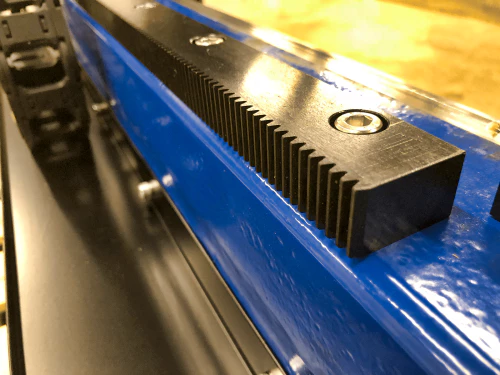

Applications of Gear Rack in the Machine Tool Industry:

1. CNC Machines: Gear racks are extensively used in CNC (Computer Numerical Control) machines for precise linear positioning of the cutting tools, allowing for accurate machining operations.2. Milling Machines: Gear racks are employed in milling machines to provide linear motion along the workpiece, enabling the cutting tool to remove material with precision.3. Lathes: Gear racks are utilized in lathes to facilitate the movement of the cutting tool along the workpiece, enabling the shaping and turning operations.4. Drilling Machines: Gear racks are used in drilling machines to control the vertical motion of the drilling head, allowing for accurate hole drilling.5. Grinding Machines: Gear racks are employed in grinding machines to achieve precise linear motion of the grinding wheel, enabling accurate material removal.

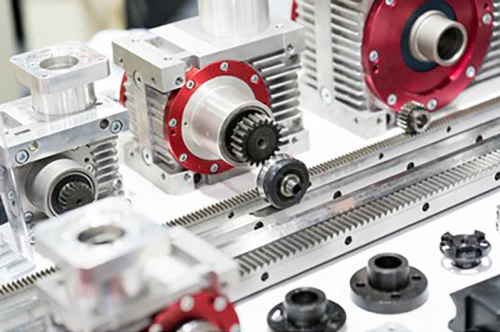

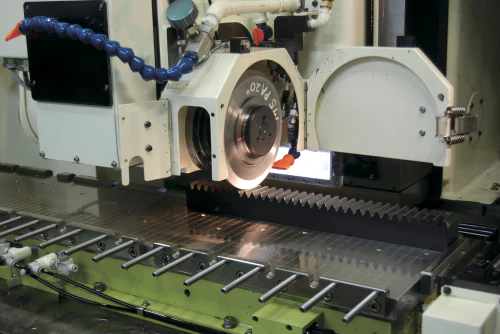

Gear racks for machine tool industry advantages:

1. Precise Linear Motion: Gear racks provide accurate and repeatable linear motion, allowing for precise positioning of machine tool components. This precision is crucial in applications such as CNC machines, where exact movements are necessary for achieving desired machining results.2. High Load Capacity: Gear racks are designed to withstand heavy loads and transmit significant amounts of power. They offer high load-carrying capacity, making them suitable for applications that require robust and reliable motion transfer, even under demanding operating conditions.3. Efficient Power Transmission: Gear racks efficiently transfer power from the driving gear or pinion to the rack, minimizing energy losses. This efficiency ensures that a significant portion of the input power is effectively utilized for linear motion, contributing to the overall energy efficiency of the machine tool system.4. Minimal Backlash: Gear racks, when properly designed and installed, can exhibit minimal backlash. Backlash refers to the clearance between the gear teeth, which can cause play or lost motion in the system. The low backlash of gear racks ensures accurate and responsive motion, particularly in applications where precise positioning is critical.5. Longevity and Durability: Gear racks are manufactured from durable materials, such as steel or stainless steel, which offer excellent strength and resistance to wear. With proper maintenance and lubrication, gear racks can have a long service life, making them a reliable component in machine tool applications.6. Versatility: Gear racks are versatile components that can be employed in various machine tool applications, including CNC machining, milling, lathes, drilling, and grinding machines. They can accommodate different linear motion requirements, load capacities, and travel distances, making them adaptable to a wide range of machine tool designs and configurations.7. Cost-Effective Solution: Gear racks provide a cost-effective solution for achieving linear motion in machine tools compared to alternative systems, such as linear drives or ball screws. They offer a balance between performance, durability, and affordability, making them a popular choice in the machine tool industry.

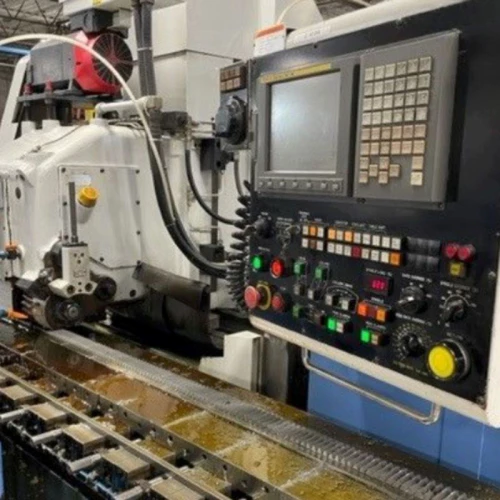

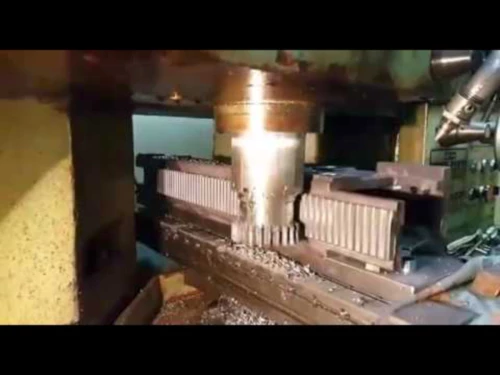

The working principle of gear racks for machine tool industry

1. Rotary to Linear Motion: When a rotating gear or pinion engages with the gear rack, the gear teeth of the pinion push against the gear teeth on the rack. As the gear rotates, the contact between the teeth causes the gear rack to move linearly along its length. The rotation of the gear is thus translated into linear motion of the gear rack.2. Linear to Rotary Motion: Conversely, when a linear force is applied to the gear rack, it causes the mating gear or pinion to rotate. The linear force on the gear rack is converted into rotary motion as the teeth of the rack push against the teeth of the gear or pinion, causing it to rotate.The gear rack and mating gear/pinion combination work together based on the principles of meshing and engagement of their teeth. The teeth on the gear rack and mating gear or pinion are precisely shaped to mesh with each other, ensuring a proper transfer of motion and power.The gear rack's linear gear profile allows for smooth and controlled linear motion, while the mating gear or pinion's rotary gear profile facilitates the conversion of linear force into rotary motion or vice versa.It's important to note that the efficiency and accuracy of the gear rack system depend on factors such as the quality of the gear teeth, proper alignment between the gear rack and mating gear or pinion, adequate lubrication, and maintenance of the system.

Installation:

1. Preparation: Ensure that the work area is clean and free from debris. Gather the necessary tools and equipment for installation, including proper safety gear.2. Mounting: Position the gear rack in the desired location, aligning it with the mating gear or pinion. Securely mount the gear rack using appropriate fasteners, ensuring that it is level and properly aligned.3. Alignment: Check the alignment between the gear rack and mating gear or pinion. Make any necessary adjustments to ensure proper tooth engagement and minimize backlash. Use alignment tools or shims if required.4. Lubrication: Apply the recommended lubricant to the gear rack and mating gear or pinion as per the manufacturer's guidelines. Ensure that the lubrication is evenly distributed along the length of the gear rack.5. Testing: Before putting the machine tool into operation, perform a thorough inspection and functional test to ensure the gear rack is properly installed and functioning correctly. Verify smooth motion, proper engagement, and minimal backlash.

Maintenance:

1. Regular Inspection: Conduct routine inspections of the gear rack to check for signs of wear, damage, or misalignment. Inspect the gear teeth, mounting points, and overall condition of the rack. Address any issues promptly.2. Lubrication: Follow the recommended lubrication schedule provided by the manufacturer. Apply lubricant to the gear rack at specified intervals or as needed to maintain optimal performance and reduce friction.3. Cleaning: Regularly clean the gear rack to remove dirt, debris, and contaminants that may accumulate. Use a soft brush or cloth to gently wipe the surface of the rack. Avoid using abrasive materials that could damage the rack.4. Load Capacity Monitoring: Monitor the load being applied to the gear rack and ensure it remains within the specified load capacity. Avoid overloading the gear rack, as it can lead to premature wear and reduced performance.5. Misalignment Correction: If misalignment is detected during routine inspections or through performance issues, take corrective measures to realign the gear rack with its mating gear or pinion. Follow the manufacturer's guidelines or consult a professional if necessary.6. Replacement: If the gear rack shows significant signs of wear, damage, or exceeds its service life, consider replacing it with a new one to maintain optimal performance and reliability.7. Documentation and Record-Keeping: Maintain a record of installation dates, maintenance activities, and any repairs or replacements performed on the gear rack. This documentation can help track the rack's performance and aid in future maintenance planning.

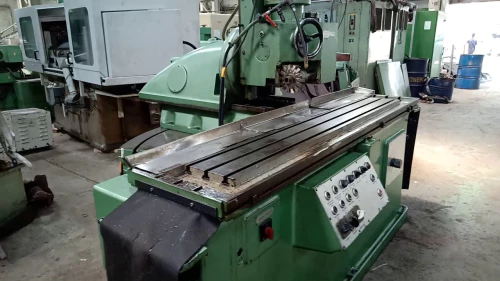

How to select the Suitable Gear Rack for Machine Tool Industry

1. Load Capacity: Determines the maximum load the rack needs to support in a specific machine tool application. It is critical to select a rack with a load capacity that exceeds the expected maximum load to ensure reliability and prevent premature wear.2. Pitch and Module: Select a rack with the appropriate pitch and module to match the mating gear or pinion. The pitch represents the distance between the teeth and the module represents the size and shape of the teeth. Ensuring compatibility between racks and mating gears is critical for smooth, efficient motion transfer.3. Length and size: Consider the required rack length based on the linear travel distance required in the machine tool application. Additionally, evaluate the dimensions of the rack, such as width and height, to ensure proper integration in the machine tool system.4. Precision and Accuracy: Evaluate the level of precision and accuracy required for a specific application. The rack has tighter tooth tolerances and better machining quality, providing greater precision and accuracy, resulting in improved positioning and repeatability.5. Materials and surface treatment: Evaluate the material of the rack based on factors such as strength, durability, and wear resistance. Common materials include steel and stainless steel. Additionally, consider surface treatments such as heat treatments or coatings to improve the performance and longevity of the rack.6. Noise and Backlash: Consider the noise requirements of the application and select a rack with appropriate tooth design and manufacturing quality to minimize the generation of backlash and noise during operation.7. Environmental conditions: Evaluate the operating environment of the machine tool. Factors such as temperature, humidity and exposure to contaminants can influence rack and pinion material selection and surface treatment to ensure optimal performance and longevity.

Possible problems and solutions when using gear racks in the machine tool industry:

1. Wear: Continuous use of the rack will cause wear, resulting in reduced performance and increased backlash. Regular inspection and maintenance are essential to monitor the condition of the rack. If excessive wear is found, the rack should be replaced with a new one to ensure proper function.2. Insufficient lubrication: Insufficient lubrication will increase friction and accelerate rack wear. Lubricate the rack regularly with an appropriate lubricant, following the manufacturer's recommendations. Make sure the lubrication schedule is strictly followed.3. Misalignment: Misalignment between the rack and mating gear or pinion can lead to uneven load distribution and premature wear. During installation or maintenance, ensure that the rack is properly aligned with its mating components. Adjustments may be required to achieve proper alignment.4. Contamination: The presence of dirt, debris, or contaminants can affect the operation of the rack. Take steps to protect the rack from contamination, such as using a guard or housing. Clean the rack regularly and remove accumulated debris.5. Overload: Exceeding the load capacity of the rack can lead to excessive stress and premature failure. Be sure to select the rack based on the maximum expected load and avoid overloading the system. If load requirements change, consider upgrading to a higher capacity rack.6. Improper tooth meshing: Poor tooth meshing between the rack and mating gear or pinion can lead to increased backlash and reduced accuracy. Make sure the teeth of the rack and mating components are properly aligned and engaged. To achieve correct tooth meshing, mating gears may need to be adjusted or replaced.7. Insufficient maintenance: Neglecting routine maintenance may lead to various problems with the rack. Follow the manufacturer's recommended maintenance procedures, including lubrication, inspection, and adjustments. Check regularly for any signs of wear, damage or misalignment and address them promptly.8. Improper Material Selection: Selecting a rack material that is not suitable for a specific application may result in premature wear or failure. Ensure rack material is compatible with operating conditions, load requirements and environment. If necessary, consult the manufacturer or materials expert.
