GFT Series Planetary Gearbox for Vehicle Replace Replacement of Bosch Rexroth GFT09T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T2 GFT36T3

Discover Raydafon Group's GFT Series Planetary Gearbox for vehicle replacements, engineered as direct substitutes for Bosch Rexroth GFT09T2, GFT13T2, GFT17T2, GFT17T3, GFT24T3, GFT26T2, and GFT36T3 models. This high-performance gearbox ensures seamless integration and superior durability, ideal for automotive professionals seeking reliable upgrades. With advanced materials and precision design, it enhances vehicle efficiency and reduces downtime, offering a cost-effective solution without compromising quality. Elevate your vehicle's performance with Raydafon Group's trusted innovation.

Send Inquiry

Product Description

The Models We Can Replace

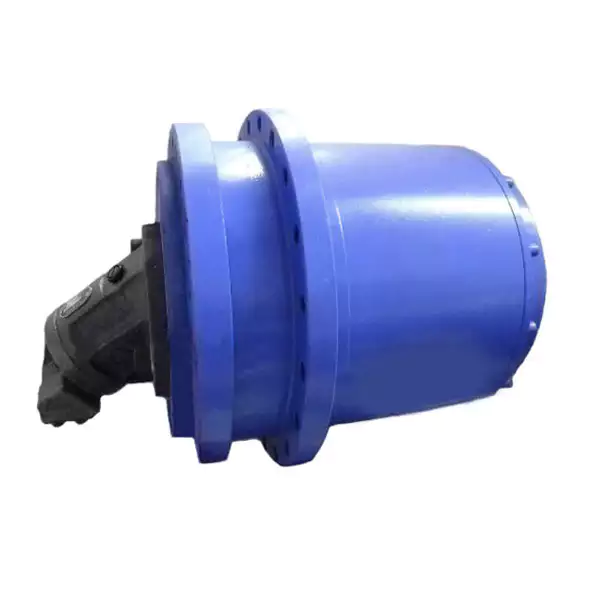

The hydrostatic drive series 20 consists of a three-stage or four-stage planetary gearbox combined with a hydraulic axial piston motor to form a compact drive unit. The entire unit is a drive component for chain drive vehicles, cranes, and other mobile applications. GFT Series Planetary Gearbox for Vehicle Replace Replacement of Bosch Rexroth GFT09T2 GFT13T2 GFT17T2 GFT17T3 GFT24T3 GFT26T2 GFT36T3

BOSCH Model	GFT09T2	GFT13T2	GFT17T2	GFT17T3	GFT24T3	GFT26T2	GFT36T3
Our Model	RDF-GFT09T2	RDF-GFT13T2	RDF-GFT17T2	RDF-GFT17T3	RDF-GFT24T3	RDF-GFT26T2	RDF-GFT36T3

BOSCH Model	GFT40T2	GFT50T3	GFT60T2	GFT60T3	GFT80T3	GFT110T4	GFT160T3
Our Model	RDF-GFT40T2	RDF-GFT50T3	RDF-GFT60T2	RDF-GFT60T3	RDF-GFT80T3	RDF-GFT110T4	RDF-GFT160T3

BOSCH Model	GFT220T3	GFT260T3	GFT330T3	GFT450T3
Our Model	RDF-GFT220T3	RDF-GFT260T3	RDF-GFT330T3	RDF-GFT450T3

BOSCH Model	GFT13W2	GFT17W2	GFT17W3	GFT24W2	GFT26W2	GFT36W3	GFT40W2
Our Model	RDF-GFT13W2	RDF-GFT17W2	RDF-GFT17W3	RDF-GFT24W2	RDF-GFT26W2	RDF-GFT36W3	RDF-GFT40W2

BOSCH Model	GFT50W3	GFT60W3	GFT80W3	GFT110W3	GFT160W3	GFT220W3	GFT330W3
Our Model	RDF-GFT50W3	RDF-GFT60W3	RDF-GFT80W3	RDF-GFT110W3	RDF-GFT160W3	RDF-GFT220W3	RDF-GFT330W3

BOSCH Model	GFB09T2	GFB17T2	GFB17T3	GFB24T3	GFB26T2	GFB36T3	GFB40T2
Our Model	RDF-GFB09T2	RDF-GFB17T2	RDF-GFB17T3	RDF-GFB24T3	RDF-GFB26T2	RDF-GFB36T3	RDF-GFB40T2

BOSCH Model	GFB50T3	GFB60T2	GFB60T3	GFB80T3	GFB110T3	GFB110T4
Our Model	RDF-GFB50T3	RDF-GFB60T2	RDF-GFB60T3	RDF-GFB80T3	RDF-GFB110T3	RDF-GFB110T4

The modular and flexible design of the GFT series means that it can be supplied almost from stock with a short delivery time. In addition, it offers a wide range of nominal sizes and ratios, combined with simple and fast configurations. The product portfolio in the GFT series includes 12 nominal sizes for open-loop or closed-loop hydraulic circuits. Starting from the hydro track gft09t2, the rated output torque is 10000 nm, to the gft450t3 is 130000 nm. In each case, there are several different transmission ratios.GFT series can choose to install a dynamic multi-disc brake. For example, combined with Raydafon's high-level braking HLB, self-propelled equipment can meet the strict safety standards of driving speed up to 50 kph required by many regions (such as Germany (StVZO) or the United States (ASAE). According to their regulations, a series of manufacturing machines equipped with hzpt transmission (including multi-disc brakes) have been approved in both countries. A unique function: the multi-disc brake is located inside the transmission to prevent dust and wet weather. This contributes to the compactness of the entire transmission while leading to low maintenance operations. In this way, the multi-disc brake in the hydro track GFT provides an advanced alternative to the conventional disc or drum brake and is also 75% lighter than these conventional reducers.

Feature of GFT Series Planetary Gearbox

Compact, space-saving three or four-stage planetary gearstransmission case
Robust design
Integrated static multi-disc parking brake
It may be a different series to assemble variable plug-in and fixed plug-in motors.
Easy to assemble
Easy oil change
Disconnect mechanism (optional, only applicable to size GFT 220 / 260 / 330)
For travel drives in tracked and wheeled vehicles
Also suitable for other rotary motion sequences, e.g., drum drives, milling drum drives, etc.
Two-, three- or four-stage planetary gearbox
For attachment of fixed or variable motors (A2FM/E, A6VM/E, A10VE)
Torque output 9500 … 450000 Nm

Parameters of GFT Series Planetary Gearbox

Take GFT 9 T2 as an example;GFT indicates Travel drive GFT;9 indicates:Size (Size = Output torque T2 [kNm]T indicates: T = Track laying / R = Wheel drive2 indicates: Number of gear stages

Type/design variantGFT	Output torqueT2 maxNm	Gear ratiofrom/toi
GFT 9 T2	9000	47.6 - 55.3
GFT 13 T2	13000	22.6 - 37.6
GFT 17 T2	17000	37.6 - 54
GFT 17 T3	17000	77.9 - 88.2
GFT 24 T3	24000	90.1 - 137.2
GFT 26 T2	26000	42.9 - 62
GFT 34 T2	34000	42.9 - 50,5
GFT 36 T3	36000	115 - 138.8
GFT 40 T2	40000	35.9 - 59.1
GFT 50 T3	50000	73.9 - 177.5
GFT 60 T3	60000	94.8 - 169,9
GFT 65 T2	65000	55.4
GFT 80 T3	80000	99 - 215
GFT 110 T3	110000	87.6 - 173.9
GFT 160 T3	160000	210.8 - 251
GFT 220 T3 / R3	220000	67.7 - 365
GFT 330 T3	330000	168.9 - 302.4
GFT 330 T4	330000 / 380000	451.7 - 826.6
GFT 450 T4	450000	421.7

Contact us

1. One-year warranty from delivery2. Free components for replacement within the warranty period3. Professional solution provider4. Free technical support at any time5. Customer training is available.6. On-site installation and commissioning are available.

FAQ

Q1:What's your MOQ?A: MOQ is one piece.Q2:What should I supply to get a suitable model of hydraulic winch and quotation?A: To recommend the most suitable model of the hydraulic winch, we should know:1. Line pull(t)2.Line Speed(m/min)3.Drum capacity/Rope Length(m)4. Rope Diameter(if have)5. With braker or not6. Which kind of machine does the hydraulic used on?7. hydraulic system pressure and pump flow(if have)8. other special requirements
