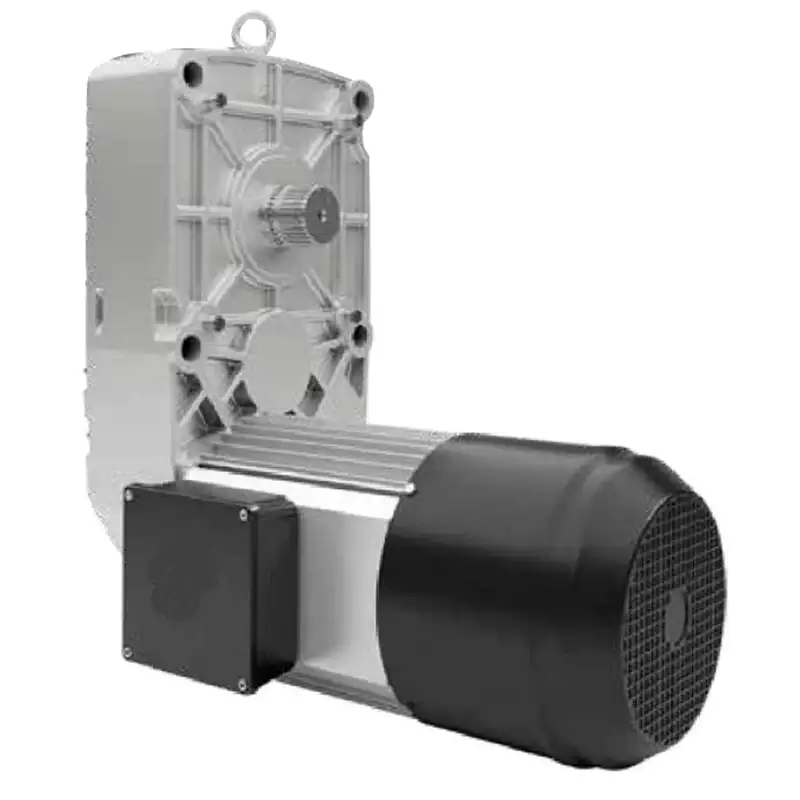

GH3201 Crane Gearbox Reducer for wire rope lifting drive with Variable frequency motor

Raydafon Group's GH3201 Crane Gearbox Reducer for wire rope lifting drive with Variable frequency motor enhances crane operations with smooth, efficient power transmission. Its durable design and advanced technology ensure reliability in demanding industrial settings, reducing downtime and improving safety. Perfect for construction and manufacturing professionals, this gearbox offers superior performance and long-lasting value, making your lifting tasks effortless and precise.

Send Inquiry

Product Description

Introduction to GH3201 Crane Gearbox Reducer

The GH3201 Crane Gearbox Reducer is a state-of-the-art product designed to revolutionize wire rope lifting. This highly efficient drive mechanism works seamlessly with variable frequency motors, providing a robust solution that enhances the functionality of cranes and other heavy-duty machinery.

Technical Parameter

Safe working load	up to 3.2 tons
Lifting speed	4/5/6.3/8 at pulley ratio of 4/1
Drum diameter	140 mm
Rated power	2.5-4.0 kW (4-pole @ 100 Hz)
Output shaft	DIN 5480- W40x2x18x8f
Protection level	motor IP65, brake IP54 (option IP65)
Standard	PTC thermistor and temperature switch sensorMoisture and corrosion protectionCE and UL/CSA certification
Options	Encoder, forced cooling fan, CSA certified,Other FEM levels and pulley ratios, please inquire separately!

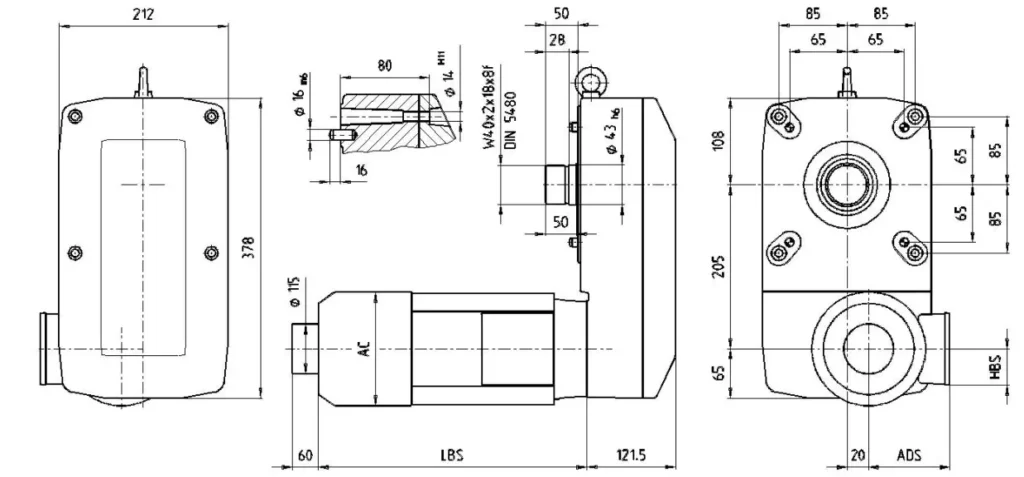

Installation Size and Weight

Model	AC	LBS	ADS	HBS	Weight
ZFB40/GH3201/4D100La-4 UL TT	195	372	141	61.5	45
ZFB40/GH3201/4D100Lb-4 UL TT	195	372	141	61.5	48

Drum diameter 140 mm | Pulley magnification 4/1Rated power 2.5 (3.0) k

Rated power 2.5 (3.0) kW
Model	Load [t]	ISO	FEM	speed [m/min]	Power [kW]	Frequency [Hz]	Speed ratio	Braking torque [Nm]
ZFB40/GH3201/4D100La-4 UL TT	3.2	M5	2m	0.7 / 4.0 (0.8 / 4.8)	2.5 (3.0)	100 (120)	78.6	28
	2.5	M6	3m
	2.0	M7	4m
Rated power 3.2 (3.8) kW
Model	Load [t]	ISO	FEM	speed [m/min]	Power [kW]	Frequency [Hz]	Speed ratio	Braking torque [Nm]
ZFB40/GH3201/4D100Lb-4 UL TT	3.2	M5	2m	0.8 / 5.0 (1.0 / 6.0)	3.2 (3.8)	100 (120)	62.6	28
	2.5	M6	3m
	2.0	M7	4m
ZFB40/GH3201/4D100Lb-4 UL TT	3.2	M5	2m	1.0 / 6.3 (1.2 / 7.6)	4.0 (4.8)	100 (120)	49.5	40
	2.5	M6	3m
	2.0	M7	4m
ZFB40/GH3201/4D100Lb-4 UL TT	2.5	M5	2m	1.3 / 8.0 (1.6 / 9.6)	4.0 (4.8)	100 (120)	39.4	40
	2.5	M6	3m
	2.0	M7	4m

Exceptional Features of the GH3201 Crane Gearbox Reducer

Delving into the unique features of this gearbox reducer, it is evident that it is a game-changing innovation in the industry.

1. High Efficiency

With its advanced technology, the GH3201 Crane Gearbox Reducer guarantees maximum efficiency in energy usage, significantly reducing operational costs.

2. Versatility

This gearbox reducer is not limited to wire rope lifting but is also compatible with various industrial applications.

3. Durability

Built to withstand rigorous usage, the GH3201 Crane Gearbox Reducer is incredibly durable and resistant to wear and tear.

4. Easy Installation

Its design allows for easy installation, making it user-friendly and time-saving.

5. Customizable

The GH3201 Crane Gearbox Reducer can be tailored to suit specific operational needs, offering a highly customizable solution for various industries.

Application of GH3201 Crane Gearbox Reducer

The GH3201 Crane Gearbox Reducer is primarily used in the drive system of cranes for wire rope lifting. It functions as the heart of the system, controlling and converting the motor's power into the desired form and quantity.

Extended Applications of GH3201 Crane Gearbox Reducer

Apart from cranes, the GH3201 Crane Gearbox Reducer finds utility in various other applications.

1. Wind Energy Systems

Its robust design and efficiency make it an ideal choice for wind turbine operations.

2. Conveyor Systems

It can also be used in conveyor systems, enhancing the smooth and efficient movement of goods.

3. Mining Equipment

The GH3201 Crane Gearbox Reducer is a reliable solution for the demanding operations in mining equipment.

About Us

As a leading manufacturer of various types of gearboxes, we pride ourselves on our ability to deliver high-quality, customized solutions for our clients. Our advanced production and inspection equipment, including CNC gear grinding machines, gear measuring machines, CNC gear shapers, machine centers, CMMS, and Torque test systems, ensure the utmost precision and quality in every product.We are committed to meeting international standards and providing exceptional customer service. Our team of experts is always ready to help you find the perfect gearbox solution for your specific needs. Trust us to deliver excellence and elevate your operations to new heights.Author: Miya
