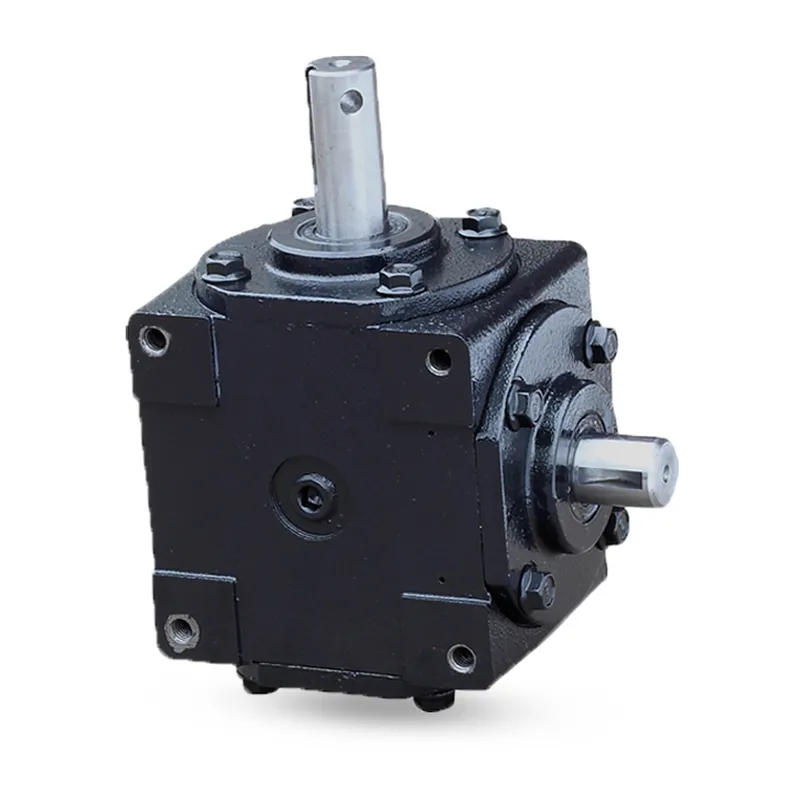

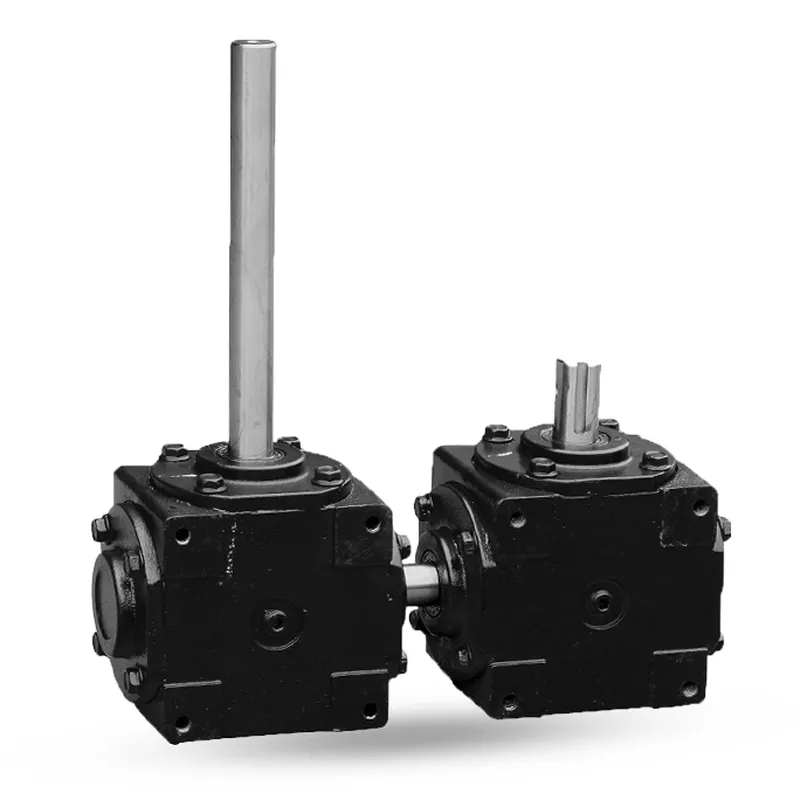

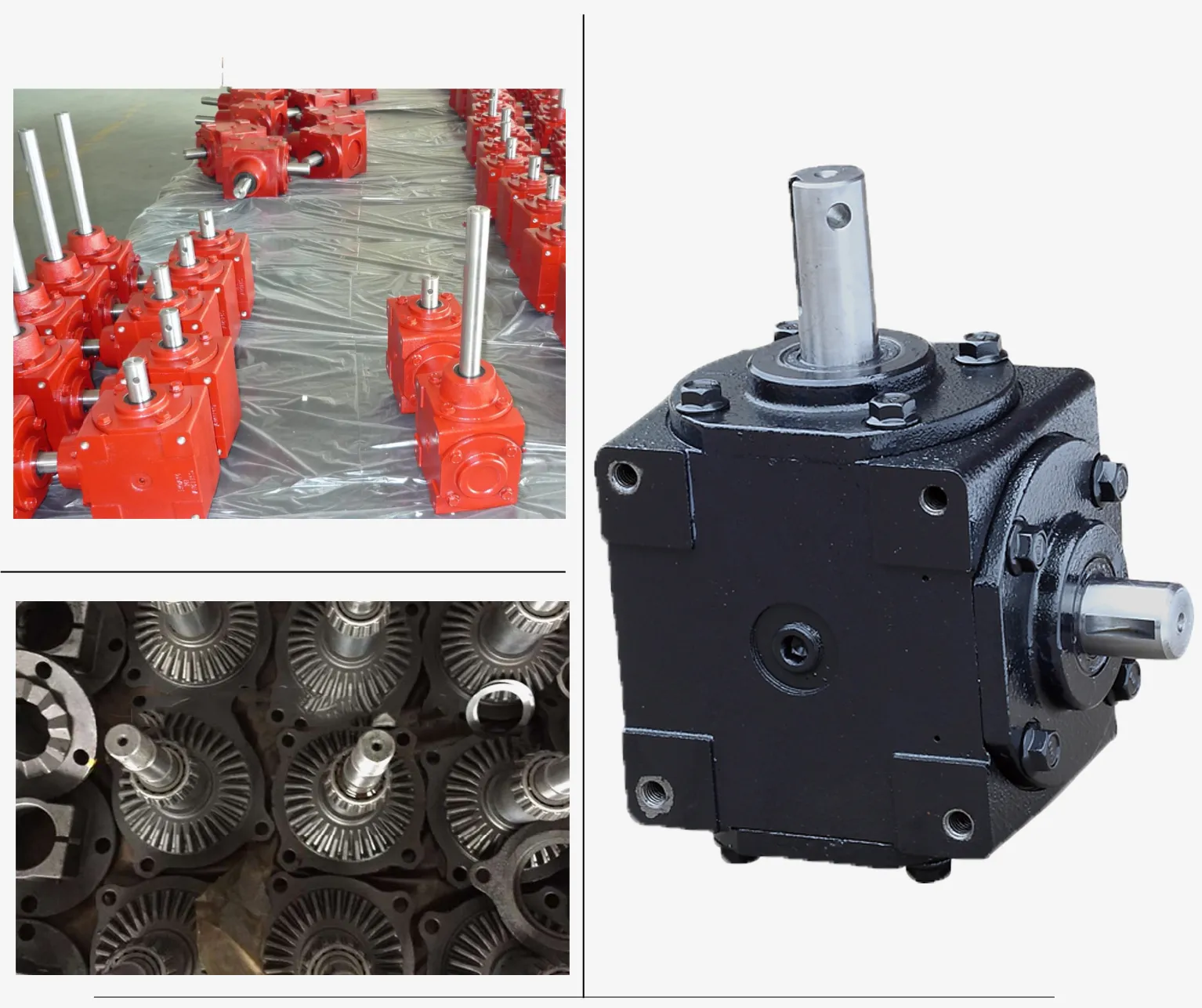

Grain Storage Gearbox RDF-1003 for Agricultural Grain Storage

A grain storage gearbox is a specialized mechanical device used in agricultural settings, primarily for controlling the operation of conveyors and elevators that manage the movement of grain within storage facilities. These gearboxes are integral to the machinery that transfers grain from trucks or carts into silos or out to processing areas. Constructed from robust materials to withstand the abrasive nature of grains and the demanding environment of agricultural operations, grain storage gearboxes typically feature heavy-duty bearings, strong seals to prevent dust ingress, and are designed to be highly durable and reliable.They are engineered to provide a stable and efficient transfer of power from the motor to the mechanical systems that handle the grain, ensuring precise speed control and operational efficiency. The design usually supports easy maintenance and operation, accommodating the needs of large-scale farming operations where downtime can significantly impact productivity and costs.

Grain Storage Gearbox RDF-1003 Specifications

Product Name	Grain storage gearbox
Model	RDF-1003
Color	Customization
Material	HT250 for housing, 20CrMnTi for gear shaft.
Used	Grain storage

Benefits of Using Grain Storage Gearbox for Grain Storage

Using a grain storage gearbox in agricultural grain storage systems offers several significant benefits:

• Efficiency Enhancement: Gearboxes enable precise control over the speed and torque of the machinery handling the grains, such as elevators and conveyors. This precision leads to more efficient operation, reducing energy consumption and increasing throughput.
• Durability and Reliability: Designed to withstand the harsh conditions of agricultural environments, these gearboxes are built with robust materials that resist wear and tear from abrasive grains and dust. Their durability ensures long-lasting performance with minimal maintenance requirements.
• Improved Safety: By providing stable and controlled movement of grain handling equipment, these gearboxes reduce the risk of mechanical failures that could lead to accidents. Stable operations ensure that the machinery works within safe parameters, protecting both the workers and the grain.
• Cost-Effectiveness: While the initial investment in a quality gearbox might be significant, the long-term savings in maintenance costs, reduced downtime, and improved energy efficiency make it a cost-effective solution for large-scale agricultural operations.
• Versatility: Grain storage gearboxes are adaptable to various types of machinery and can handle different grain sizes and types, making them versatile components in a variety of agricultural storage settings.
• Minimized Grain Damage: Smooth and controlled operation of grain handling equipment reduces mechanical stress on the grains, minimizing breakage and preserving the quality of the harvest during storage and transportation.

Common Applications of Grain Storage Gearbox for Grain Storage

Grain storage gearboxes are utilized in various applications within the grain storage and handling industry, essential for the efficient and safe processing of agricultural products. Here are some common applications:

1. Grain Elevators: Gearboxes are crucial in operating the bucket elevators that lift grain from ground level to the top of storage silos or bins. They provide the necessary torque and control to manage the speed at which the buckets move, ensuring smooth and continuous operation.
2. Conveyors: In conveyor systems used to transport grain horizontally or at an incline across different parts of a storage facility, gearboxes play a vital role. They adjust the conveyor speed as required, depending on the type of grain being moved and the distance covered.
3. Augers: These are used to move grain into or out of storage areas. Gearboxes help in managing the auger's rotational speed, optimizing the handling process to prevent damage to the grains and ensure efficient transfer.
4. Fans and Ventilation Systems: In grain storage, maintaining air quality and temperature is crucial to prevent spoilage. Gearboxes are used in the systems that drive fans for aeration, helping to control the environment within grain silos.
5. Unloaders: Gearboxes are employed in the operation of unloading systems that remove grain from silos or bins. They provide the mechanical force needed to drive the mechanisms that either sweep or vacuum the grain from the storage facilities.

Key Components of Grain Storage Gearbox for Grain Storage

Grain storage gearboxes are complex assemblies designed to meet the demanding needs of agricultural applications. Key components that make up these gearboxes include:

• Housing: Typically made from cast iron or steel, the housing provides structural support and protection for the internal components of the gearbox. It also serves as a framework for mounting the gearbox onto other machinery.
• Gears: The core components of the gearbox, gears are responsible for transmitting power from the drive motor to the machinery. They come in various shapes and sizes, including spur, helical, and bevel gears, each designed to handle different types of loads and operational speeds.
• Bearings: Bearings support the rotational movement of the gears and shafts within the gearbox. They reduce friction and wear, helping to increase the efficiency and lifespan of the gearbox.
• Shafts: Shafts transmit the rotational force from the input (motor or engine) to the gears. They are typically made of high-strength steel to withstand the torque and stress of operation.
• Seals: Seals are used to prevent the ingress of contaminants such as dust and moisture, which are prevalent in agricultural environments. They also help to retain lubricants within the gearbox, ensuring smooth operation and reducing maintenance needs.
• Lubrication System: Proper lubrication is crucial for the smooth operation and longevity of gearbox components. The lubrication system may include oil baths, grease, or forced lubrication mechanisms to maintain optimal lubrication of gears and bearings.
• Couplings: These components connect the gearbox to the motor or engine and to the machinery it drives. Couplings must accommodate misalignments and variations in thermal expansion between connected components.

Working Principle and Operation Process

The working principle and operation of a grain storage gearbox in agricultural grain storage involve several key steps that ensure the smooth and efficient transfer of mechanical power from the motor to the grain handling machinery. Here’s a detailed explanation of how these gearboxes function:

Working Principle

1. Power Input: The operation begins with the motor or engine providing mechanical power to the gearbox. This input is typically rotational energy that enters the gearbox through the input shaft.
2. Gear Engagement: Inside the gearbox, this rotational energy is transmitted through various gears. Depending on the design (spur, helical, bevel, etc.), these gears engage with each other to convert the speed and torque of the input power to the desired levels. The gear ratios – the sizes and numbers of teeth on each gear – determine the output speed and torque.
3. Torque Conversion: Gearboxes are primarily used to modify the torque and speed provided by the motor. By using different gear ratios, the gearbox can increase torque while reducing speed, or vice versa, depending on the needs of the specific application in the grain storage facility.
4. Power Output: The modified power is then transmitted through the output shaft, which connects to various grain handling equipment like conveyors, elevators, or augers, enabling them to operate at optimal speeds and efficiency.

Operation Process

1. Startup: When the grain handling process begins, the motor starts, sending rotational power to the gearbox. The operator can control the speed and direction of the motor, influencing the initial power input into the gearbox.
2. Transmission Through Gears: As the power flows through the gears, it is adjusted according to the gear ratios set within the gearbox. This step is crucial for adapting the power output to the specific requirements of the grain handling machinery, whether it needs high torque for lifting heavy loads of grain or higher speeds for rapid horizontal movement.
3. Output Delivery: The adjusted power exits the gearbox through the output shaft. This shaft then drives the mechanical components of the grain handling equipment, such as the belts on a conveyor or the chain in an elevator, moving the grain to its intended location.
4. Continuous Operation: Throughout the grain handling process, the gearbox continuously adjusts the power transmission to maintain efficient operation, regardless of variations in load or grain volume.
5. Maintenance and Monitoring: Regular checks and maintenance are necessary to ensure the gearbox operates efficiently. This includes monitoring lubrication levels, checking for wear and tear on gears and bearings, and replacing seals as needed to prevent contamination.

Common Troubleshooting of the Grain Storage Gearbox for Grain Storage

Troubleshooting grain storage gearboxes is essential for maintaining the efficiency and longevity of grain handling equipment. Here are some common issues that might arise with these gearboxes and how they can be addressed:

1. Excessive Noise or Vibration

• Causes: Misalignment of gears, bearing failure, or loose components.
• Solution: Check for alignment and tighten any loose parts. Replace worn or damaged bearings and re-align gears if necessary.

2. Gearbox Overheating

• Causes: Inadequate lubrication, excessive load, or environmental factors.
• Solution: Ensure the gearbox is adequately lubricated with the correct type of oil or grease. Check the load on the gearbox to make sure it is within designed limits. Improve environmental conditions such as ventilation or cooling if external heat is a factor.

3. Leakage of Lubricant

• Causes: Worn seals, overfilling, or damage to the gearbox housing.
• Solution: Replace seals and gaskets if they are worn or damaged. Ensure the correct amount of lubricant is used, avoiding overfilling.

4. Reduction in Performance Efficiency

• Causes: Wear and tear on gears, accumulation of dirt or debris, or aging components.
• Solution: Inspect gears for wear and replace them if needed. Clean the gearbox thoroughly to remove any contaminants. Consider refurbishing or replacing old components that can no longer perform efficiently.

5. Gear Slipping or Jamming

• Causes: Worn teeth, inadequate torque transmission, or improper gear engagement.
• Solution: Check gear teeth for wear and ensure they are properly engaging. Adjust the torque settings if necessary and replace any gears with worn or damaged teeth.

6. Unusual Oil Consumption

• Causes: Leaks, inefficient sealing, or oil degradation.
• Solution: Inspect for leaks and replace damaged seals. Check oil quality and replace if degraded.

We Also Offer Other Types of Agricultural Gearboxes

We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, corn headers gearboxes, fertilizer mixer gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, fertilizer seeder gearboxes, rotary rake gearboxes, cutting bar gearboxes, gearbox for hay tedders, etc.
