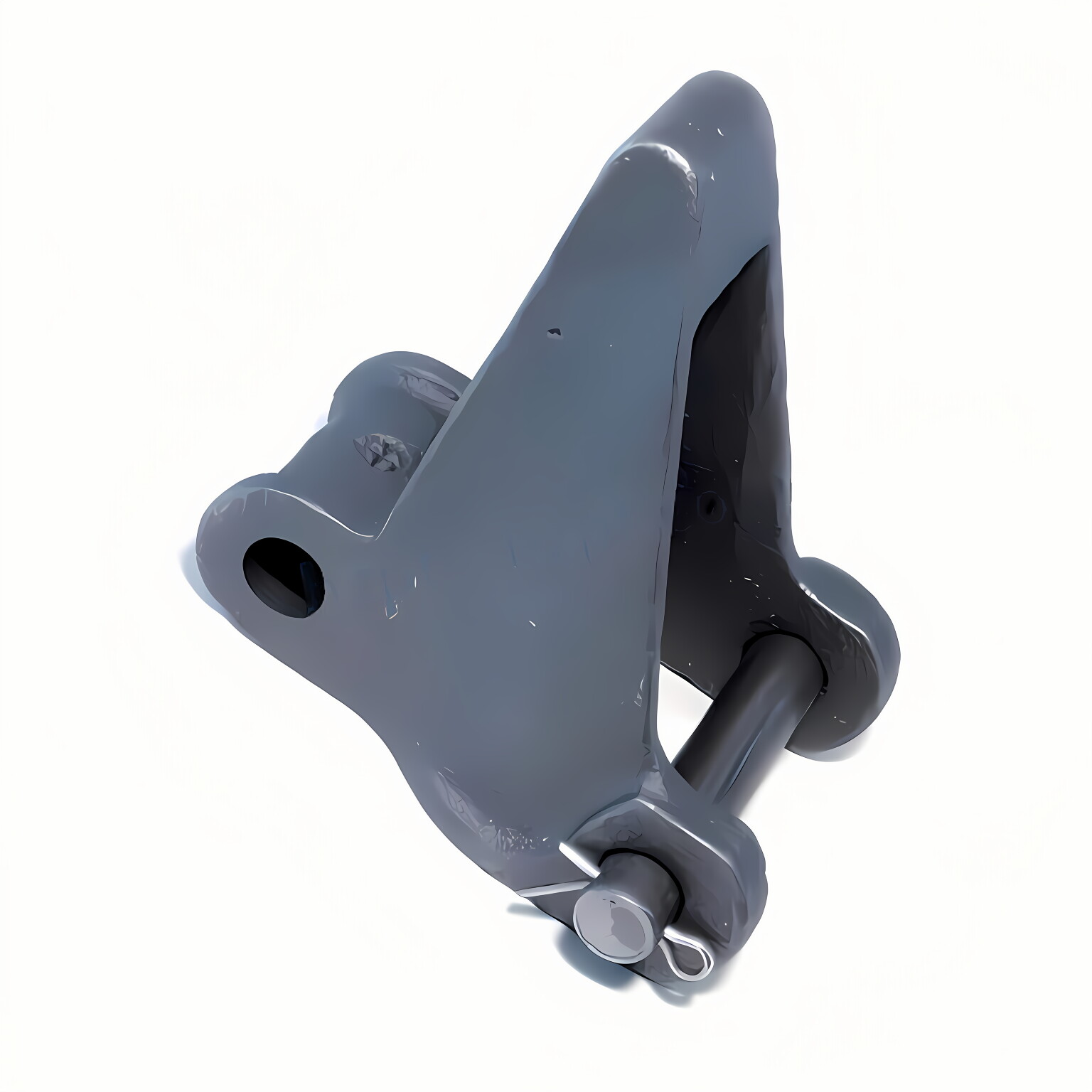

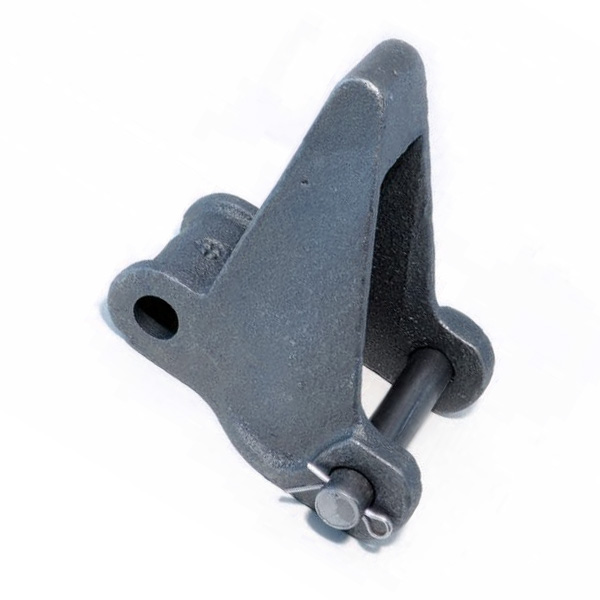

H Class Mill Chain with H2 Attachment H60-H2 H78-H2
  • H Class Mill Chain with H2 Attachment H60-H2 H78-H2H Class Mill Chain with H2 Attachment H60-H2 H78-H2

H Class Mill Chain with H2 Attachment H60-H2 H78-H2

Raydafon Group's H Class Mill Chain with H2 Attachment, including models H60-H2 and H78-H2, is a high-performance industrial chain designed for heavy-duty milling and conveying applications. Crafted from durable steel with advanced attachment technology, it offers superior strength and precision, reducing wear and downtime in demanding environments like manufacturing and construction. Ideal for professionals seeking reliable equipment, it ensures smooth, efficient operations and long-term cost savings. Its unique H2 attachment enhances stability and load capacity, setting it apart from competitors. Experience enhanced productivity and peace of mind—Raydafon Group delivers trusted quality for industrial excellence.

H60-H2 H78-H2 H Class Mill Chain with H2 Attachment

“H” Class Mill Chain is indeed a mighty, serviceable chain originally de-signed for hefty drives and transfer conveyor purposes in sawmills and the paper and pulp business. “H” Class Chain has proven itself for numerous other industrial applications, particularly for reasonable duty in abrasive atmospheres wherever a big, rugged chain is required.H Class Mill Chain with H2 Attachment H60-H2 H78-H2
H Class Mill Chain with H2 Attachment H60-H2 H78-H2

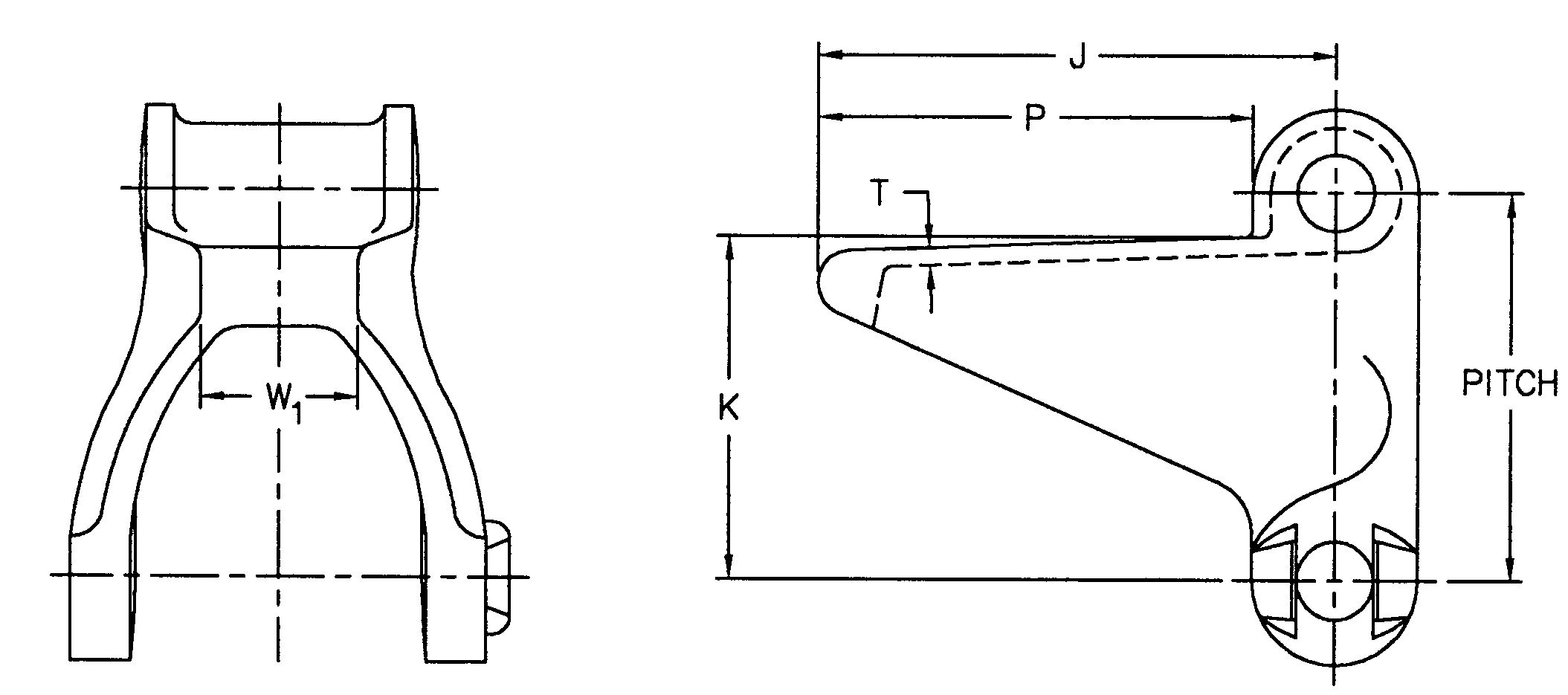

MOLINE ATTACHMENT NO.
DIMENSIONS IN DECIMAL INCHES
AVERAGE WEIGHT PER FOOT LBS.
PITCH
J
K
P
T
W1
H 60-H2
2.308
2.44
2.12
2.06
0.09
1.00
3.4
H 78-H2
2.609
3.50
2.31
2.94
0.12
1.06
6.5
H Class Mill Chain with H2 Attachment H60-H2 H78-H2

Company Information

Raydafon transmission group is a professional manufacturer of particular chains with large pitches. We have a complete chain production line, equipment selection, and process design that adhere to high efficiency, energy-saving, and automation, with perfect testing equipment, high-quality enterprise management, and professional technical personnel. We focus on the production, processing, and sales of the drive chains, particular chains, chain accessories, machinery parts, and so on, forming an "aluminum, fine, special, creative" separate chain development and production system. We have mastered the core technology of chain production and are proficient in core processing. All products are widely used in sugar, paper, cement, wood, food, mining, metallurgy, and other industries. We pay attention to the reputation of product quality through IS09001:2008 quality management system certification and obtain self-supporting, agent-related products and technology import and export business qualifications. Our products are exported to all provinces and cities in China, Europe, America, and Southeast Asia.
H Class Mill Chain with H2 Attachment H60-H2 H78-H2
H Class Mill Chain with H2 Attachment H60-H2 H78-H2
1. Large bell-type intelligent annealing furnace:
stable and reliable annealing quality and low energy consumption2. Mesh belt furnace:
first-class domestic mesh belt furnace heat treatment production line3. Multipurpose furnace:
Epson multipurpose furnace provides stable and reliable heat treatment quality4. ABB intelligent welding robot:
instead of manual completion of complex welding operations, the welding is beautiful, stable, and reliable
5. Automatic hot riveter:?the self-developed automatic assembly line of welding chain can replace manual to realize automatic outcrop and hot riveting, with stable products, high precision, and high efficiency6. Induction quenching equipment:?the self-developed semi-automatic induction quenching equipment successfully realizes selective (local) induction quenching of pin shaft and induction quenching of sprocket teeth7. Programmable gantry cutting machine:?it has the functions of plasma cutting and flame cutting8. CNC machining center:?CNC vertical machining center and CNC horizontal machining center, which meet the processing of high-precision molds and products
