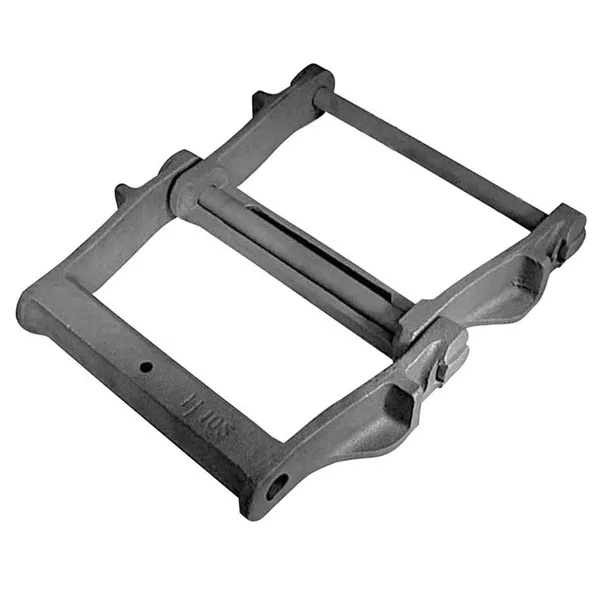

H102 Refuse Drag Chain

H102 Refuse Drag Chain

The H102 Refuse Drag Chain is a drag chain that consists of a series of interconnected links or plates that form a flexible chain. These chains are typically made of high-strength materials such as steel or reinforced polymers to withstand the demanding conditions of waste handling environments. The H102 Refuse Drag Chain is designed to resist abrasion, impact, and corrosion, ensuring a long service life.The primary function of the H102 Refuse Drag Chain is to transport waste materials along a specified path. It is commonly used in waste processing facilities, recycling plants, and incineration plants to move bulky items like municipal solid waste, construction debris, or industrial refuse. One of the key advantages of the H102 Refuse Drag Chain is its ability to effectively handle heavy loads and withstand the impact of sharp or abrasive waste materials. The design of the chain allows for smooth and efficient movement, reducing the risk of jams or blockages in the waste-handling process.

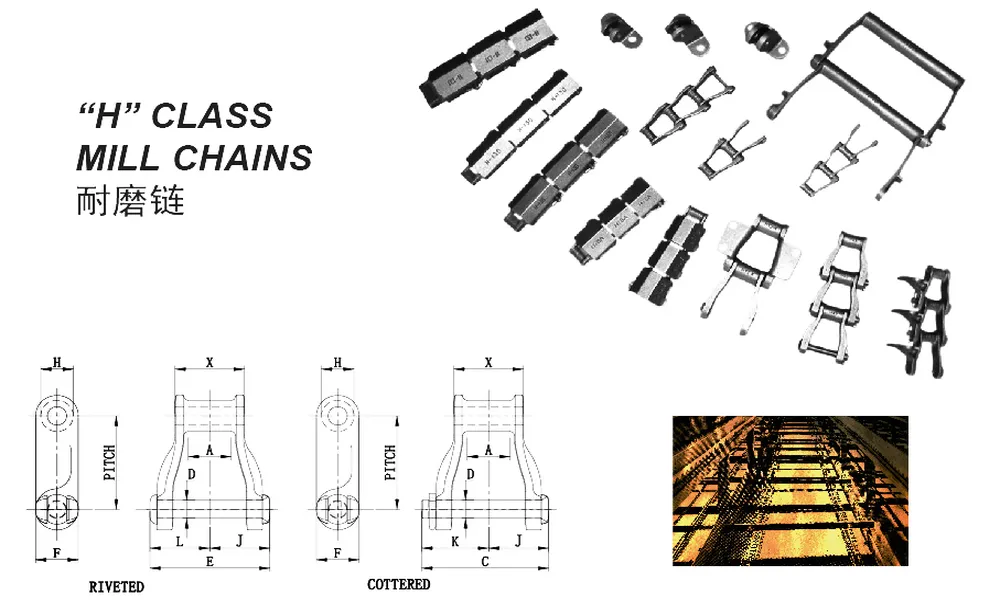

H102 Refuse Drag Chain Dimensions:

H102 Refuse Drag Chain Dimensions in Inches:

Chain No.	H102 Refuse Drag Chain
Pitch in Inches	5.000
Weight Per Foot LBS.	17.10
Average Ultimate Strength LBS.	36400
Maximum Working Load LBS.	6100
A	6.38
D	0.625
E	9.75
F	1.50
Ne	9.75
X	7.75
Available Attachments	None

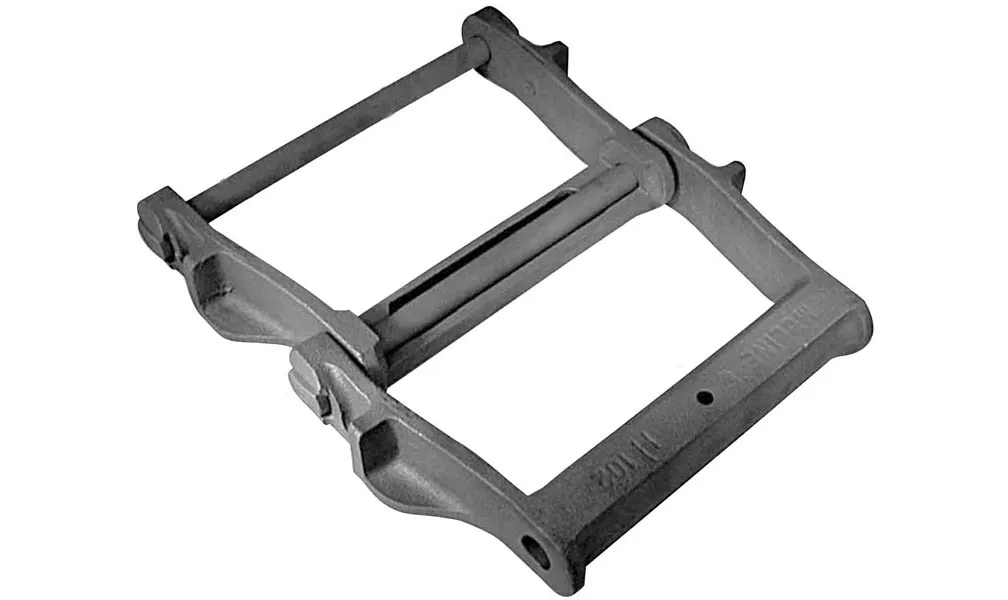

H102 Refuse Drag Chain Features:

The H102 Refuse Drag Chain offers several features that make it a reliable and efficient solution for waste management and recycling applications. Here are some key features of the H102 Refuse Drag Chain:1. Robust Construction: The H102 Refuse Drag Chain is constructed using high-strength materials such as steel or reinforced polymers. This ensures excellent durability and resistance to abrasion, impact, and corrosion, even in harsh waste handling environments.2. Heavy Load Capacity: The H102 Refuse Drag Chain is designed to handle heavy loads commonly associated with refuse and bulky waste materials. It can withstand the weight and impact of large items, preventing chain failure or damage.3. Flexible and Articulated Design: The H102 Refuse Drag Chain features a flexible and articulated design, allowing it to traverse curved or irregular paths with ease. This flexibility ensures smooth movement and reduces the risk of jams or blockages during waste transportation.4. Enhanced Safety Features: The H102 Refuse Drag Chain may include safety features such as built-in sensors or monitoring systems. These features help detect abnormalities in chain tension, misalignment, or excessive load, allowing for timely intervention and preventing potential accidents or equipment damage.5. Easy Maintenance: The H102 Refuse Drag Chain is designed for easy maintenance. It may include quick-connect links or removable plates, facilitating quick and convenient access for inspection, cleaning, or repairs.6. Compatibility with Waste Handling Equipment: The H102 Refuse Drag Chain is designed to be compatible with various waste-handling equipment, such as conveyor systems or sorting machines. It can seamlessly integrate into existing waste management infrastructure, enhancing overall operational efficiency.

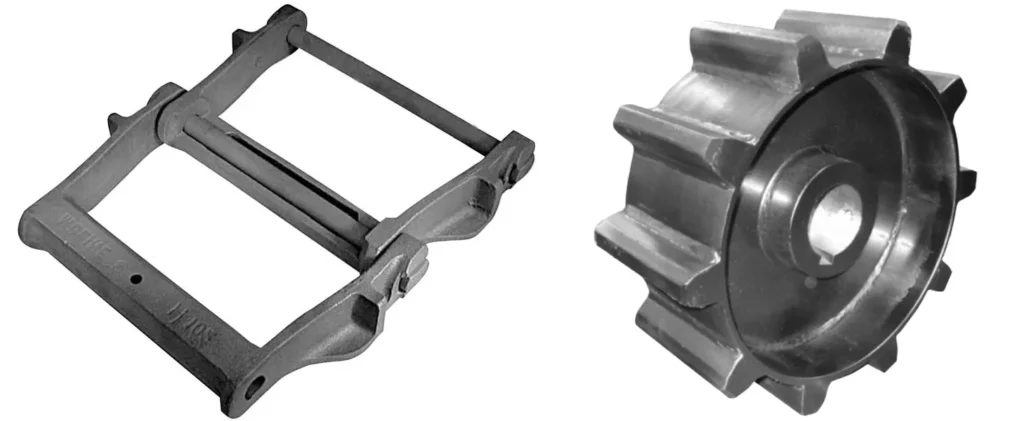

H102 Chain Sprockets for H102 Refuse Drag Chain:

H102 chain sprockets and H102 refuse drag chains are used in a variety of applications where a strong, durable chain is needed to convey abrasive materials. These chains are typically used in refuse collection, waste handling, and material processing industries.

H102 chain sprockets are made of high-quality steel and are designed to withstand the rigors of heavy-duty use. The chain sprockets have a wide face and rounded teeth that provide good traction for the chain, even when conveying wet or sticky materials. The sprockets are also designed to be easy to lubricate, which helps to prolong their life.

H102 refuse drag chains are made of high-tensile steel and have a large, open design that allows them to convey large quantities of material. The chains are also equipped with wear shoes that help to protect them from damage. H102 refuse drag chains are available in a variety of pitches and lengths to suit different applications.

Here are some of the causes of H102 chain sprocket failure and damage:

• Misalignment:?If the chain and sprockets are not aligned properly, it can cause premature wear and damage to both components.
• Lack of lubrication:?A lack of lubrication can cause the chain and sprockets to wear out faster.
• Overloading:?Overloading the chain and sprockets can also cause premature wear and damage.
• Corrosion:?Corrosion can weaken the chain and sprockets, making them more susceptible to damage.
• Improper installation:?Improper installation can also cause premature wear and damage to the chain and sprockets.
