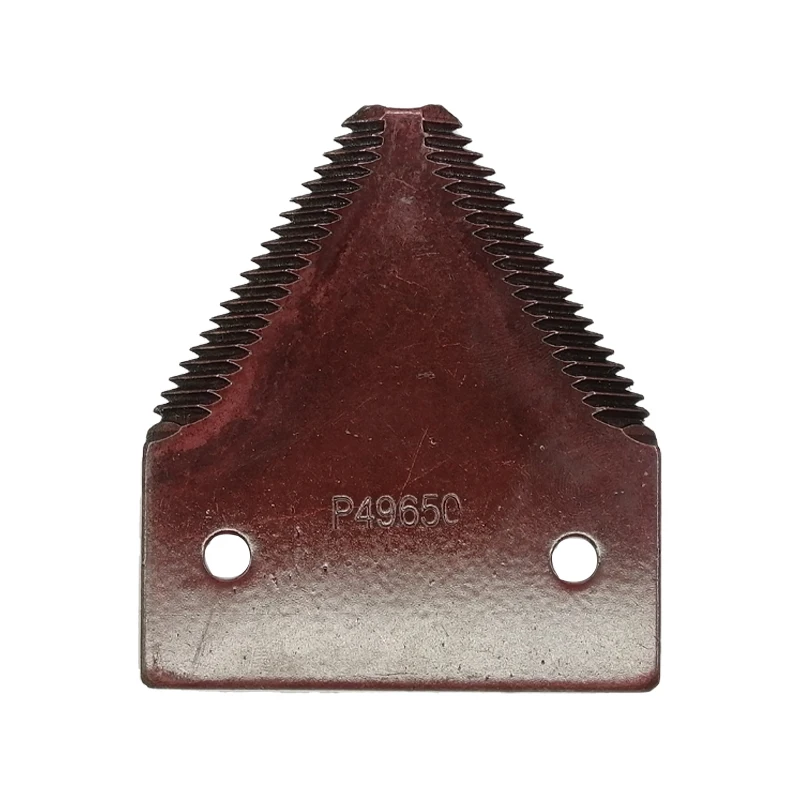

Harvester knife section for cnh 604800

Harvester Knife Section for CNH 604800

Material:	65Mn or T9
Hardness:	HRC50-55, Induction hardening process guarantees long wear
Thickness:	2.00-2.8mm
Teeth:	Pressing or MillingUpper serrated and under serrated knife sections with any special teeth number
Surface:	Only with anti-rust oil; varnish stoving; galvanized; Chrome finish; blueing, etc,Different surface treatment to protect against corrosion
Colors:	natural varnished, red or green varnish, chromated sections or as requested
Use:	All kinds of knife sections suitable
Other advantage	End section / half section, which reduces troublesome cutter bar clogging in thick and badly tangled crops

Introduction

The harvester knife section is an essential component of a combine harvester that helps with cutting crops. It is responsible for creating a clean and smooth cut on the crops, making it easier to collect and transport the crops. The harvester knife section is located in the harvester's cutting mechanism and plays a crucial role in ensuring a successful harvest.

Our Product

Our company produces high-quality harvester knife sections that can replace most brands' commonly used models. We also offer customization options to meet your specific needs. Our advantages include:

• High-quality materials
• Competitive pricing
• Excellent customer service

Compatible Harvester Brands and Models

We can adapt our harvester knife sections to fit most common harvester brands and models. Below is a table of some of the compatible brands and models:

Brand	Model
CNH	604800
John Deere	S780
Case IH	Axial-Flow 9240

Other Agricultural Machinery Parts

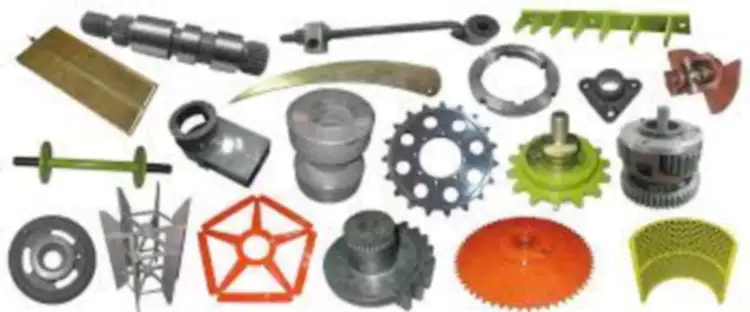

In addition to harvester knife sections, we offer a wide range of agricultural machinery parts, including:

• Agricultural chains
• Agricultural gearbox
• Pulley
• Sprocket
• Coupling
• pto shaft
• Concave

Commonly Worn Harvester Parts

Harvesters have several parts that are susceptible to wear and tear. Below are some of the most commonly worn parts:

1. Knife blades/cutting mechanism parts: This includes the primary cutting blade, guard plate, and cutting blade drive belt.
2. Threshing drum and concave
3. Sieve net and cleaning fan blades
4. Conveyor chains and sprockets
5. Rubber tracks or tires
6. Hydraulic components: This includes hydraulic cylinders, hoses, and seals.
7. Bearings
8. Filters: Air filters, fuel filters, and oil filters.

Here is an image of a combine harvester with labels pointing to some of the worn parts:

Signs That Replacement Parts are Needed

Here are some signs that indicate it's time to replace specific harvester parts:

1. Poor harvesting results: If there are too many crop residues after harvesting or the grains aren't separated cleanly, it may indicate severe wear on the threshing drum and concave.
2. Decreased power or overheating: If the engine's power decreases, or the operating temperature rises, it may indicate an air filter blockage that affects air intake or a cooling system malfunction. Consider replacing the air filter element or inspecting and repairing the cooling system.
3. Reduced harvesting efficiency: If the cutting mechanism runs slowly or the material conveying speed slows down, it may indicate that the drive belt is worn and slack, the chain is stretched, or the drive gear is worn. Check and replace the corresponding belt, chain, or gear.
4. Difficulty in walking or increased noise: If it is a rubber track harvester, it may need a replacement if the track is loose or has obvious cracks. For tire harvesters, the tires need to be replaced if they are overly worn or burst. Additionally, if there is abnormal noise during travel, it may be due to bearing wear or damage. Replace the relevant bearings.
5. Unstable hydraulic system operation: If lifting and steering are sluggish or weak, it may be due to problems with hydraulic pumps, cylinders, valves, or sealing rings. Check and replace the corresponding parts.
6. Significant oil leakage: Whether it is engine oil, hydraulic oil, or fuel leakage, it indicates that the sealing ring is damaged or other parts are damaged. Find the leakage point promptly and replace the damaged sealing ring or part.

Author: Miya
