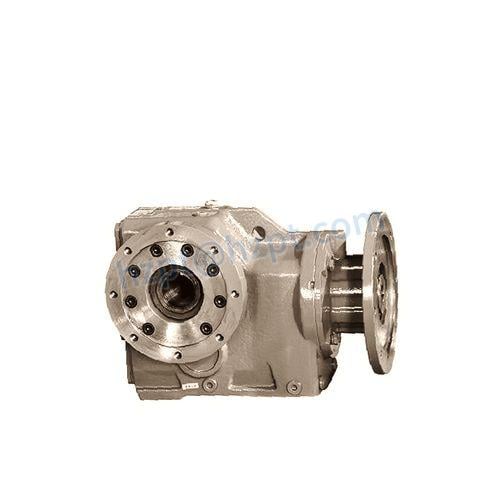

High Quality Helical Bevel Gearboxes

advantage:

1. High modular design2. High load support, stable transmission, and low noise.3. Good sealing, wide range of industry applications.4. High efficiency and power saving.5. Cost saving and low maintenance.

Main application:

1. Ports and Shipping2. Lifting and transporting3. Electricity4. Coal mining5. Cement and Construction6. Paper and Light Industry7. Chemical and environmental protection, etc.

Technical Data:

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	Accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	Tempering, cementing, quenching, etc.
Efficiency	94%~96% (depends on the transmission stage)
Noise (MAX)	60~68dB
Temp. Rise (MAX)	40°C
Temp. Rise (Oil)(MAX)	50°C
Vibration	≤20µm
Backlash	≤20Arcmin



Size	Solid Shaft Dia. (mm)	Hollow Shaft Dia. (mm)	Center Height (mm)	Output Flange Dia. (mm)	Power (kw)	Ratio	Permissible Torque (n.m)	Weight (kgs)
37	φ25k6	φ30h7	100	φ110/160	0.18-3.0	5.36-106.38	200	11
47	φ30k6	φ35h7	112	φ120/200	0.18-3.0	5.81-131.87	400	20
57	φ35k6	φ40h7	132	φ155/250	0.18-5.5	6.57-145.14	600	27
67	φ40k6	φ40h7	140	φ155/250	0.18-5.5	7.14-144.79	820	33
77	φ50k6	φ50h7	180	φ170/300	0.37-11.0	7.24-292.18	1550	57
87	φ60m6	φ60h7	212	φ215/350	0.75-22.0	7.19-197.18	2700	85
97	φ70m6	φ70h7	265	φ260/450	1.1-30.0	8.95-176.05	4300	130
107	φ90m6	φ90h7	315	φ304/450	3.0-45.0	8.74-141.46	8000	250
127	φ110m6	φ100h7	375	φ350/550	7.5-90.0	8.68-146.07	13000	380
157	φ120m6	φ120m6	450	φ400/660	11.0-160.0	12.65-150.41	18000	610
167	φ160m6	φ160m6	500	φ800	11.0-200.0	17.28-163.91	32000	1015
187	φ190m6	φ190m6	600	φ800	18.5-200.0	17.27-180.78	50000	1700

  Click and check out more products you're looking for.

Why choose us

1. Wide selection of reducers

Our company offers the widest range of standard and custom solutions for applications in motion control and mechanical transmission. We provide precision inline planetary gearboxes and right angle planetary gearboxes, 90 degree right angle servo motor gearboxes, harmonic drive gearboxes, RV reducers for robots, ground precision racks, and pinions, servo motors, stepper motors, brushless motor,s, etc. The company can also provide worm gear reducers, gear motors, screw jacks, steering gears, and other related reducer gearboxes and accessories. This means you can get what you want right here and benefit from our one-stop service, saving you time and money.

2. Attractive price and top brand quality

We offer our customers very attractive prices with good quality. Compared with other companies' gearboxes, our precision planetary gearboxes feature low backlash (2-8 arcmin), high efficiency (≥95%), and low noise (60dBA). All servo gearboxes produced by our famous brand will be strictly inspected and tested before leaving the factory. In addition, we provide customers with a one-year warranty and lifetime after-sales service.

3. All-round professional technical support

Don't worry if you don't know how to choose the right transmission for your machine. We have a professional technical team to serve you. As long as you follow our steps, you'll know how to choose the right size. After selecting the matching gearbox for your motor, we will send you the corresponding CAD drawing for your inspection to avoid any mistakes. We also offer 24-hour technical support if you have any other issues that need urgent resolution.

4. Provide customized service

If you need a custom gearbox for a unique application, we can provide custom service according to your requirements. We will provide you with reliable, high-performance custom gearboxes from small to large output torques. Please tell our sales engineer your detailed requirements and all the necessary dimensions you want. The more information you provide us, the more suitable we can design a custom transmission for you.

5. Fast delivery time

For most of the standard reducers, we have sufficient stock, which can be delivered to customers in a very short time, solve the problem of urgent replacement of damaged gearboxes on working machines, and save costs for customers. Also, if a customer needs a gearbox of a certain size urgently and we do not have it in stock, we can arrange priority production, especially for you.

6. Professional

As one of the leading bevel gearbox manufacturers, mechanical product suppliers, and factories, we supply angular contact worm gearbox, planetary gearbox, and many other products.
