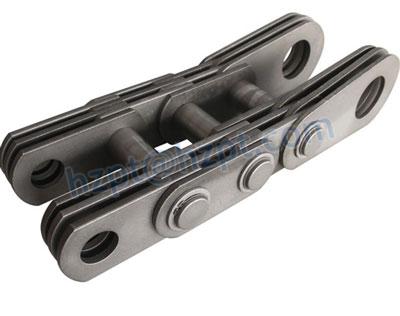

Hollow Pin Leaf Chains FL36

Hollow Pin Leaf Chains FL36

Hollow pin leaf chain is ideal for load lifting, lowering and dragging purposes. It is commonly used for oil machinery, as well as material handling equipment such as cranes and forklifts. A variety of sidebar combination versions are available, allowing buyers to choose the right type for the load. The hollow pin leaf chain has superb fatigue resistance and is suitable for frequent and repetitive operations.To suit different applications, the leaf chain components are heat treated to obtain higher hardness. Due to the ball sizing process, the pin holes are given permanent stress, which further increases the fatigue strength of the industrial chain.

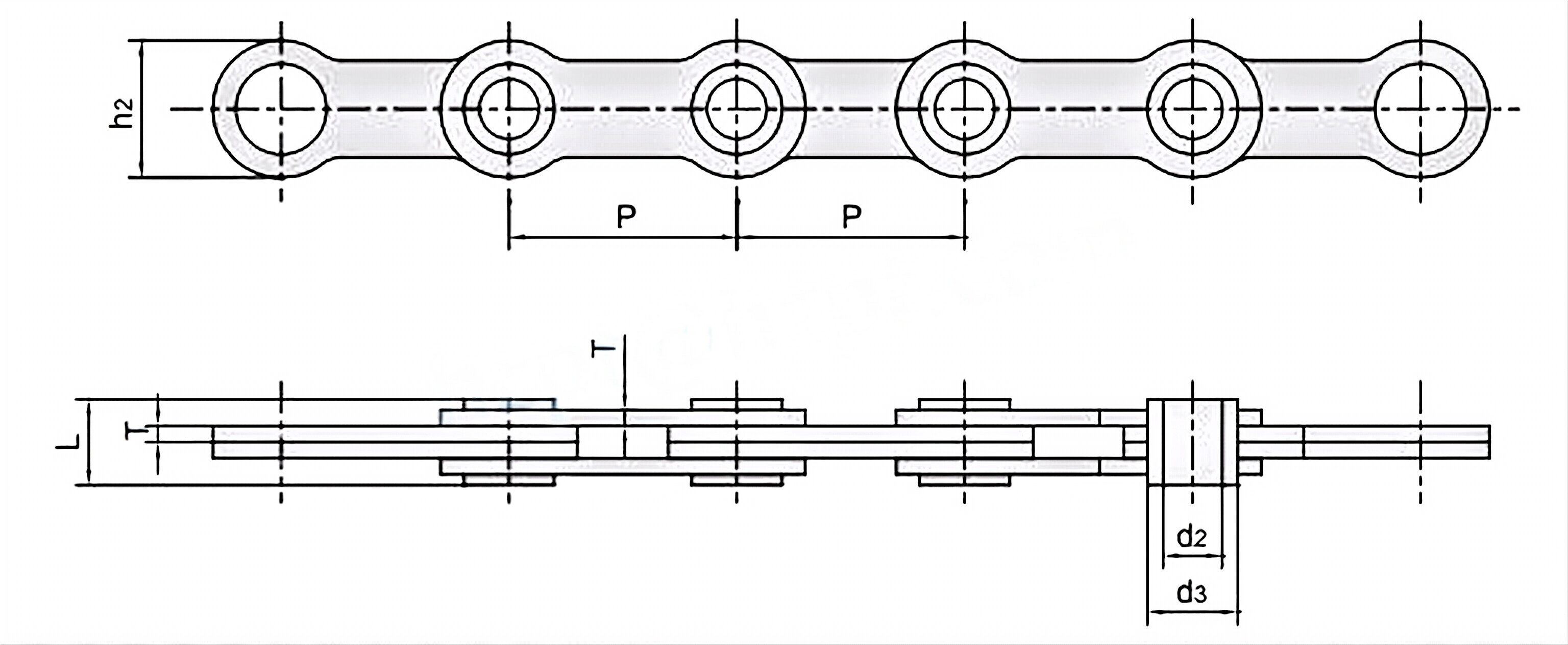

Specifications of FL36 Hollow Pin Leaf Chains

Chain No.	Pitch	Plate lacing	Plate depth	Plate thickness	Pin diameter		Pin length	Ultimate tensile strength	Average tensile strength	Weight per meter
	P		h2max	Tmax	d2 min	d3 max	Lmax	Qmin	Q0	q
	mm		mm	mm	mm	mm	mm	kN/lbf	kN	kg/m
FL36	36.513	2×2	22.3	2.03	10.2	14.4	12.0	20.0/4496	25.0	0.85
FL36F2	36.513	2×2	24.0	2.50	9.5	14.9	15.0	30.0/6744	37.5	1.19
FL36F3	36.513	2×2	24.0	2.50	10.0	14.9	15.0	30.0/6744	37.5	1.16
*FL36F4	36.513	2×2	23.6	2.60	8.2	11.0	16.6	15.0/3372	30.0	1.25
FL36F6	36.513	2×2	22.0	2.60	9.5	14.5	14.5	35.0/7868	37.5	1.15
FL36F7	36.513	2×2	22.4	2.60	9.6	13.0	14.7	31.0/6969	40.5	1.05
FL36F8	36.513	2×2	23.6	2.60	10.0	13.0	16.6	15.0/3372	30.0	1.25

Note: * means the hollow pin with bushing

Hollow Pin Leaf Chain Features

Stainless steel hollow pin leaf chains are widely used in the oil and gas industries. The steel pins have varying hardness and thickness, which makes them very durable. These transmission chains have tight tolerances, perfect quality, and can withstand the rigors of offshore applications. The stainless steel components of these chains are heat-treated for higher hardness and excellent fatigue resistance. They come in a range of sizes from single row to multi-row strands and are welded to conveying components.This chain type is a great option for many different applications. Its simple design makes it easy to install different attachments and is typically used in conveyors. The center distance between the sprockets and pins remains constant regardless of the pitch length of the chain. Hollow pin chains also do not expand or contract when the chains are bent. Hollow pin leaf chains are designed with the user in mind.The cross rod between two chains distributes the load evenly and reduces the risk of the chains twisting. Hollow pin leaf chains also have a lower maximum allowable tension compared to standard sprockets. Our hollow pin leaf chain features include durability, low maintenance, and easy assembly and disassembly. This type of leaf chain is also ideal for heavy loads, as its cross rods are made of stainless steel.
