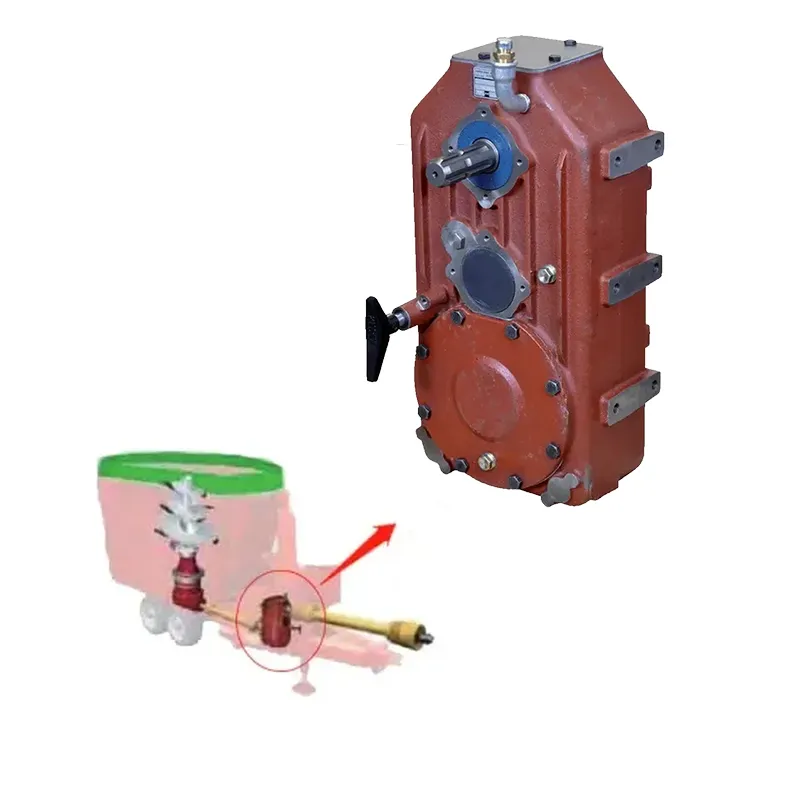

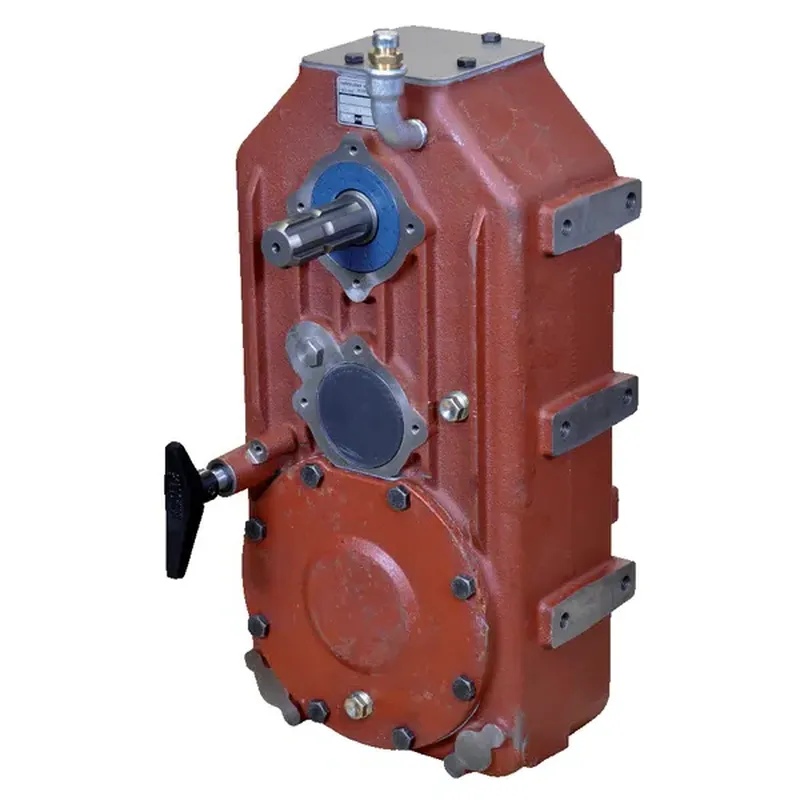

Horizontal Feed Mixer Gearbox-Replacement of Comer D732A Gearbox 1:1/1.93:1

The horizontal feed mixer gearbox replacement for the Replacement of Comer D732A gearbox is typically a component designed to handle the rigorous process of feed mixing in agricultural settings. This replacement gearbox is engineered to match the operational specifications and dimensions of the original Replacement of Comer D732A, ensuring compatibility and efficient performance. It features robust construction with high-quality gears and bearings that are capable of withstanding the heavy loads and continuous operation typical in feed mixing applications.The feed mixer gearbox is often made from durable materials like cast iron or steel, which provide longevity and resistance to wear and tear. It usually includes reinforced housings and precision-machined components to ensure smooth operation and minimal maintenance requirements. Additionally, the gearbox might come with customized gear ratios tailored to specific mixing tasks, enhancing the mixer’s efficiency and productivity. This replacement gearbox is crucial for maintaining optimal performance and preventing downtime in agricultural feed processing operations.

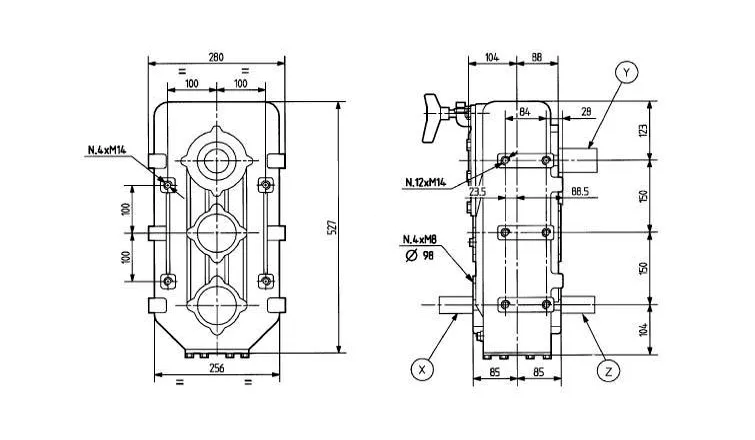

Feed Mixer Gearbox D732A 1:1/1.93:1 Dimensions

Product Specifications:

Product Description	Horizontal Feed Mixer Gearbox-Replacement of Comer D732A Gearbox 1:1/1.93:1
Product details	Contact us for power at a different RPM The gearbox is delivered without oil and must be filled before first use. First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year.

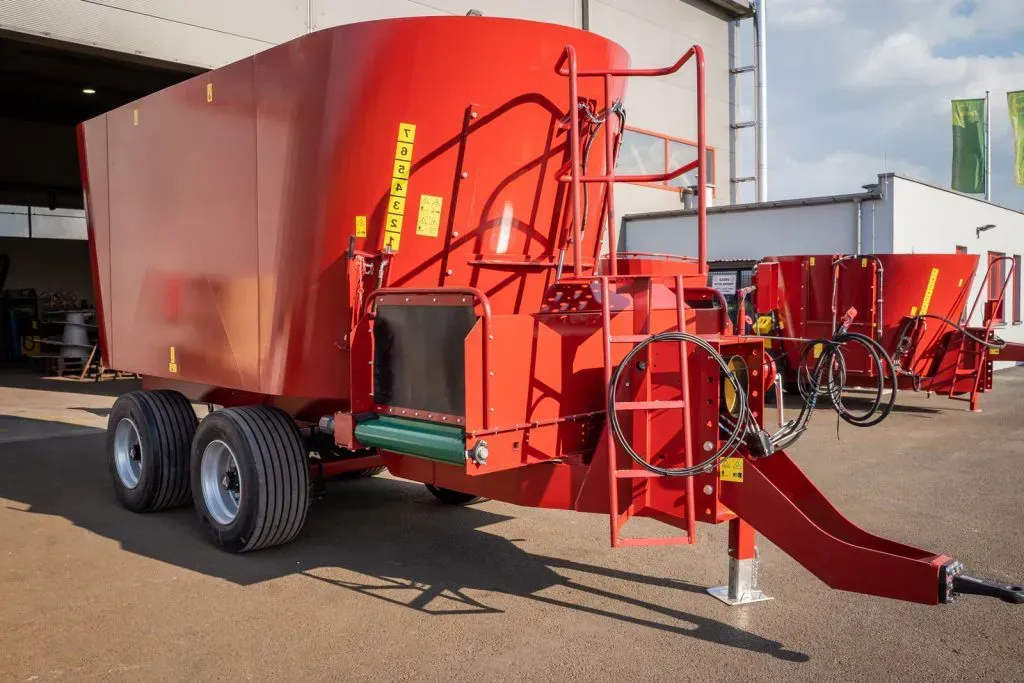

Application range	Mixing wagon
Ratio factor	1:1.93
Consists of	Gearbox Without oil
Max. input power	59 kW
Max. output power	80 HP
Connection 1 outside diameter	1-3/8 Inch
Connection 1 number of splines	6
Connection 2 outside diameter	60 mm
Contains oil	No
Max. oil capacity	5,6 l
Max. oil change interval	500 h
Oil SAE viscosity grade	80W-90
Housing material	Cast iron GG25
Weight	63 kg

Benefits of Using the Horizontal Feed Mixer Gearbox D732A 1:1/1.93:1

Using a horizontal feed mixer gearbox offers several benefits that enhance the efficiency and productivity of agricultural feed processing operations:1. Enhanced Mixing Efficiency: The gearbox enables the mixer to operate at optimal speeds, ensuring consistent and thorough mixing of ingredients. This results in a homogeneous mix, which is crucial for the proper nutrition and health of livestock.2. Increased Torque and Power Handling: These gearboxes are designed to handle high torque and power demands, which are common in feed mixing. They ensure that the mixer can process large volumes of feed without strain or overheating, thus maintaining operational integrity.3. Durability and Longevity: Constructed from robust materials like cast iron or steel, horizontal feed mixer gearboxes are built to last. They are designed to withstand the harsh conditions of farming operations, including exposure to dust, moisture, and continuous use.4. Reduced Maintenance Costs: With precision-engineered components and a sturdy build, these gearboxes require less frequent maintenance. This reliability helps reduce downtime and maintenance costs, contributing to more continuous production cycles.5. Versatility in Applications: Horizontal feed mixer gearboxes can be adapted to various mixing requirements by modifying gear ratios. This adaptability allows them to be used in different types of feed-mixing tasks, enhancing their utility in diverse agricultural settings.6. Noise Reduction: Advanced design and high-quality materials help in reducing the noise levels during operation. A quieter working environment is safer for operators and less disruptive overall.

Common Applications:

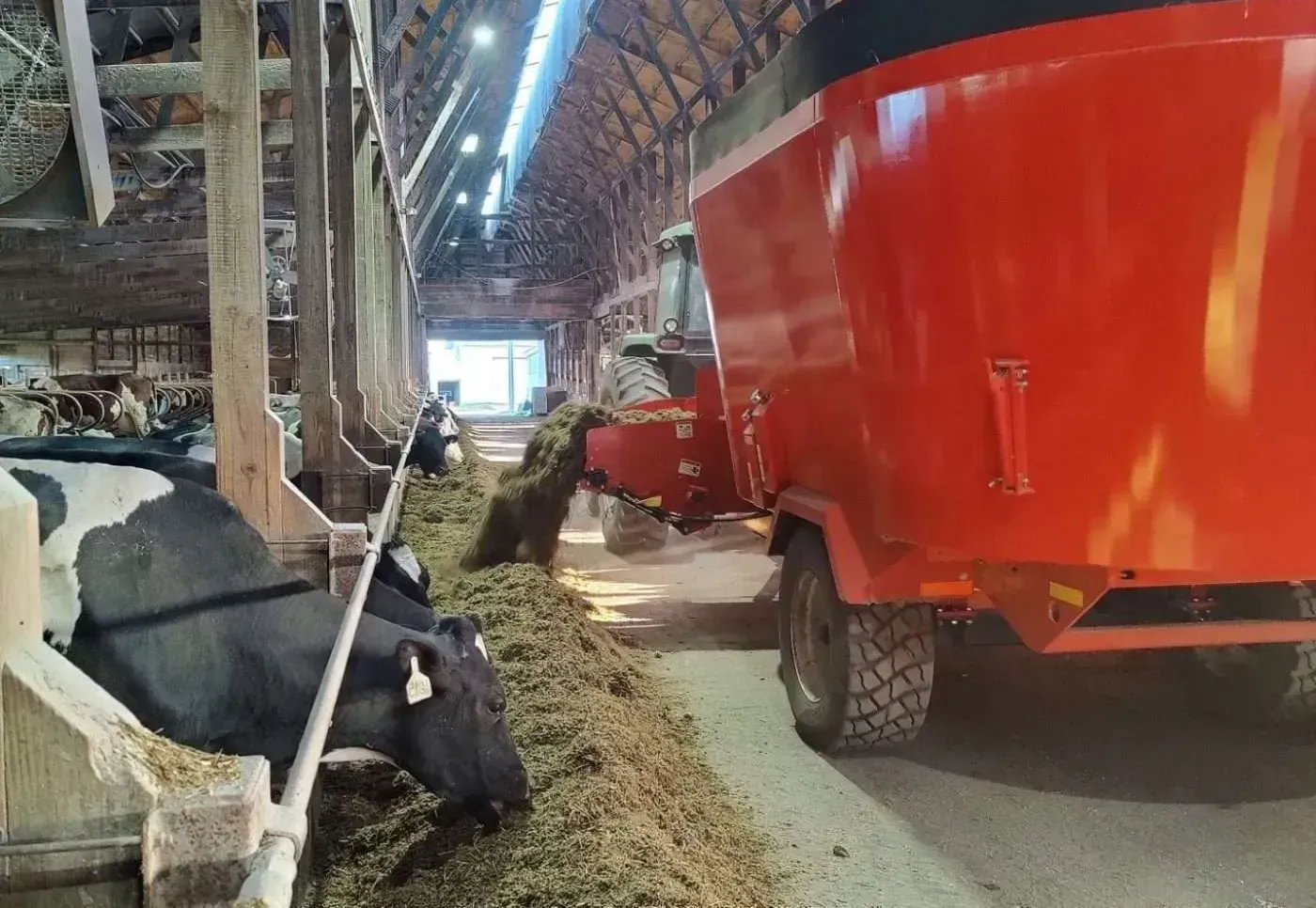

The PTO (Power Take-Off) driven horizontal feed mixer gearbox is versatile and widely used across various types of farming, each benefiting from its specific application. Here are some common applications across different farming sectors:(1) Dairy Farming

• Feed Preparation: Essential for mixing different types of feed ingredients like silage, hay, and grains to produce a balanced diet tailored for dairy cows, enhancing milk production and quality.
• Nutrient Consistency: Ensures that each mix is consistent, providing all animals access to the same nutritional value, crucial for maintaining the health and productivity of dairy herds.

(2) Sheep Farming

• Supplement Mixing: Used to thoroughly mix supplements and small-grain mixtures, which are important for the nutritional needs of sheep, especially in lambing and wool production.
• Batch Mixing: Allows for the preparation of large batches of feed, ensuring that all sheep receive a uniform diet, which is particularly important during different stages of growth and reproduction.

(3) Goat Farming

• Dietary Flexibility: Helps in preparing diverse diets goats require, which can include a mix of grains, forbs, and browse, tailored to their specific digestive needs.
• Feed Processing: Reduces the size and mixes the components more thoroughly, making it easier for goats to digest the feed, which is essential for their overall health and productivity.

(4) Equine Farming

• Feed Customization: Mixes various feeds and supplements required for horses, depending on their activity level, age, and health requirements, critical for maintaining energy levels and performance.
• Volume Handling: Capable of handling large volumes of roughage and grains, ensuring horses receive fibrous and energy-rich feeds necessary for their stamina and muscular health.

(5) Poultry Farming

• Uniform Feed Production: Ensures the homogeneity of feed mixtures, critical for poultry at different growth stages, impacting their development and the quality of poultry products like meat and eggs.
• Time Efficiency: Enables quick and efficient mixing of large quantities of feed, which is essential in large-scale poultry operations to meet the continuous demand for feed.

How Does the Tractor PTO Driven Horizontal Feed Mixer Gearbox Work?

The tractor PTO (Power Take-Off) driven horizontal feed mixer gearbox is a key component in mechanized farming operations, especially in the mixing of feed for livestock. Here’s how it works in a detailed, step-by-step manner:1. Power Source Connection: The gearbox is connected to a tractor through the PTO shaft. The PTO is a splined driveshaft, usually positioned at the rear of the tractor, that transfers the power from the tractor’s engine to the attached implement—in this case, the feed mixer.2. Transmission of Power: When the tractor is turned on and the PTO is engaged, the engine’s power is transmitted through the PTO shaft to the gearbox. The rotational power of the tractor's engine is thus harnessed to drive the mixer.3. Speed and Torque Conversion: Inside the gearbox, this rotational power may undergo modifications in speed and torque through a series of gears. Depending on the design of the gearbox, it can increase torque while reducing speed, which is necessary for the heavy-duty mixing action required in feed preparation.4. Driving the Mixing Mechanism: The output shaft of the gearbox is connected to the mixing mechanism of the feed mixer. This can be a series of paddles or augers situated within a horizontal mixing chamber. The gearbox ensures that these paddles or augers rotate at the optimal speed and torque.5. Mixing the Feed: As the mixing mechanism rotates, feed ingredients that are loaded into the mixer are stirred, tossed, and combined. The horizontal layout and rotary action ensure that the mix is uniform and thorough, preventing any ingredient from settling or clumping unevenly.6. Control and Adjustment: Operators can control the speed of the mixing process by adjusting the throttle of the tractor. Some gearboxes also come with settings to adjust the output speed and torque, allowing for customization based on the type of feed being mixed and the desired consistency.

Common Troubleshooting:

Troubleshooting a PTO (Power Take-Off) driven horizontal feed mixer gearbox involves diagnosing and addressing common issues that may arise during its operation. Here are some typical problems and their potential solutions:

1. Excessive Noise or Vibration:
   • Cause: Worn out or improperly aligned gears, loose components, or damaged bearings.
   • Solution: Check and replace any worn gears or bearings. Ensure all components are tightened and correctly aligned according to the manual’s specifications.
2. Gearbox Overheating:
   • Cause: Insufficient lubrication, overloading, or prolonged use without breaks.
   • Solution: Ensure the gearbox is adequately lubricated with the correct type of oil and at the right levels. Avoid overloading the mixer beyond its capacity and allow periodic breaks during extensive use to prevent overheating.
3. Reduced Mixing Efficiency:
   • Cause: Dull or damaged mixing blades, accumulation of feed material in the mixer, or gearbox not reaching optimal speeds.
   • Solution: Inspect and replace any damaged or worn mixing blades. Clean the mixer thoroughly to remove any clogged material. Check the gearbox settings and adjust the PTO speed to ensure it is operating within the recommended range.
4. Leakage of Gearbox Oil:
   • Cause: Damaged seals or gaskets, loose oil plugs, or cracks in the gearbox housing.
   • Solution: Replace damaged seals or gaskets promptly. Tighten any loose oil plugs and inspect the housing for cracks. In the case of serious damage, professional repair or replacement may be necessary.
5. PTO Shaft Problems:
   • Cause: Improper attachment, wear and tear on the shaft or joints, or misalignment.
   • Solution: Ensure the PTO shaft is correctly attached and securely fastened. Replace worn or damaged components. Check for proper alignment between the tractor and the mixer to prevent undue stress on the shaft.
6. Difficulty in Engaging or Disengaging PTO:
   • Cause: Maladjustment of linkage, lack of lubrication, or mechanical failure.
   • Solution: Adjust the PTO linkage as per the tractor’s manual. Lubricate the moving parts if necessary. If the problem persists, inspect for broken or failed components and replace them.

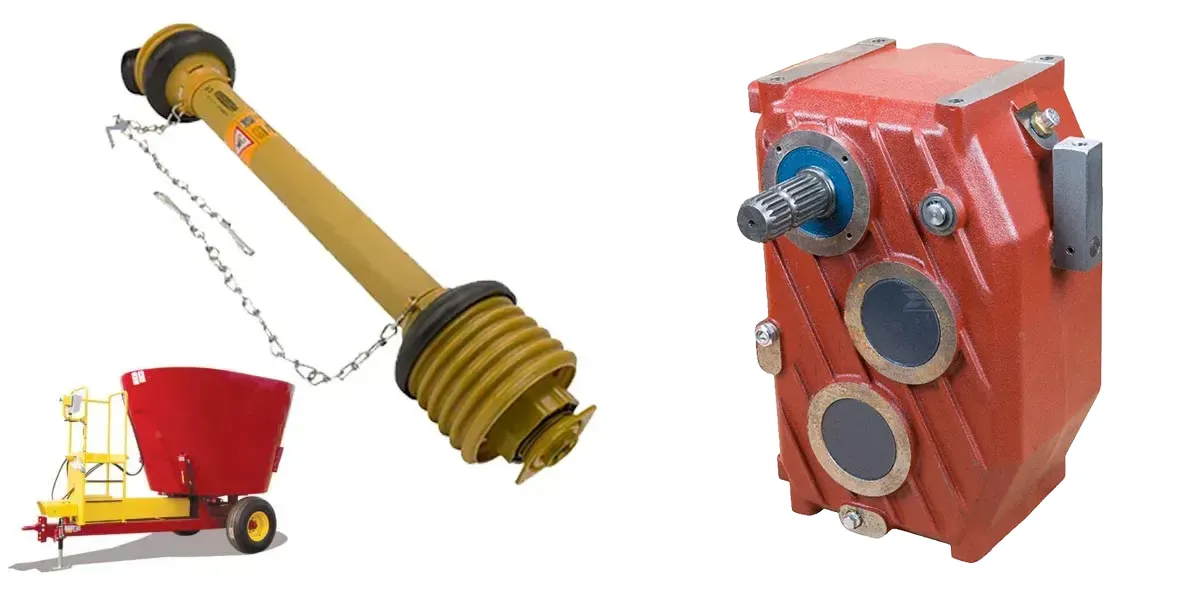

Choose the Right PTO Shaft for the Horizontal Feed Mixer Gearbox

Choosing the right PTO (Power Take-Off) shaft for a horizontal feed mixer gearbox is essential for safe and efficient operation. Here’s a detailed guide to help you select the best PTO shaft for your needs:1. Determine the Correct Length: Measure the distance between the PTO output on the tractor and the input on the feed mixer gearbox when both are positioned for normal operation. Ensure that the shaft length allows for some movement between the tractor and mixer without becoming disengaged or overly compressed. Consider any positional adjustments that may occur during operation.2. Verify the Torque and Power Requirements: Check the power and torque specifications required by the feed mixer gearbox and ensure the PTO shaft can handle these requirements. The PTO shaft must be capable of transmitting the maximum power and torque output of the tractor without risk of damage or excessive wear.3. Choose the Correct Spline Configuration: Match the spline configuration of the PTO shaft to the tractor’s PTO output and the mixer gearbox input. Common spline sizes are 6, 21, and 1000 spline configurations, which refer to the number of teeth on the spline. A correct fit ensures efficient power transmission and reduces wear.4. Assess the Shaft’s Safety Features: Ensure that the PTO shaft comes with adequate safety shields to cover the rotating parts. These shields prevent clothing or body parts from becoming entangled in the shaft, which is critical for operator safety. Regularly inspect and maintain these shields to keep them functional.5. Evaluate Build Quality and Durability: Opt for a PTO shaft that is constructed from high-strength, durable materials capable of withstanding the environmental and operational stresses expected in agricultural settings. A well-built shaft will have robust yokes and universal joints that can handle the flexing and angular changes typical in field operations.6. Check for Compatibility and Ease of Connection: The PTO shaft should easily connect and disconnect from both the tractor and the mixer gearbox. This ease of use is crucial for setups that are frequently attached and detached. Also, check that the locking mechanisms are secure and straightforward to operate, reducing setup time and increasing productivity.

Horizontal Feed Mixer Gearbox Manufacturers

Raydafon is a leading manufacturer of high-performance horizontal feed mixer gearboxes. Our horizontal feed mixer gearboxes are a powerful replacement option for Replacement of Comer Industries, Replacement of Bondioli & Pavesi, Brevini, Kuhn, Storti, Trioliet, Jaylor, Schuler, and other brands of gearboxes. Our technical staff can reconfigure an existing design or assist you in designing a custom horizontal feed mixer gearbox if a standard or existing design does not fit your application. Shaft rotation, speed ratio, input speed, output speed, input torque, output torque, mounting position, and the application's environment are all considerations when choosing a horizontal feed mixer gearbox.We can also offer many types of agricultural gearboxes and PTO shafts, such as rotary cutter gearboxes, rotary tiller gearboxes, feed mixer gearboxes, lawn mower gearboxes, fertilizer spreader gearboxes, flail mower gearboxes, post hole digger gearboxes, round baler gearboxes, square baler gearboxes, irrigation reels gearboxes, manure spreader gearboxes, rotary rake gearboxes, etc. If you want to buy a horizontal feed mixer gearbox, please get in touch with us.
