Hydraulic Press Front Side Shift Cylinder

Hydraulic Press Front Side Shift Cylinder

The hydraulic press front side shift cylinder is a crucial component in hydraulic presses used for various industrial applications. It is designed to provide controlled lateral movement or shifting of the pressing tool or die on the front side of the press.The front side shift cylinder is typically mounted on the frame of the hydraulic press and connected to the pressing tool. It consists of a cylindrical housing, a piston, and a piston rod. The housing contains hydraulic fluid, which is pressurized by a hydraulic power unit connected to the press.When hydraulic pressure is applied to the front side shift cylinder, it creates a force that moves the piston and piston rod in a linear motion. This movement translates into lateral shifting of the pressing tool, allowing for precise positioning and alignment during the pressing operation.The front side shift cylinder offers several advantages in hydraulic press applications. It enables quick and accurate adjustments of the pressing tool, minimizing setup time and increasing productivity. It also enhances safety by providing controlled movement, reducing the risk of accidental tool misalignment or damage.Furthermore, the hydraulic press front side shift cylinder allows for flexibility in accommodating different sizes and shapes of workpieces. It enables the press operator to easily position the tool to match the specific requirements of the workpiece, facilitating efficient and precise manufacturing processes.

Hydraulic Press Front Side Shift Cylinder Specifications:

Product Name	Hydraulic Press Front Side Shift Cylinder
Features:	Move the blank or workpiece horizontally
Plunger:	80mm～240mmStroke≤300 mm
Thrust force:	Maximum 1130KN(Plunger 240mm/pressure25MPa)
Front Side Shift Cylinder Applications:	Hydraulic Press

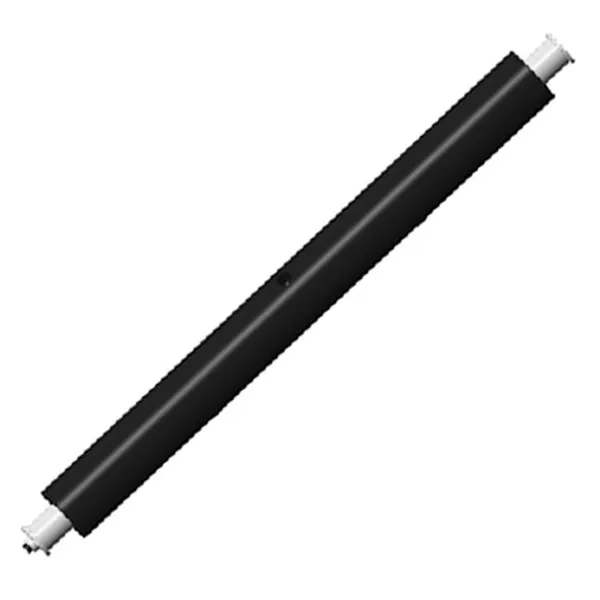

Hydraulic Press Front Side Shift Cylinder Parts:

A hydraulic press front side shift cylinder is a type of hydraulic cylinder that is used in hydraulic presses. It is a double-acting cylinder, which means that it can extend and retract. The cylinder is mounted on the front side of the press, and it can be shifted to either side of the press bed. This allows the press to be used for a variety of tasks, such as bending, punching, and stamping.

The hydraulic press front side shift cylinder is made up of the following components:

• A cylinder barrel: This is the main body of the cylinder. It is made of steel and is hollow.
• A piston: This is the moving part of the cylinder. It is made of steel and is fitted with a piston rod.
• A piston seal: This is a rubber seal that prevents fluid from leaking from the cylinder.
• A hydraulic fluid reservoir: This is a tank that stores the hydraulic fluid.
• A hydraulic pump: This is a device that pumps the hydraulic fluid into the cylinder.
• A control valve: This is a device that controls the flow of hydraulic fluid into and out of the cylinder.

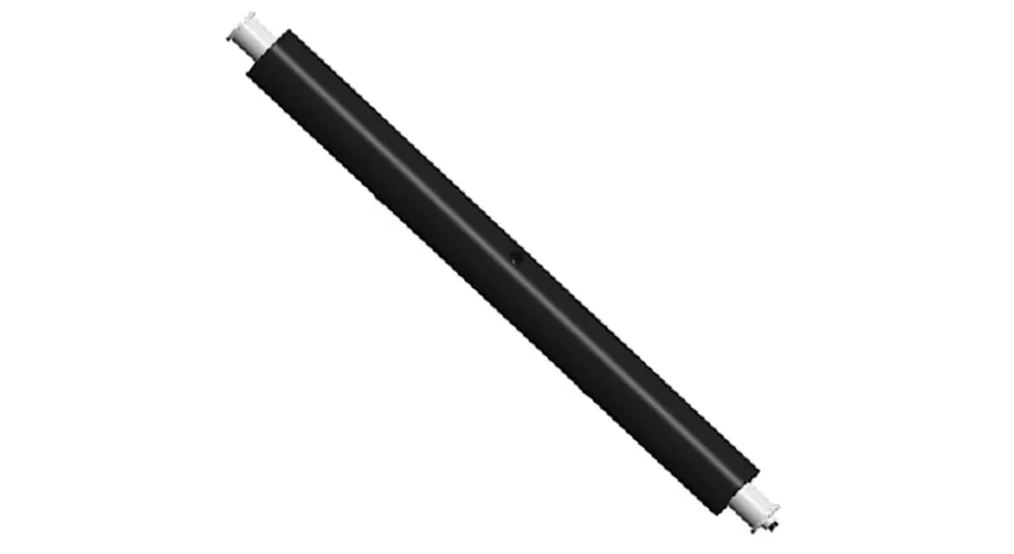

Hydraulic Press Front Side Shift Cylinder Features:

A hydraulic press front side shift cylinder is a type of hydraulic cylinder that is used to move the ram of a hydraulic press from side to side. This allows the ram to be positioned over a wider range of workpieces, making it more versatile than a standard hydraulic cylinder.

The main features of a hydraulic press front side shift cylinder are:

• A double-acting piston that can be extended and retracted by hydraulic fluid.
• A piston rod that is connected to the ram of the hydraulic press.
• A shift mechanism that allows the piston rod to be moved from side to side.
• A mounting bracket that secures the cylinder to the hydraulic press.

The shift mechanism of a hydraulic press front side shift cylinder can be either manual or hydraulic. Manual shift cylinders are operated by a handwheel or lever, while hydraulic shift cylinders are operated by a hydraulic pump.

Hydraulic press front side shift cylinders are available in a variety of sizes and capacities. The size of the hydraulic cylinder is determined by the force that it needs to exert, and the capacity is determined by the amount of work that it needs to do.

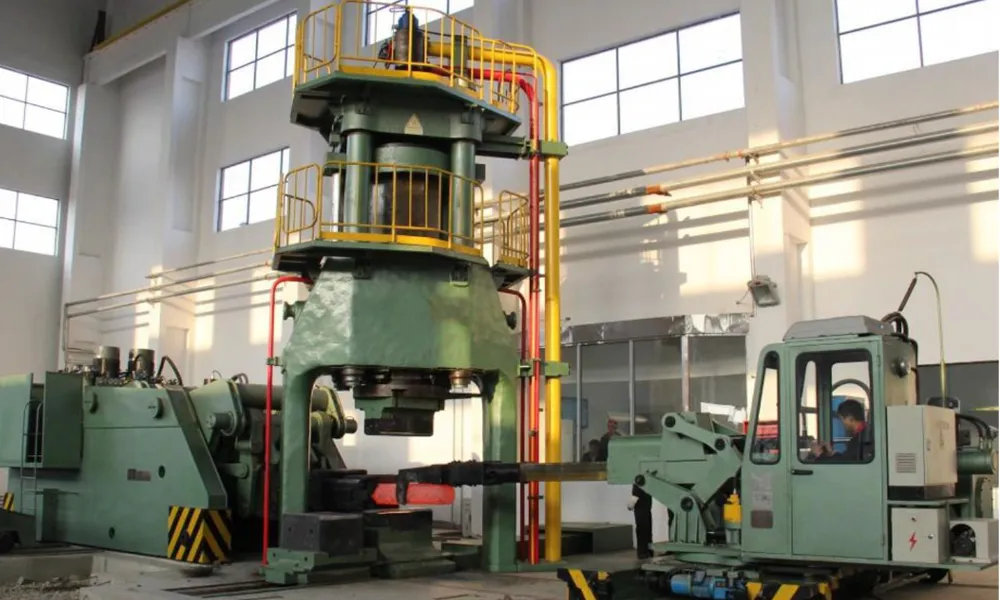

Hydraulic Press Front Side Shift Cylinder Uses:

Hydraulic press front side shift cylinders are used in a variety of applications where a linear force is needed to move an object in a vertical direction. Some of the most common applications include:

• In metal forming, hydraulic press front side shift cylinders are used to apply a controlled force to the workpiece. This force can be used to shape the workpiece, remove material, or join two pieces of metal together.
• In plastic molding, hydraulic press front side shift cylinders are used to clamp the mold halves together and apply pressure to the molten plastic. This pressure forces the plastic to flow into the mold cavities, where it cools and hardens.
• In woodworking, hydraulic press front side shift cylinders are used to operate saws, planers, and jointers. They can also be used to lift and move heavy objects, such as beams and planks.
• In construction, hydraulic press front side shift cylinders are used to lift and move heavy equipment, such as excavators and bulldozers. They can also be used to power hydraulic jacks and hoists.
• In automotive, hydraulic press front side shift cylinders are used to assemble and disassemble vehicles. They are also used to power power windows, seats, and sunroofs.
• In machine tools, hydraulic press front side shift cylinders are used to power presses, lathes, and grinders. They can also be used to move heavy objects, such as workpieces and tooling.

Hydraulic press front side shift cylinders are a versatile and powerful tool that can be used in a wide variety of applications. They offer a number of advantages over other types of cylinders, such as their ability to generate high forces, their smooth operation, and their long lifespan.
