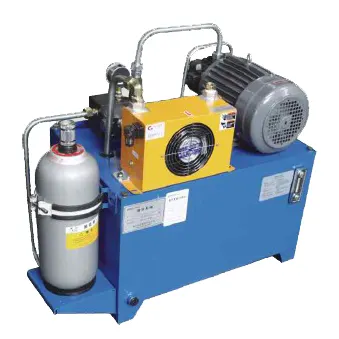

Hydraulic System For Blast Furnace

Hydraulic System For Blast Furnace

The Hydraulic System for Blast Furnace is a state-of-the-art solution designed to optimize the performance of blast furnaces in industrial settings. This advanced hydraulic system offers superior control, reliability, and efficiency, making it indispensable for blast furnace operations. From iron and steel production to other metal refining processes, the Hydraulic System for Blast Furnace enables precise control over critical operations, improving efficiency, increased productivity, and reduced downtime.

Hydraulic System For Blast Furnace Parameter:

Motor Power:2.2KWOil Tank:80LSystem Pressure:3Mpa

Optimal Control for Blast Furnace Operations:

• The Hydraulic System for Blast Furnace provides precise control over critical functions, such as charging, taphole opening and closing, and slag tapping.
• The system ensures accurate and responsive control with its advanced control valves and hydraulic actuators, allowing operators to fine-tune the process parameters for optimal furnace performance.

Reliable and Efficient Hydraulic Power:

• The system is equipped with high-performance hydraulic pumps and motors and delivers reliable and efficient hydraulic power to drive the necessary operations.
• The hydraulic components are designed to withstand the demanding conditions of blast furnace environments, providing consistent performance even under high temperatures and heavy loads.

Custom Hydraulic System Model Description:

Structure Of Oil Tank:

Oil Tank Cleaning Cap:

Custom Hydraulic System:

(1)Vertical Hydraulic System

(2)Horizontal Hydraulic System

(3)Side Mounting Hydraulic System

The side mounting hydraulic pump station, that is, the oil pump device, is horizontally installed on the basis of a separate tank, and the side type can be equipped with a spare pump, which is mainly used for the system with a large mailbox capacity of 250 liters and an electric power of 7.5KW or more.

How To Bleed Air From A Hydraulic System?

Bleeding air from a hydraulic system is a necessary maintenance procedure to ensure optimal performance and prevent spongy or erratic hydraulic operation. Here's a step-by-step guide on how to bleed air from a hydraulic system:

1. Identify Bleed Points:
   • Locate the bleed points in your hydraulic system. These are typically air vent valves or bleed screws placed at high points in the system where air tends to accumulate.
2. Prepare the System:
   • Ensure that the hydraulic system is turned off and depressurized. This is crucial for safety reasons.
3. Position the Equipment:
   • Position the equipment or machinery so that the bleed points are easily accessible. It may require adjusting the orientation or tilting the equipment to allow air to escape effectively.
4. Loosen the Bleed Points:
   • Carefully loosen the air vent valves or bleed screws using the appropriate wrench or tool. Loosen them just enough to allow trapped air to escape without entirely removing them.
5. Start Bleeding:
   • Activate the hydraulic system or start the equipment, and allow the hydraulic fluid to circulate. This will create pressure and push the air towards the bleed points.
6. Bleed Air:
   • Gradually open the air vent valve or bleed screw at the system's highest point, allowing air to escape. You may notice air bubbles or a hissing sound as air is released.
   • Maintain the bleed point open until you observe a steady flow of hydraulic fluid without any air bubbles. This indicates that air has been purged from the system.
7. Close the Bleed Points:
   • Once all the air has been bled from the system, carefully close the air vent valves or bleed screws. Ensure that they are tight enough to prevent any leaks.
8. Repeat the Process:
   • If your hydraulic system has multiple bleed points or you suspect air presence in different sections of the system, repeat steps 4 to 7 for each bleed point until all air is removed.
9. Check Fluid Level:
   • Verify the hydraulic fluid level in the reservoir or tank. If necessary, add fluid to maintain the recommended level.
10. Test System Operation:
    • With the hydraulic system fully bled, test its operation to ensure that it functions smoothly without any issues. Activate the equipment or machinery and observe its performance.

China Hydraulic Cylinder Manufacturers:

Raydafon is a company in the R&D and manufacture of hydraulic systems. It maintains a leading position in China's market segment of hydraulic systems. In 2020, the domestic market share was around 29%. We produce Industrial hydraulic systems, Aerial work vehicle hydraulic cylinders, agricultural machinery hydraulic cylinders, and sanitation machinery hydraulic cylinders.We have a first-class independent R&D platform for assembly. The hydraulic systems production workshop has four semi-automatic lifting cylinder assembly lines and one fully automatic tilting cylinder assembly line, with a designed annual production capacity of 1 million pieces; the special cylinder workshop is equipped with semi-automatic cleaning and assembly systems of various specifications, with a designed annual production capacity of 200,000 essays. It has famous CNC machining equipment, machining centers, special equipment for high-precision cylinder processing, robot welding machines, automatic cleaning machines, automatic cylinder assembly machines, and automatic paint production lines. We have more than 300 sets of critical equipment running. The optimized allocation and efficient utilization of equipment resources ensure the precision requirements of the products and meet the high standard quality requirements of the products.
